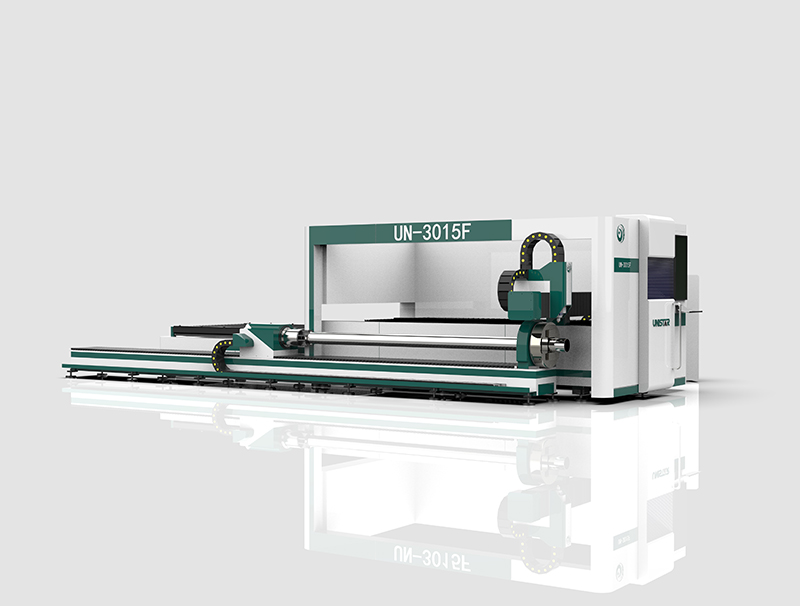

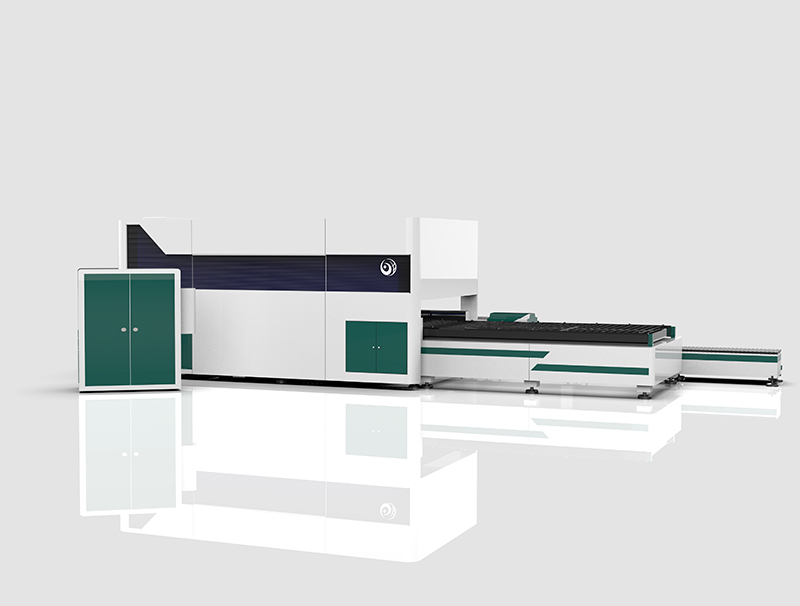

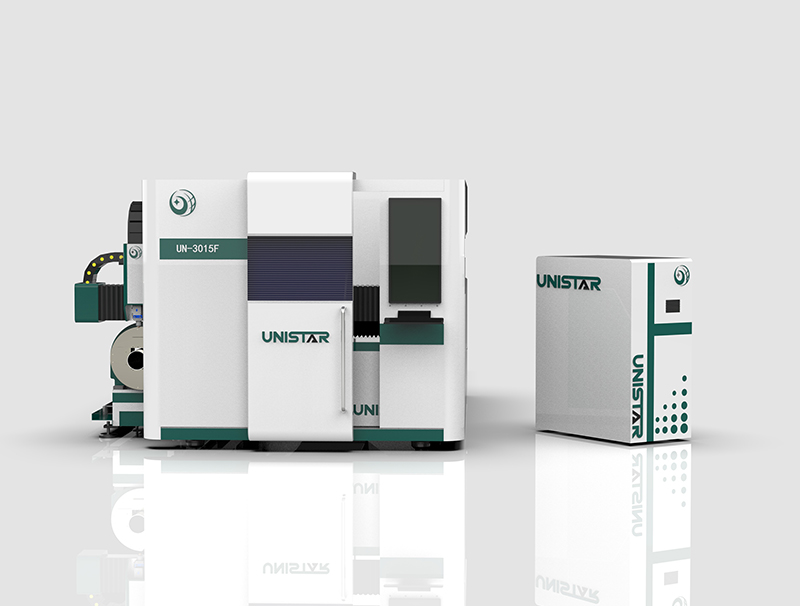

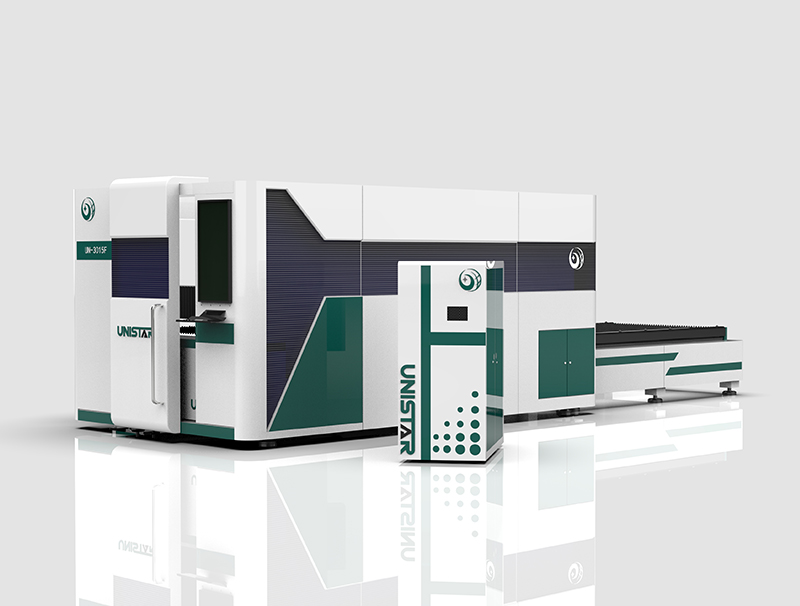

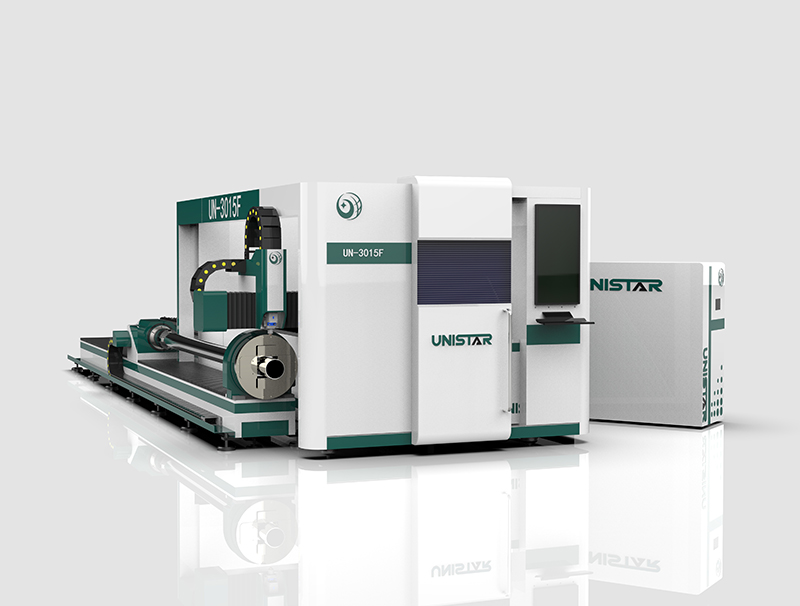

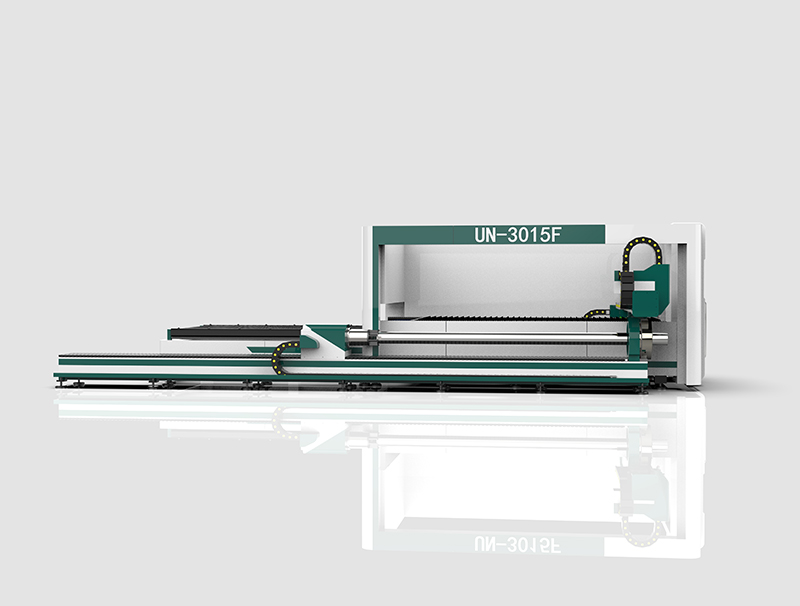

Exchange Table Metal Sheet and Tube Laser Cutting

What is Exchange Table Metal Sheet and Tube Laser Cutting?

This series of products is the preferred model for the metal material processing industry, with strong cutting capacity, "flying" cutting speed, high stability, high quality processing, very low operating costs and high adaptability.

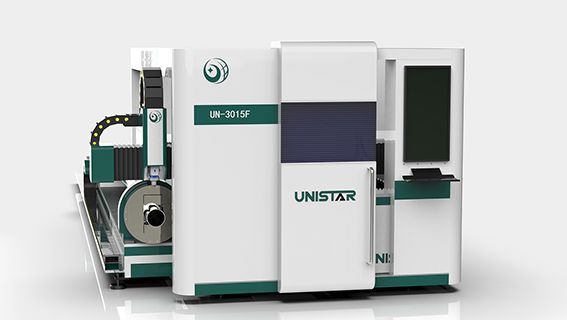

Set flat plate cutting and pipe cutting in one, can be used to cut ordinary metal plate and can cut a variety of round pipe, square pipe, Angle iron and other common pipes, is a multi-functional integrated equipment

Advantages of the Fiber Laser cutter for pipe Cutting

The main advantage of the laser cutting machine exchange platform is to improve production efficiency and reduce costs.

1. Improve production efficiency: The automated system can continuously cut the workpiece, reducing the interference of manual operation, and also save time and cost.

2. Reduce costs: Due to the flexible configuration of the laser cutting machine and the exchange platform, a variety of different types of workpieces can be placed on the same equipment for processing, reducing the need for different equipment, thereby reducing production costs.

3. A machine multi-purpose: can cut thin plate can also cut thick plate, or cut plate or cut pipe, can reduce the floor area, save investment costs.

Functions & Features of Exchange Table Metal Sheet and Tube Laser Cutting

-The fully enclosed protective cover is equipped with an automatic dust removal system.Both the front and rear of the protective cover are equipped with built-in cameras and intelligent monitoring systems.

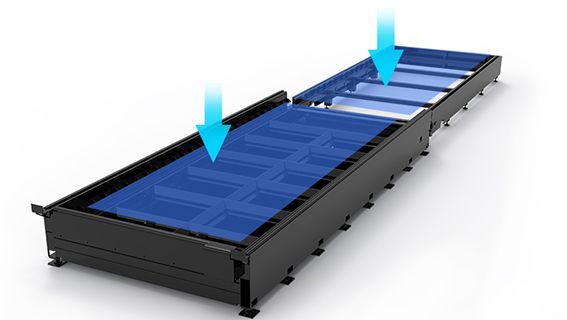

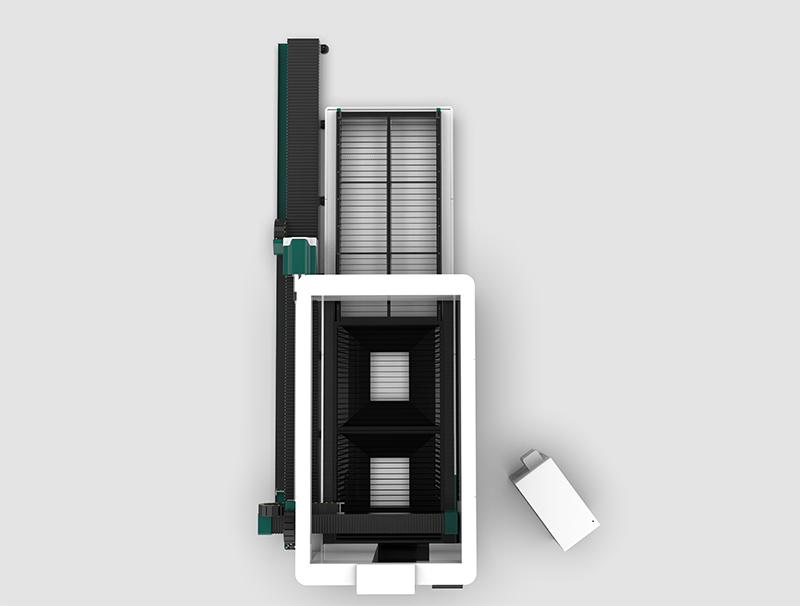

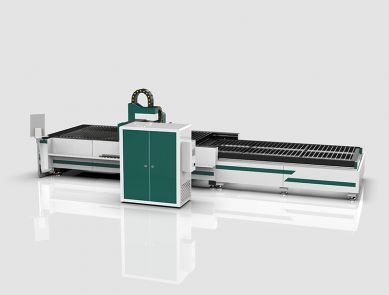

-Double workbench parallel switching,intelligent control switching.

-Using well-known fiber laser, the beam quality is better, the cutting lines are fine, the cutting is smooth,and there is no deformation.

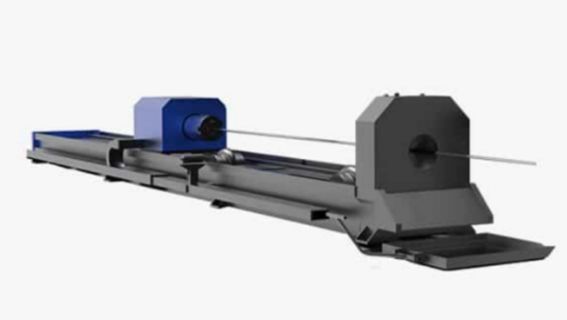

-Pneumatic chuck, strong clamping force, high clamping accuracy, long service life

Components of Exchange Table Metal Sheet and Tube Laser Cutting

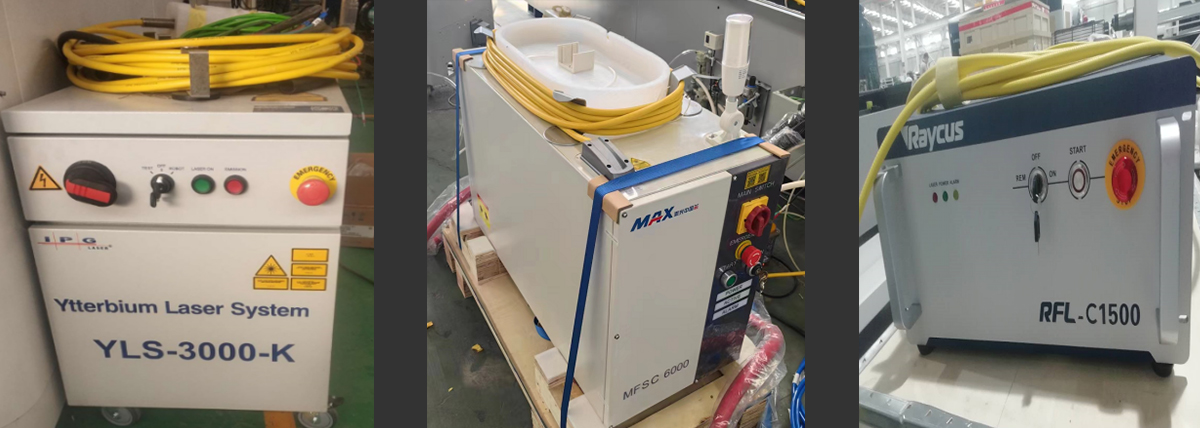

Laser Source: Generally use three major laser generator brands,Germany IPG, China famous brand Raycus brand, MAX . This is where the laser beam is generated. It works by using a high-power laser to produce a focused and intense beam of light.

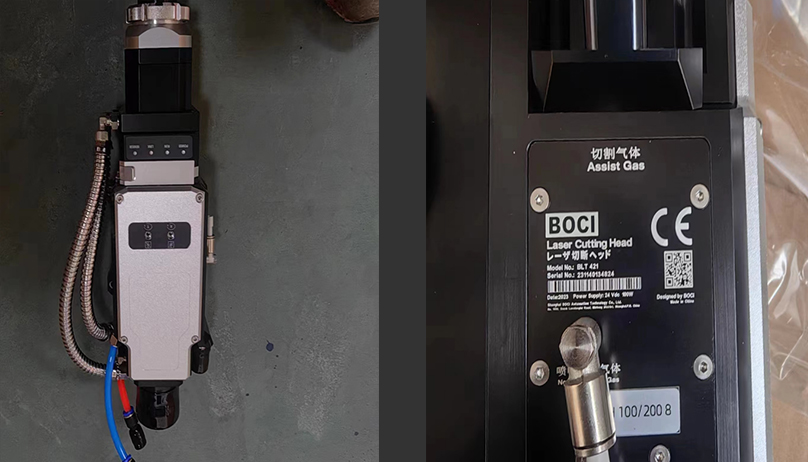

Cutting Head: The cutting head can guide the laser beam to the metal, and the head includes a focusing mirror to make the light finer and the energy more concentrated., Adopt BOCHU cutting head with auto focus

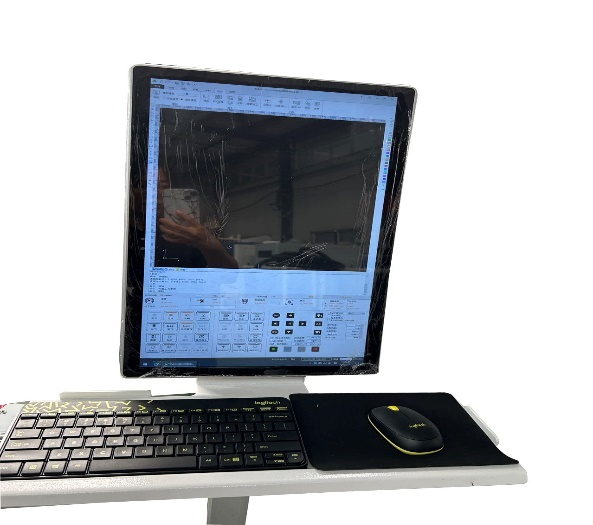

Control Panel: Through this panel, the operator can adjust various Settings of the machine, such as the thickness of the metal being cut and the speed of the cutting process

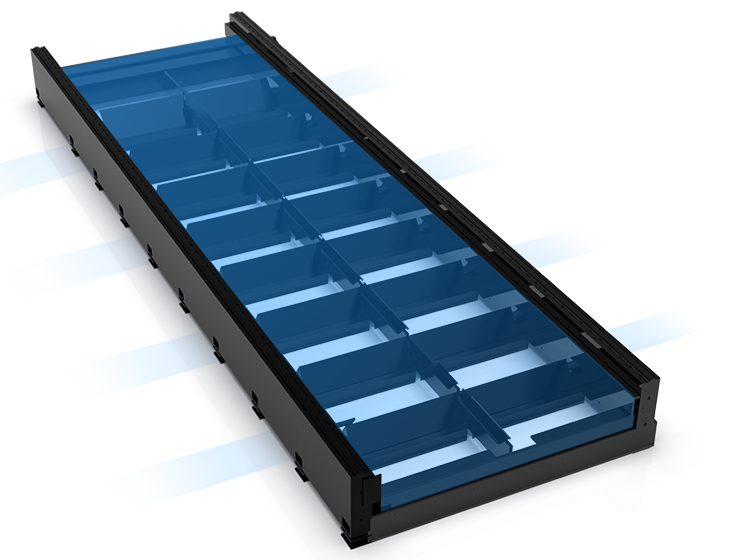

Machine Bed: The operator can place the metal in this place for cutting. The bed is made of a durable material, such as steel  . which holds the metal in place during the cutting process

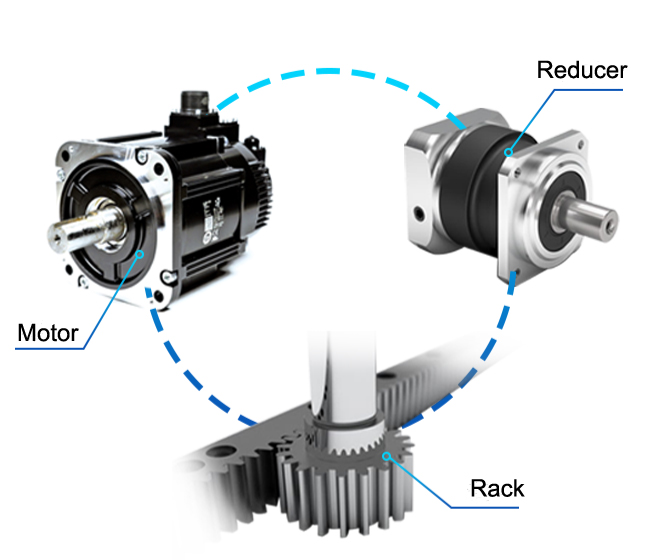

Servo Motor Servo motor is an essential part, but also the most core position of the machine tool, the motor determines the precision, speed and stability of the cutting.

Helical rack

Fiber laser cutting machine adopt Taiwan brand helical rack and pinion

-The helical rack has a higher contact rate (more effective contact teeth) than the straight teeth, thus improving the carrying capacity.

-The helical rack length is an integer, such as 500.0 mm or 1000.0 mm, which is easier to assemble on the machine.

- Bevel rack operation noise is low, especially high speed operation. The product has good running stability and associated noise reduction effect.

Reducer: Import Japan Shimpo reducer, Reduce speed, transfer power, increase torque

Why choose us

1. Our after sales service team and professional workers

2. We have 10 years professional Technical engineer research and develop cnc and laser industry advanced technical level, they are working with Positive, enthusiastic and optimistic.

3. In addition, UNISTARCNC own a group of excellent after-sales team, which can solve problem in customer work, they insist, patient, always insist on their own position, to solve customers' worries.

Foreign customer visiting

UNISTAR Laser already sold to many different countries like Saudi Arabia, Croatia, USA, Canada, Egypt, Pakistan, Hungary, France, Peru, Bulgaria, Korea so on, we established agent service site in Pakistan, Dubai, Saudi Arabia, Peru, Korea, Bulgaria, Can provide customers with the best quality service
