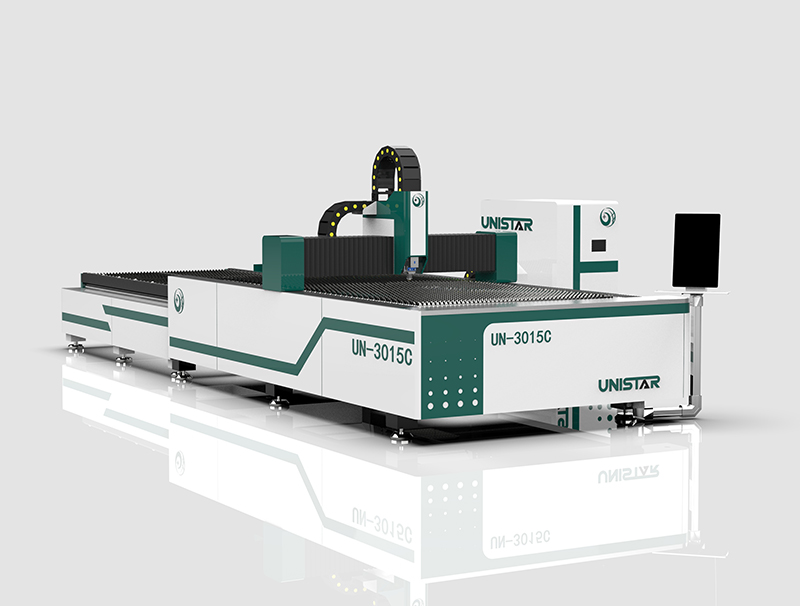

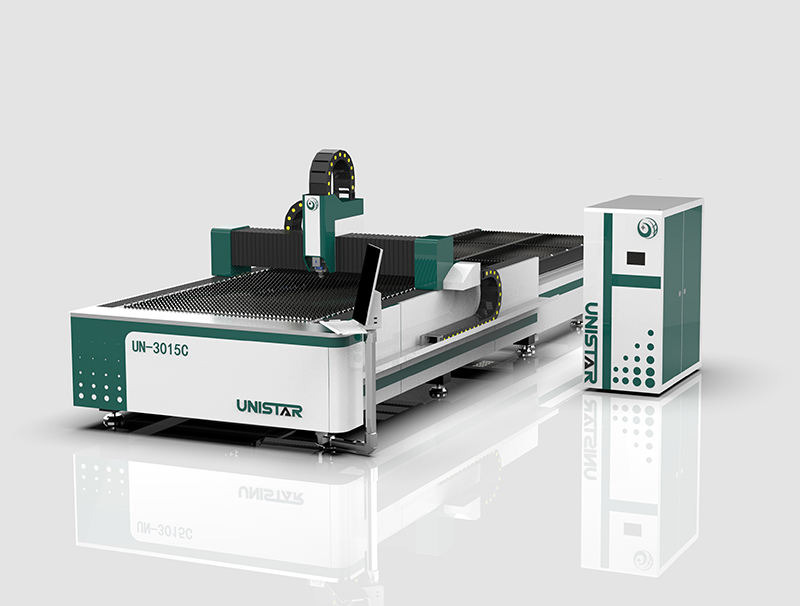

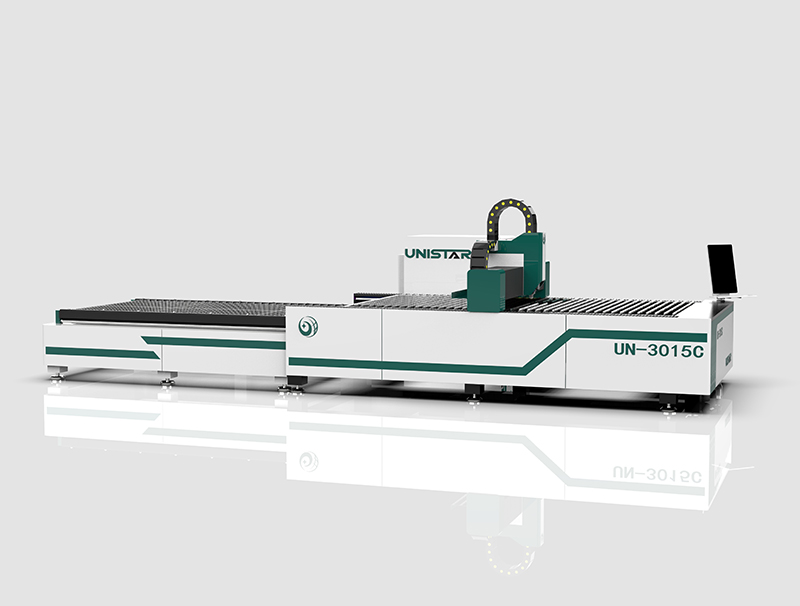

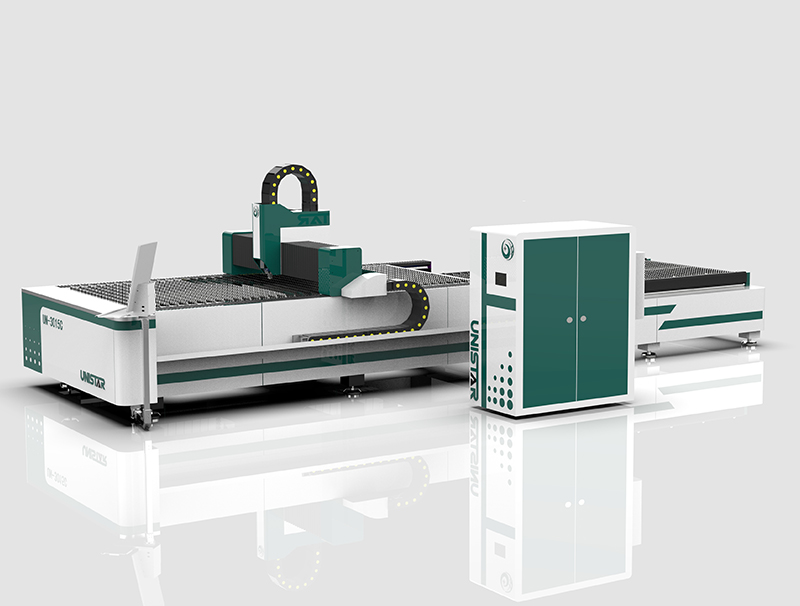

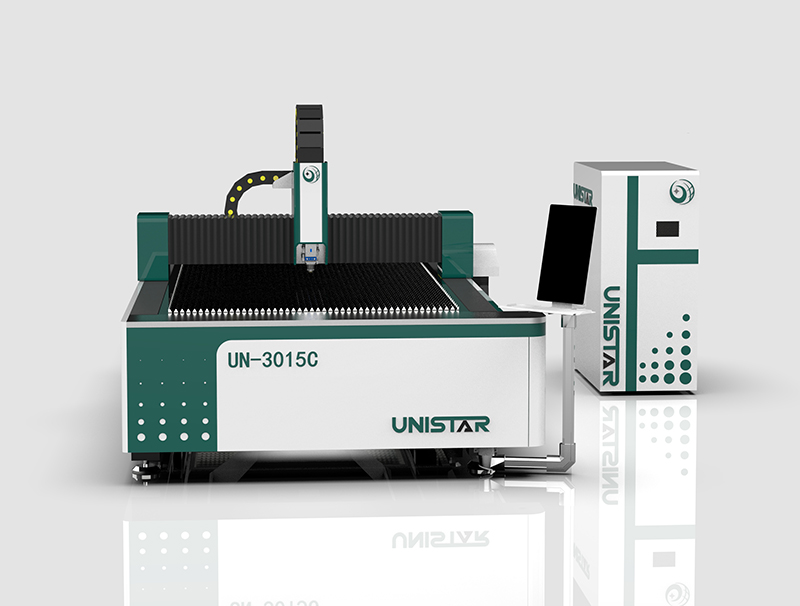

High-power Fiber Laser Cutter With Exchange Table

The equipment consists of a fixed table and a mobile cutting table. Cutting platform through the hydraulic lifting device and chain transmission device, automatic exchange, the whole exchange process can be completed within 30 seconds, greatly improving the production efficiency. It has good strength and stability.

Inquire Now Chat Now

Product Details

Parameters

Samples

FAQ

Request a Quote

What is High-power Fiber Laser Cutter With Exchange Table？

1. The equipment consists of a fixed table and a mobile cutting table. Cutting platform through the hydraulic lifting device and chain transmission device, automatic exchange, the whole exchange process can be completed within 30 seconds, greatly improving the production efficiency. It has good strength and stability.

2. Sectional smoke exhaust: Using the latest cutting-edge smoke control technology, each bed is equipped with smoke exhaust equipment, 360° strong long adsorption, improve purification efficiency, reject lens pollution, open accurate smoke exhaust, intelligent smoking, effectively purify the smoke around the top of the cutting platform.

3.High-speed perforation: high-power attack, high-speed perforation, strong and fast cutting, suitable for thin plate, thick plate porous batch processing. Perforation stability, efficient operation, minimal operation, saving time and effort

Advantages of the High-power Fiber Laser Cutter With Exchange Table

1. The focal length of the cutting head can be adjusted with the surface height of the material, even if the surface of the material is uneven, it can ensure the cutting quality

2. Equipped with hand-held controller, can manually control the cutting position.

3. Using precision ball screw, rack and pinion, linear guide drive operation, so as to achieve high precision, high efficiency and stability of the machine tool.

4 .Solenoid valve and proportional valve switch by the system control. The input value in the numerical control system can control the size of the proportional valve outlet without manual adjustment.

5. High strength integrated welded fuselage, aerospace grade aluminum alloy girder after high temperature annealing treatment, to ensure long-term use without deformation.

6 .After the disassembly of the switchboard, can be loaded into the whole container, saving logistics costs.

Functions & Features of Exchange Table Fiber Laser Cutting Machine

Fiber laser cutting machine with exchange platform is designed for metal processing with high production efficiency, including stainless steel, carbon steel, low carbon steel, aluminum, galvanized sheet, iron and so on. Laser power from 1000w to 30000w. The laser cutting machine has high flexibility, fast cutting speed, high production efficiency, short product production cycle, increased production efficiency for customers, no cutting force, no deformation, no tool wear, good material adaptability; And is computer numerical control, easy to operate, high material utilization.

Components of Exchange Table Fiber Laser Cutting Machine

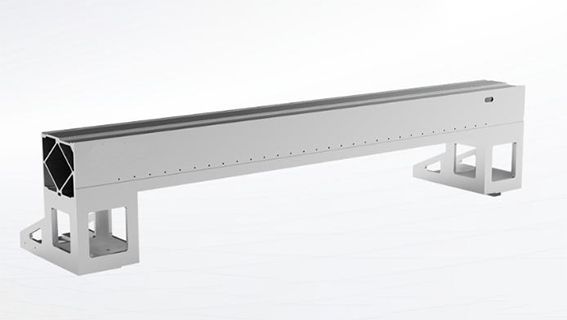

Aviation cast aluminum alloy beam

The machine adopts aero-cast aluminum beam, which is manufactured according to aerospace standards and extruded with a pressure of 4300 tons. High-speed movement is more convenient and greatly improves the processing speed.

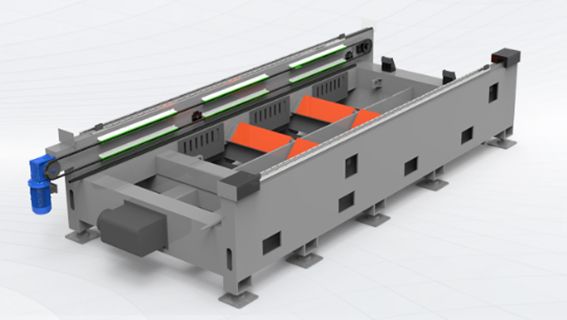

Stable and strong welded steel bed

The bed is welded with a large thickness square pipe and is equipped with reinforcing bars to improve the structural strength and tensile strength. Using high temperature annealing and natural aging treatment, the welding stress is eliminated, the deformation of the bed is prevented, the vibration is reduced, and the good cutting precision is guaranteed.

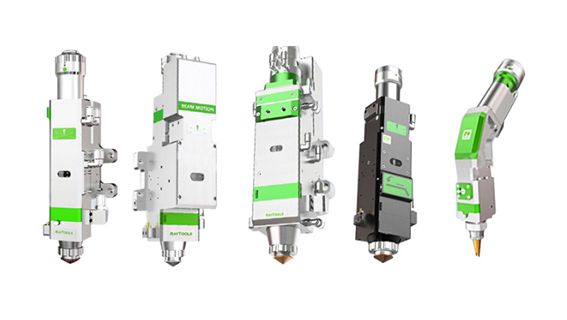

Autofocus cutting head

The laser head with autofocus function can automatically focus without manual focus. The software can automatically change the focusing lens according to the different thickness of the material. It can shorten the perforating time, improve the perforating quality and cutting speed. Simple, convenient, fast, full circulating water cooling around the focusing parts, high-power cutting, no heat, no fog, small volume cutting, long time cutting, greatly improve the service life of the cutting head.

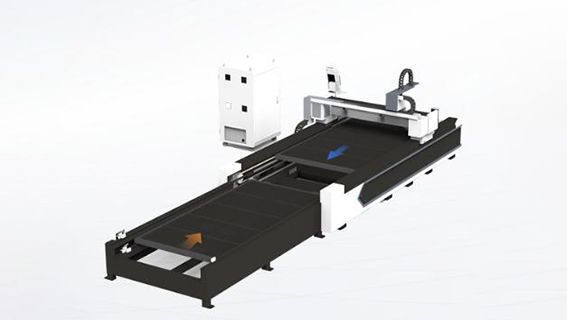

Efficient switchboard

High-speed parallel change design, double table change at the same time, stable and reliable transmission mode. Fast, shorten the replacement time, save the loading and unloading auxiliary time. The AC motor is controlled by a mixer and can complete bench AC in 15 seconds. It is equipped with hexagonal steel rail, the pulley is closely matched with the track, the pneumatic fastening force is strong, the built-in pulley runs smoothly.

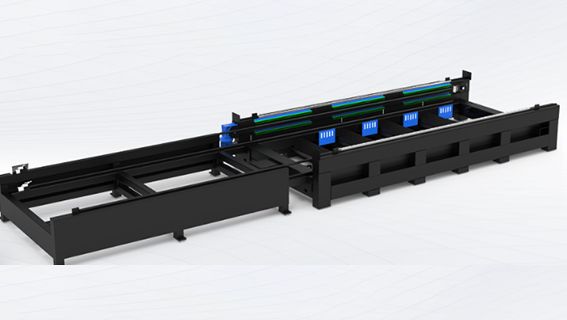

Steady operation

The use of hexagonal steel rail, pulley and track closely match, strong pneumatic, built-in pulley running smoothly, the structure of firebrick, can avoid the deformation of the bed caused by high temperature.

Foreign customer visiting

High-power Fiber Laser Cutter With Exchange Table

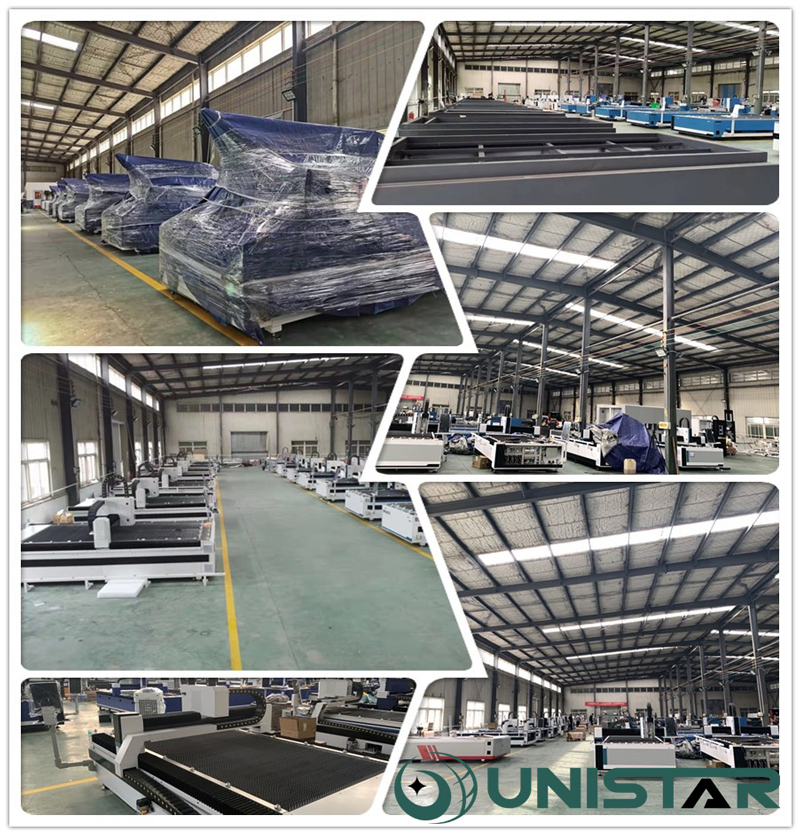

FACTORY SHOW

High-power Fiber Laser Cutter With Exchange Table

	Model	UN-3015C/4015C/6015C/2040C/2060C
	Working Area	30001500mm/40001500/60001500/20004000/2000*6000mm
	Laser source media	MAX Brand/Raycus Brand
	Laser Power	1000W/1500W/2000W/3000W/6000W/12000W/20000W /30000W
	Laser head	Raytools auto focus cutting head
	Laser Wavelength	1080 nm
	Beam Quality	<0.373mrad
	Positioning Accuracy	≤ ±0.03mm/m
	Re-positioning Accuracy	≤±0.02mm/m
	Maximum positioning acceleration	2G
	Max moving Speed	40000mm-60000mm/min
	X-axis Stroke	1500mm
	Y-axis Stroke	3000mm
	Working Table	Blade platform thickness 3mm thickness
	Machine body	Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment,
	Control System	China Professional CYPCUT
	Rack	Taiwan import YYC helical rack with high accuracy
	Rail guide	X,Y,Z axis import Hiwin Rail Guide ,
	Water chiller	China famous brand Hanli water chiller
	Pneumatic accessories	Japan SMC/ Taiwan Yade polite motion components
	Motor and drivers	Japan Fuji servo motor and drivers / Taiwan delta /Japan Yaskawa
	Exchange Table	Include
Reducer		Japan Shimpo reducer/MOTOVARIO reducer
Supported Graphic Formats		NC PLT, DXF, BMP, AI, DST, DWG, etc
Working temperature		Indoor temperature is okThere should be no vibration source nearby
Working voltage		3 Phase 380V/50HZ/
Years of warranty		2 years warranty (not include vulnerable part )

Samples of High-power Fiber Laser Cutter With Exchange Table

Q1: How many years of warranty period？

A1：The whole machine have 2 years quality guaranty, , any parts broken during the warranty time, we will take place of it free (Under no human damage ).

Q2: Do you have CE document and other documents for customs clearance

A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q3: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine

A3: If machine technical problem, we have engineer online support service, through remote control, video show, to help solve problem, if parts broken ( not consumption parts, we will take place a new one as soon as possible.

Q4: Why I choose your company products

A4: High quality machine control inspection and perfect service:

All Parts of our machine are adopted top quality parts →

1) Testing machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check →

2)buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine

3) Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.

4) Strict implementation of after-sales warranty.

5) The important is that you will receive the Corresponding goods after you do payment.

Q5: Which payment way your company can accept?

A5: 1. 30% T/T in advance payment, 70% T/T balance payment before shipping machine.

2. 100% L/C at sight

3. 30% T/T deposit payment, 70% see copy bill of lading

Q6: What are your after-sales services

A6: Online guided installation

● Provide Tutorial machine installation video

● Technical Online guided installation

● Machine instruction manual

◆ Provide Engineer oversea training and installation if customer needed

Include machine installation, software training, Machine operation procedure, daily Maintenance and of Laser tube cutting machine, Common problems and solutions of machines

◆ There are agent service bases in different countries like Peru, Egypt, Europe, Saudi Arabia so on, if happen problem also can contact our

Foreign service agent

◆ We are also offer important technical 24 hours online service through remote control system to solve customer problem, chatting tools like QQ, wechat, whatsapp, skype different online service, Make sure to solve customer problem at first time.
