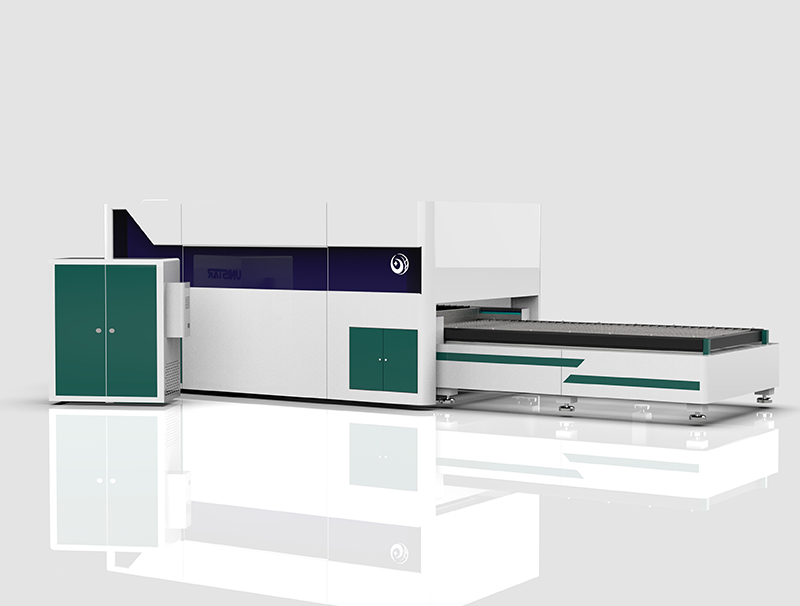

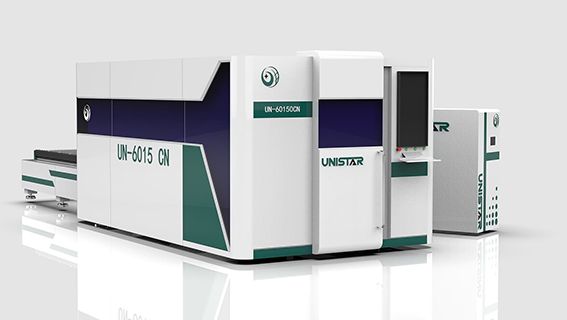

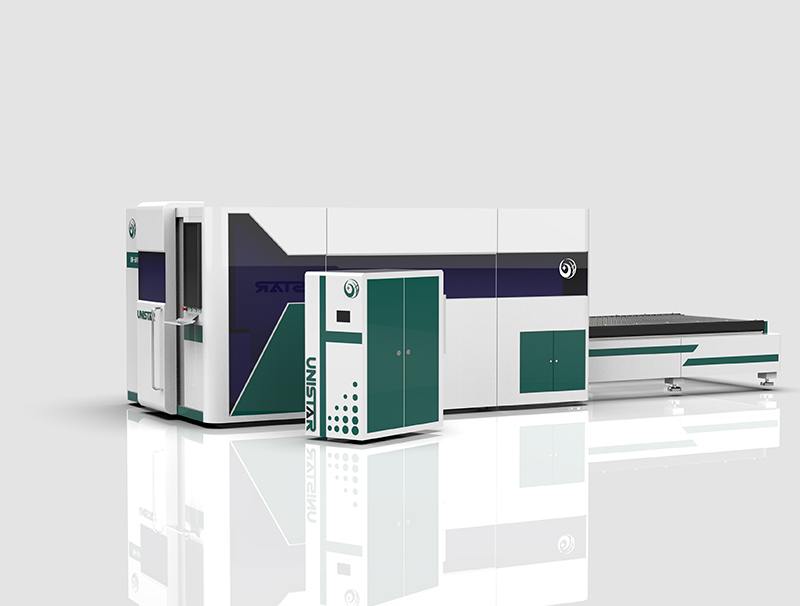

Full covered fiber laser cutting machine

Inquire Now Chat Now

Product Details

Parameters

Request a Quote

Brief introduction

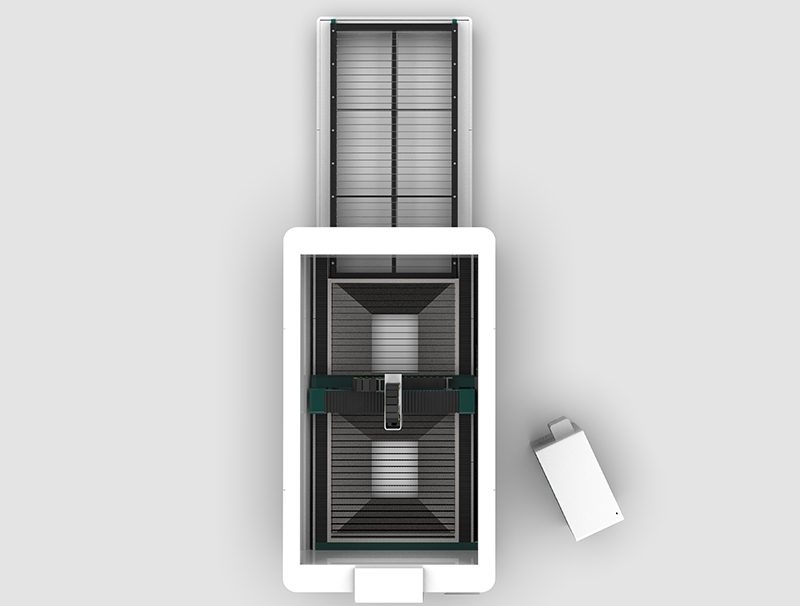

Full covered fiber laser cutting machine with exchange table adopts fiber laser with domestic advanced technology, and is equipped with imported high-precision gear rack, linear guide and other efficient transmission mechanisms, and is a precision CNC fiber laser cutting machine integrating laser cutting, precision machinery. It is a high-tech product integrating numerical control technology and other disciplines. The machine has good dynamic performance and fast servo response. It is equipped with medium power fiber laser to achieve high cutting efficiency.

Feature

(1) Using a completely closed protective cover, it is possible to prevent smoke and dust, which is more environmentally friendly.

(2) Using 15 s exchange platform, the metal plate can be quickly loaded and unloaded, and the machining efficiency is greatly increased.

(3) Using light aircraft aluminium beam, the movement speed is increased greatly, and the machining accuracy is ensured.

(4) Simple operation system, it can quickly cut into the shape of metal, such as carbon steel, stainless steel, copper, aluminium, and galvanized sheet.

Application

The full covered fiber laser cutting machine has extensive applications in decoration, infrastructure, construction, microelectronic, advertising,kitchen appliance, automobile and other equipment manufacturing, and other industries.

Machine Component

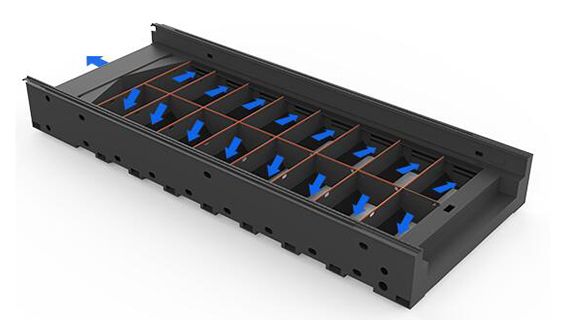

Machine Bed

This is a bed for 10,000 watts of ultra-high power laser cutting machine, with ultra-high stability, heavy plate welding bed, the use of high-quality carbon structural steel welding, so that the bed for a long time without deformation, to ensure good processing accuracy. The design of the hollow structure of the bed and the excellent dust removal and heat dissipation system can effectively reduce the impact of cutting heat, ensure the accuracy of the bed and improve the service life of the equipment

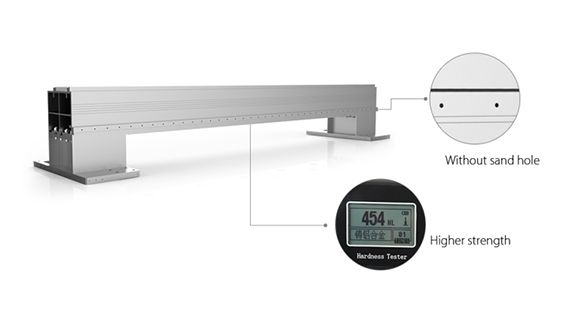

Gantry

Aluminum profile beams for the aviation industry can make the equipment have efficient dynamic performance, greatly improve the processing efficiency, while ensuring the processing quality. The beam structure optimized by finite element analysis, based on the metal characteristics of aluminum alloy, has perfect dynamic performance, and can realize high-speed cutting of all kinds of graphics under the condition of meeting the accuracy.

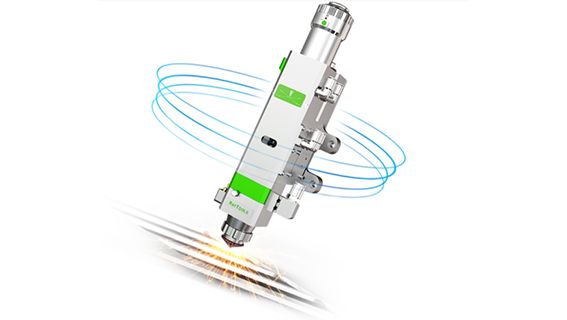

Laser Head

The focus can be automatically adjusted, without manual focusing, automatically replace different focusing mirrors, to meet the cutting of different thickness plates, large adjustment range, accuracy up to 0.01MM, suitable for 0~150MM different types of plates, long life. The focusing component is water-cooled all around to achieve high power, small volume and long-term cutting.

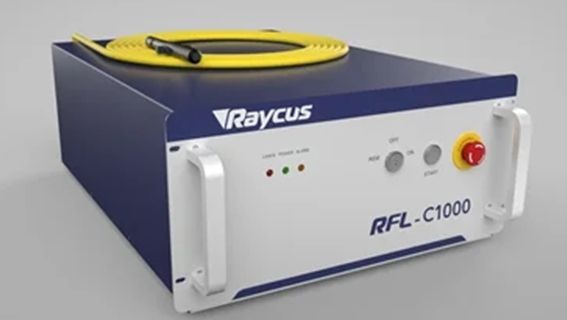

Laser Source

Compared with traditional lasers, fiber lasers have higher photoelectric conversion efficiency, lower power consumption and higher beam quality. Fiber lasers are compact and ready for use. Due to its flexible laser output mode, it can be easily integrated with the system equipment.

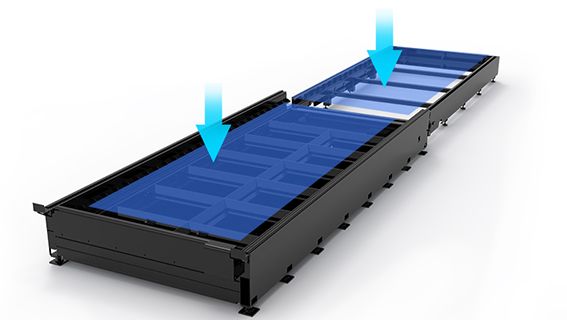

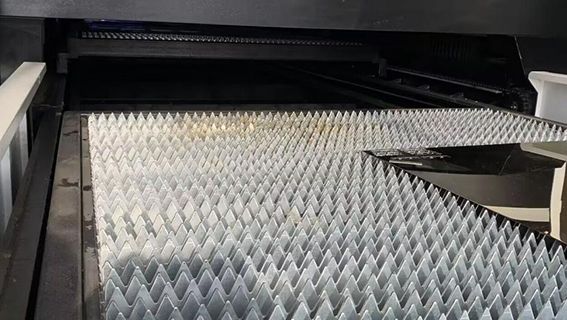

Exchange Table

Parallel interactive workbench 10S Completes an exchange is configured to effectively improve the working efficiency of the equipment.

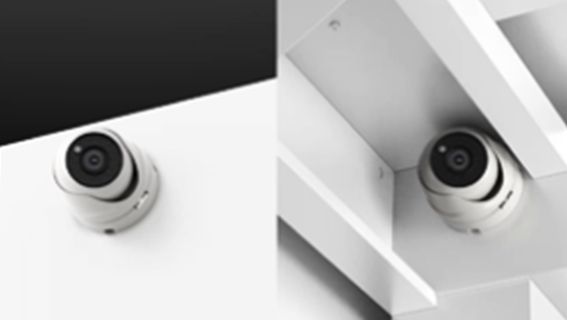

Intelligent monitoring, the use of interconnected dual screen design, operating equipment at the same time, real-time understanding of the cutting situation

Using the latest smoke control technology, each section of the bed is equipped with smoke exhaust equipment, effectively filter toxic gases, delay, improve purification efficiency, refuse lens pollution to make the production process more green

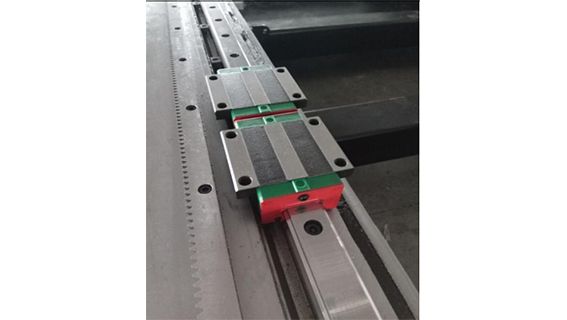

Guide Rail

Linear guide rail only plays a guiding role, the purpose is to guide the gantry along the linear movement, the more straight cut out the higher the accuracy, the wider the guide rail to bear the heavier the load. High-speed heavy gantry equipment are using a wide guide rail, its straightness is determined by the precision of the datum surface processed by the machine tool, in order to prevent the guide rail from bending for a long time, the side of the guide rail has a guide rail press block.

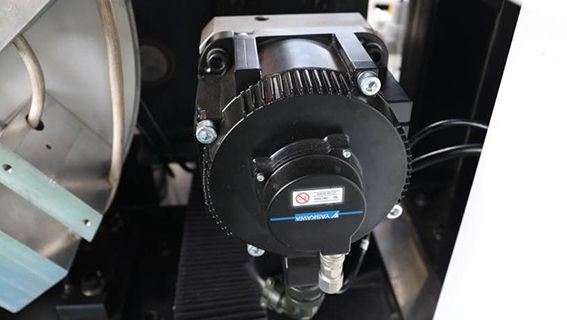

Motor and Driver

Japan YASKAWA motor and driver,It can withstand up to 30 times the load without vibration, and can run stably even if the load changes during operation.It can be applied to areas with an altitude below 2000m. The maximum ambient temperature can reach 60°C

Water Chiller

The chiller ensures the normal operation of the fiber laser cutter at constant temperature. Specially designed for the optical fiber laser cutter is a kind of refrigerator. It has two operating modes: constant temperature and intelligent temperature control. It can control the temperature of ±0.3°C. It is equipped with a wide range of equipment, such as input/output switch, cooling water flow, high and low temperature warning, advanced function, stable and durable.

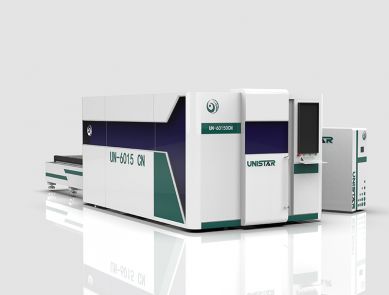

Fully Enclosed Enclosure

The enveloping laser cutting machine adopts full envelope design, which has high safety and can effectively protect the personal safety of workers. In addition, the model also supports interlock protection, which means that the device cannot be started when the safety door is not closed, further improving safety.

NAME	PARAMETERS
Product	Full covered fiber laser cutting machine
Working Area	1500*3000mm
Laser Power	3000W/4000W/6000W/12000W/2000W/30000W
Maximum velocity of movement	120m/min
X/Y axis positioning accuracy	±0.05mm
X/Y axis repeated positioning accuracy	±0.05mm
Reducer	French MOTOVARIO reducer import
Control System Brand	Cypcut
Laser source	RAYCUS/MAX/IPG
Reducer	French MOTOVARIO reducer import
Place of Origin	China
Laser Source Brand	Raycus
Warranty	2 years
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness	1-30mm
Control Software	Cypcut
Laser Head Brand	RAYTOOLS
Rack	Taiwan YYC
Servo Motor Brand	Japan Yaskawa
Rail Guide	Taiwan Hiwin
Electrical control element	Schneider
Accessories	Fully enclosed shell

Our advantages

1.High quality raw materials

Our products are made from high-quality raw materials to ensure their excellent quality. We collaborate with reliable suppliers and strictly control every step from raw material procurement to production manufacturing, to ensure product consistency and stability. This makes our product competitive in the market

2.Advanced production processes

We adopt advanced production processes and focus on production efficiency and product quality. We have a support an experienced R&D team to continuously innovate and improve production processes. This makes our production products can be produced more efficiently while maintaining high quality and stability.

3.Appearance design attracts attention

We focus on the appearance design of our products and are committed to providing consumers with beautiful and comfortable products.our product design team has rich experience and creativity, and they will incorporate the latest designs the combination of philosophy and market demand endows products with unique appearance characteristics. This makes our the product has a significant market share among similar products.

4.Comprehensive after-sales service

We value customer experience and provide comprehensive after-sales service. Regardless of the product usage process our professional customer service team can provide consultation on issues related to after-sales repair and maintenance provide timely support and solutions. This thoughtful service experience has increased consumer trust in me the trust and loyalty of our products.

5.Unique product features

Our product has unique features to meet the personalized needs of consumers. We are interested in the city we conducted in-depth research on market demand and developed products that meet market trends based on consumer feedback and demands flowing products. Whether it's functionality, practicality, or innovation, our products can provide consumers bring unique experiences and value.

6.Significant practicality

Our product has been favored by a large number of users for its significant practicality.Through years of experience Through market testing and user feedback, we continuously improve the performance and functionality of our products. Whether using our product has obvious advantages over similar products in terms of lifespan, stability, and ease of operation Advantages.

Warranty And Service

Our Warranty And Service

Warranty

1.Deliver within twenty working days.

2.Problems with any major part during warranty may be replaced free of charge.

3.Machine has been adjusted before delivery.

Service

1.We have excellent engineers good at English to provide at door service

2.If your machine has big problems if by any chance, our engineers would arrive three to debug and fix.Could be remote control if needed.

3.We can provide English software, user manual and detailed Videos CD.

4.Door to door technical group service.24 hours technology online support.

5.Free training course at ourplant.

FAQ

Q: How to choose laser cutting machine

A: When choosing a laser cutting machine, it is crucial to consider factors such as material type compatibility, dimensions, laser cutting speeds, maximum thickness and output power. By carefully evaluating these aspects, you can ensure that your chosen equipment meets your specific processing needs.

Q : How to install and run laser cutter?

A: We have Laser cutter install guide instruction and diagrammatic drawing also with install and operating video for your reference. if customer need engineer training, we can offer oversea install and training service

Q : How can I do if machine goes wrong?

A: We have technician online service, any questions or problem can feel free to contact us, we will solve your problem within 24 hours

Q: Can I Cut Any Metal with Laser Cutting

A: Among the metals indicated for fiber laser cutting include:

Iron, Steel, Galvanised steel, Stainless steel, Aluminium, Brass, Copper, Titanium.

Q: How long does a laser cutter tube last?

A: Fiber Laser equipment is designed to last for more than a decade. Because of the core of the laser equipment life of up to 100, 000 hours or more.Regular maintenance is required for laser pipe cutting machines

Packing and Shipping

We use plywood case for packing,

1.plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high-weight packaging

2.the board area is big, the structure is good, and operational process is simple, So it is better in leakproofness and waterproof.

3.when importing the plywood case is with fumigation-free, the procedure is simple.
