Brand - UNISTAR
Laser Source - Raycus, MAX
Power Option - 1500W, 2000W, 3000W
Meeting CE Standards in Terms of Quality & Safety
One-Year Limited Warranty for Entire Machine
Online (PayPal, Alibaba) / Offline (T/T, Debit & Credit Cards)
Global Logistics and International Shipping To Anywhere
I. Introduction
Our technological advancement brought us many inventions we merely dreamt of. Even cleaning has become fun and easy with advanced tools and solutions. Fiber laser
cleaning is one of the latest inventions. Portable handheld fiber laser cleaners are used for surface cleaning, rust removal, paint stripping, and preparation tasks in various
industries.
Are you looking for the best fiber laser cleaner for your business? Here we have our popular model used and reviewed by consumers. The specifications and application of
the device are thoroughly discussed here. Wait no longer and choose the best handheld portable fiber laser cleaner of 2026.

II、What Is A Handheld Fiber Laser Cleaner?
A laser cleaning machine is a type of laser ablation machine that irradiates and heats the surface material of the object with the CW (Continuous Wave) or pulsed laser beam
and makes it evaporate or sublime to achieve the purpose of removing the surface material.
Laser cleaning is an environmentally friendly laser ablation or photoablation method to replace chemical and mechanical cleaning methods, which is also known as a laser
rust cleaner, paint removal tool, paint stripping machine, coating remover, rust removal machine, oxide removal system, dirt cleaning tool, oil cleaner, laser descaler machine.
A portable handheld fiber laser cleaner allows flexibility and can be carried operated by hand. Unlike traditional bulky laser cleaning systems, handheld versions offer more
maneuverability and accessibility.

III、Types of Portable Laser Cleaning Systems
Portable laser cleaning systems come in the two most common types, CW (Continuous Wave) and pulsed.
CW laser cleaner uses handheld clean head with continuous fiber laser source. The advantage of CW cleaning system is high cost performance. If you have low requirements
for cleaning and only remove rust or thin paint of stainless steel, mild steel and iron, the cost effective CW laser can meet the requirements.
CW laser powers support 1000W, 1500W, 2000W.

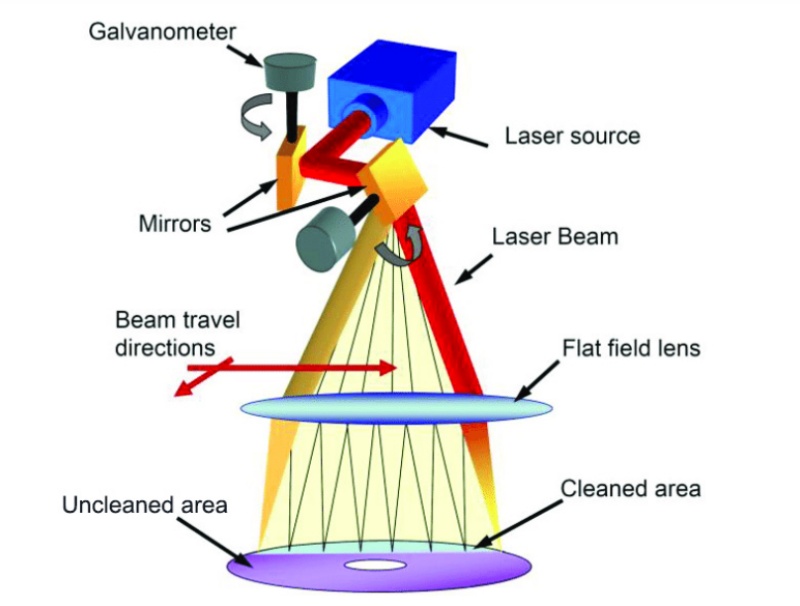

Pulsed laser cleaner comes with pulse fiber laser source and galvo clean head. If you have high-value products need to clean and without harm the base materials, that
must be use pulsed laser.

IV、Types of Laser Cleaning Methods
There are four main types of laser cleaning methods:
⇲ Laser dry cleaning methods that use laser direct radiation to decontaminate.
⇲ The laser + liquid film method, that is, first deposits a layer of liquid film on the surface of the substrate, and then uses laser radiation to decontaminate.
⇲ In the laser+inert gas method, that is, while the laser is irradiated, an inert gas is blown to the surface of the substrate. When the dirt is peeled from the surface, the gas
will be blown off the surface immediately to avoid re-contamination and oxidation of the surface.
⇲ After using the laser to loosen the dirt, clean it with non-corrosive chemical methods.
The most common methods are the first 3 ways. The fourth method is only seen in the cleaning of stone cultural relics. No matter what method of surface treatment is
used, be sure to pay attention to safety.
The laser cleaner is automated and easy to set up and use. The operation is simple, turn on the machine to perform cleaning without chemicals, media, and water. It has
the advantages of cost-effective, manual adjustment of focus, high-speed surface cleaning, and high cleanliness of the surface. It can remove resin, oil stains, stains, dirt,
rust, coating, plating, and paint on the surface of objects.

V、Features of Handheld Fiber Laser Cleaning Machine
⇲ Non-contact cleaning with a laser beam will not damage the surface of the substrates.
⇲ Precise cleaning to achieve precise location, precise size selective cleaning.
⇲ No chemical cleaning fluid, no consumables, safe and environmentally friendly in the cleaning process.
⇲ It is easy to use, just powered on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning.
⇲ The cleaning efficiency is higher than traditional cleaning tools to save time and labor costs.
⇲ The 1500W cleaning system is stable, with almost no need for care and maintenance.
⇲ It can be used as a part of production lines for surface treatment in modern manufacturing.
⇲ With over 10 years of experience, UNISTAR's cleaners are more professional than other manufacturers and dealers.

VI、Advantages of Portable Handheld Fiber Laser Cleaner
Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning, and high-frequency
ultrasonic cleaning, manual laser cleaner has obvious advantages.
✔ It is a "green" cleaning method. It does not need any chemical reagent or cleaning liquid. The waste cleaned is solid powder. It is small, easy to store and recycle, and
can easily solve the environmental pollution caused by chemical cleaning.
✔ The traditional cleaning method is contact cleaning, which has mechanical force on the surface of the cleaning object, damages the surface of the object or the cleaning
medium adheres to the surface of the object being cleaned, which can not be removed, resulting in secondary pollution. The non-abrasive and non-contact nature of laser
erasing makes these problems easy to solve.
✔ Laser can be transmitted through optical fibers, cooperate with robots and robots, realize remote operation conveniently, and clean the parts that are not easy to reach
by traditional methods, which can ensure the safety of personnel in some dangerous places.
✔ The 1500W cleaner can remove pollutants and contaminants from many types of materials without damaging them.
✔ The 1500W cleaning machine has high efficiency and saves time.
✔ Although the purchase has a high one-time investment in the early stage, the cleaning system can be used stably for a long time with low operation costs.
Laser cleaning is considered to be the most reliable and effective solution because of its non-abrasive, non-contact, non-thermal effect and applicability to various materials.
It will take the place of traditional chemical and mechanical cleaning methods for environmental protection and safety.

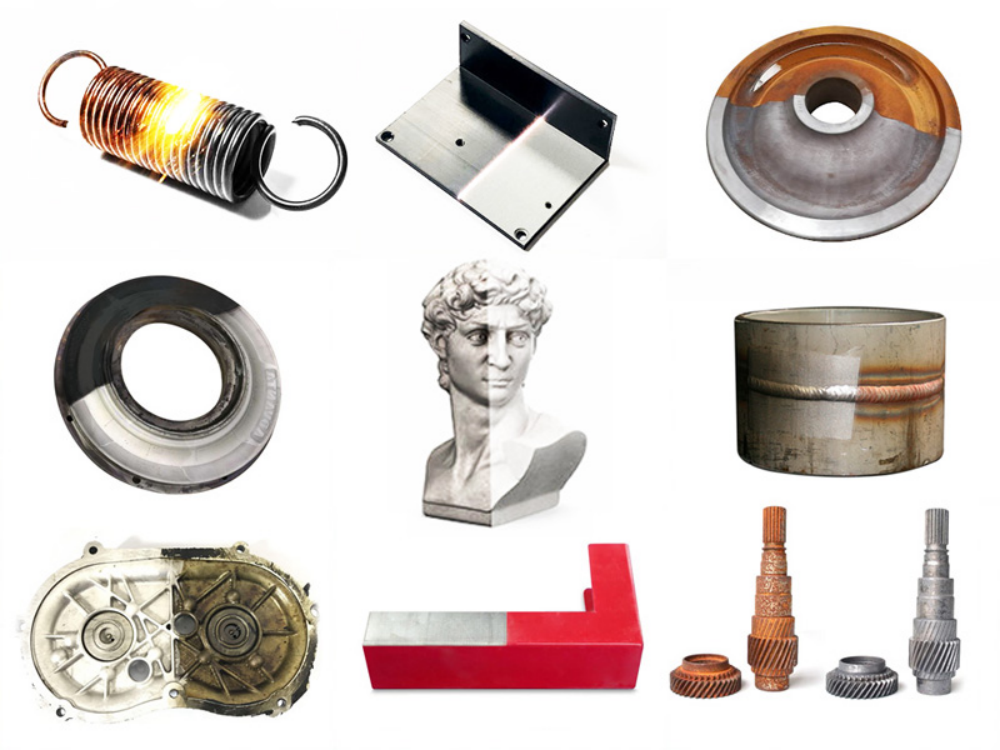

VII、Applications of Portable Fiber Laser Cleaner
It is an emerging industrial cleaning solution. Compared with traditional cleaning solutions, laser erasing is more environmentally friendly and has a wider range of
applications. It can be used to clean oil, oxide, and rust layers on the surface of industrial equipment, industrial processed parts, and airport runways.
Laser cleaners are popular for rust removal from metal surface, paint removal treatment, plating, coating removal, oil, stain, dirt cleaning, and rubber mold residue cleaning.
Rubber birthmark cleaning can also be used to clean paint weld marks on ship deck surfaces. Fiber laser cleaners have been widely used in mold cleaning, weapon equipment
cleaning, aircraft old paint cleaning, building exterior wall cleaning, electronics industry cleaning, precision de-esterification cleaning in the precision instrument industry,
pipeline cleaning in nuclear power plant reactors, cultural relics cleaning, and protection.

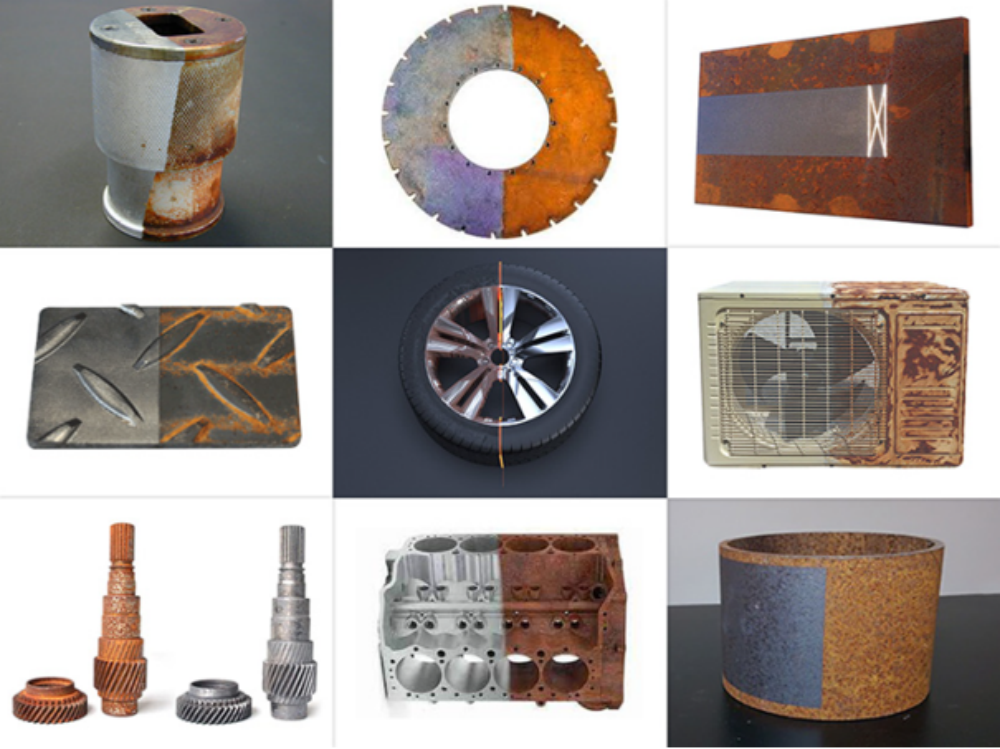

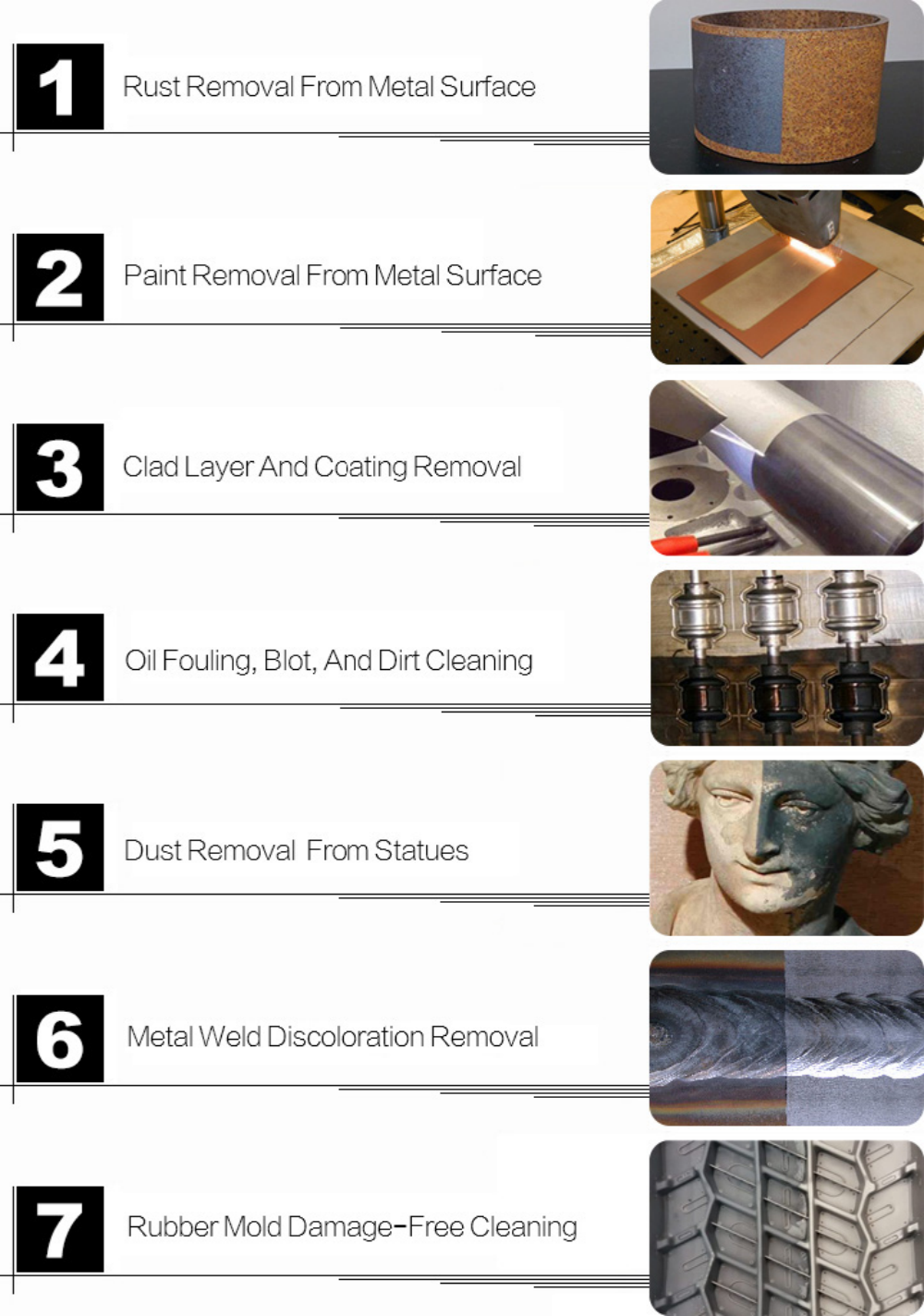

Field Application
⇲ Rust removal from a metal surface.
⇲ Paint removal from metal surfaces.
⇲ Clad layer and coating removal.
⇲ Oil fouling, blot, and dirt cleaning.
⇲ Metal weld discoloration removal.
⇲ Stone surface cleaning.
⇲ Rubber mold damage-free cleaning.
Industry Application
The manufacturing plant, construction works, machinery repair shops, advertisement, energy & mining, building material shops, ship industry, auto parts, rubber mold,
high-end machine manufacturing, tire molded track, and environmental protection industry.

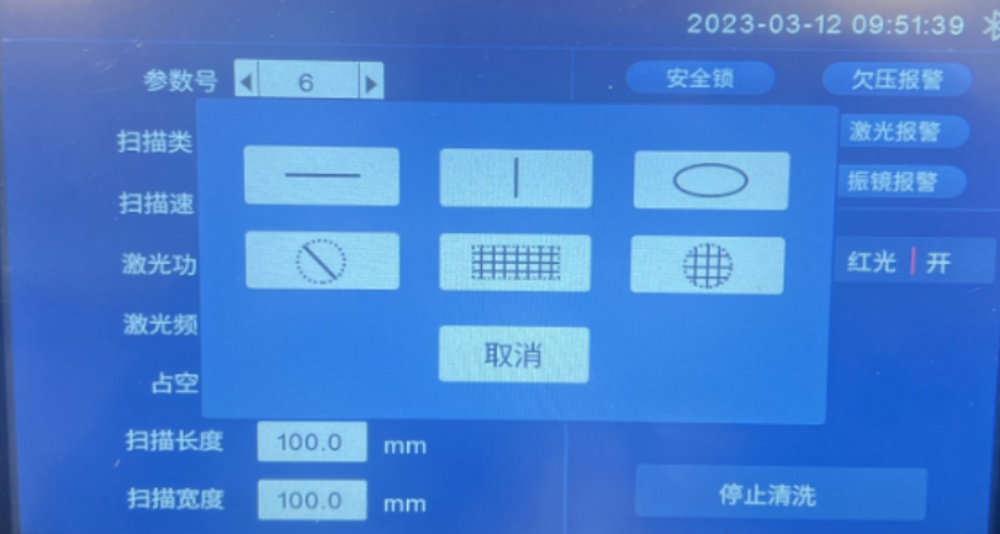

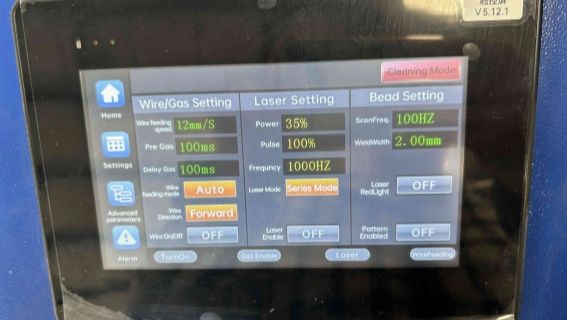

Smart operation large screen
Intelligent operation large screen,support a variety of languages at will switch, a variety of operation mode parameters freely switch.

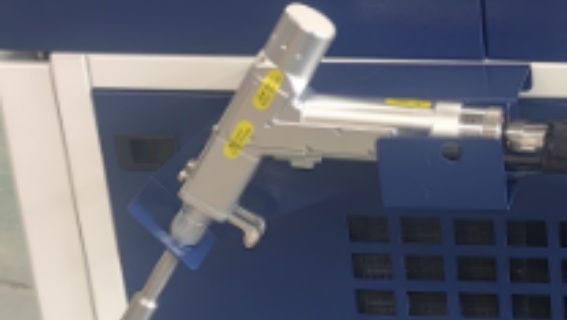

laser cleaning head
The hand-held laser cleaning head has a good hand feeling. It is light and convenient for long-term hand-held operation.

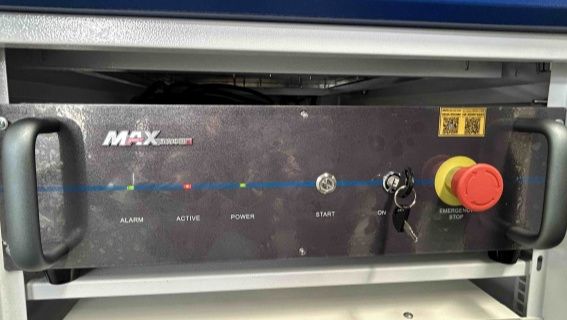

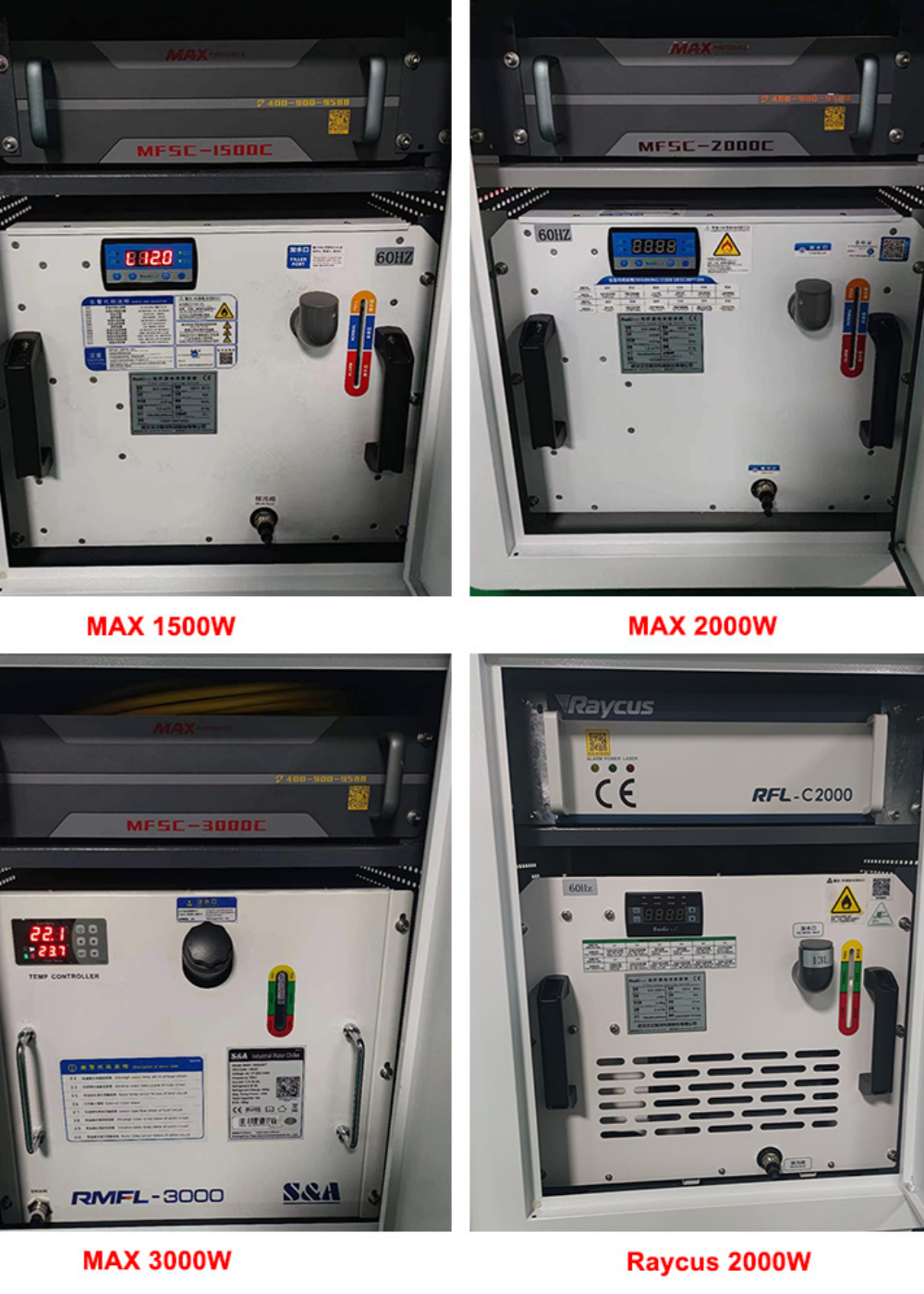

Laser source: Max Brand
It can choose different brand laser source such as
MAX Brand. The power can be 1500W/2000W/3000W

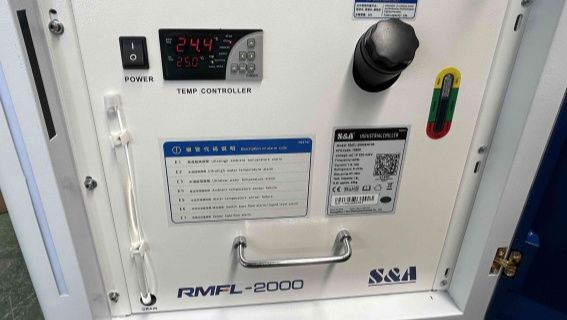

Hanli Water Chiller CW1500
Hanli water chiller have more good cooling effective, during operating the welding machine, the laser generator will generate much heat, if the heat is not eliminated, lead to machine can not work normally, even damage laser.

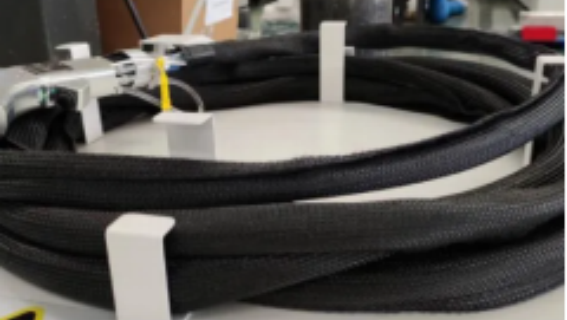

Fiber laser wires 10m
It is standard equip 10m length fiber cable, for more convenience to realize long distance and large area flexible welding and reduce operation restrictions

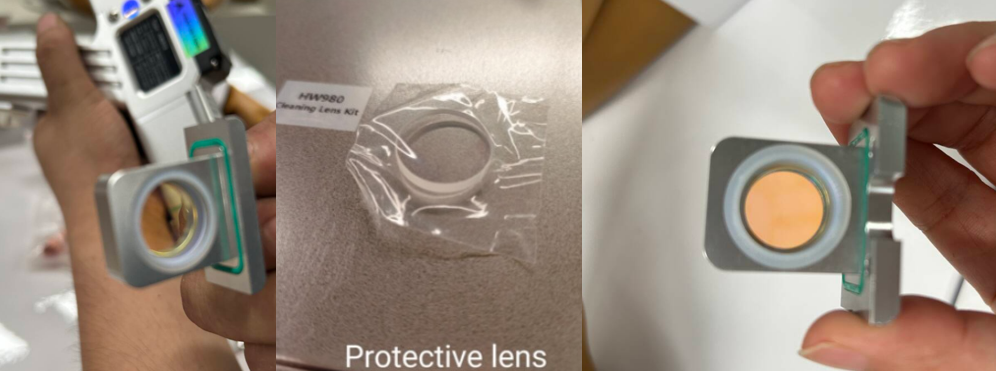

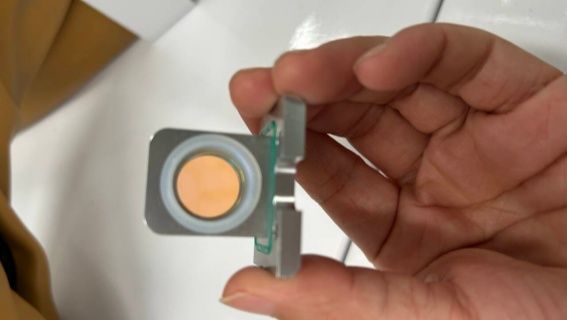

Protective lens
The machine comes standard with 5 protective lenses; additional lenses can be purchased separately if needed.

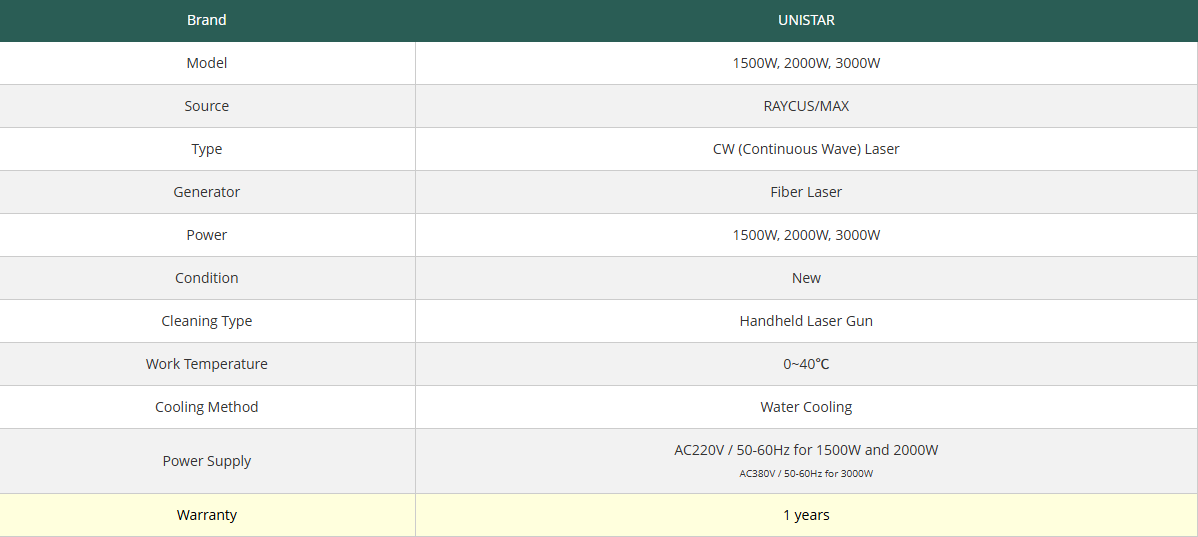

Portable Handheld Fiber Laser Cleaning Machine Technical Parameters

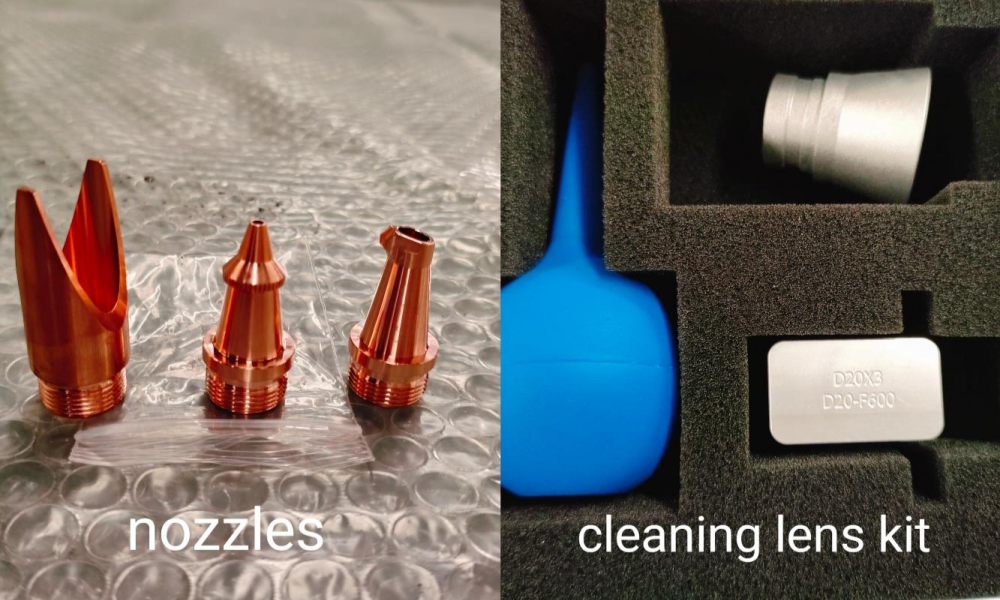

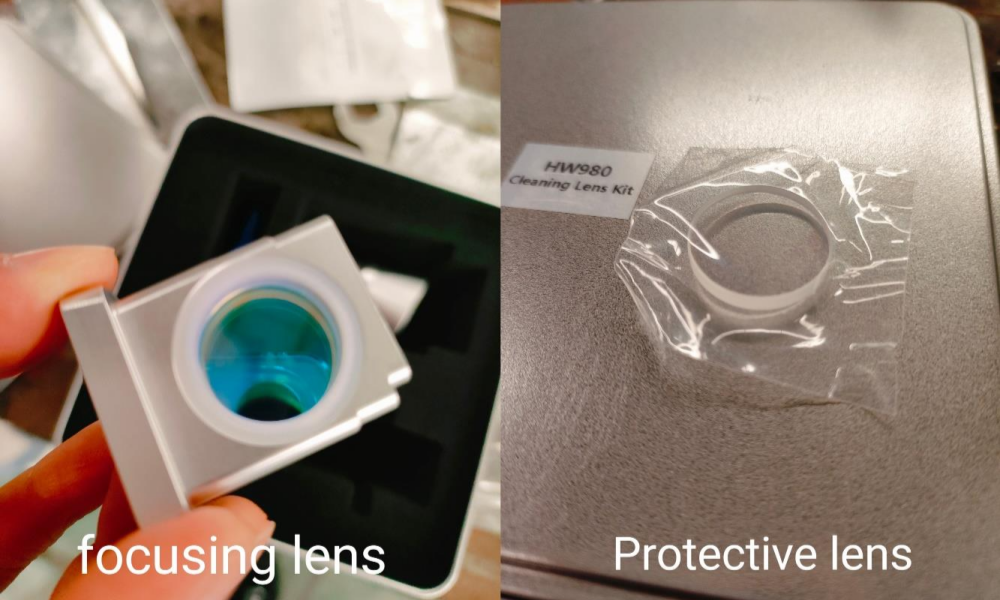

Consumables:

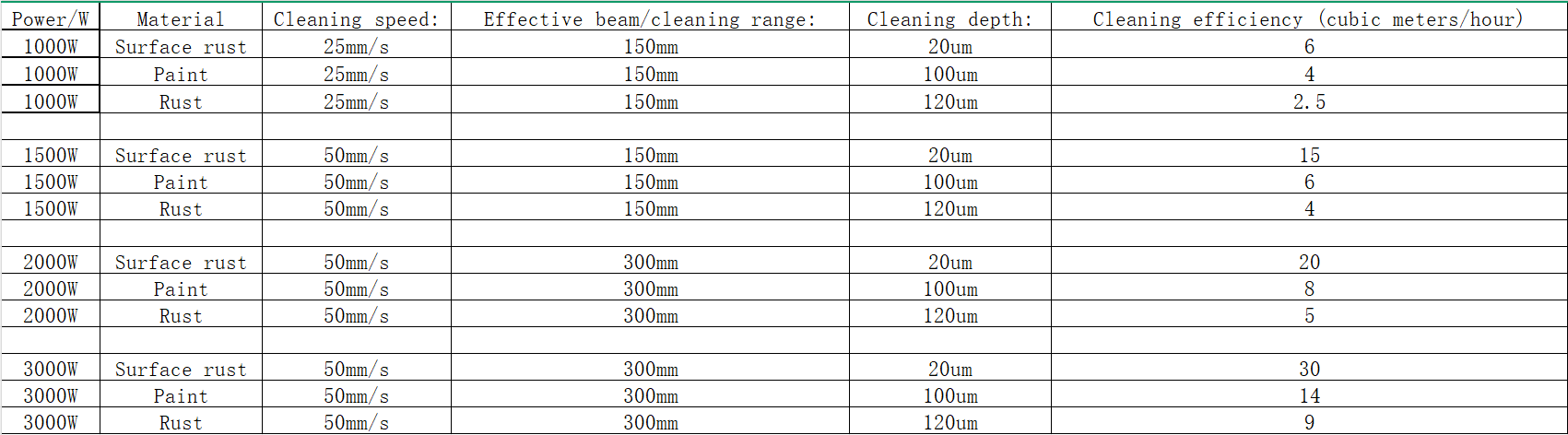

Cleaning parameters:

Optionals:
1.The standard machine uses a Max laser generator, with Raycus optional:

2.The machine's standard cleaning mode is a single pendulum, which can be upgraded to a Ruifa dual pendulum system, increasing the number of cleaning modes to six:

3.The machine generally supports 19 languages, including Simplified Chinese, Traditional Chinese, English, Russian, German, French, Korean, Japanese, Spanish, Portuguese,
Arabic, Polish, Czech, Thai, Turkish, Italian, Hungarian, Ukrainian, and Finnish. If additional language modes are required, we can add them for the customer free of charge.
4.The machine can be upgraded to a three-in-one (cleaning, welding, cutting), a four-in-one (cleaning, welding, cutting, and cleaning weld seams), or a five-in-one (cleaning,
welding, cutting, cleaning weld seams, and energy storage welding).

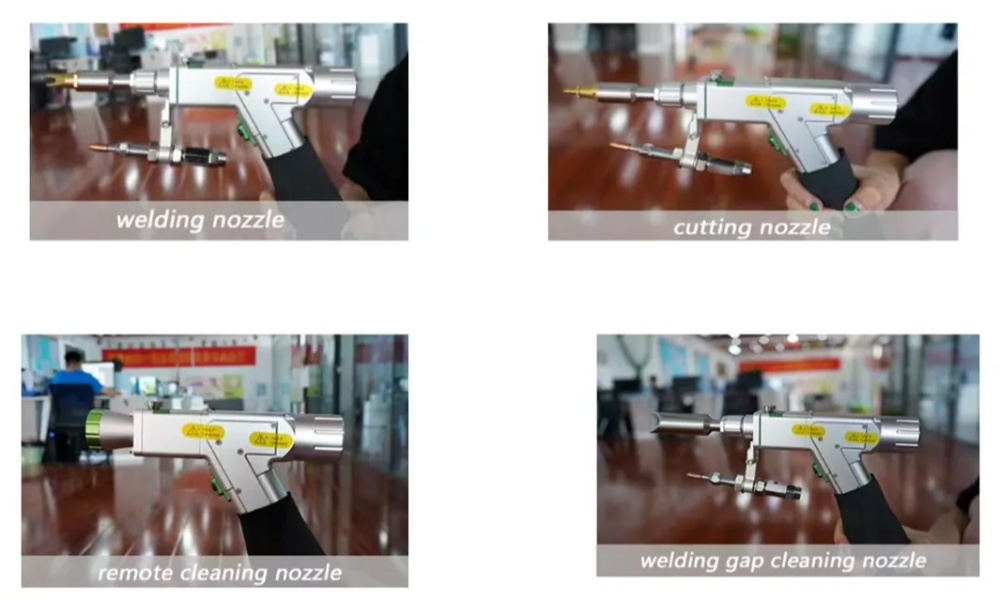

The following are the different laser heads in four different modes of the four-in-one design:

Four-in-one spare parts:

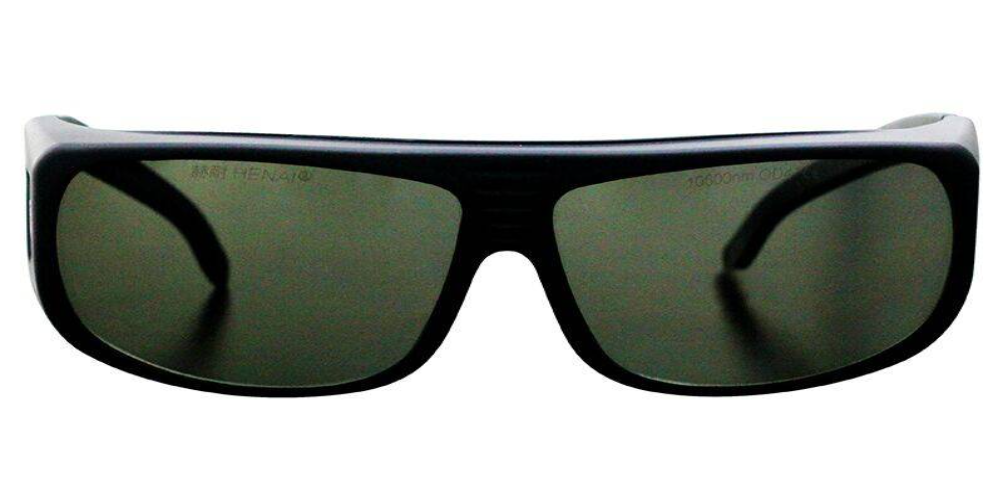

5.Protective goggles are included with the machine; customers can choose to purchase several pairs as spares, or they can buy them locally.

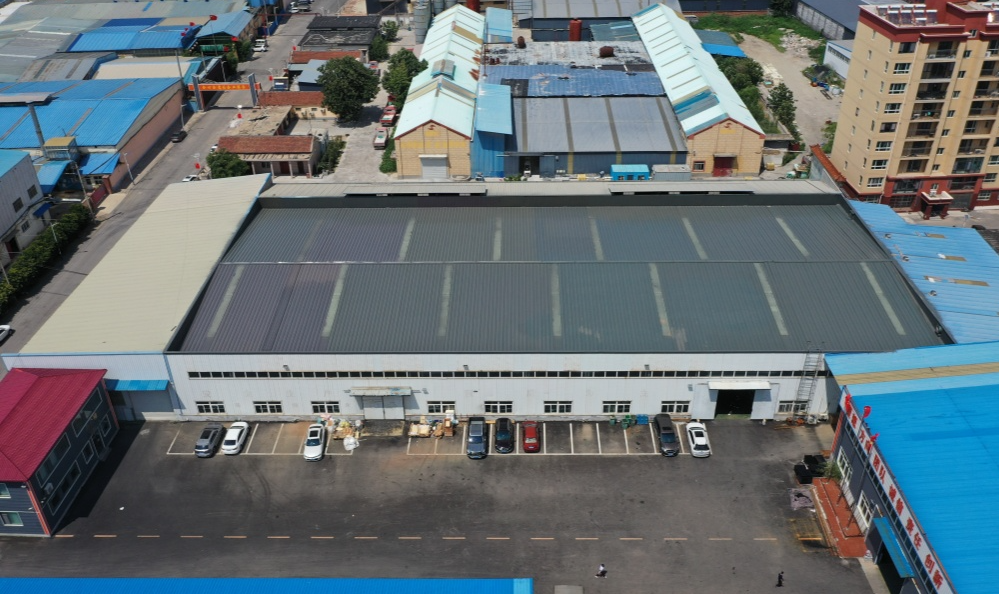

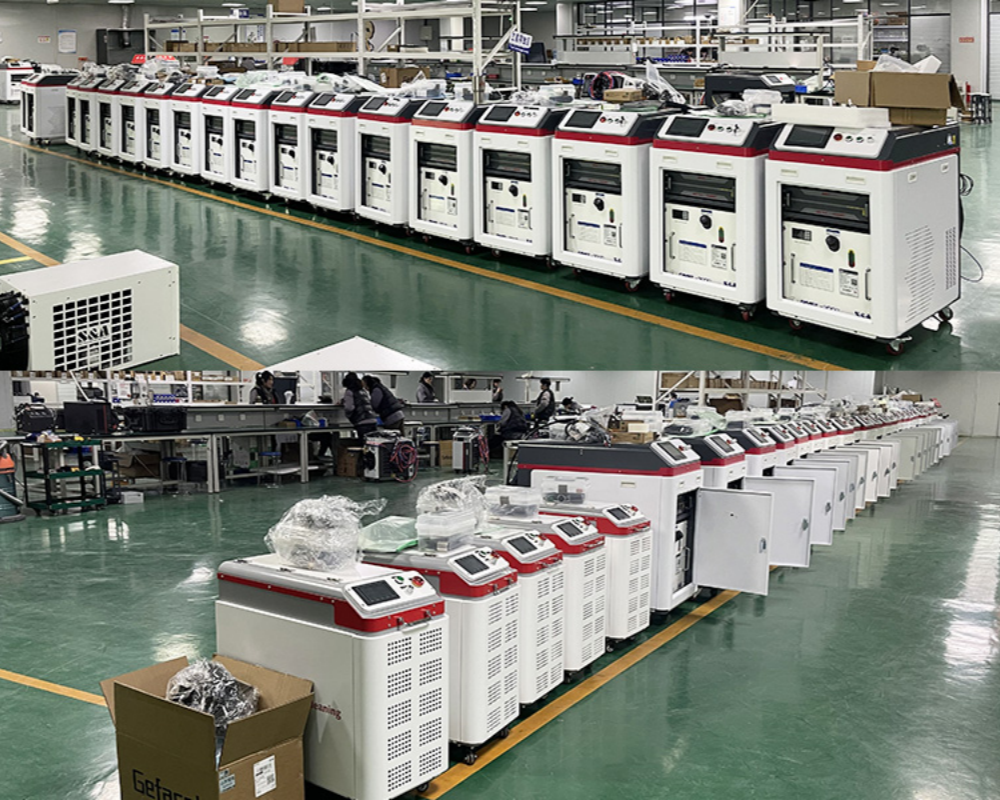

Our factory:

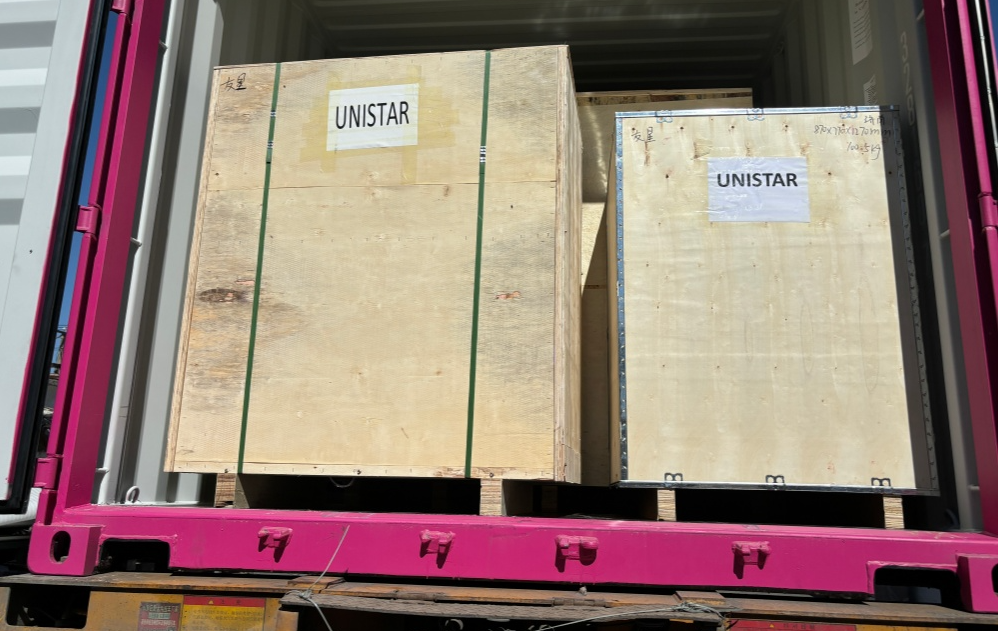

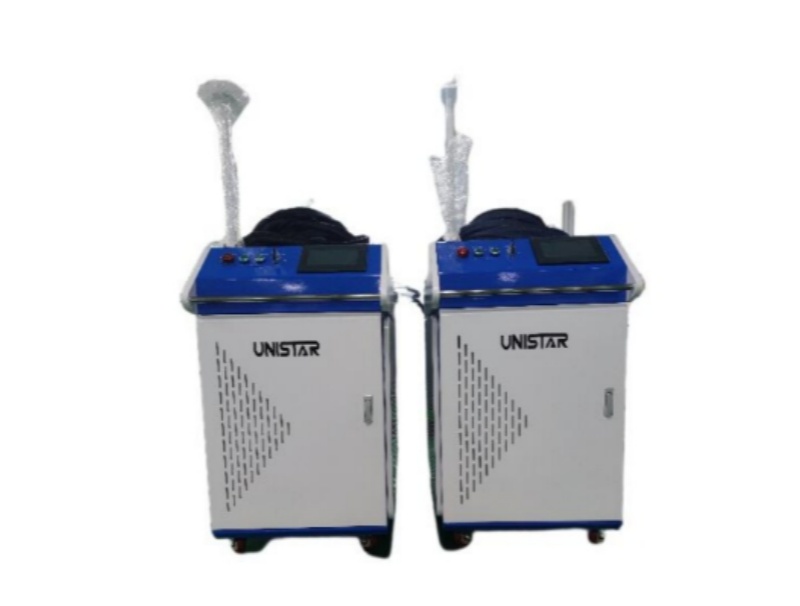

Machine Packing and Shipping:


Senior engineer for after-sales service:

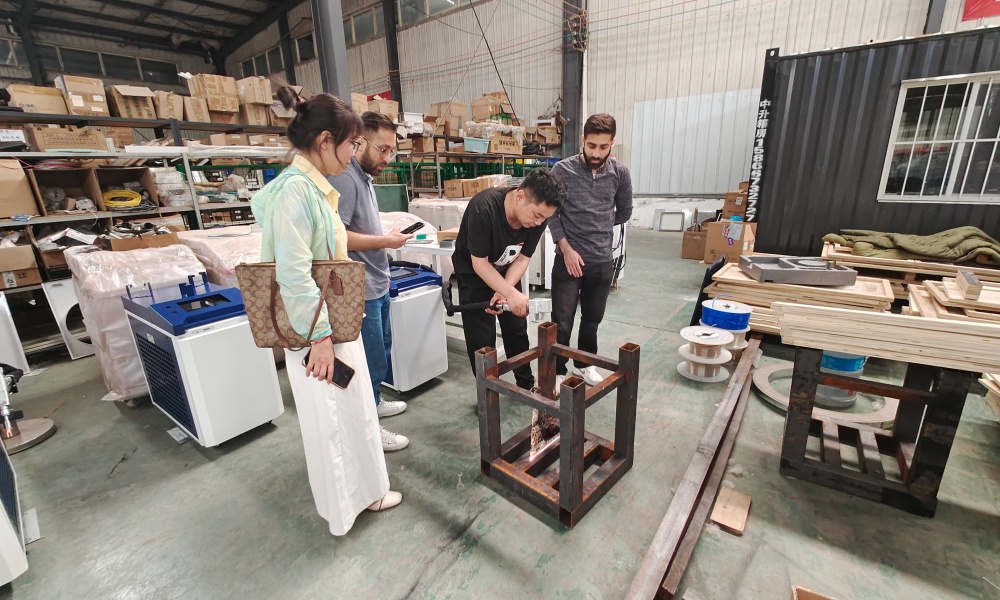

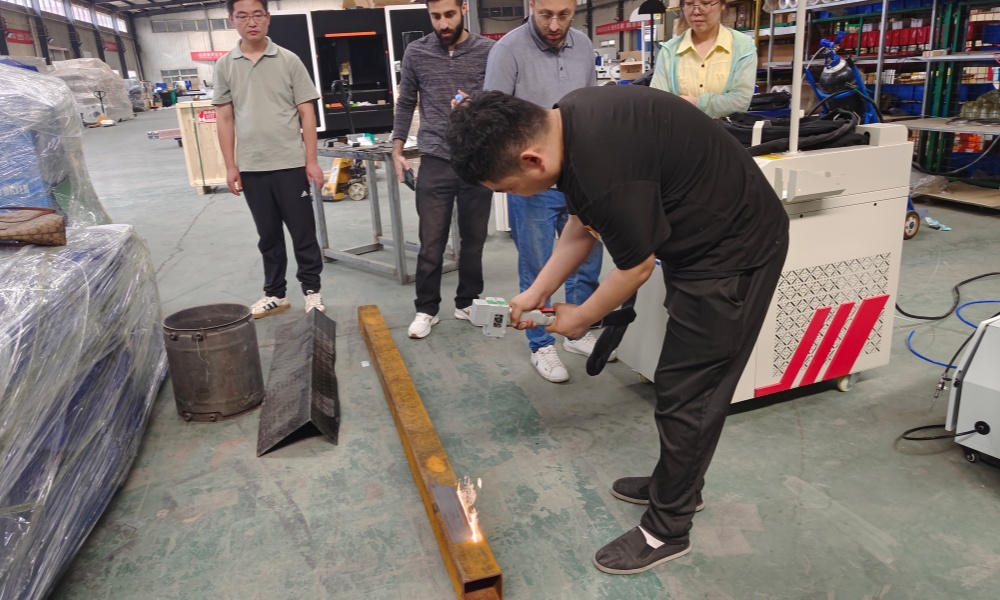

Customer visiting:



Certificates:

Handheld Fiber Laser Cleaning Machine Projects




Pre-Sale Service
1. Free sample cleaning service:
For free sample testing, we will do testing in our factory and make video to show you the cleaning process and result, or send samples to you to check the cleaning quality.
2. Progressing Solution Design:
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality
for customer.
3. Customized machine design:
According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.

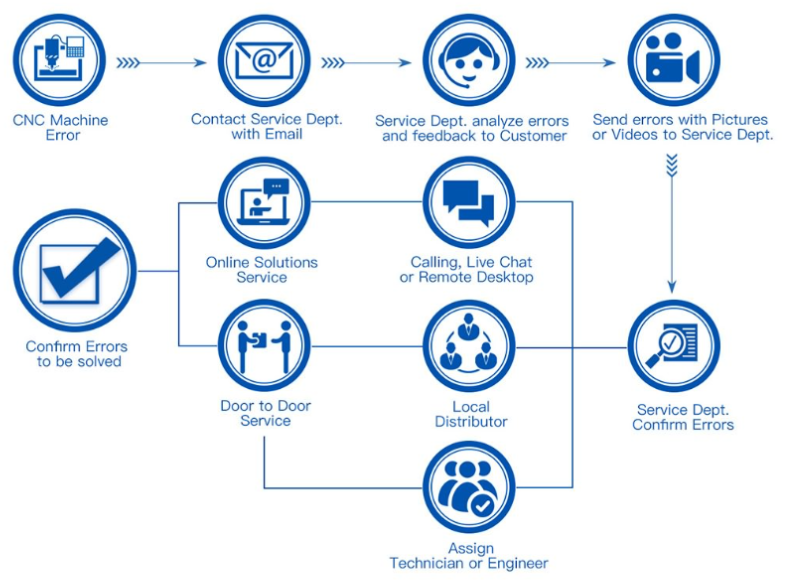

After sale service:

1> The machine warranty 1 year
2> 5 sets consumable protective lens free
3> a> During the warranty period, in case of failure or part damage (except human factors and force majeure factors), the seller shall be responsible for free repair. The
parts need to be replaced will be provide from the seller for free (except the wear-quick part)
b> After the warranty period expired, the buyer only need to pay the actual maintenance cost
c> UNISTAR laser will make return visit of customers at regular time one year
4> We can offer engineers go abroad installation and training , 150USD/One day

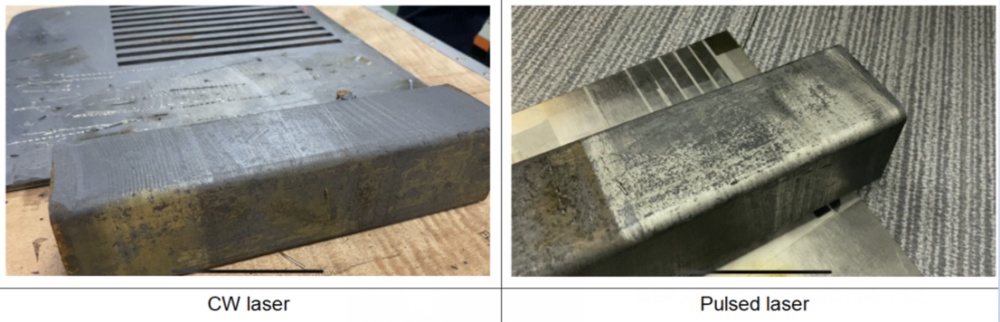

What is the difference between continuous cleaning and pulse cleaning?

Continuous laser cleaning has a wide range of applications in industrial rust removal and offers high cost-effectiveness. It is recommended for applications where high-
precision laser cleaning is not required, such as removing rust or thin paint from stainless steel, low-carbon steel, or iron.
Pulse cleaning applications include rust removal, paint removal, and plating removal. It is particularly suitable for cleaning precision components and molds. Advantages
of pulse cleaning include: less damage to metal materials, micron-level cleaning, precise positioning, and less risk of damaging lenses.
Safety Protocols
Safety protocols and regulations are crucial to prevent accidents. An operator must follow the safety measures for his well-being. Read the actions very carefully given in
the manual book. Besides, learn the operating skill before starting with the machine in action.
⇲ Eye Protection.
⇲ Skin Protection.
⇲ Controlled Work Area.
⇲ Training and Education.
⇲ OSHA regulations outline requirements for laser safety.
⇲ Industry-specific regulations.
Buying Considerations
While buying a portable handheld laser cleaner, make sure the machine meets your requirements. You can follow the factors we have mentioned to consider for a useful
buying experience.
⇲ Make sure the power and intensity of the laser match your cleaning requirements of applications.
⇲ Consider the wavelength of the laser. It determines the effectiveness on different surfaces.
⇲ Choose a lightweight and ergonomically designed unit for easy usage.
⇲ A user-friendly control and interface will bring joy to the operations.
⇲ A well-branded machine with its peak performance and durability will minimize downtime and maintenance costs.
Lastly, compare different brands, models, and prices to get the best fit for your applications. A versatile portable handheld laser cleaner will do multiple jobs for you.
Why choose us?
Jinan Unistar Machinery Co.,Ltd are specializing in manufacturing and exporting cnc machine and laser machine since 2002 years. The company has two big factory, one
is cnc router factory, another is laser machine factory
UNISTRCNC has professional technical and research teams with rich experience of cnc router, ATC cnc Router, Laser machine, Laser cutting machine, Laser marking machine,
cnc metal engraving machine, cnc plasma cutting machine, Fiber metal cutting machine.
FAQs
1. How many watts do I need for a laser cleaner to remove rust effectively?
For light surface rust use a 100W-200W pulse laser. For deep pitted rust and heavy corrosion, use 500W-1000W. For industrial-scale thick rust removal, use 1500W-3000W
continuous wave laser cleaners.
2. Is a portable laser cleaner safe to use without damaging the metal underneath?
Short Answer: Yes. Laser cleaning targets only contaminants because rust and paint absorb laser energy differently than base metal. The laser vaporizes surface layers while
leaving the substrate intact when properly calibrated. Always wear laser safety goggles rated for 1064nm wavelength.
3. What is the difference between pulse lasers and continuous wave (CW) laser cleaners?
Pulse lasers (100W-500W) deliver high-energy bursts ideal for precision cleaning on delicate surfaces and molds. CW lasers (1000W-3000W) provide constant beam output
for faster cleaning of large areas and thick coatings. Pulse is gentler while CW is more aggressive.
4. Can a laser cleaner remove paint from car bodies without damaging the metal?
Yes. Laser paint removal is the safest method for preserving original car metal. The laser vaporizes paint layers without the warping or pitting caused by sandblasting. It is
widely used in automotive restoration and classic car preservation.
5. How long does a portable laser cleaning machine last?
A well-maintained fiber laser cleaning machine typically lasts 10000-30000 hours of operation or approximately 10 years. Lifespan depends on usage intensity and regular
maintenance of optical components like lenses and mirrors.
6. Does laser cleaning produce harmful fumes or require chemicals?
Laser cleaning is a dry process requiring no chemicals or water. It produces minimal waste compared to sandblasting. However, the vaporized contaminants create fumes,
so proper ventilation or fume extraction is required, especially when removing lead-based paint or heavy coatings.
