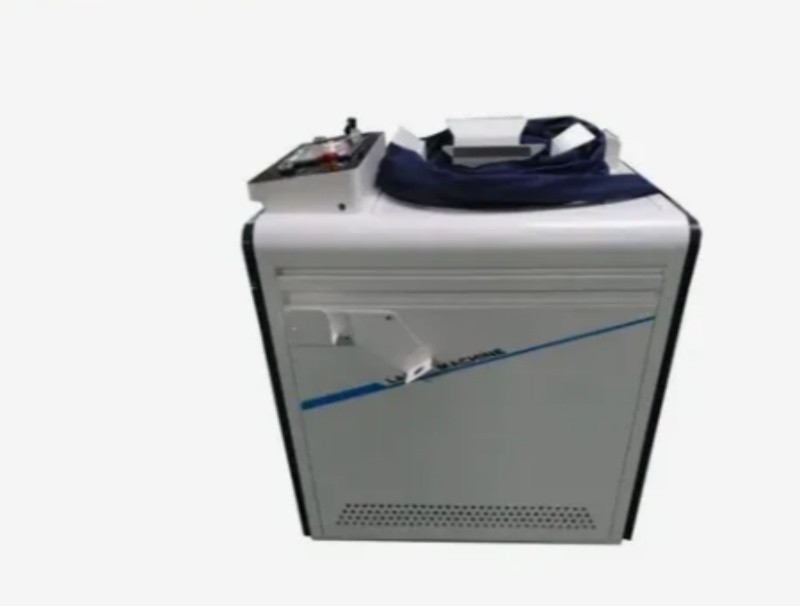

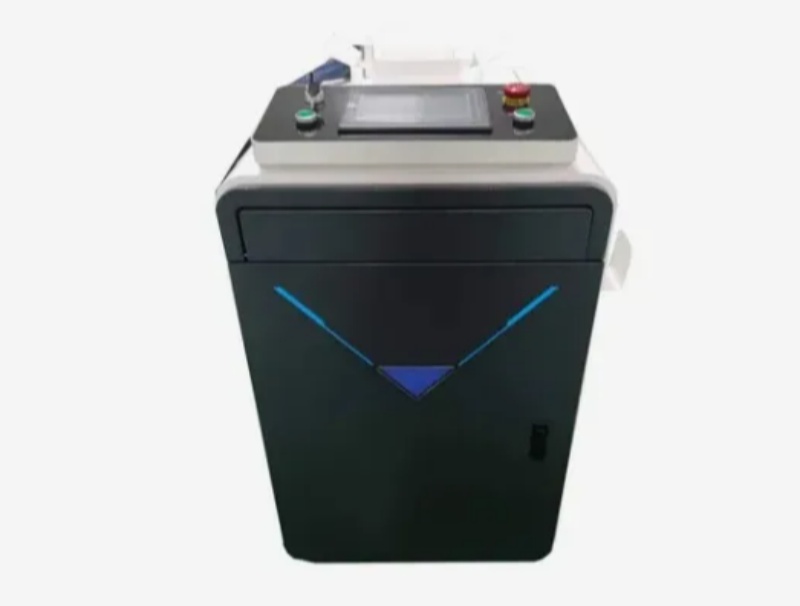

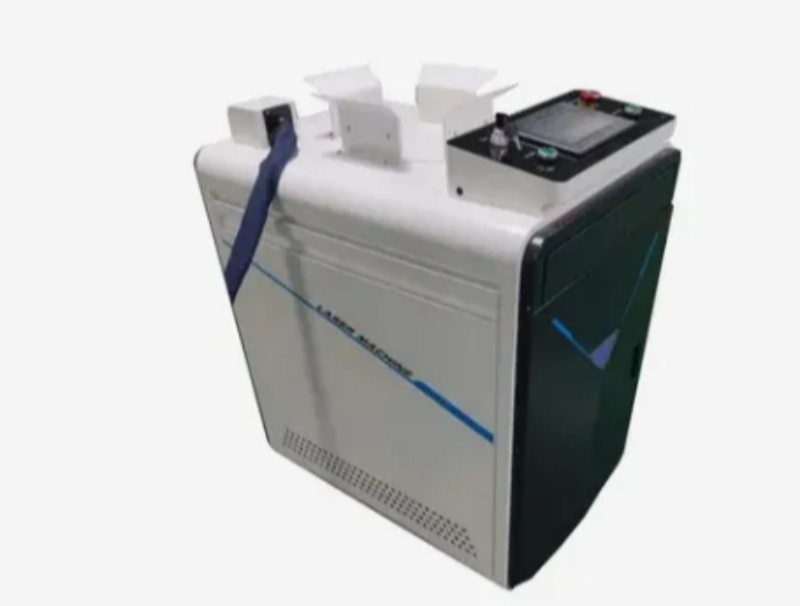

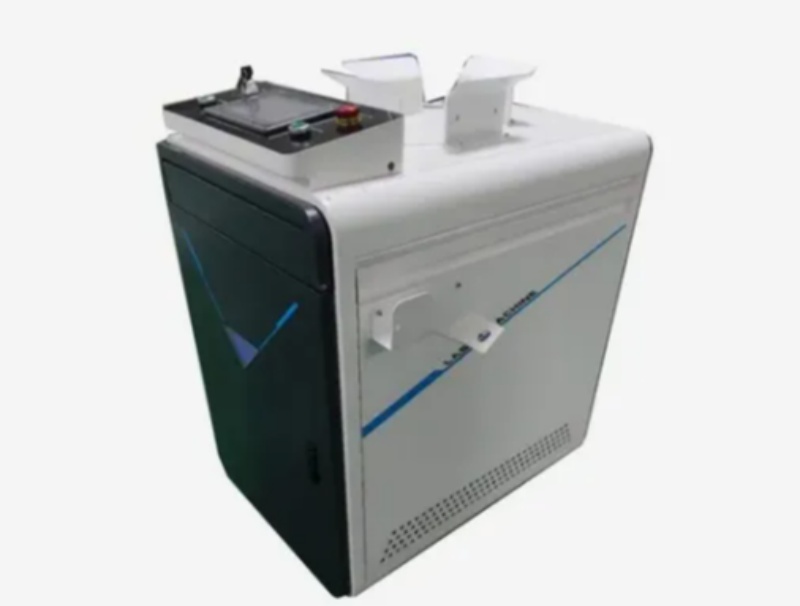

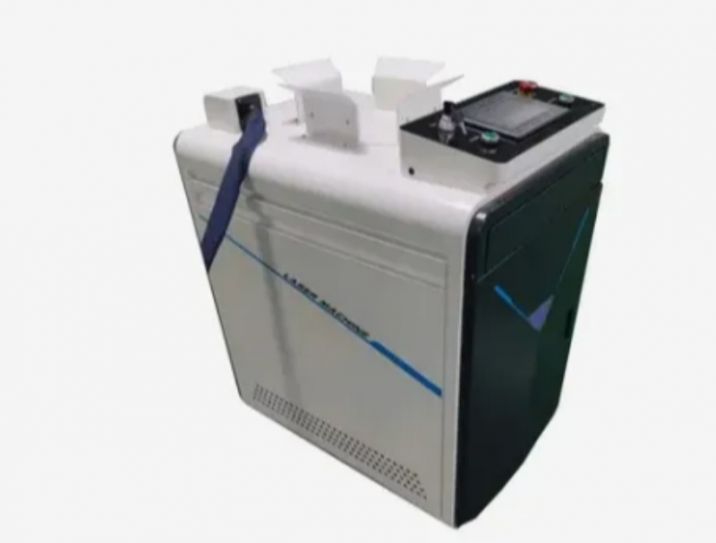

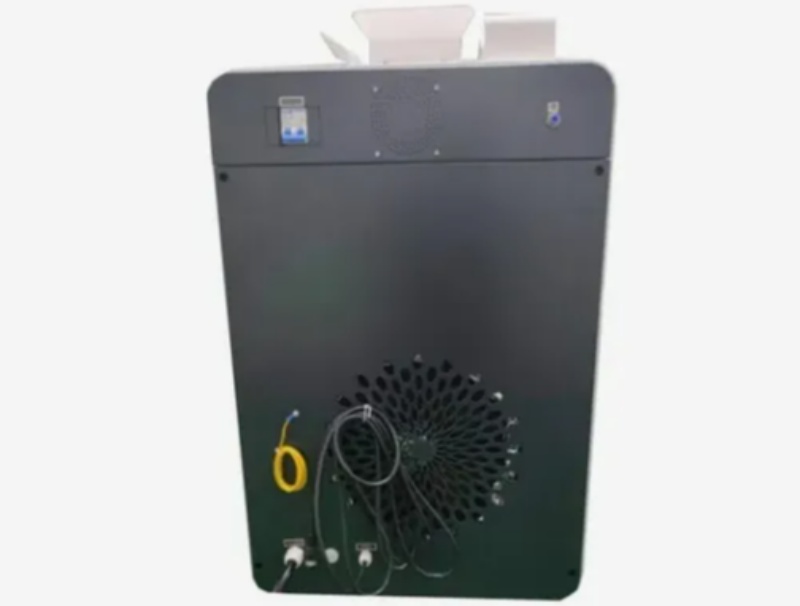

3-In-1 Handheld Laser Welding, Cleaning, Cutting Machine

3-In-1 Portable Handheld Laser Welding, Cleaning, Cutting Machine Specifications

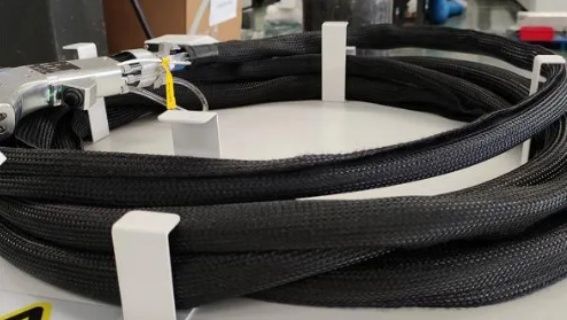

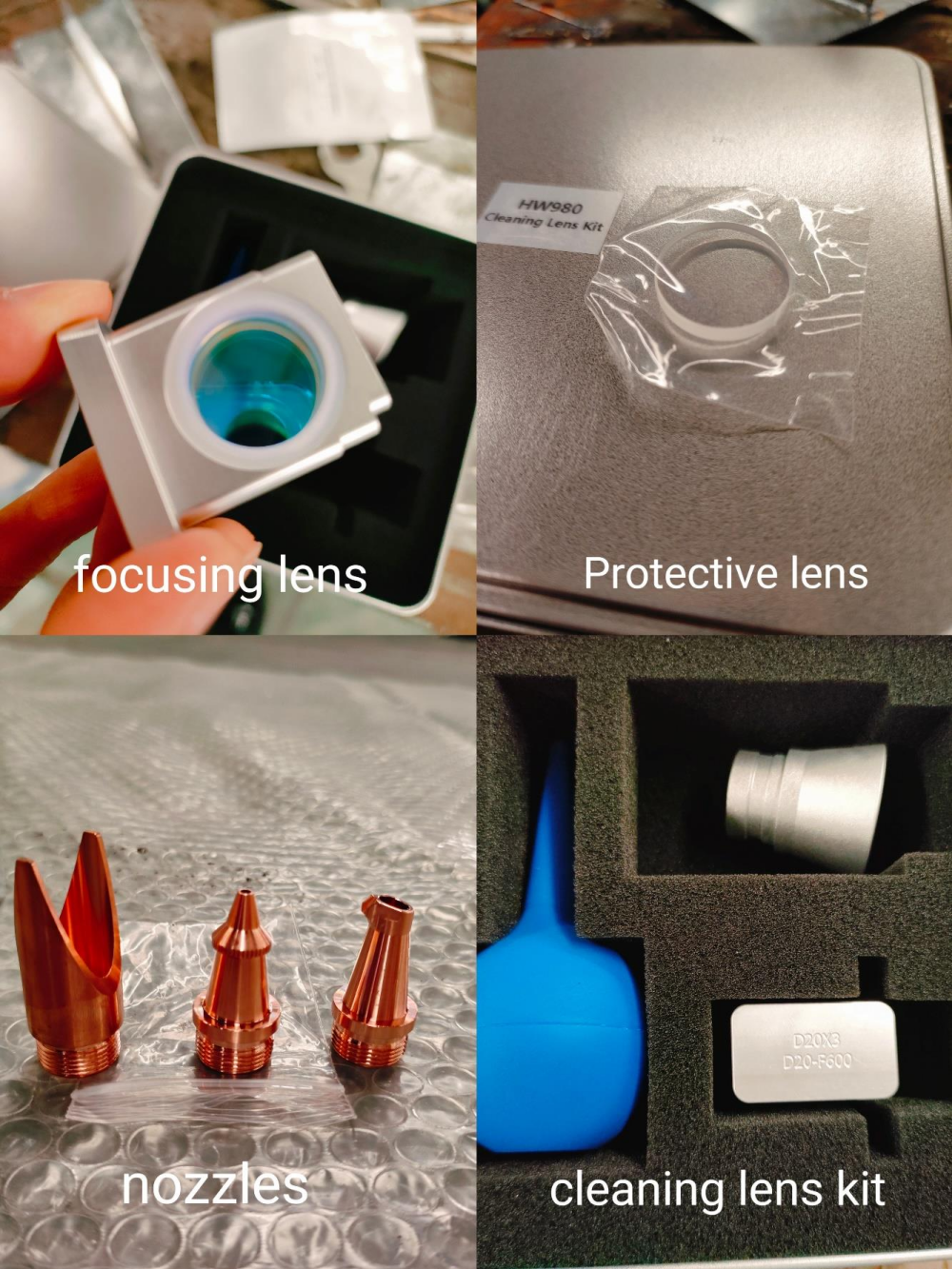

Consumables:

The machine comes with a fixed number of the following accessories as standard. Additional accessories can be purchased separately if needed.

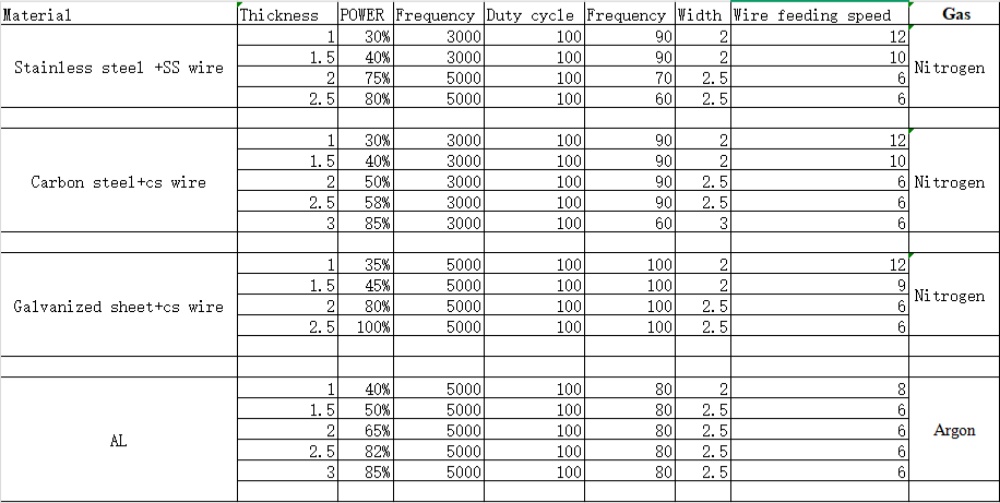

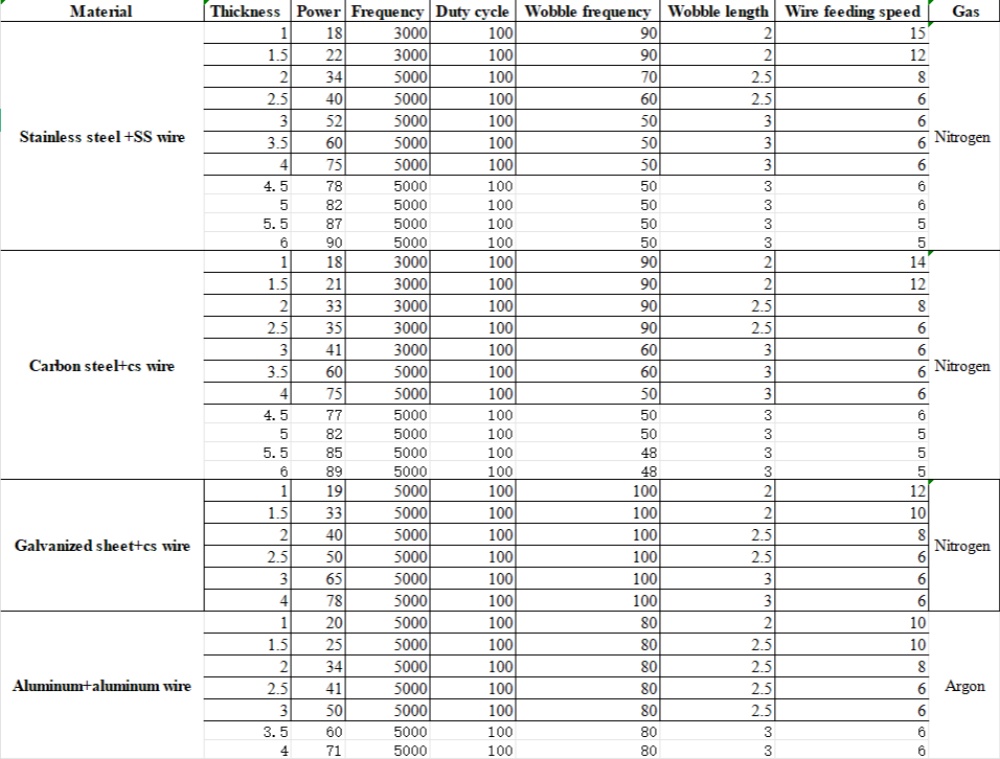

Different Parameter Tables for Welding with Different Powers:

1500W:

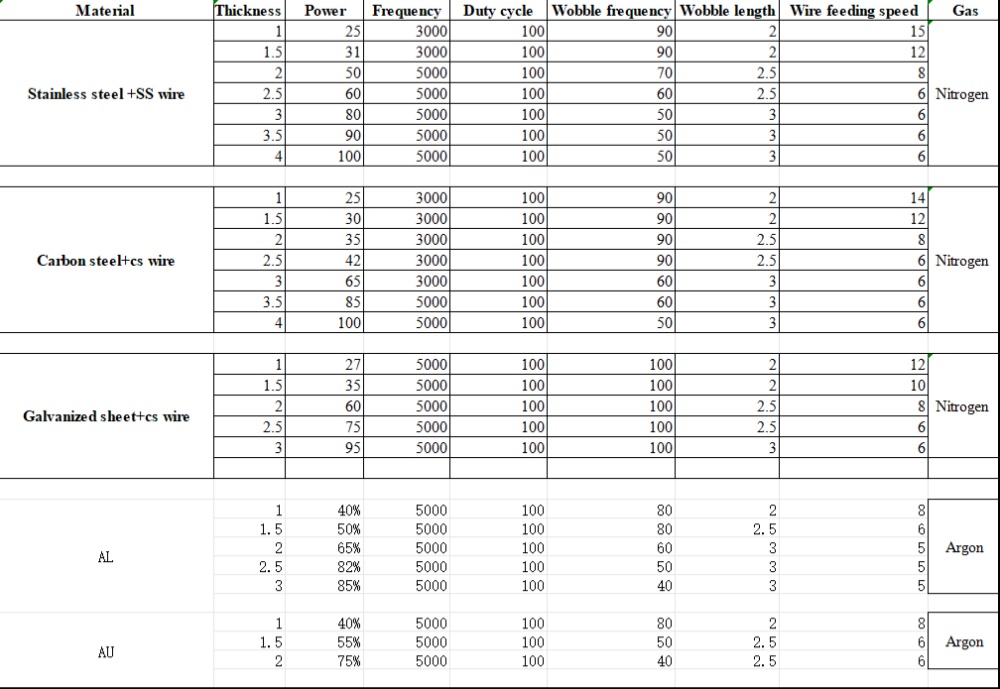

2000W:

3000W:

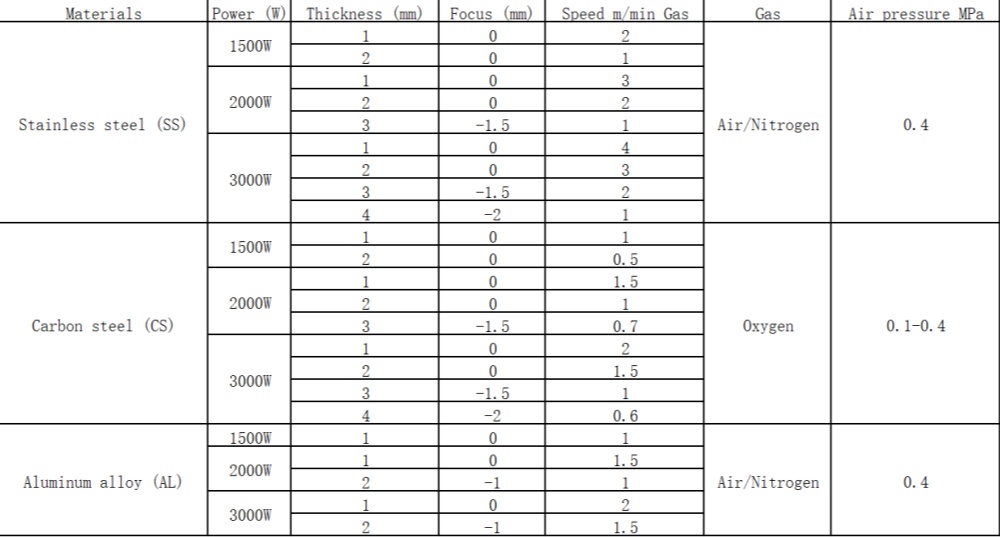

Cutting Parameter Table for Different Powers:

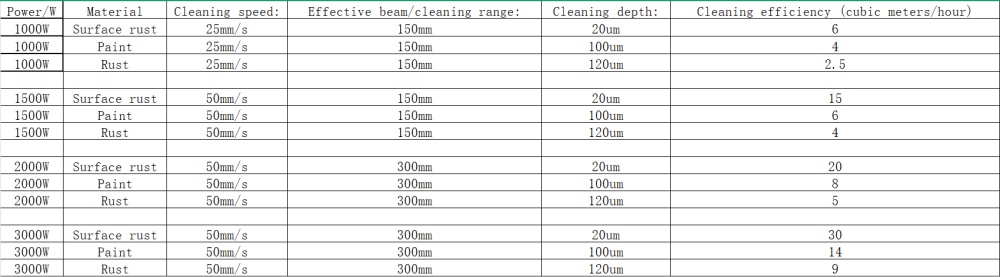

Cleaning Parameter Table for Different Power Levels:

Optionals:

1.The machine can be upgraded to a four-in-one system (welding, cutting, cleaning, and weld cleaning) or a five-in-one system (welding, cutting, cleaning, weld cleaning,

and energy storage welding).

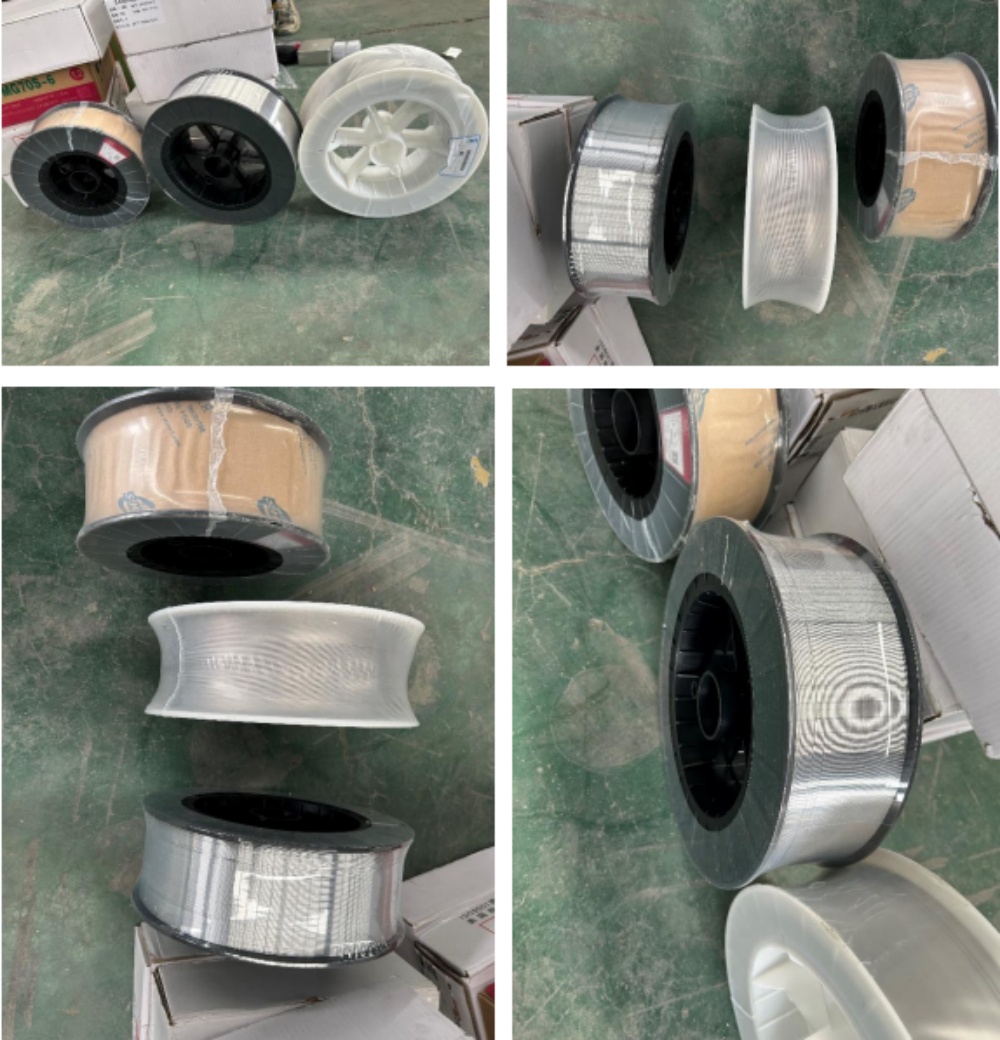

2. Welding wire: The machine comes standard with one roll of carbon steel wire. Customers can purchase additional wire as needed, or purchase it locally.

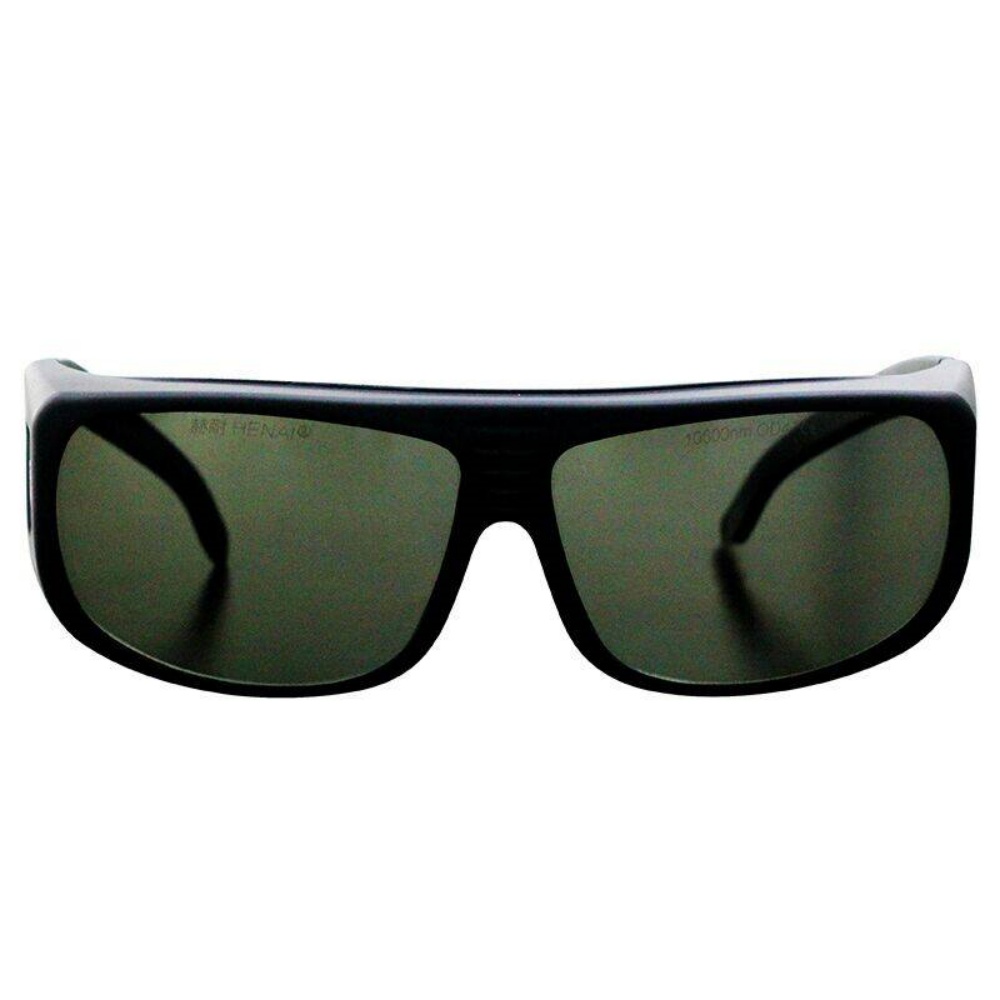

3.Protective glasses:

Protective goggles are included with the machine; customers can choose to purchase several pairs as spares, or they can buy them locally.

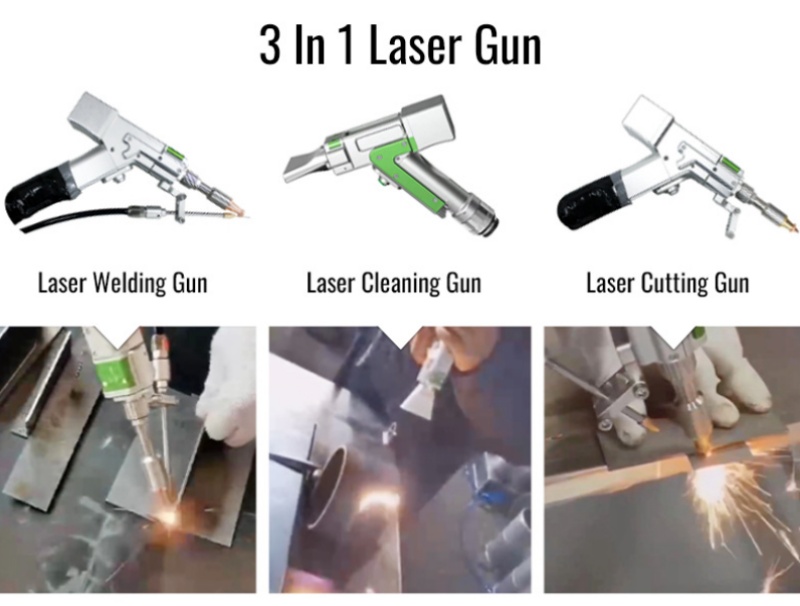

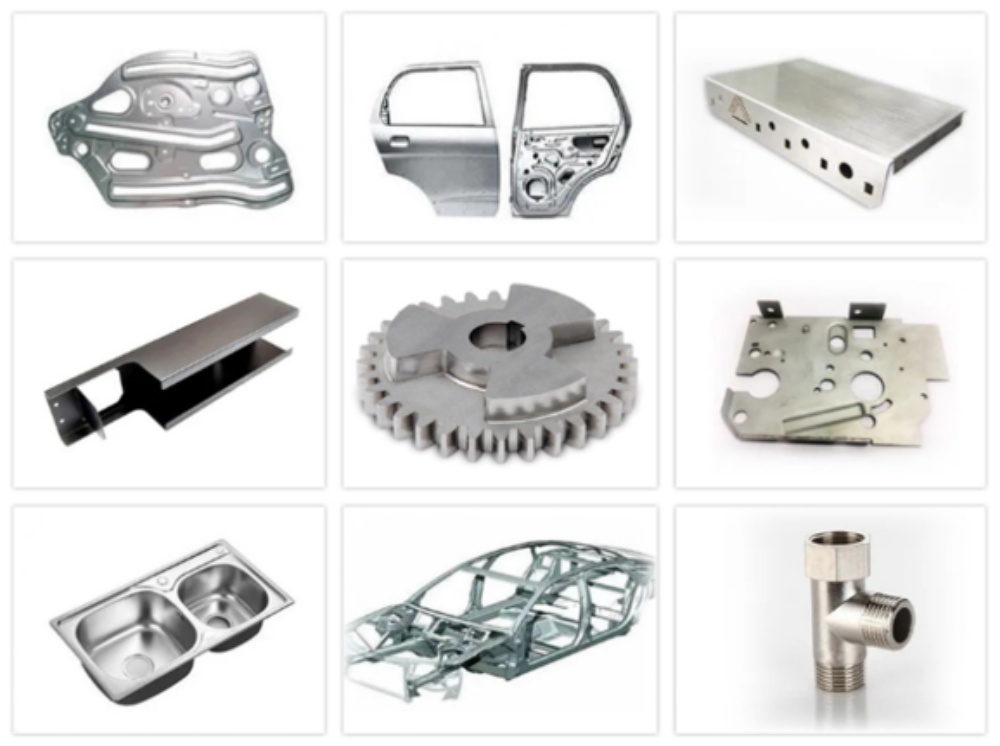

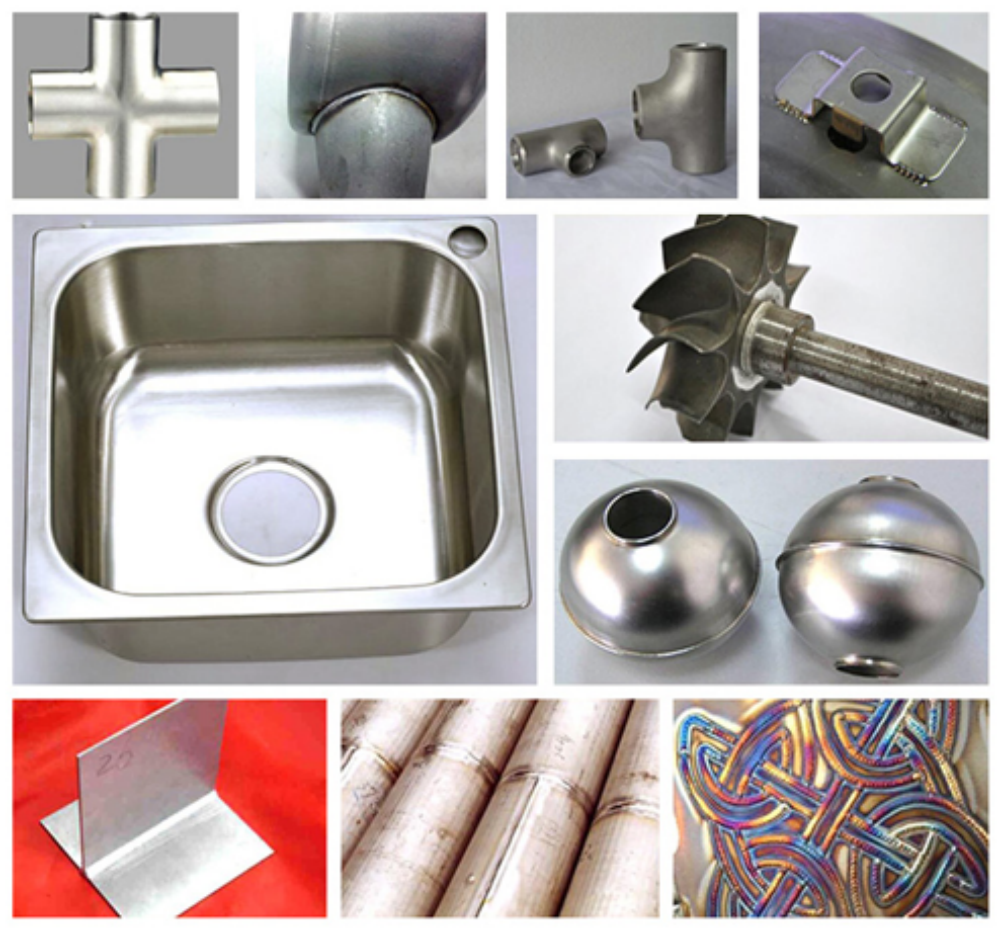

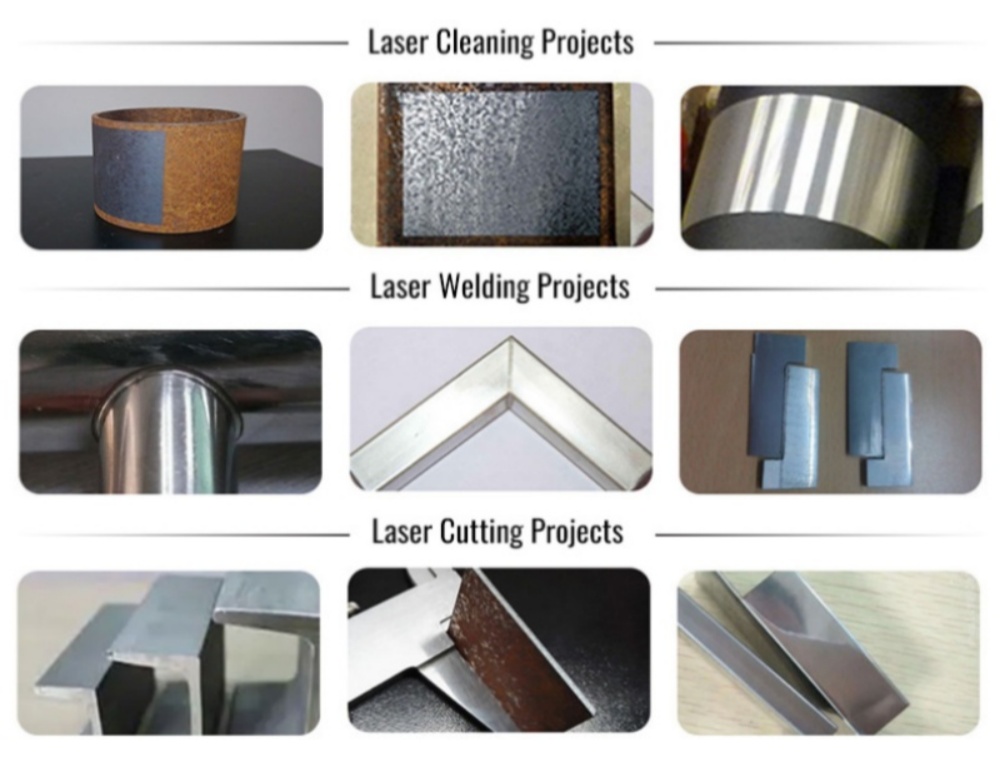

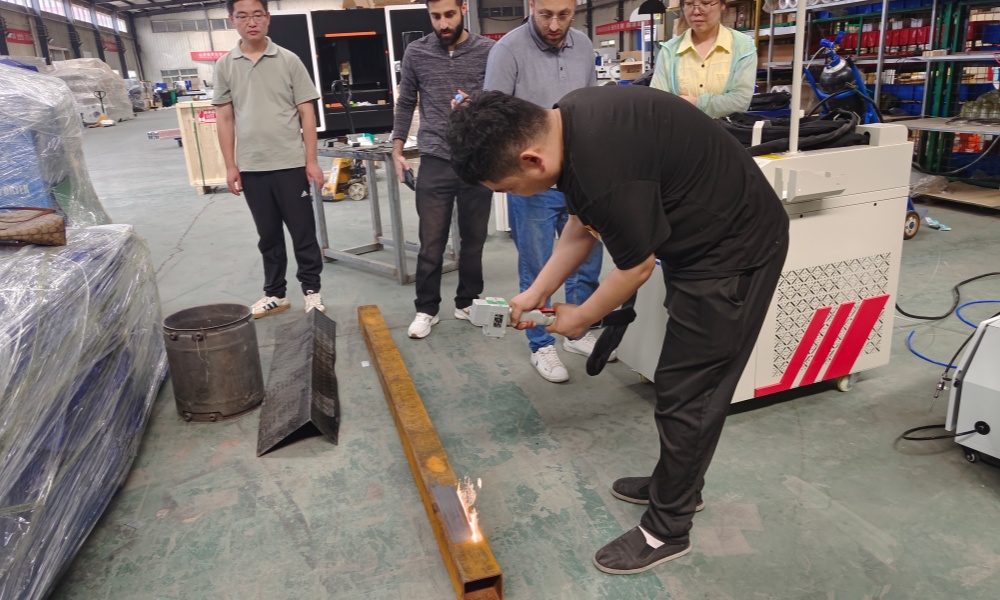

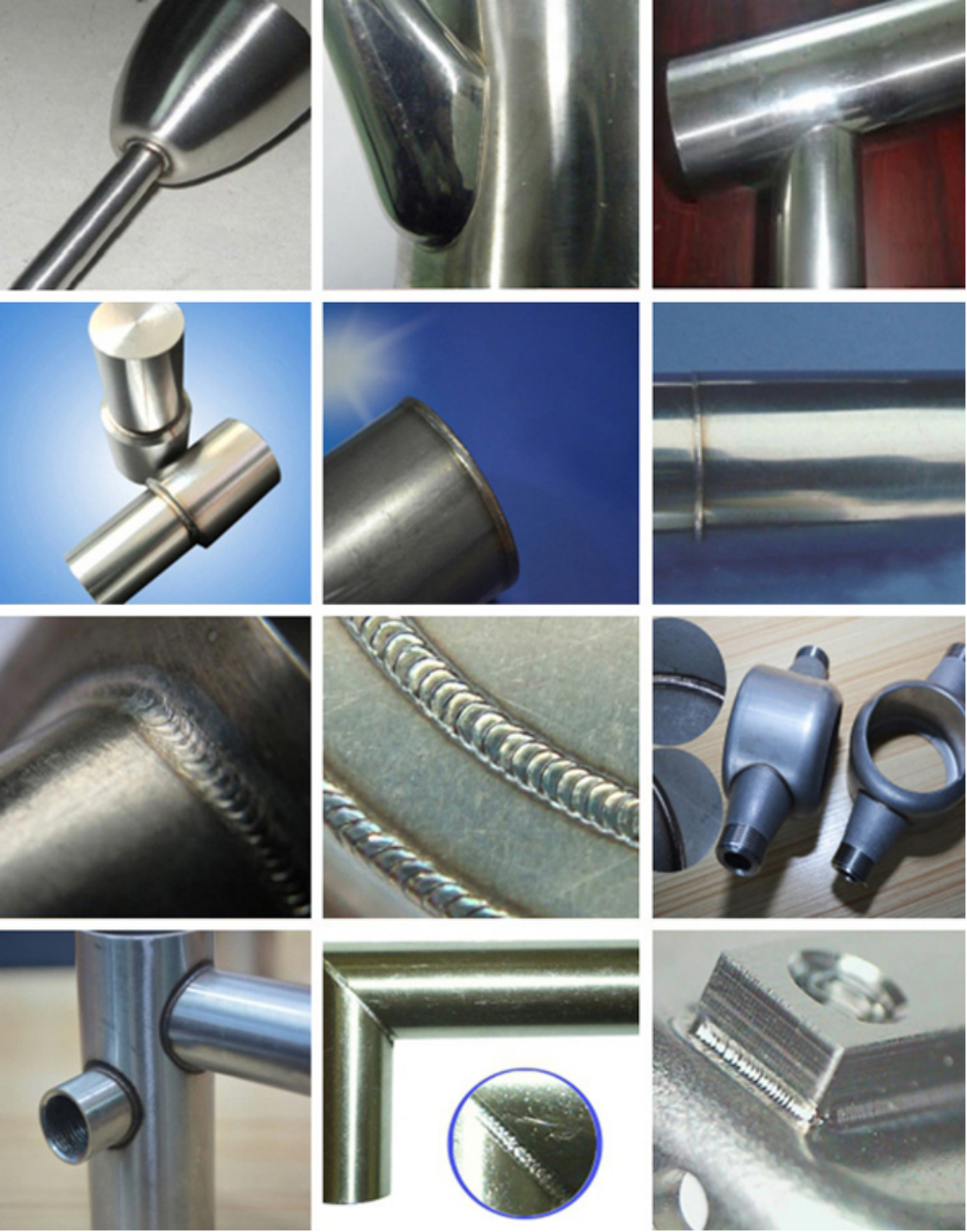

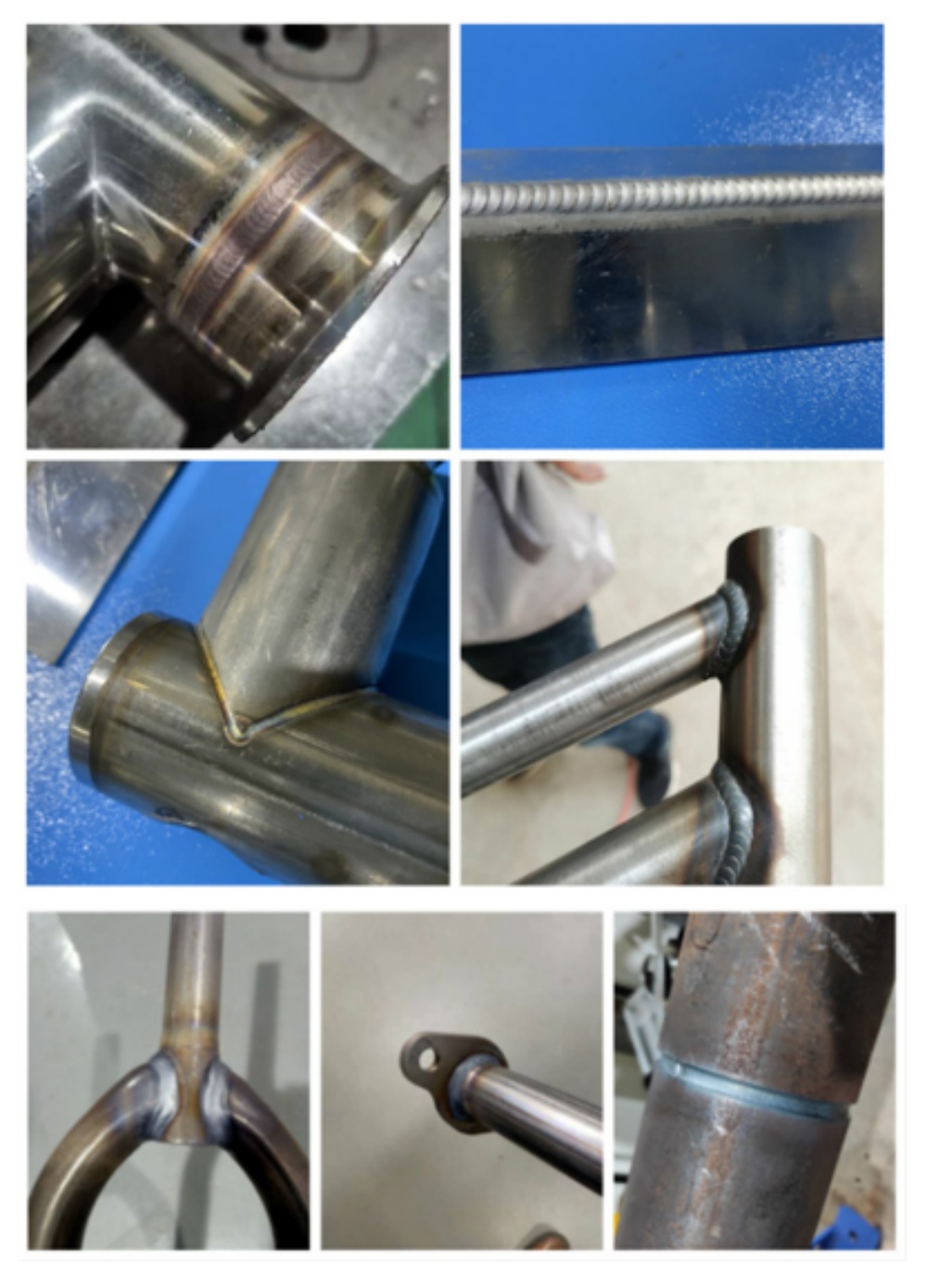

3-In-1 Handheld Laser Welding, Cleaning, Cutting Machine Projects

Pros and Cons

Let's take a look at the pros and cons of a 3-in-1 handheld laser cleaner, welder, cutter.

High Precision

All-in-one handheld fiber laser machines use laser beams to weld and cut metal. It is a very accurate and precise method for any type of welding and cutting. The movement

of the fiber laser is controlled by computer software. The chance of a lost or faulty laser beam is almost zero. The beam is very narrow and only affects the material it is directed

towards. It is more accurate and precise in welding and cutting than traditional methods.

Compact & Portable

Many welding, cutting and cleaning projects require machines to be brought to the site. Handheld laser machines are easier to carry and more compact than other machines.

Easy To Use

All-in-one handheld laser machines are built on modern standards. They are user-friendly and easy to use. They are less hectic for the operator than other welding, cleaning

and cutting methods. These machines can even be automated, requiring less human intervention than other traditional methods.

Weld, Cut, Clean In Any Position

Welding involves joining two pieces of metal. Welders sometimes need to reach out and fill in nooks and crannies. Handheld welding heads make it easier to work even at

difficult angles. Whether butt welding, vertical flat fillet welding or internal fillet welding, the handheld device works in all positions and can join even complex parts together.

In the same way, laser can also achieve free cutting and cleaning at any position.

Better Welds, Cleans, Cuts

Handheld laser welders provide a narrow beam with a precise weld bead. The beam heats the metal on site, creating a very fine weld. Compared with other welding methods,

laser welding machines focus the beam on a point, and the high-density power beam welding effect is better. The weld strength is also better and no finishing is required at all.

In addition, laser surface treatment is much cleaner than traditional chemical cleaning agents and mechanical cleaning tools, and requires less or no follow-up processing.

Fiber laser cutting of metal is even more precise, resulting in high-quality cuts without subsequent polishing.

High Speed

All-in-one handheld laser cleaner, welder, cutter can also complete welding, cleaning and cutting in less time than traditional methods.

No Consumables Required

All-in-one handheld laser machines do not require any consumables. It reduces production or repair costs because no consumables are required.

Energy Saving

All-in-one handheld laser cutter, cleaner, welder is manufactured using modern production lines. They are energy-efficient machines that save 80%-90% of electricity.

Further reducing production costs.

Safety

All-in-one laser cleaning, cutting, welding machines are safer for operators than other traditional methods.

Eco-Friendly

3-in-one laser machine is a green and environmentally friendly tool that does not cause environmental pollution.

However, because lasers radiate, close contact can cause harm to the human body, so you should wear protective gear before operating the machine.

Things To Consider

Here are seven things to consider when choosing a handheld 3-in-1 laser cleaner, welder, cutter:

Laser Power

Laser power determines the capacity of the machine. Higher-powered machines can weld and cut thicker metals, and remove tougher rust. But for welding precision parts,

cutting thin sheet metal, stripping paint, you just need lower power. All in all, choose the power output according to your needs.

Speed

The welding speed of the 3-in-1 laser welding machine is much faster than the traditional TIG welder or MIG welder. The cleaning speed of the 3-in-1 laser cleaning machine

is instantaneous, and the faster cutting of the 3-in-1 laser cutting machine is not comparable to the plasma cutter and the water jet cutter. However, make sure to check the

right speed to match your business.

Spot Size

It is the maximum size of the laser beam that the machine can produce. Spot size is important in understanding how much heat a laser machine generates and how deeply

it can penetrate a material. It's also helpful to check before picking a machine, since choosing a spot size that's too narrow for larger parts may take too long to weld, clean,

or cut.

Beam Quality

Beam quality refers to the shape and distribution of the laser beam. A good quality beam will produce smooth welds, cuts, and clean removal without any distortion. Feel

free to ask UNISTAR for the machine specifications to check parameter settings.

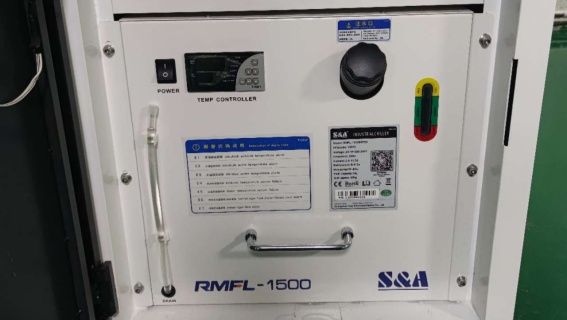

Cooling System

The cooling system dissipates heat and prevents the material from overheating. The protection of the laser machine itself is also crucial. There are two mostly used cooling

systems for option, including water cooling system and air cooling system.

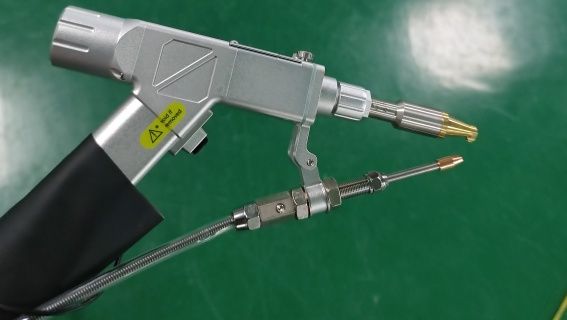

Ergonomics And Usability

The size of the handheld laser gun should also be considered. When you buy a 3-in-1 handheld laser welding, cleaning, cutting gun, check that it is ergonomically correct.

Size and portability matter, so check the specs to see if they fit your needs.

Cost

Last but not least is the cost. The cost of a handheld laser machine depends on the power and the optional features. Choose a product that suits your needs without breaking

your budget.

An all-in-one laser cutter, cleaner, welder may cost more than other options, but it will justify its price by giving you faster speeds and high-volume production, and it can

also help you reduce production costs in the long run.

Pre-Sale Service

1. Free sample welding service:

For free sample testing,  we will do testing in our factory and make video to show you the welding process and result, or send samples to you to check the welding quality.

2. Progressing Solution Design:

According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality

for customer.

3. Customized machine design:

According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.

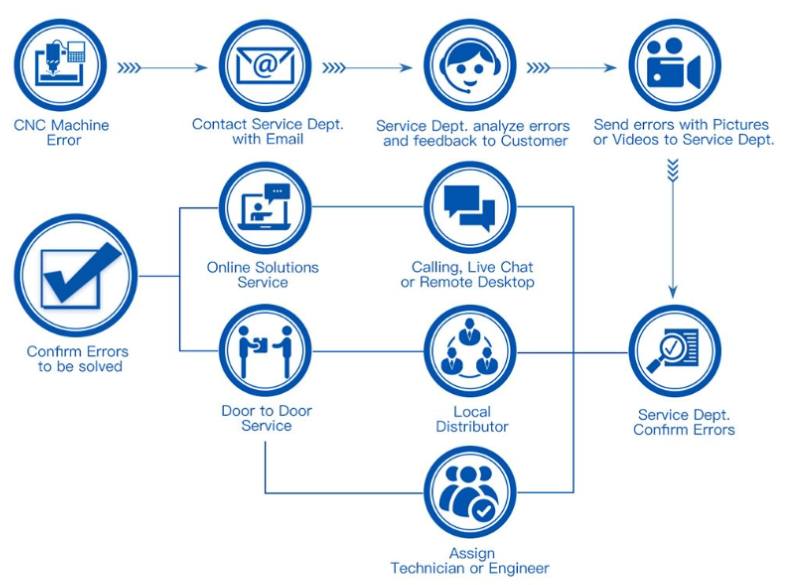

After sale service:

1> The machine warranty  1 year

2> 5 sets consumable nozzles free

3> a> During the warranty period, in case of failure or part damage (except human factors and force majeure factors), the seller shall be responsible for free repair. The

parts need to be replaced will be provide from the seller for free (except the wear-quick part)

b> After the warranty period expired, the buyer only need to pay the actual maintenance cost

c> UNISTAR laser will make return visit of customers at regular time one year

4> We can offer engineers go abroad installation and training , 150USD/One day

Why choose us?

Jinan Unistar Machinery Co.,Ltd are specializing in manufacturing and exporting cnc machine and laser machine since 2002 years. The company has two big factory, one

is cnc router factory, another is laser machine factory

UNISTRCNC has professional technical and research teams with rich experience of cnc router, ATC cnc Router, Laser machine, Laser cutting machine, Laser marking machine,

cnc metal engraving machine, cnc plasma cutting machine, Fiber metal cutting machine.

FAQs

1.Is it easy to use a handheld laser welder?

A handheld laser welder is user-friendly with a touch screen controller, which is easy to use and requires no experience. A beginner can easily operate it after learning and

operating it for a few hours, which is much easier than MMA, TIG and MIG welder that takes years of practice to become a professional.

2.Can a laser weld different types of metals?

You can use lasers to join different types of metals to each other, including brass to aluminum, copper to brass, titanium to molybdenum, titanium to gold, nickel to copper,

brass to stainless steel.

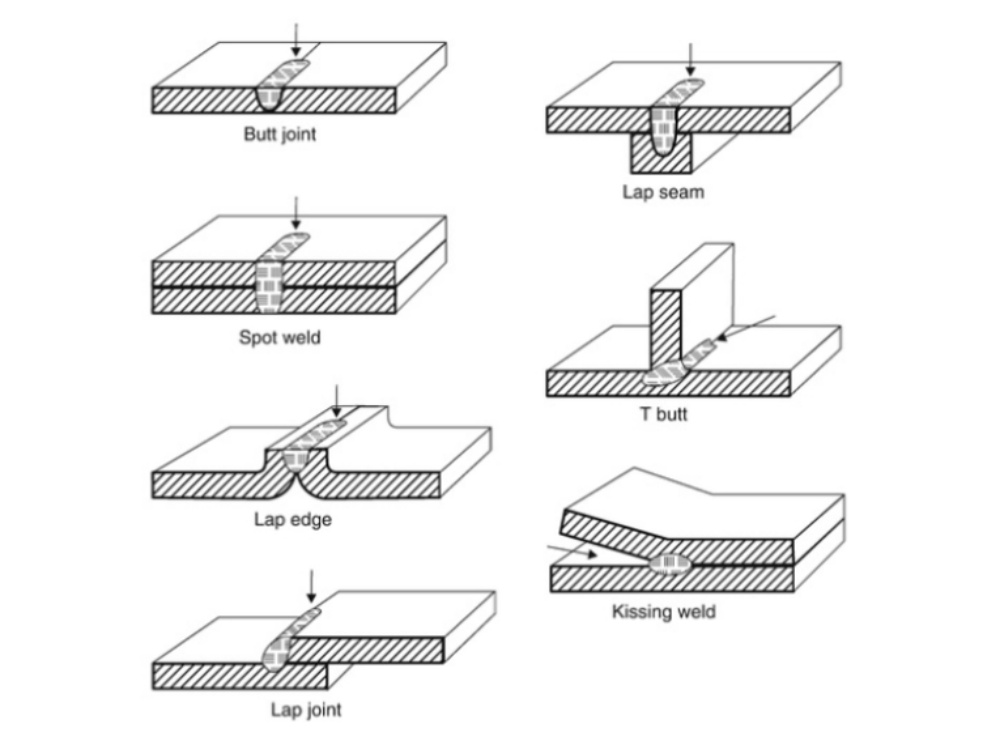

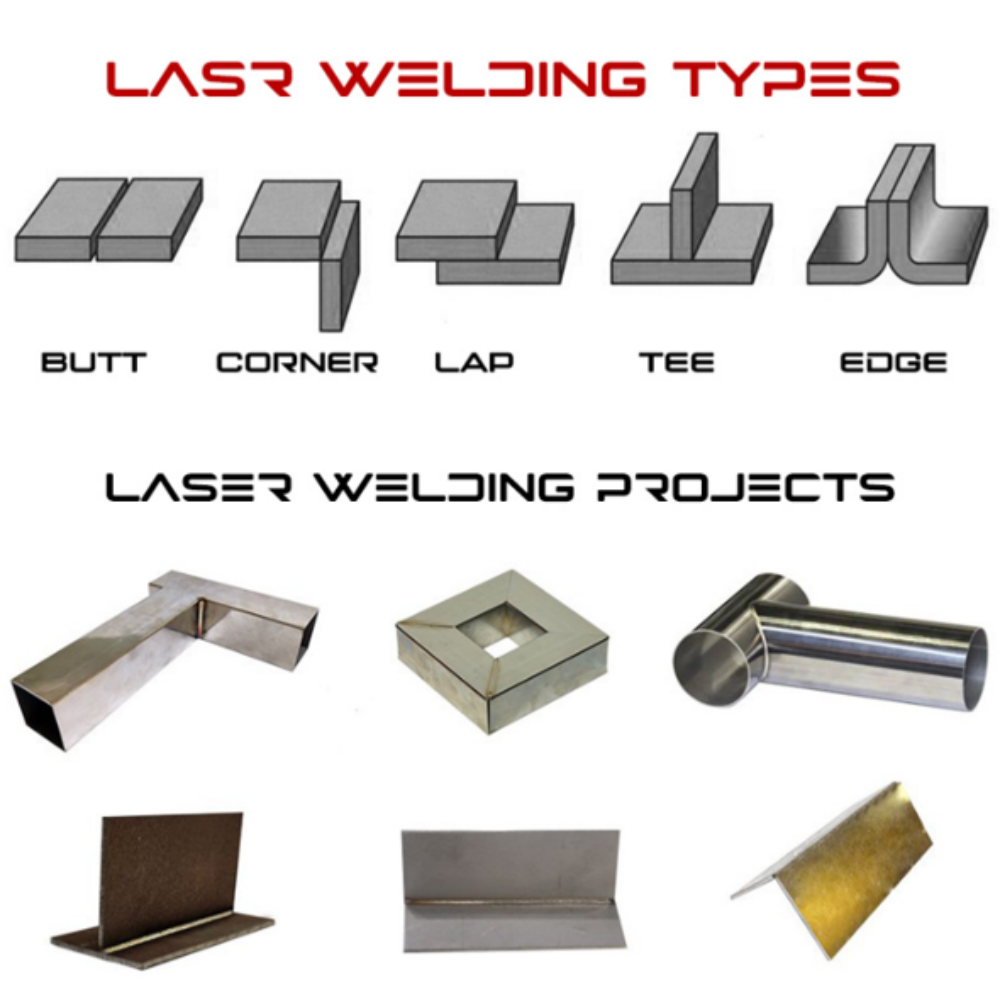

3.Can a laser join metal parts of different thicknesses?

You can laser to weld metal parts of different thicknesses together for all metal joints such as butt joints, T (tee) joints, edge joints, corner joints and lap joints.

4.Is a handheld laser welder safe to operate?

A handheld laser welder features an emergency stop button, which can shut down the welder immediately in an emergency. Double safety light buttons ensure safe operation.

The welding gun and optical fiber are safely and reliably grounded to prevent electric shock accidents. All in all, it's safe to operate. But just in case, any operator should take

the usual precautions before operating, including wearing laser safety eyewear and welding protective masks and gloves.

5.How many modes of laser welding are available?

Lasers come with a variety of welding modes, each with their own pros and cons, but here are the five mostly used.

Spot Weld Mode

Create the same spot weld.

Pulse Mode

Laser pulses produce lower energy, slower welding speeds, and less heat input.

Continuous Mode

The laser fires continuously for maximum penetration and welding speed.

High Peak Power Weld Mode

High power short pulses penetrate reflective metals.

Multi-Stage Weld Mode

Repeat positioning or overlapping welds.

6.How to use a handheld laser welding machine?

Turn on the power and turn on the laser welder, and observe whether the water temperature is appropriate (usually set at around 21°C, it can be adjusted appropriately

between 20 and 25°C according to the situation. Antifreeze needs to be added when the weather is cold, and antifreeze needs to be added when the temperature rises.

Replace it with pure water), then turn on the laser switch, select the welding mode according to the metal parts to be welded, set the required parameters and pick up

the handheld laser gun and start welding. During working, do not look directly into the laser beam with your eyes and do not touch it with your hands to avoid injury. If

there is an emergency such as water leakage or abnormal sound, press the "emergency stop" switch immediately. After working, turn off all equipments in use and the

main power switch in turn.

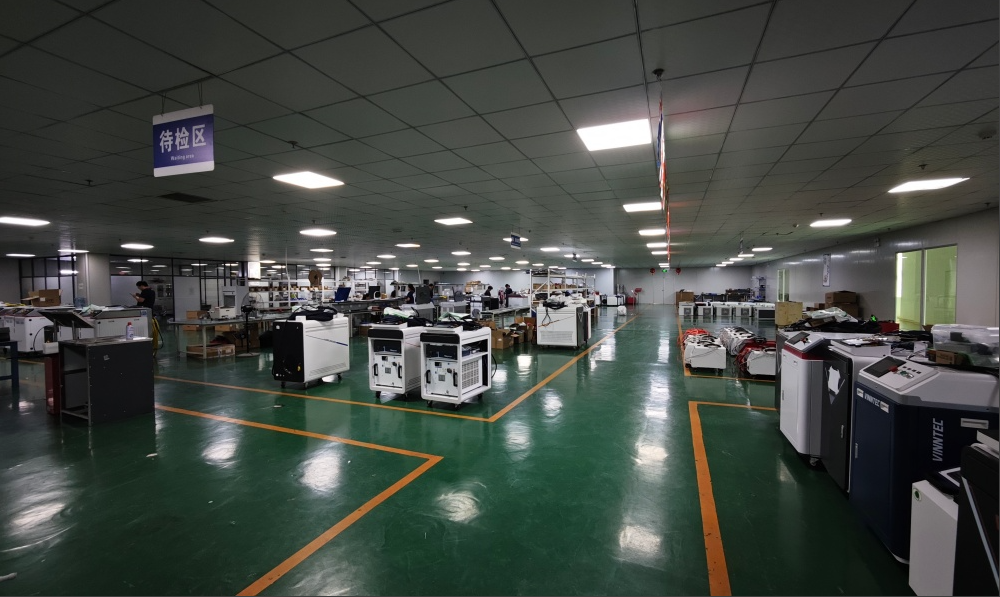

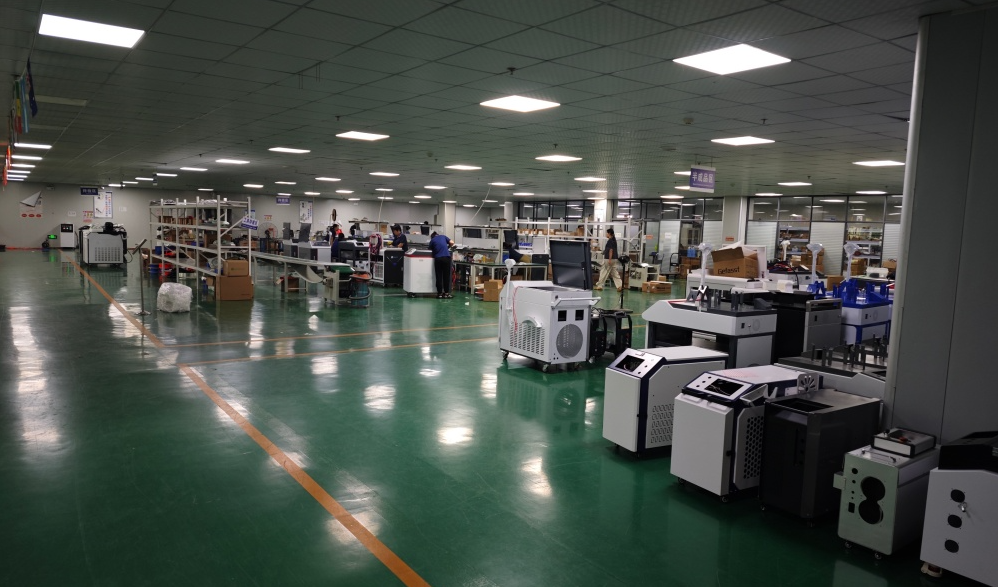

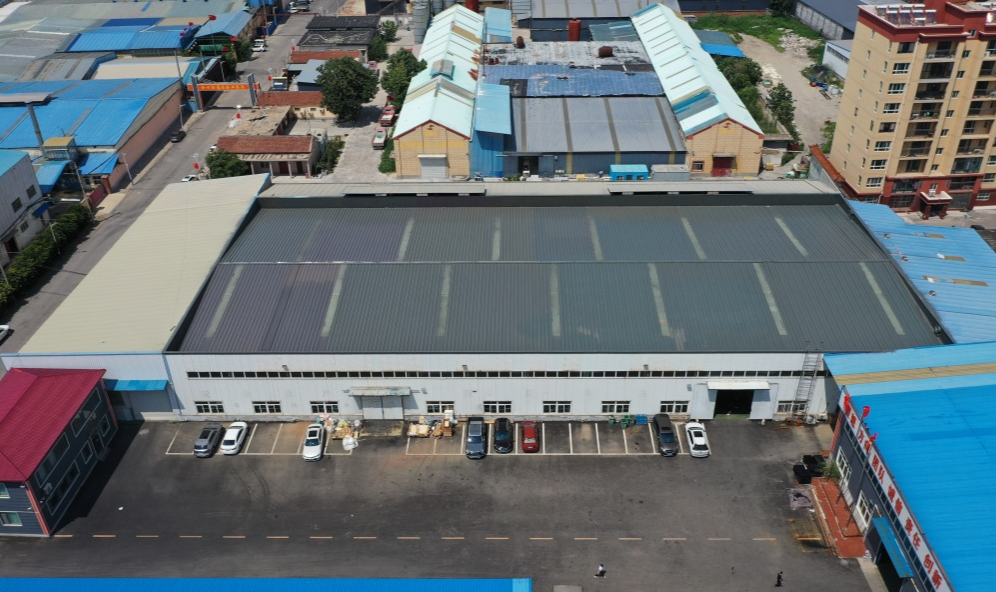

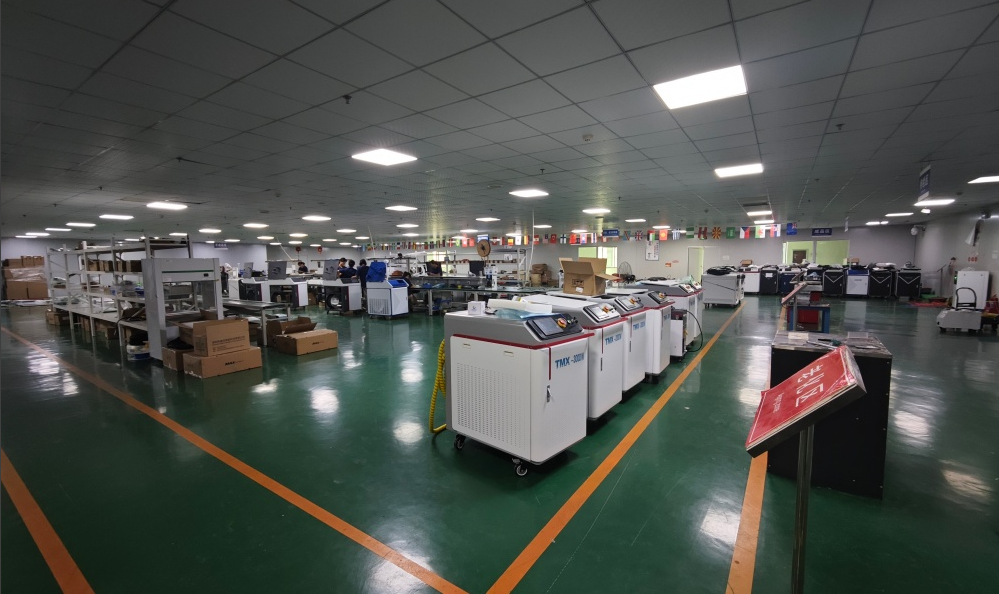

Our Factory:

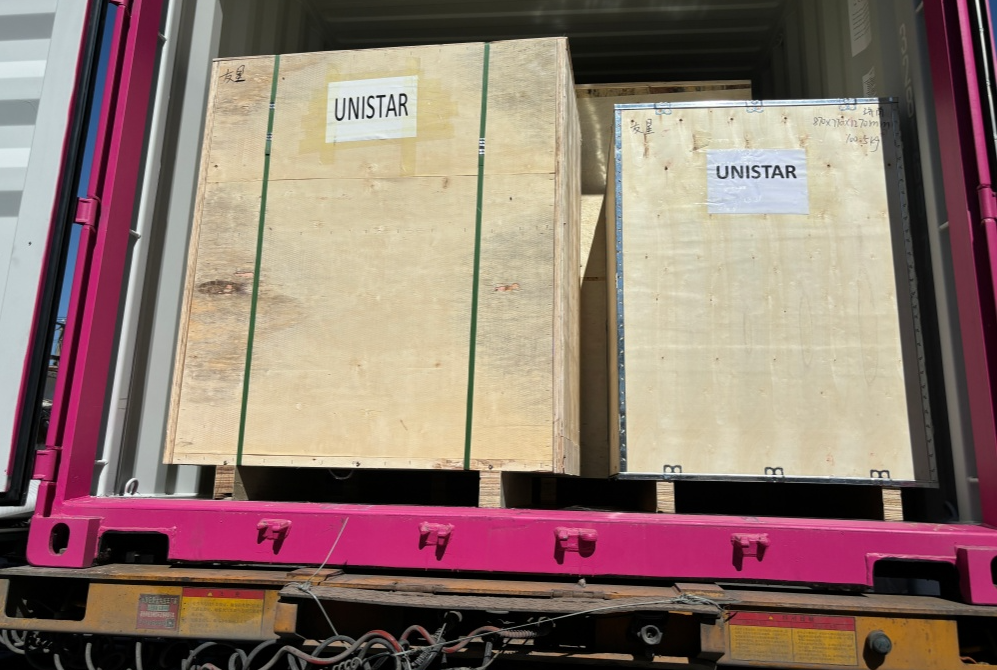

Machine Packing and Shipping:
