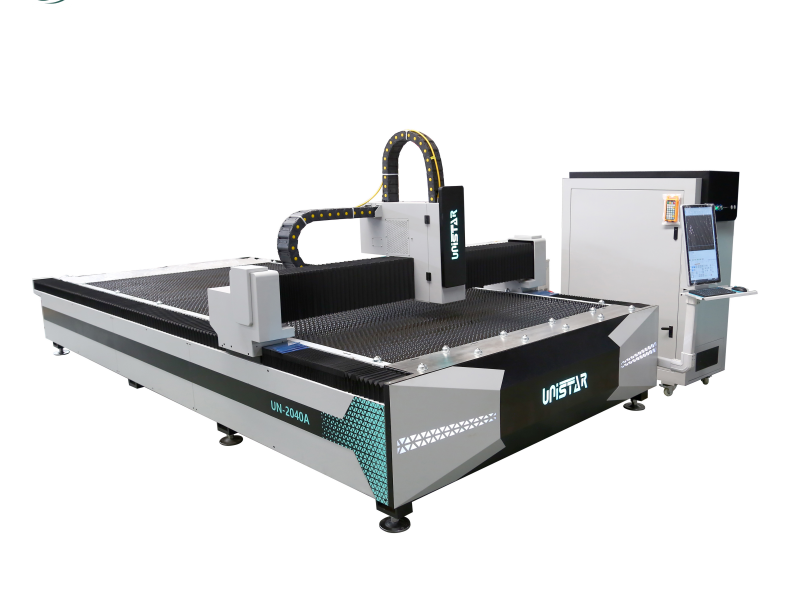

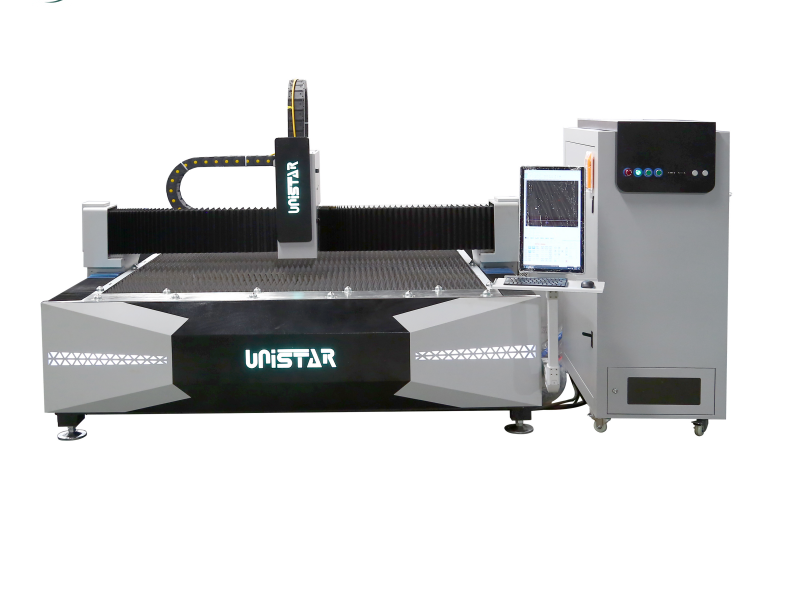

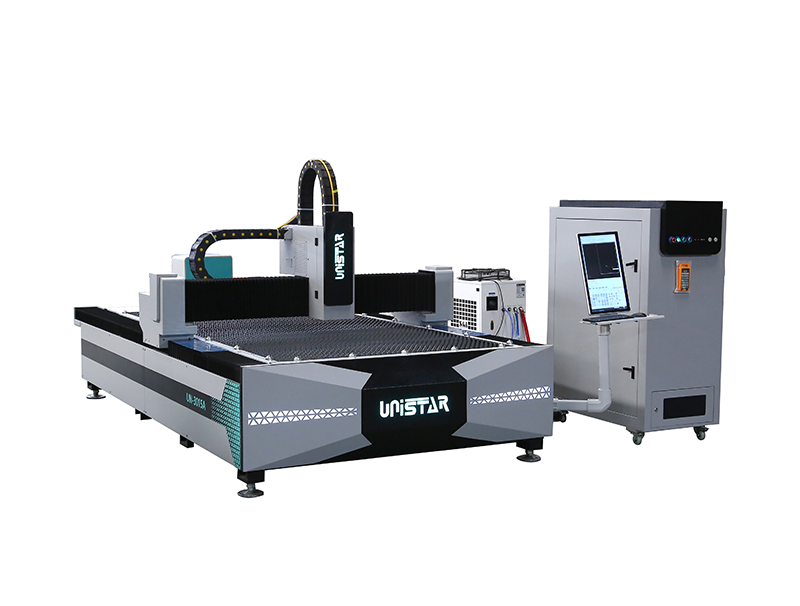

raycus laser metal cutter machine with CE fiber laser cutting machine

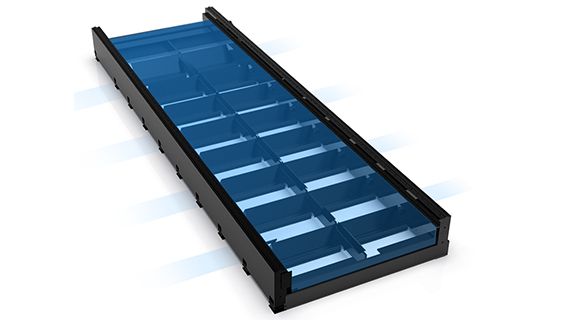

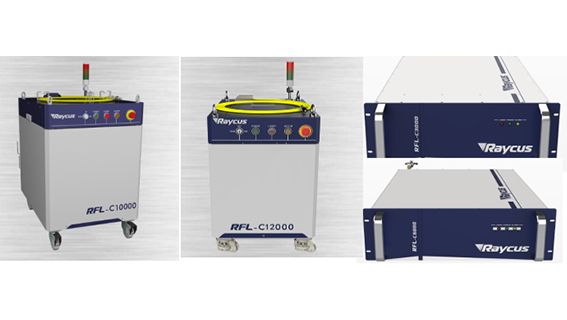

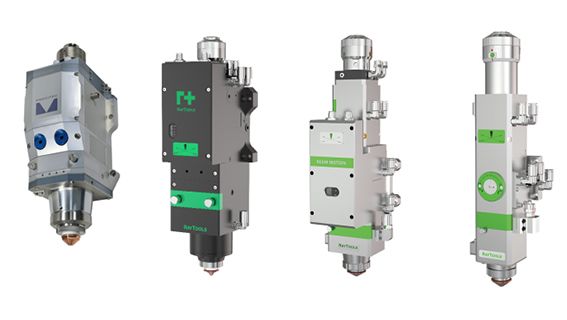

The core of a fiber laser sheet cutting machine consists of a fiber laser, a high-precision CNC system, a heavy-duty welded/cast iron bed, a cutting head, and a transmission system. The mainstream standard configuration includes a dual-exchange worktable, enabling simultaneous processing and loading/unloading, significantly reducing non-processing time. The cutting head features automatic focusing, adaptable to precise cutting of sheets of varying thicknesses. Laser power ranges from 1000W to 20000W, with lower power suitable for fine cutting of thin sheets, medium to high power for efficient cutting of medium to thick sheets, and ultra-high power for high-speed cutting of thick sheets, meeting the processing thickness requirements of different industries.

What is a fiber laser sheet cutting machine?

A fiber laser sheet cutting machine is an industrial-grade cutting machine specifically designed for metal sheets. Powered by a fiber laser, it uses a CNC system to drive a high-precision cutting head, focusing the laser beam onto

the metal sheet surface to achieve melting/vaporization cutting. It boasts high speed, high precision, and high stability, making it a core piece of equipment in modern sheet metal processing. It is widely applicable to cutting various

metal sheets, including carbon steel, stainless steel, aluminum alloys, and copper, replacing traditional plasma, flame, and shearing methods, and meeting the needs of large-scale, flexible industrial production.

The core of the equipment consists of a fiber laser, a high-precision CNC system, a heavy-duty welded/cast iron bed, a cutting head, and a transmission system. The mainstream standard configuration includes a dual-exchange worktable, enabling simultaneous processing and loading/unloading, significantly reducing non-processing time. The cutting head features automatic focusing, adaptable to precise cutting of plates of varying thicknesses. Laser

power ranges from 1000W to 20000W, with lower power suitable for fine cutting of thin plates, medium to high power for efficient cutting of medium to thick plates, and ultra-high power for high-speed cutting of thick plates, meeting

the processing thickness requirements of different industries.

What are the core features of a fiber laser sheet cutting machine?

1. High cutting efficiency: High electro-optical conversion efficiency, cutting speed is 2-5 times that of traditional plasma cutting, resulting in significant advantages in batch processing capacity.

2. Superior cutting precision: Positioning accuracy reaches 0.01mm level, producing smooth, burr-free cuts with a small heat-affected zone and low sheet deformation, reducing subsequent grinding and correction processes.

3. Strong adaptability: Capable of cutting various metal sheets, supporting complex irregular contours, fine holes, and narrow slit cutting; compatible with direct reading of CAD drawings and one-click programming, quickly

 responding to small-batch, multi-variety processing needs.

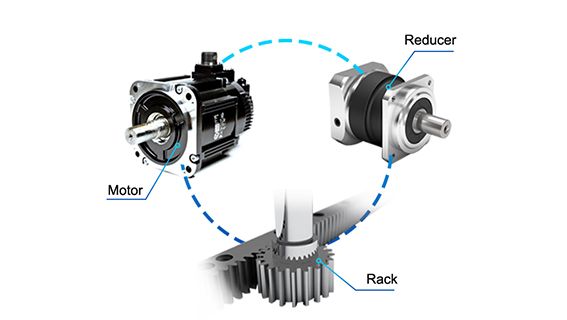

4. Stable operation: Heavy-duty bed with strong shock resistance; high-precision rack/screw drive combined with servo motors ensures no decrease in long-term processing accuracy, low equipment failure rate, and low

maintenance costs.

5. Automation adaptability: Seamlessly compatible with automatic feeding/unloading systems, dust removal systems, material storage, etc., easily building a fully automated cutting production line to meet large-scale mass

production needs.

What industries are suitable for sheet metal laser cutting machines?

Sheet metal laser cutting machines are characterized by high speed, high precision, multi-material adaptability, and flexible processing. They are primarily designed for cutting sheet metal such as carbon steel, stainless steel,

and aluminum alloys, and can handle all sizes of sheet metal parts, from small precision components to large ones. They are core equipment in sheet metal processing and equipment manufacturing. Key application industries

and typical cutting scenarios are as follows:

* Sheet Metal Processing Industry: Cutting various standard/non-standard sheet metal parts, cabinets, power distribution boxes, and sheet metal brackets; a standard core equipment in the industry.

* Automotive and Parts Manufacturing: Precision cutting of sheet metal for automotive body panels, chassis components, interior metal parts, and battery shells/protective panels for new energy vehicles.

* Kitchen and Bathroom Appliance Industry: Cutting of sheet metal for stainless steel sinks, range hoods, water heaters, disinfection cabinets, and metal shells and accessories for refrigerators/washing machines.

* Precision Hardware Industry: High-precision cutting of sheet metal for hardware accessories, fasteners, precision stamping blanks, and metal mold base plates.

* Construction Machinery Industry: Cutting of thick plates for metal structural parts, protective parts, and connecting plates for excavators, cranes, loaders, and other equipment. Thin sheet metal cutting;

*Advertising and signage industry: irregular sheet metal cutting for large metal signs, billboards, landscape metal structures, and advertising supports;

*Rail transit industry: sheet metal cutting for high-speed rail/subway car bodies, door components, track-related metal supports/guardplates;

*Furniture manufacturing industry: sheet metal cutting and shaping for wrought iron/stainless steel/aluminum alloy furniture frames, panels, and decorative accessories;

*Power and electrical industry: metal sheet processing for power equipment such as transformers, switch cabinets, cable trays, and distribution boxes;
