The processing area of the 1530 fiber laser cutting machine is 1500*3000m. 1530 laser cutter is a laser cutting machine with fiber laser injector as the light source. It outputs a laser beam of high energy density through a fiber laser, and gathers on the surface of the workpiece, so that the area reflected by the ultra-fine focal spot on the workpiece is instantly condensed and vaporized.
What is 1530 cnc laser cutter?
The processing area of the 1530 fiber laser cutting machine is 1500*3000m. 1530 laser cutter is a laser cutting machine with fiber laser injector as the light source. It outputs a laser beam of high energy density through a fiber laser, and gathers on the surface of the workpiece, so that the area reflected by the ultra-fine focal spot on the workpiece is instantly condensed and vaporized. Through the CNC mechanical system to move the spot location to complete automatic cutting. Fiber laser cutting machine can be used for plane cutting or bevel cutting, edge uniform lubrication.
Advantages of 1530 cnc laser cutter
[1] Adopt high strength whole welded fuselage, cast aluminum beam, after high temperature annealing, imported large CNC planer milling machine precision processing, to ensure the normal use of the machine for 20 years without deformation;
[2] To import precision ball screw/rack, linear guide drive operation, so as to achieve high precision, high efficiency and stability of the machine tool.
[3] Equipped with the most advanced wireless handheld terminal, remote control processing.
[4] The equipment adopts imported CNC system, high-performance AC servo motor drive, is a combination of pneumatic, mechanical, photoelectric,CNC and other advanced technology in one of the high-tech products.
Components of 1530 cnc laser cutter

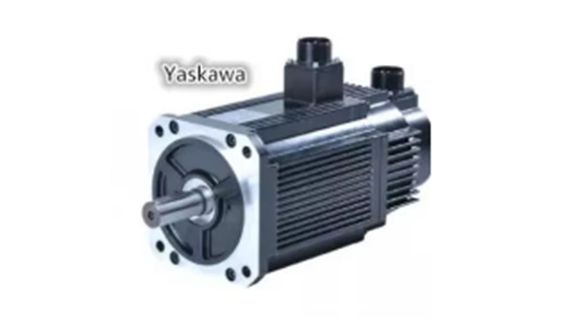

Servo Motor
Yaskawa servo motor, long service life, accurate route movement

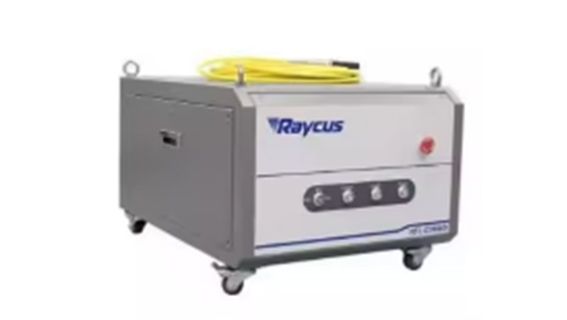

Laser Source
Raycus laser source Fiber laser compact structure, stable performance, wide application, high photoelectric conversion efficiency, good beam quality, low maintenance cost.

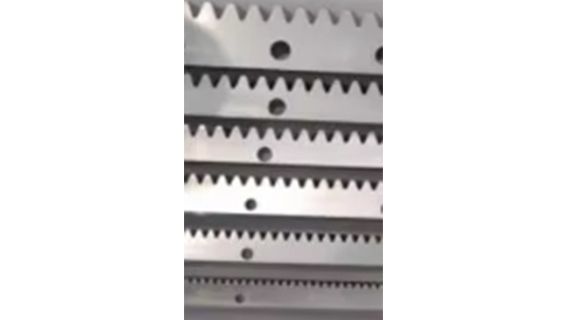

Rack
High quality rack and pinion drive system and linear square rail imported from Taiwan ensure high speed and accuracy.

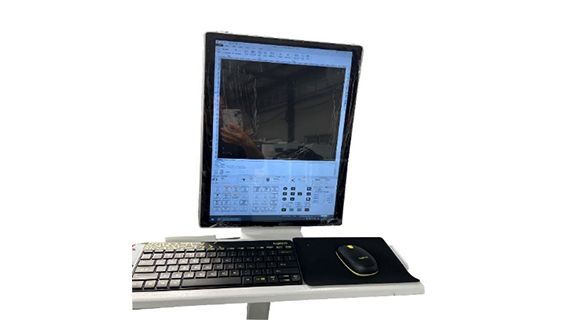

Control Panel
It is the interface between the operator and the fiber metal cutting machine. This panel allows the operator to adjust the settings of the machine, including the power of the laser, the speed of the cutting process, and the thickness of the metal being cut.

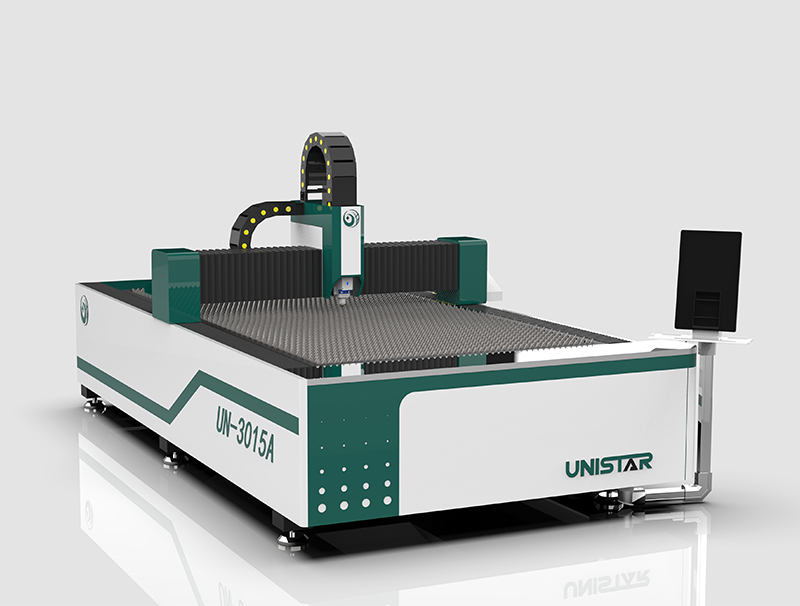

| Model | UN-3015A |
| Working Area | 3000*1500mm |
| Laser source media | Raycus Brand |
| Laser Power | 1000W/1500W/2000W/3000W/6000W/12000W/20000W /30000W |
| Laser head | Raytools auto focus cutting head |
| Laser Wavelength | 1080 nm |
| Beam Quality | <0.373mrad |
| Positioning Accuracy | ≤ ±0.03mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Maximum positioning acceleration | 2G |
| Max moving Speed | 40000mm-60000mm/min |
| X-axis Stroke | 1500mm |
| Y-axis Stroke | 3000mm |
| Working Table | Blade platform thickness 3mm thickness |
| Machine body | Strong heavy duty machine body, Machine structure precision machining welding bed, quench and tempering heat treatment, |
| Control System | China Professional CYPCUT |
| Rack | Taiwan import |
| Rail guide | X,Y,Z axis import Hiwin Rail Guide, |
| Water chiller | China famous brand Hanli water chiller |
| Pneumatic accessories | Japan SMC/ Taiwan Yade polite motion components |
| Motor and drivers | Japan Yaskawa |
| Reducer | Japan Shimpo reducer/MOTOVARIO reducer |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Working temperature | Indoor temperature is okThere should be no vibration source nearby |
| Working voltage | 3 Phase 380V/50HZ/ |
| Years of warranty | 2 years warranty (not include vulnerable part ) |
Samples of 1530 cnc laser cutter
Why choose us
Professional After -Sales Service
100+ after sales service people provide 24 -hours fast online technical support in 12 language
Global sales network layout
Sold to more than 150 countries and regions around the world,and established agency service points in more than 30 countries and regions around the world.
Intelligent production base
The company has a manufactory of 66000 square meters,including modern standard factory buildings of 4000 square meters and smart office building of 6000 square meters.
Honor certificate
We have obtained IOS9001, ROHS, CE international certifications,and has more than 30 utility model patents and appearance design patents.

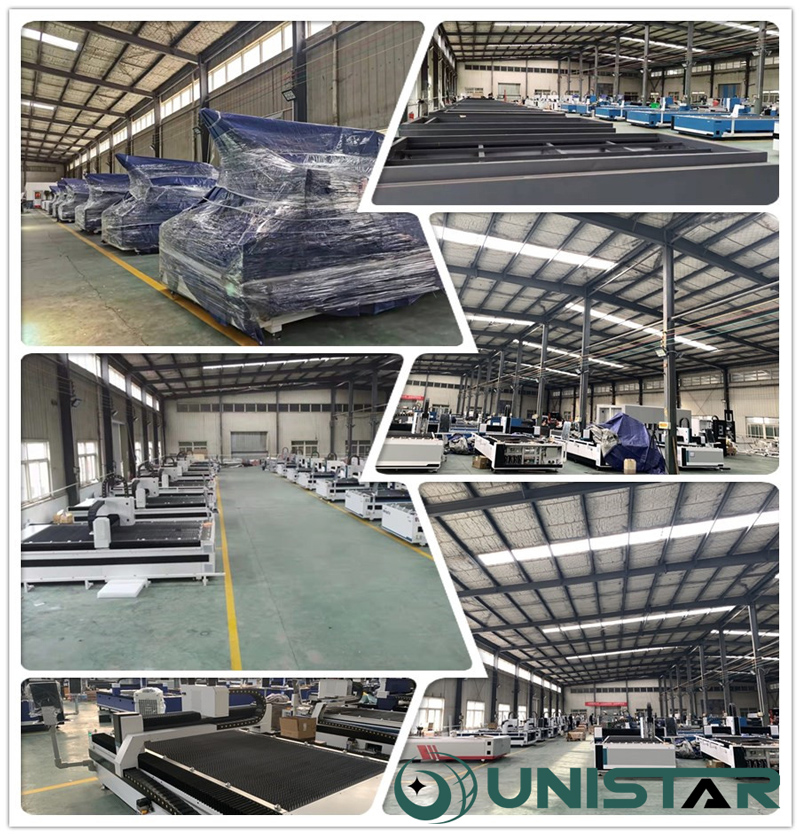

FACTORY SHOW
Foreign customer visiting
CERTIFICATE
We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Patent certificate, Saber Certificate, FDA for metal cutting laser cutter, Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing,packaging and shipping to ensure the performance and quality of laser products.
Q1: What metal can I cut with a laser?
A1: Metal laser cutting machine can cut almost all metal materials, most people use them to cut carbon steel, low carbon steel, stainless steel, steel alloys and aluminum these metal materials.
Q2: Can I use a metal laser cutter to cut other materials?
A2: The answer is yes, metal laser cutting machine is widely used, do not need to replace any parts, just adjust the size of the laser power can be cut.
Q3: How to buy the right metal laser cutting machine? What do you need to pay attention to when buying a metal laser cutting machine?
A3: Before investing in a metal laser cutting machine, you need to consider the following:
1. Type of laser.
2. The size of laser power.
3. Dimensions of the machined parts.
4. Quality of after-sales service.
Q4: How many years of warranty period?
A4: The whole machine have 2 years quality guaranty, any parts broken during the warranty time, we will take place of it free (Under no human damage ).
Q5: Do you have CE document and other documents for customs clearance
A5: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q6: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A6: If machine technical problem, we have engineer online support service, through remote control, video show, to help solve problem, if parts broken ( not consumption parts, we will take place a new one as soon as possible.
