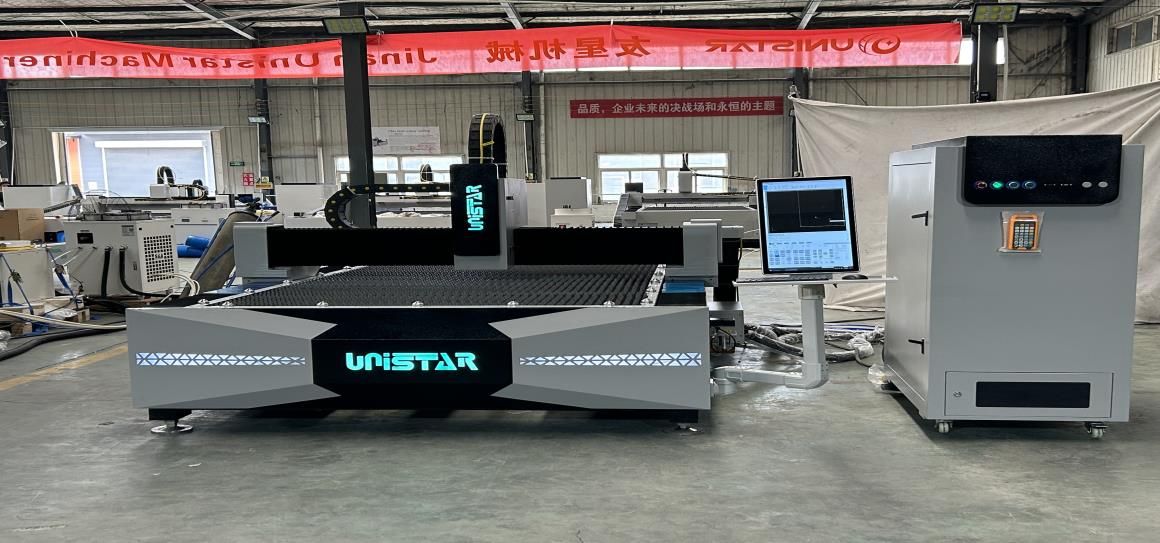

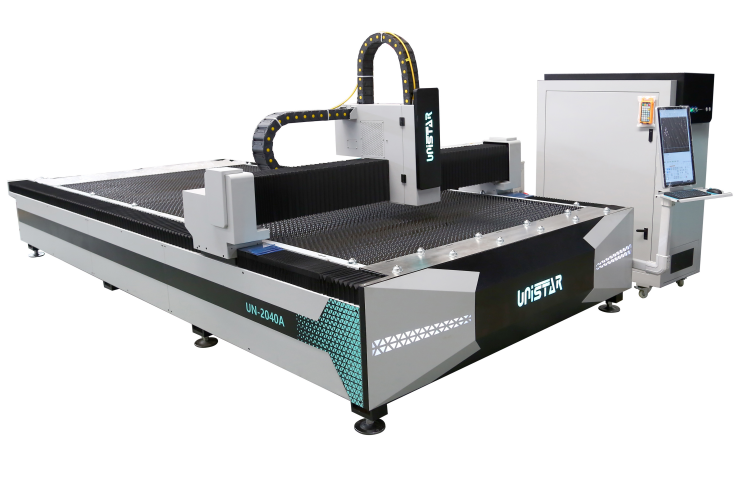

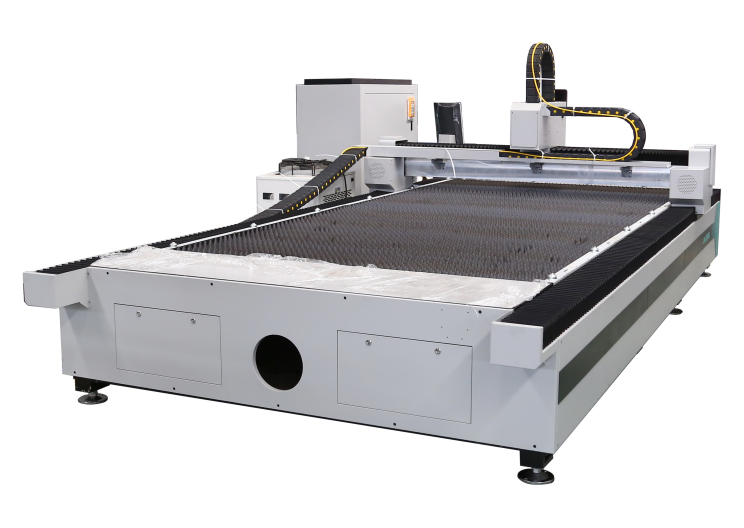

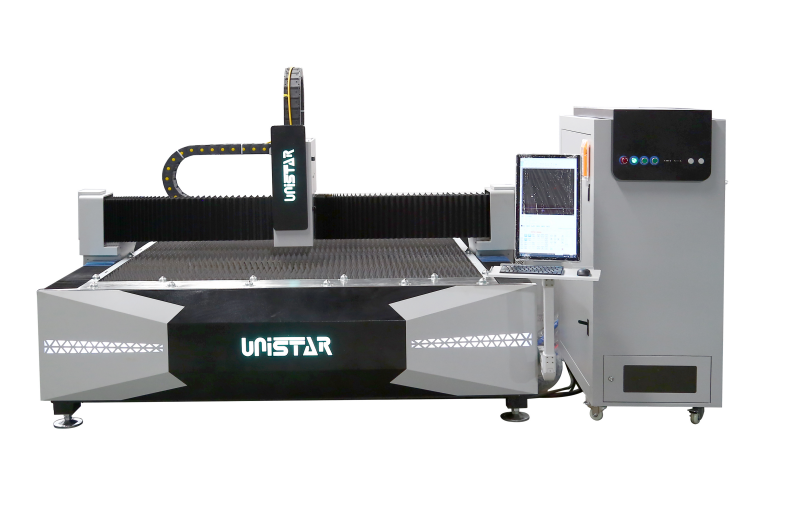

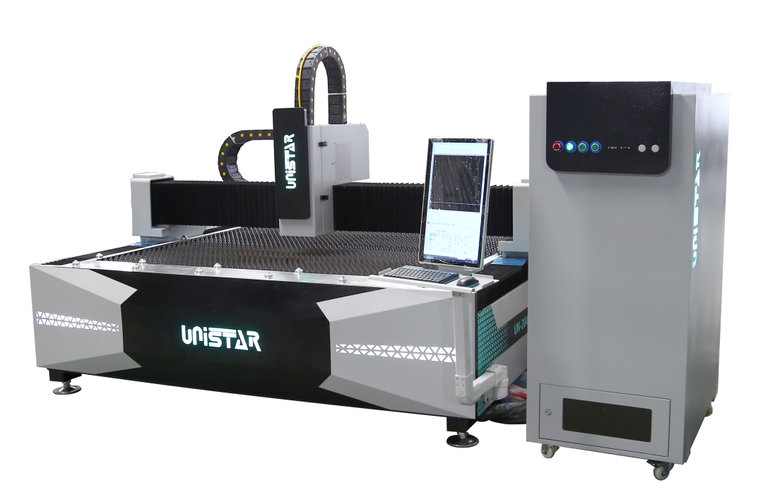

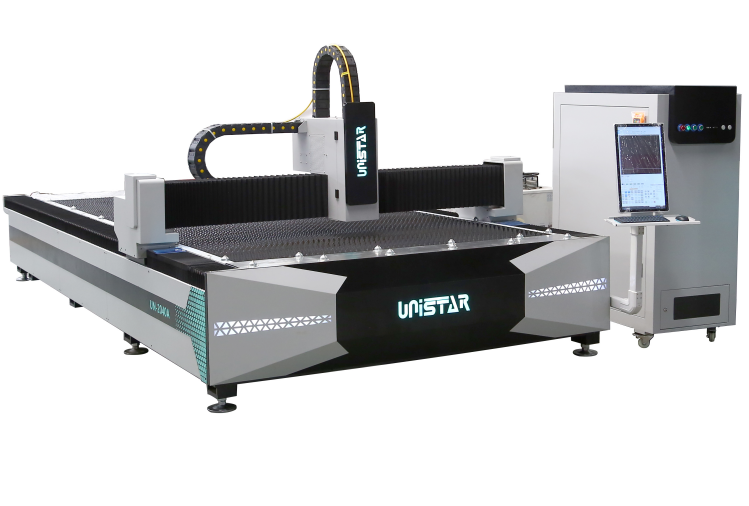

The Sheet Metal Laser Cutting Machine uses an advanced fiber laser to output a high-energy-density laser beam and focus it on the surface of the workpiece, so that the area of the workpiece that is illuminated by the ultra-fine focus spot is instantly melted and vaporized.Laser cutting machine fiber precision, fast speed, smooth cutting surface without burrs, cutting efficiency, high efficiency.
1. The bed is welded with big-thickness steel square tubes, which can ensure the good stability of the structure. 1300*900mm,1300*1300mm.3000*1500mm,4000*2000mm,6000*2000mm, other size can be
customized.
2. It supports multiple graphic files including DXF, PLT, DWG, AI, G-code, and IGS (tube cutting). It is compatible
with other nesting software.
3. Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it
by hand.Application Materials

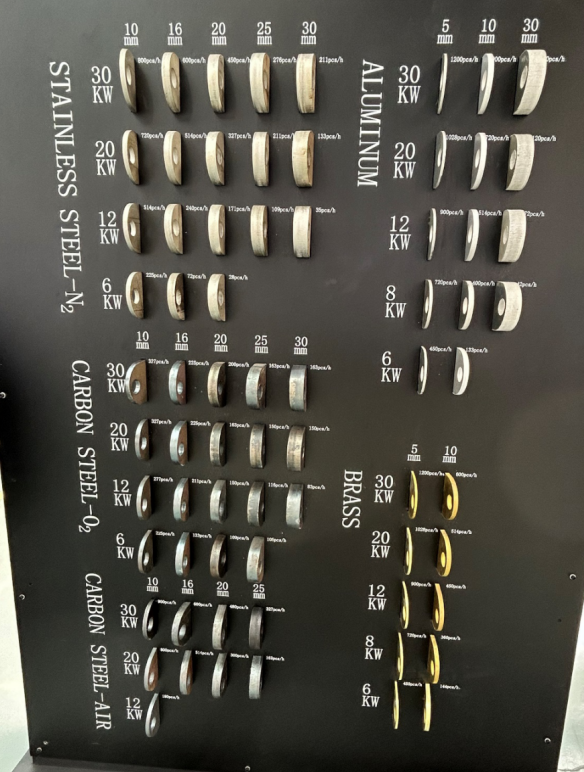

Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.ensure that it can operate ng possible during the laser cutting process.

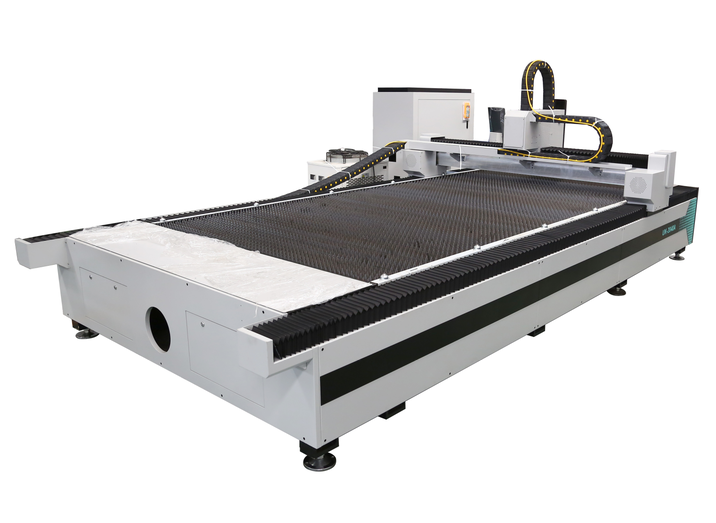

Machine Body
Our bed adopts square tube welding, simple structure, good load-bearing capacity. In order to prevent rust, we use spray process instead of spray painting process. The spraying process can prevent the machine from rusting and will not fall off in a year like paint.

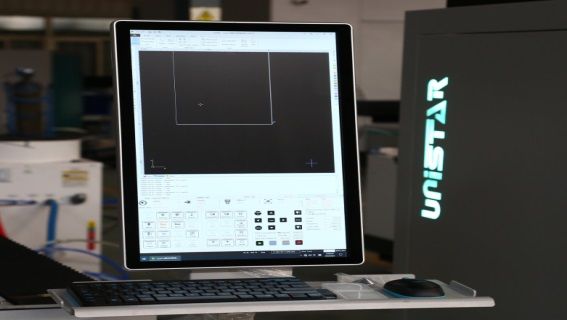

CYPCUT control system
The laser head uses a high-precision mirror, which can focus and cut quickly and accurately, making the cutting speed and effect very good

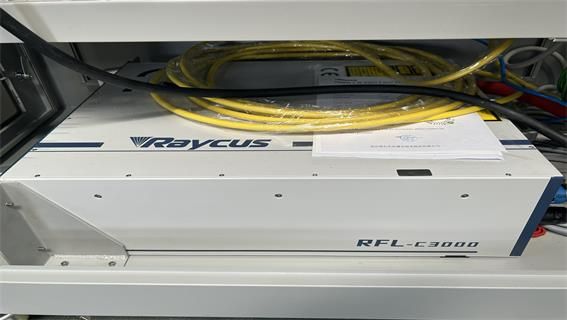

MAX/ Raycus laser source
This brand is a famous brand in China. They have been focusing on the development of fiber lasers for nearly 20 years, with rich experience and top technology, and high quality products.
It can choose different brand laser source such as raycus/max.
The power can be1000W/1500W/2000W/3000W .
Japan SHIMPO Reducer
SHIMPO reducer adopts cone bearings, so that the output shaft can withstand greater axial and radial loads. Improve the machining speed, ensure the running accuracy of the bed, and ensure the positioning accuracy and speed.
Japan FUJI servo motor and drivers
Advanced motor and drive equipment, good quality, long service life, can better drive the machine.
No brush and commutator, so the work is reliable, low maintenance and
maintenance requirements;

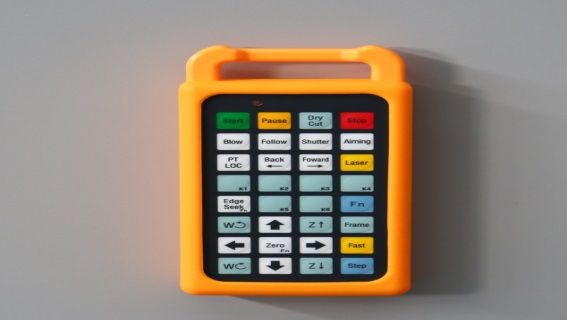

Remote control handle
Remote control handle Control system with Handwheel handle

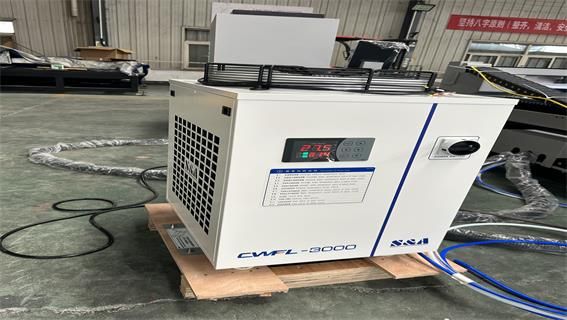

S&A Water Cooling
Special and cold water machine has the following characteristics:
1.Cooling water flow and high and low temperature alarm safety protection function
2.Two operating modes: constant temperature and intelligent temperature control
Special and cold water machine has the following characteristics:
1.Cooling water flow and high and low temperature alarm safety protection function
2.Two operating modes: constant temperature and intelligent temperature control
| Model | UN-3015A |
| Working Area | 3000*1500mm |
| Laser source media | Raycus/MAX/IPG |
| Laser Power | 3000W |
| Laser head | Raytool/CYPCUT |
| Laser Wavelength | 1080 nm |
| Beam Quality | <0.373mrad |
| Positioning Accuracy | ≤ ±0.03mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Maximum positioning acceleration | 1.5G |
| Max moving Speed | 120m/min |
| X-axis Stroke | 1500mm |
| Y-axis Stroke | 3000mm |
| Working Table | Blade platform thickness 3mm thickness |
| Machine body | Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment, |
| Control System | CYPCUT/Raytool |
| Rack | Taiwan import YYC helical rack with high accuracy |
| Rail guide | X,Y,Z axis import Hiwin Rail Guide |
| Water chiller | S&A/Hanli |
| Pneumatic accessories | Japan SMC |
| Motor and drivers | Taiwan delta |
| Reducer | Japan Shimpo reducer |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Working temperature | Indoor temperature is OK. |
| Working voltage | 3 Phase 380V/50HZ |
| Years of warranty | 2 years warranty (not include vulnerable part ) |
CUSTOMERS VISIT US

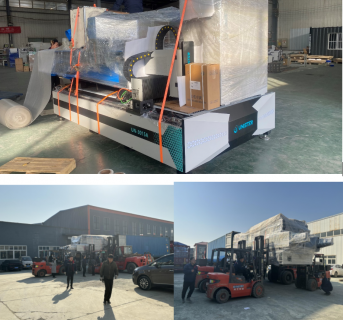

PACKING AND SHIPPING

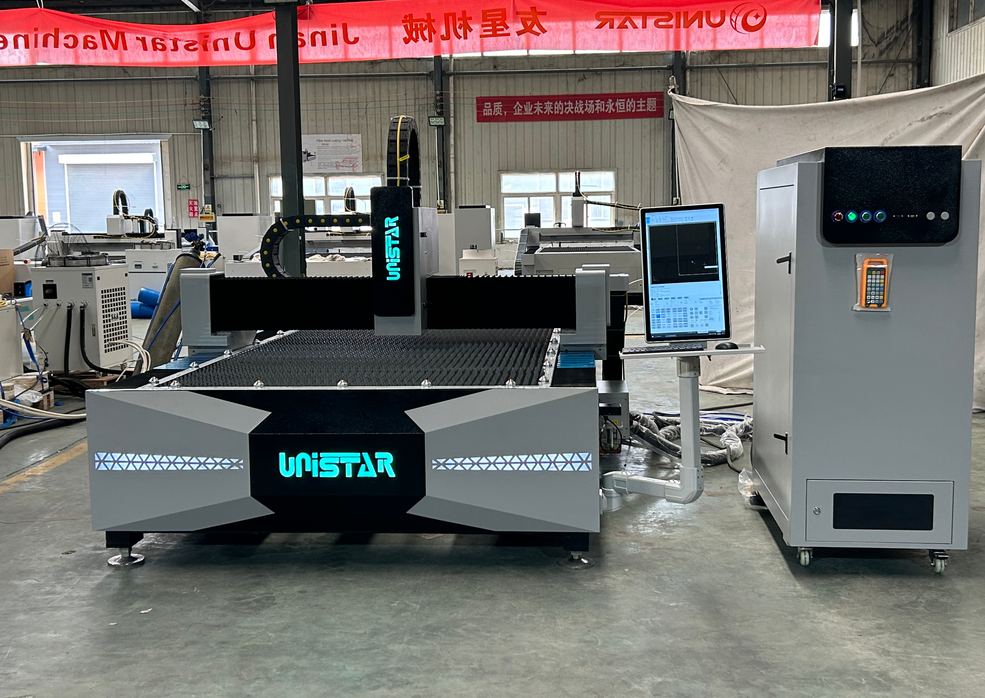

Factory
