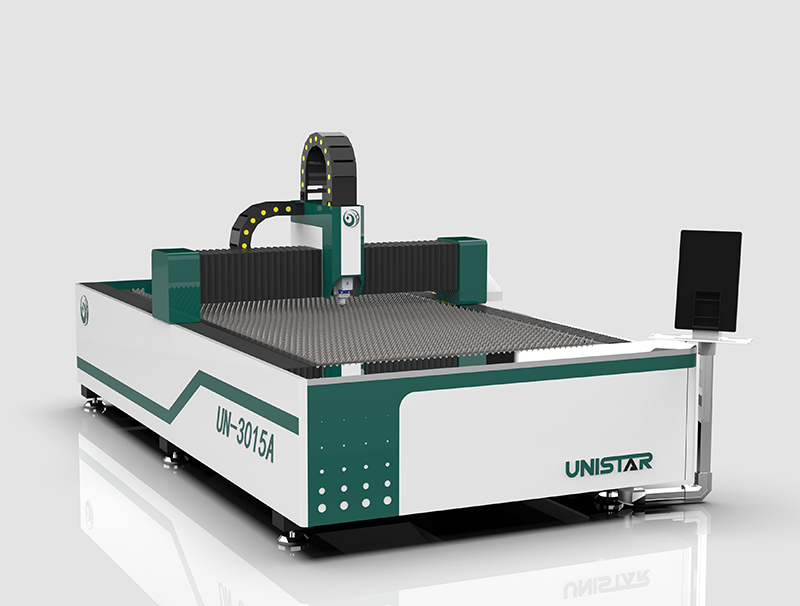

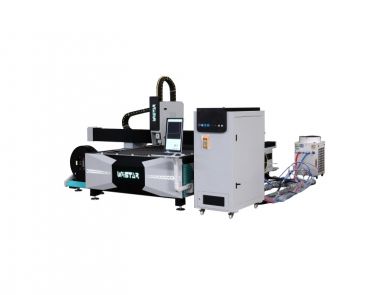

3kw fiber laser metal cutter

Principles of 3kw laser cutter Machines

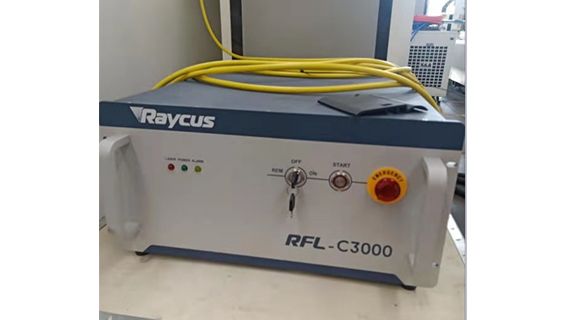

Fiber laser is a laser technology that uses fiber as the laser transmission medium. The interior of fiber laser is composed of laser body, mirror and fiber. The laser body is the key part of laser generation. The laser body is usually composed of three parts: laser medium, mirror and light source.

When the light source shines on the laser medium, the laser medium is excited by energy, which causes the energy level of atoms and molecules to change. When these atoms and molecules are in a high energy state, they can emit laser light through spontaneous radiation or stimulated radiation, and the laser light is continuously enhanced by the reflection of the mirror in the resonator, and finally forms the laser beam output.

Advantages of machine

1. High efficiency:

The wavelength of fiber laser is very short, the power is very high, and it can effectively accelerate the production efficiency when used in the industrial manufacturing field.

2. High precision:

In the laser beam output process, due to the high strength and small diameter of the fiber, the accuracy of the laser beam is very high, which can make the cutting and punching operations of the laser in the application process more accurate.

3. High stability:

Fiber lasers use fiber as a transmission medium, in the process of use, because the fiber has high strength and high light conductivity performance, to ensure the stability and reliability of the laser beam.

4. Wide range of application:

Fiber lasers have a very wide range of applications, including medical, communications, manufacturing, military, scientific research and many other fields. Fiber lasers are more widely used in manufacturing, material processing and other fields.

5. Environmental safety:

Compared with traditional processes, fiber lasers do not require chemical treatment, do not produce harmful substances, meet the requirements of modern environmental protection, and are safer to operate.

Quality guarantee

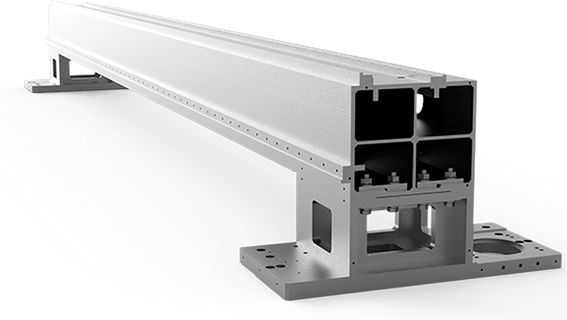

1. The whole structure of the machine is studied by the finite element method. Through heat treatment, the internal stress after finishing is eliminated, and the stress caused by processing is better solved, so the rigidity and stability of the device are improved, and its service life is also increased.

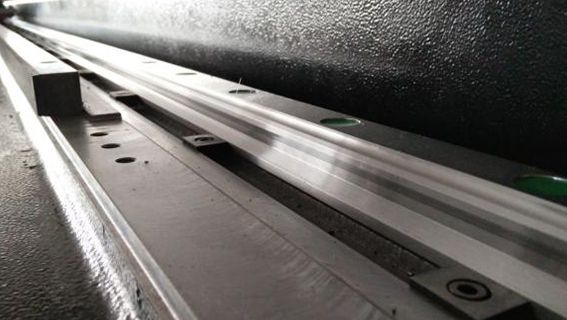

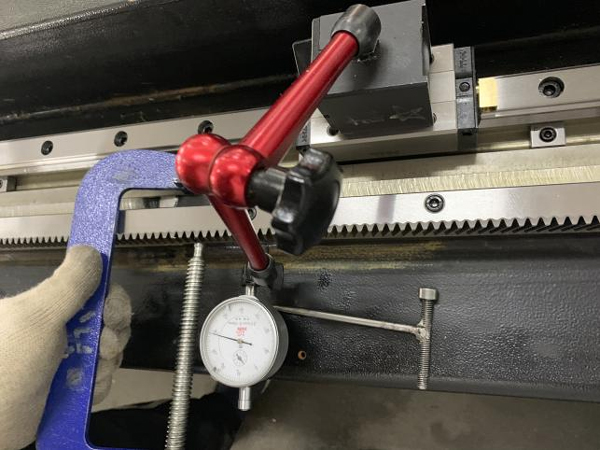

2. Use high-precision test equipment to test the straightness and flatness of the guide rail to ensure the installation accuracy

Applicable industry

1. Sports and fitness equipment manufacturing industry

The diversity of fitness equipment has also made a higher condition for the production and processing, and various specifications and shapes have made the old-fashioned processing process cumbersome and the work efficiency low. High flexibility of laser cutting equipment, support the customization of different pipes, plates, production and processing of finished products smooth and flat, no burr phenomenon, no reprocessing, product quality and productivity greatly improved.

2. Sheet metal processing manufacturing industry

With the vigorous development of sheet metal processing, the old sheet metal cutting machine meets the current production process, cutting work style conditions, metal laser cutting has the advantages of high softness level, cutting work rate, etc., increasingly replacing the old machine, metal fiber laser cutting machine widely used in sheet metal processing is an inevitable trend of future development.

3. Chassis sheet metal manufacturing industry

The electrical cabinets and iron filing cabinets we can see around us are almost the finished products of the standardized production of thin plates, and the productivity conditions are getting higher and higher. Fiber cutting machine is more suitable, productivity will increase.

4. Automobile manufacturing industry

There are also many precision parts materials in cars, such as brake pads. In order to improve the safety of the vehicle, the cutting accuracy must be guaranteed. Old-fashioned manual accuracy is difficult to achieve, and second, inefficient. The advantages of metal laser cutting accuracy, high work efficiency, no burr phenomenon, and integrated molding are the reasons why fiber laser cutting machines are widely used in the automobile manufacturing industry.

5. Shipbuilding industry

In the direction of Marine production and manufacturing, metal laser cutting Marine steel plates have good cutting workpiece quality, good section perpendicularity, no hanging slag, thin oxide film, smooth and flat surface, no reprocessing, direct laser welding, small thermal stress, high accuracy of curve cutting work, reduce the time to assist, and meet the high-strength ship special plate efficient cutting work.

Component introduction

Why choose fiber laser cutting machine.

1. Cost-effectiveness

If you're already thinking about the cost, don't worry. At first, a fiber laser cutting machine may cost a lot of money, but the return far exceeds the cost. Fiber laser cutting machine due to good processing flexibility, more material saving, and high cutting quality, do not have to carry out secondary processing of the product, so greatly saving material costs, as well as manual cutting required manpower.

The following points will demonstrate why fiber laser cutting machines are a more cost-effective option.

2. Safety

Because the laser cutting machine is programmed to operate automatically, the automatic auxiliary device makes people do not need to be close to it for loading and unloading operation, just supervise. In addition, the fiber laser cutting machine with the enveloping design reduces the diffusion of smoke and dust, making the working environment more environmentally friendly. In terms of safety, fiber laser cutting machines are a safer choice for metal cutting.

3. Precision

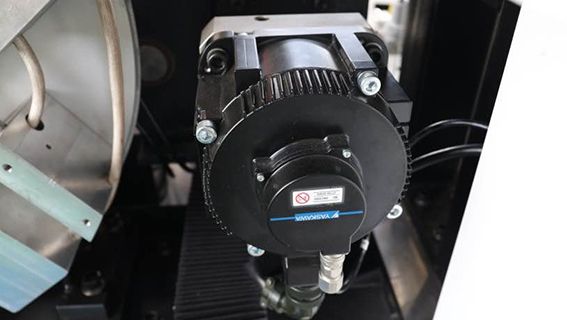

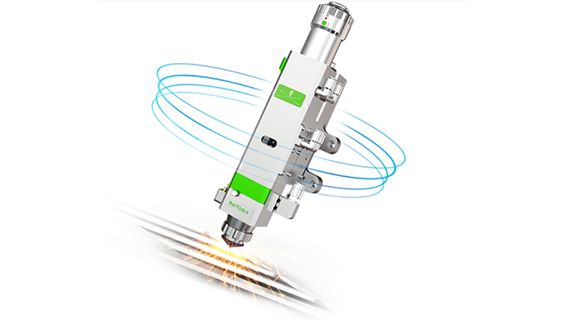

Fiber laser cutting machine can output a laser beam with a high energy density, and the slit is very narrow, so it is suitable for cutting metal materials requiring high precision, such as precision parts and medical devices. In addition, the cutting head of the laser cutting machine is not in direct contact with the cutting material, which reduces the mechanical vibration; The high-precision servo motor, guide rail and transmission device used ensure the processing precision of the fiber laser cutting machine.

4. Long life

Because the structure of the fiber laser cutting machine is stronger than most machines, it can have a long service life. If you have a keen eye for materials, then perhaps a fiber laser cutting machine is just the machine you need for your manufacturing industry. As a high-end device, it has greater development potential.

5. Easy to use

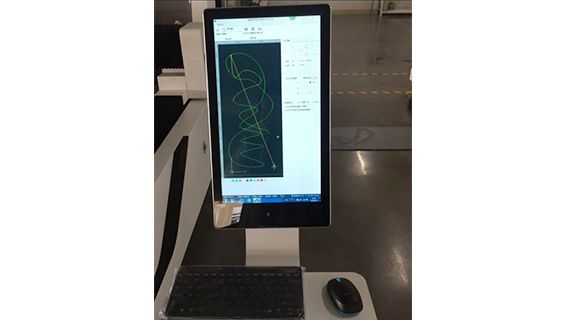

As mentioned above, the fiber laser cutting machine is controlled by a numerical control program, the operating system is very friendly for the staff, just enter the designed graphics into the program, the machine will automatically cut out the graphics.

Our warranty and service

Warranty

1. All the above quotation is based on factory price.

2. Offer validity: 10 days.

3. Production lead time:20 working days.

4. Payment:30% T/T payment in advance, 70% T/T before ship out from the factory.

After-Sales Service

1. We guarantee the quality of the main parts within 2 years. If the main parts go wrong without artificial factors within 2 years, we will freely provide them or maintain them for you. After 2 year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.

2. The customers' technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.

3. We can send our engineer to the customers' place to help install, test the machine, and to train the customers' technicians, our engineer will stay at customers' place for 5-7 days, customers should pay the round-trip air tickets/hotels/food fees/visa fee for our engineer. Training fee is about 150 USD each day.

FAQ

Q: How to choose laser cutting machine

A: When choosing a laser cutting machine, it is crucial to consider factors such as material type compatibility, dimensions, laser cutting speeds, maximum thickness and output power. By carefully evaluating these aspects, you can ensure that your chosen equipment meets your specific processing needs.

Q: How to install and run laser cutter?

A: We have Laser cutter install guide instruction and diagrammatic drawing also with install and operating video for your reference. if customer need engineer training, we can offer oversea install and training service

Q: How can I do if machine goes wrong?

A: We have technician online service, any questions or problem can feel free to contact us, we will solve your problem within 24 hours

Q: Can I Cut Any Metal with Laser Cutting

A: Among the metals indicated for fiber laser cutting include:

Iron, Steel, Galvanised steel, Stainless steel, Aluminium, Brass, Copper, Titanium.

Q: How long does a laser cutter tube last?

A: Fiber Laser equipment is designed to last for more than a decade. Because of the core of the laser equipment life of up to 100, 000 hours or more. Regular maintenance is required for laser pipe cutting machines
