Fiber cutting machine is suitable for cutting precision accessories and cutting a variety of craft calligraphy and painting. Laser cutting machine cutting speed is fast, is more than 100 times the speed of wire cutting. Fiber cutting machine is very cost-effective, and occupies an important position in sheet metal processing, auto parts processing, aerospace, shipbuilding and other industries

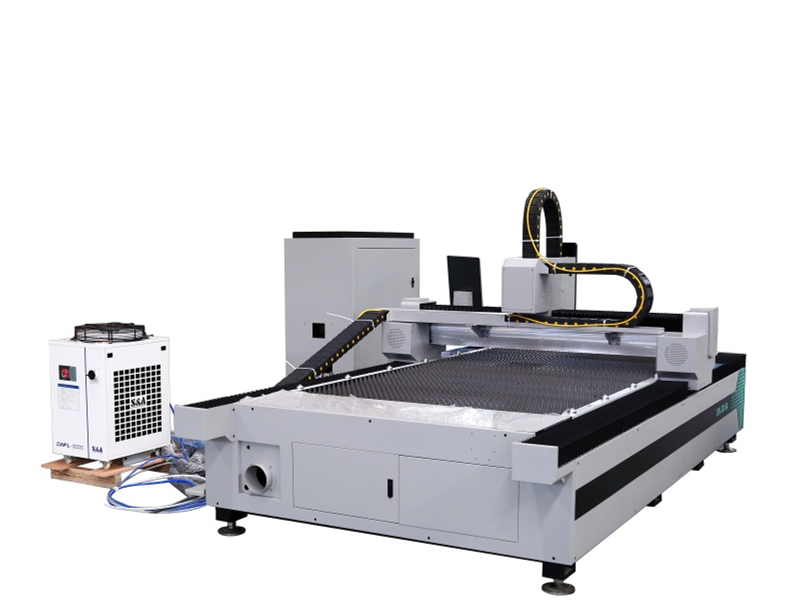

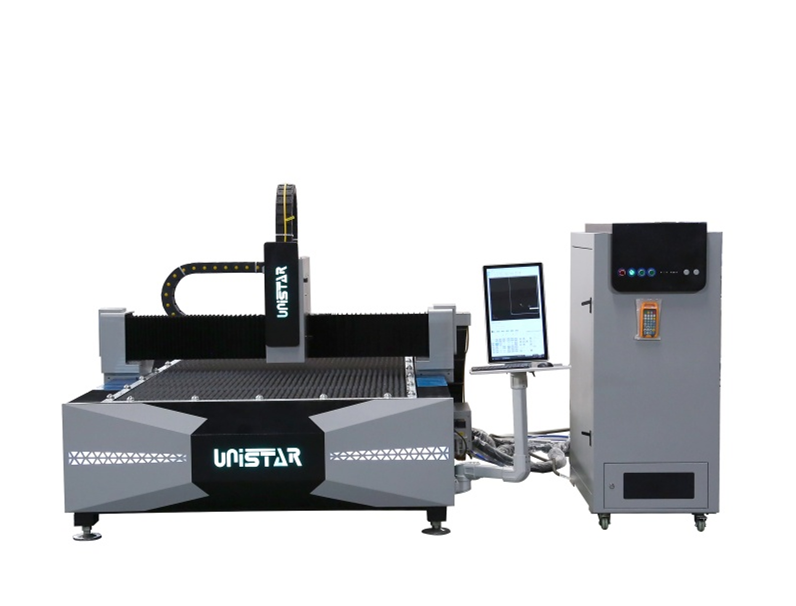

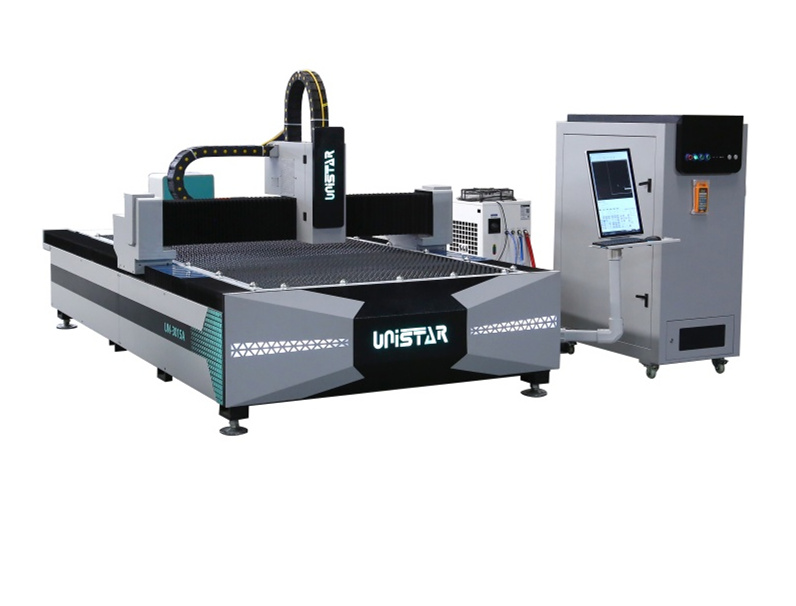

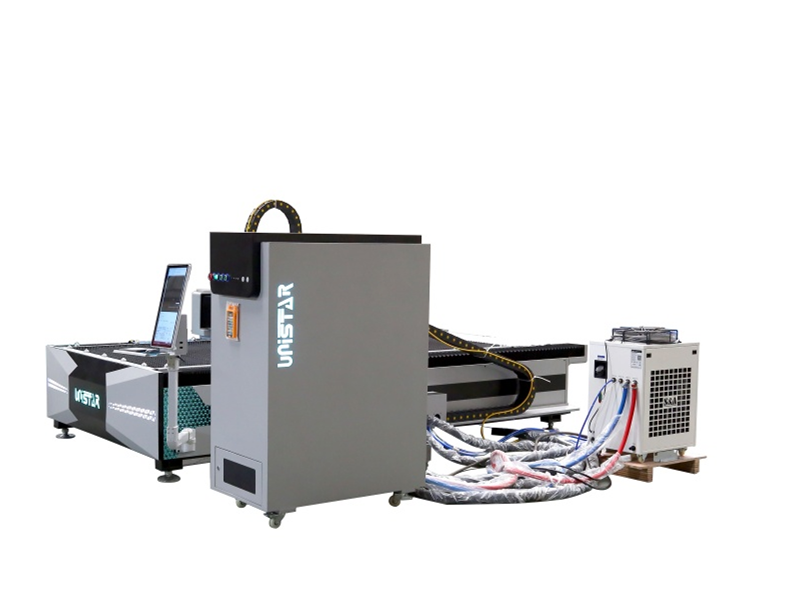

Fiber laser cutting machine Brief Introduction
Fiber laser cutting machines are core high-precision metal processing equipment in modern industrial manufacturing. They use fiber lasers as the core light source and achieve efficient transmission of laser beams through flexible optical fibers. After being focused by a professional cutting head, they form a spot with extremely high power density. Combined with coaxial high-speed auxiliary gas, they can quickly melt, vaporize and blow off metal materials Ultimately, a smooth, narrow and high-precision cut seam is formed. This equipment features significant advantages such as high electro-optical conversion efficiency, low operating costs, and convenient maintenance. It also has technical characteristics of fast cutting speed, high precision, and excellent seam quality. It does not require complex optical path calibration and can adapt to harsh industrial production environments. It is applicable to a wide range of materials, covering various metal plates and tubes such as stainless steel, carbon steel, aluminum alloy, copper, and titanium alloy. It is widely used in numerous industries including sheet metal processing, aerospace, automotive manufacturing, electronic appliances, and construction machinery. It is a key equipment for enhancing production efficiency and optimizing product processing accuracy in enterprises.
Detail photos of laser cutting machine

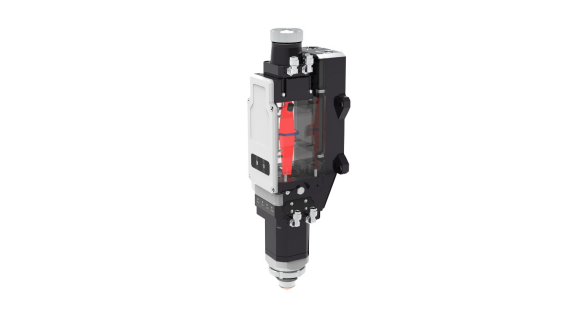

Boci 421 Laser Cutting Head
Cutting is more stable and efficient
New optical solutions
Closed loop autofocus
Supports intelligent knife retracting
Nozzle cooling and sensor water cooling functions
Make cutting more stable and efficient

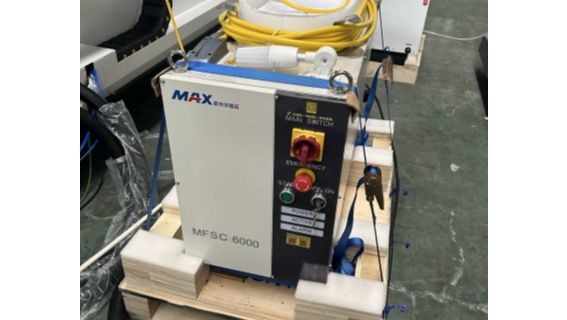

MAX Laser Source
Stable performance, both thickness and thickness. Less electricity, more energy saving

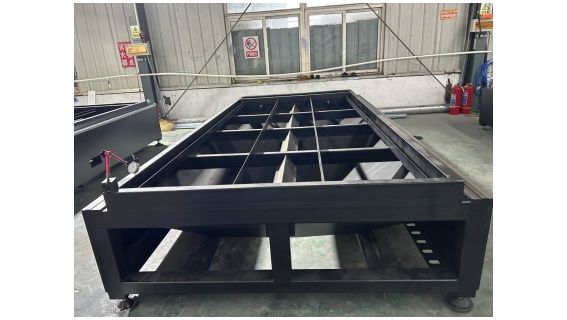

Machine Body
Machine structure precision machining welding bed ,quench and tempering heat treatment, To achieve high strength and at the same time better plasticity and toughness

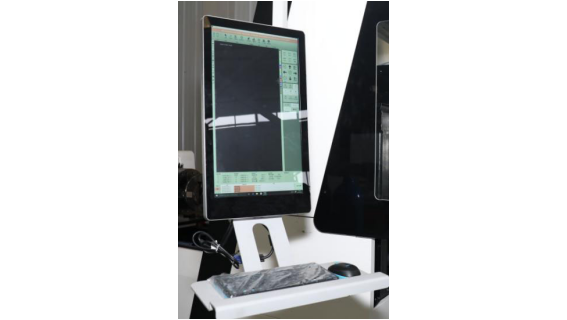

Control Screen
computer display screen.
More easy to operate machine
More Security/stability
Control System
The system operation interface is simple and easy to master.
Rail Guide
Taiwan HIWIN Rail Guide

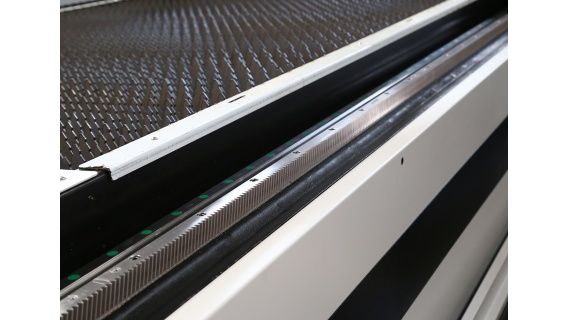

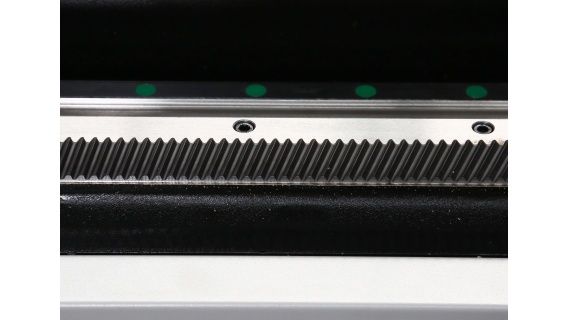

Helical Rack
Taiwan YYC impot helical rack and pinion with high accuracy

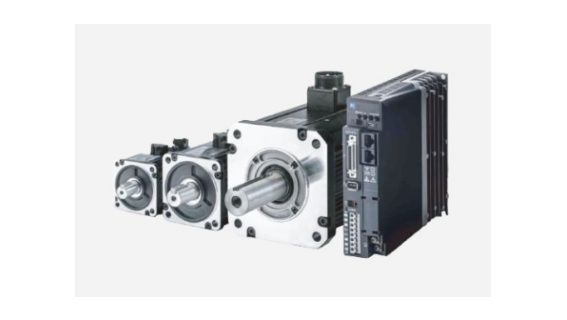

Motor And Driver
"Fast" response, "strong" motor, in the industry's leading level of high-speed, high-precision control

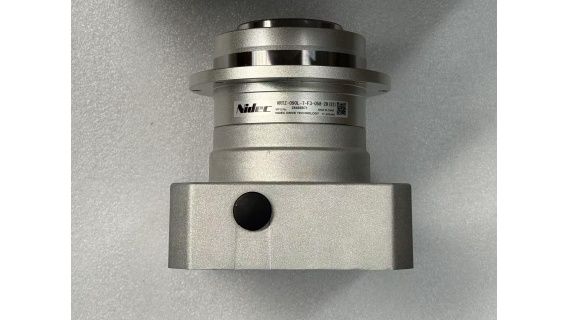

Ruducer
Japan Shimpo reducers, featuring efficient transmission and strong load and pressure resistance

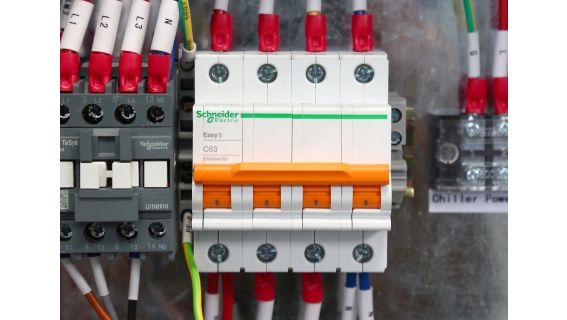

Electricity Parts
Use Schneider Electric accessories. Safe and reliable, durable and easy to maintain

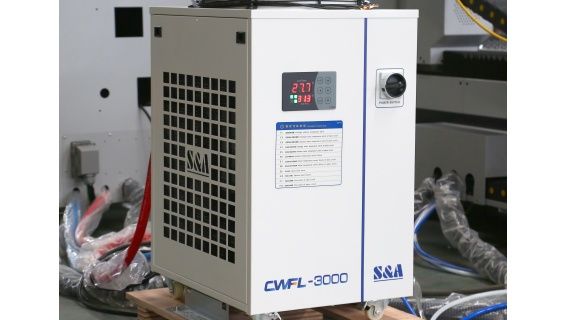

Water Chiller
S&A water chiller
Has best cooling effective
Oil Injection System
Automatic oil injection system to lubricate rail guide and rack , keep long life time
Other Optional
 |  |

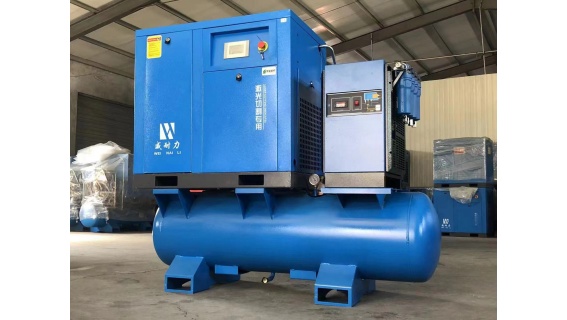

Air Compressor Laser cutting equipment to use air compressor, laser cutting machine can cope with a variety of materials and complex shape cutting requirements, in addition to the need to provide high energy lasers, auxiliary gas is an indispensable substance to complete the cutting process. | Voltage Stabilizer The role of the regulator is to stabilize the power supply voltage that fluctuates greatly and fails to meet the requirements of electrical equipment within its set value range, so that various circuits or electrical equipment can work normally under the rated operating voltage. |
Products Application
1. Sheet metal processing industry. Fiber cutting machine can simplify the processing process, reduce the product development cycle, improve work efficiency at the same time can also reduce the cost of processing costs, so as to help enterprises to create more high-quality sheet metal processing work-piece.
2. Home furnishing industry. The metal parts in the home manufacturing industry are faced with the problems of low work efficiency, large mold consumption and high use cost using traditional processing methods. The laser cutting machine has high cutting precision, greatly improves the processing efficiency, and can realize household product customization and personalized product development, solve the problem of efficient production of metal parts in household manufacturers, and has been recognized by the majority of household manufacturers.
3. The automobile manufacturing industry. There are many precision parts in cars, such as brake pads. In order to improve the safety of the car, it is necessary to ensure the cutting accuracy. Using laser cutting can be faster batch processing. This is why laser cutting machines are widely used in the automotive industry.
4. The aerospace industry. Now aviation engine design, manufacturing is very complex, which covers tens of thousands to hundreds of thousands of small parts, a large number of titanium alloy, high temperature gold, stainless steel and other materials, these materials are high hardness, easy to be brittle, the use of traditional methods are difficult to process, and fiber laser cutting machine can be a good processing of these materials
Advantages Of Fiber Laser Cutter
1. The fiber laser cutting slit is narrow, which can save materials, reduce the waste of materials and improve the utilization rate of materials.
2. The flexibility of the fiber cutting machine is high, and it can process any graphics.
3. The fiber laser cutting machine will not contact with the work-piece during work and will not cause damage to the work-piece.
4. Fiber laser can cut a lot of materials, steel plate, aluminum alloy plate, galvanized plate, etc., can be cut.
5. The fiber laser cutting machine is equipped with intelligent control system, which can realize automatic operation and improve the intelligent level of the production line.
Machine configuration parameters

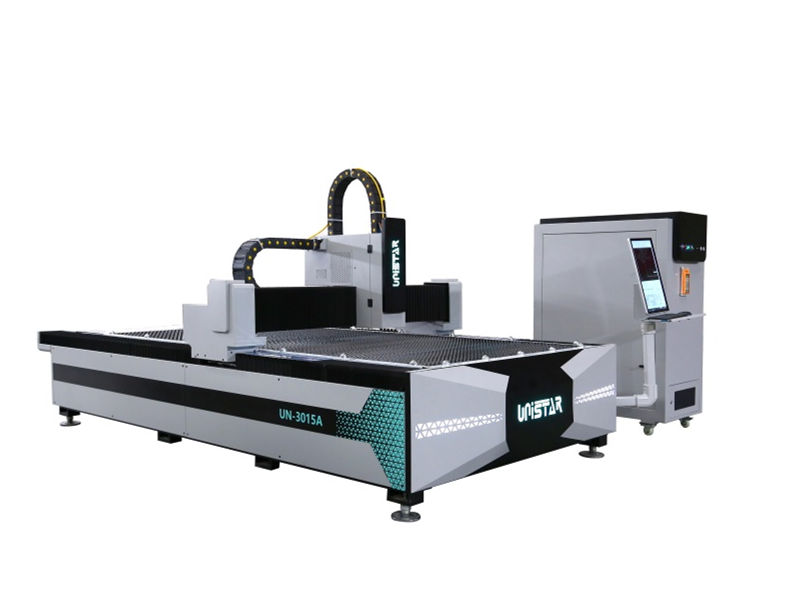

Model | UN-3015A |
Work Area | 3000*1500 mm |
Fiber Laser Source | MAX |
Laser Power | 6000W |
Max Moving Speed | 120 m/min |
Max Acceleration | 1.5G |
Positional Accuracy | ± 0.02 mm |
Control System | CYPCUT |
Motor and Driver | Japan FUJI servo motor and drivers |
Reducer | Japan SHIMPO reducer |
Transmission | Rack and pinion |
Pneumatic Accessories | Japan SMC |
Table | Blade table |
Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
Work Voltage | 3 phase 380V/50HZ |
Warranty | 2 years |
Water Chiller | S&A CW6000 |
Machine cutting parameters
| 6000W Cutting Parameter(100um) | ||||
| Material | THICKNESS(mm) | SPEED(m/min) | Atmospheric pressure(BAR) | TIME(S) |
| MS(O2) | 1 | 9-10.5 | 2.5 | 0.1 |
| 2 | 5.5-6.5 | 2.5 | 0.1 | |
| 3 | 3.8-4.5 | 0.6 | 0.1 | |
| 4 | 3.3-3.8 | 0.6 | 0.1 | |
| 5 | 3-3.4 | 0.6 | 0.1 | |
| 6 | 2.9-3.2 | 0.6 | 0.1 | |
| 8 (FAST) | 2.5-2.7 | 0.7 | 0.2 | |
| 8 | 1.2-1.3 | 0.5 | 0.2 | |
| 10(FAST) | 2.0-2.4 | 0.7 | 0.2 | |
| 10 | 1.1-1.2 | 0.5 | 0.2 | |
| 12(FAST) | 1.8-2.2 | 0.7 | 0.5 | |
| 12 | 1.0-1.1 | 0.5 | 0.5 | |
| 14(FAST) | 1.6-1.8 | 0.7 | 0.6 | |
| 14 | 0.9-1.0 | 0.5 | 0.6 | |
| 16(FAST) | 1.3-1.5 | 0.7 | 0.8 | |
| 16 | 0.7-0.8 | 0.5 | 0.8 | |
| 18(FAST) | 0.7-0.9 | 0.5 | 1.2 | |
| 18 | 0.6-0.8 | 0.5 | 1.2 | |
| 20(FAST) | 0.6-0.8 | 0.9 | 1.8 | |
| 20 | 0.45-0.5 | 0.5 | 1.8 | |
| 25(FAST) | 0.5-0.6 | 0.5 | 2.5 | |
| 25 | 0.35-0.4 | 1.1 | 2.5 | |
| SS(N2) | 1 | 50-60 | 10 | 0.05 |
| 2 | 25-30 | 12 | 0.1 | |
| 3(FAST) | 17-20 | 7 | 0.1 | |
| 3 | 12-16 | 14 | 0.1 | |
| 4(FAST) | 11-14.5 | 7 | 0.1 | |
| 4 | 10.5-12 | 14 | 0.1 | |
| 5(FAST) | 9-10.5 | 7 | 0.2 | |
| 5 | 7-7.5 | 14 | 0.2 | |
| 6(FAST) | 7-8.2 | 7 | 0.2 | |
| 6 | 5.5-6.5 | 15 | 0.2 | |
| 8(FAST) | 4-4.8 | 7 | 0.3 | |
| 8 | 3.5-4 | 15 | 0.3 | |
| 10(FAST) | 2.5-2.8 | 8 | 0.5 | |
| 10 | 2-2.4 | 15 | 0.5 | |
| 12(FAST) | 1.2-1.5 | 8 | 1 | |
| 12 | 1.0-1.2 | 16 | 1 | |
| 14(FAST) | 0.9-1.2 | 8 | 1.2 | |
| 14 | 0.85-1.0 | 16 | 1.2 | |
| 16(FAST) | 0.6-0.7 | 10 | 1.5 | |
| 16 | 0.6-0.7 | 16 | 1.5 | |
| 18 | 0.5-0.6 | 18 | 2.5 | |
| 20 | 0.4-0.5 | 20 | 3 | |
| SS(AIR) | 1 | 50-60 | 10 | 0.05 |
| 2 | 25-30 | 10 | 0.1 | |
| 3 | 12-17 | 10 | 0.1 | |
| 4 | 10.5-14 | 10 | 0.1 | |
| 5 | 7-8.2 | 10 | 0.1 | |
| 6 | 6-6.8 | 10 | 0.1 | |
| 8 | 3.5-4.5 | 10 | 0.2 | |
| 10 | 2-2.6 | 10 | 0.5 | |
| 12 | 1.5-1.8 | 10 | 1 | |
| 14 | 1.0-1.5 | 10 | 1.5 | |
| 16 | 0.7-1.0 | 10 | 2 | |
| AL(N2) | 1 | 40-50 | 10 | 0.05 |
| 2 | 20-25 | 12 | 0.1 | |
| 3 | 10-15 | 12 | 0.1 | |
| 4 | 9-9.5 | 14 | 0.1 | |
| 5 | 6-7 | 14 | 0.1 | |
| 6 | 4.5-5.5 | 15 | 0.2 | |
| 8 | 2.5-3.5 | 15 | 0.5 | |
| 10 | 1.8-2.3 | 15 | 1 | |
| 12 | 0.8-1.0 | 16 | 1.2 | |
| 14 | 0.7-0.8 | 16 | 1.5 | |
| 16 | 0.6-0.7 | 18 | 2 | |
| AL(AIR) | 1 | 40-50 | 10 | 0.05 |
| 2 | 20-25 | 10 | 0.1 | |
| 3 | 10-15 | 10 | 0.2 | |
| 4 | 9-10.5 | 10 | 0.5 | |
| 5 | 5-5.5 | 10 | 0.5 | |
| 6 | 3-4 | 10 | 0.5 | |
| 8 | 1-1.5 | 10 | 0.8 | |
| 10 | 0.8-1.1 | 10 | 1 | |
| 12 | 0.5-0.6 | 10 | 1.5 | |
| MS(N2) | 1 | 50-60 | 10 | 0.1 |
| 2 | 25-30 | 10 | 0.1 | |
| 3 | 13-18 | 10 | 0.1 | |
| 4 | 10-13 | 8 | 0.1 | |
| 5 | 9-10.5 | 8 | 0.1 | |
| 6 | 6.5-7 | 8 | 0.2 | |
| 8 | 3.7-4.5 | 8 | 0.2 | |
| MS(AIR) | 1 | 50-60 | 10 | 0.1 |
| 2 | 25-30 | 10 | 0.1 | |
| 3 | 13-18 | 10 | 0.1 | |
| 4 | 10-13 | 8 | 0.1 | |
| 5 | 9-10.5 | 8 | 0.1 | |
| 6 | 6.5-7.5 | 8 | 0.1 | |
| BRASS(N2) | 1 | 40-45 | 10 | 0.05 |
| 2 | 15-20 | 10 | 0.1 | |
| 3 | 10-12.5 | 12 | 0.2 | |
| 4 | 8-9.5 | 12 | 0.5 | |
| 5 | 5.5-6 | 14 | 0.6 | |
| 6 | 3-3.8 | 14 | 0.8 | |
| 8 | 2-2.5 | 14 | 1 | |
| COPPER(O2) | 1 | 15-20 | 8 | 0.1 |
| 2 | 9-12 | 8 | 0.2 | |
| 3 | 7.5-8.5 | 8 | 0.5 | |
| 4 | 5-6 | 8 | 0.8 | |
| 5 | 3-4 | 8 | 1 | |
Why Choose Us?

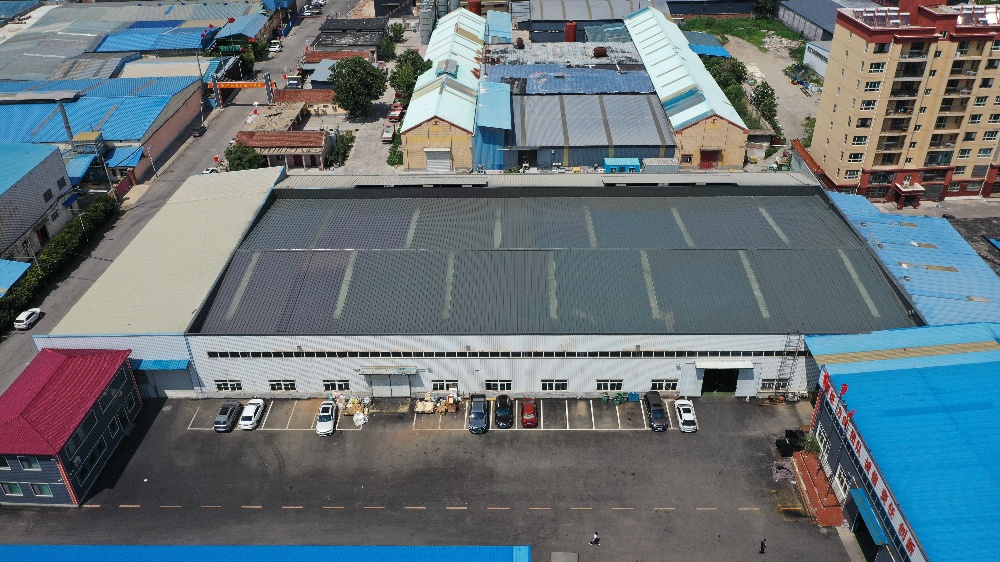

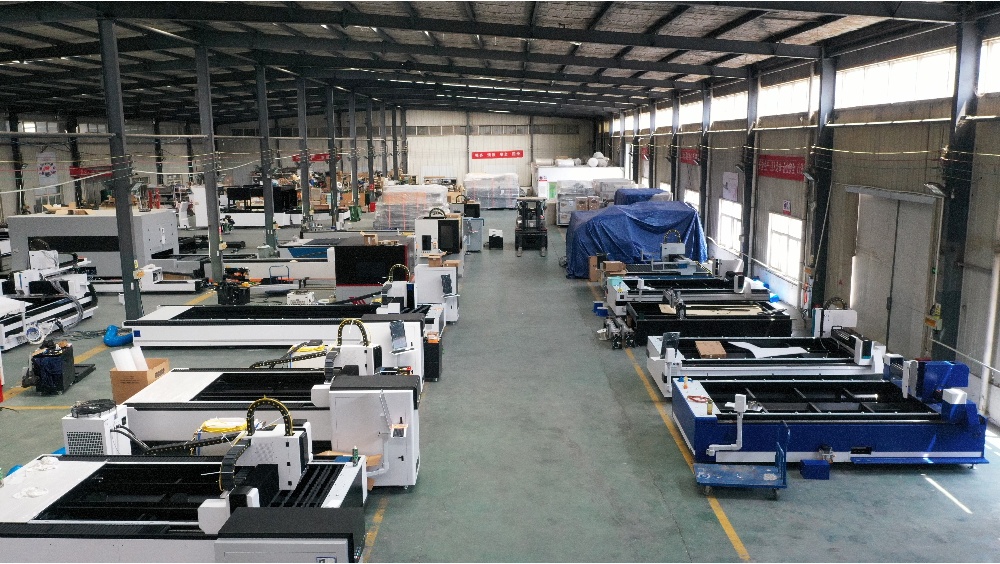

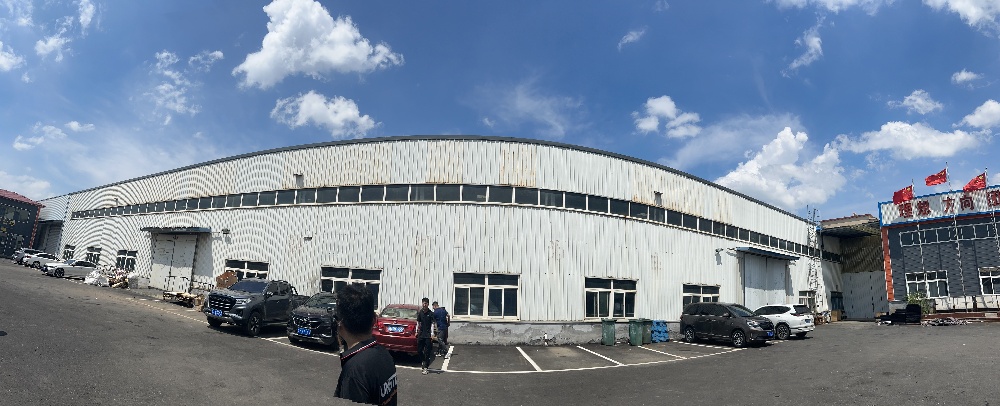

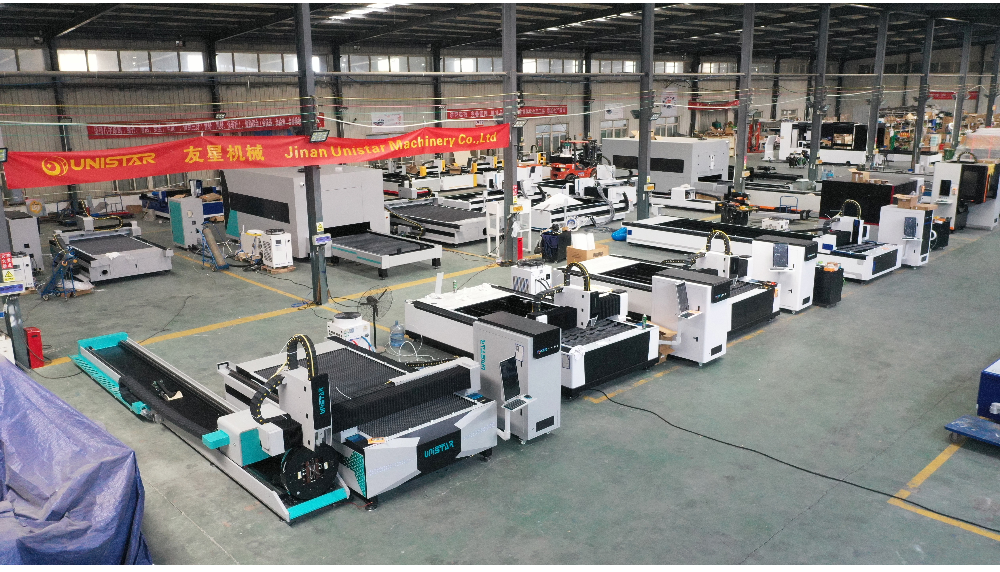

OUR COMPANY
Jinan Unistar Machinery Co., Ltd. was established in 2002, experienced 15 years of development and solid operation, the company has 20 professional research senior technical engineers in the field of laser, 100 sales team, 30 domestic and foreign after-sales service team, 150 workers, with strong new product development ability, Has developed into one of the largest and most influential enterprises in the laser industry
UNISTAR Laser intelligent equipment are mainly include sheet metal fiber laser cutting machine ,Tube metal cutting machine , Sheet metal and tube fiber laser cutting machine ,small Fiber laser cutter, high power cnc fiber laser cutter , laser cutting fiber , handheld fiber laser welding machine , Laser cleaning machine , 3 in1 fiber laser machine . cnc bending machine so on . Our equipment have been sold to Saudi Arabia, Bangladesh, Bulgaria, Serbia, Spain, UK, Poland , Hungary, Italy, South Korea, Ethiopia, Lebanon, Jordan, Egypt, Syria, Yemen, Russia, Australia, Canada etc more than 120 countries and regions , Which are highly recognized and appreciated by customers. Excellent quality, reliable price, perfect service is the value and mission of Unistar Company.
AFTER SALES SERVICE AND WARRANTY
1> The machine warranty 2 years
2> 15 sets consumable parts Nozzle free ,6 sets protect lens free
3> a> During the warranty period, in case of failure or part damage (except human factors and force majeure factors), the seller shall be responsible for free repair. The parts need to be replaced will be provide from the seller for free (except the wear-quick part)
b> After the warranty period expired, the buyer only need to pay the actual maintenance cost
c> UNISTAR laser will make return visit of customers at regular time one year
4> We can offer engineers go abroad installation and training , 200USD/One day. Customer offer engineer come and back tickets fees living and eating. Usually it takes 7 days finished training.
CERTIFICATE
Customer Visiting
Our high quality products attract many foreign customers to visit our factory. We also extend a warm welcome to them. When the customer visited the factory, in order to give the customer a more comprehensive understanding of our company, our manager introduced our company's corporate culture, development history, product advantages and so on. After field investigation, many customers have established long-term friendly cooperative relations with us. We welcome every friend to come.
Customer Feedback
Packing And Shipping
Exhibitions
Q: How do I install and run the machine?
A: Our technicians have installed the machine before delivery. For the installation of other configurations, we send detailed training videos and user manuals with the machine.
95% of customers can teach themselves.
Q: Do you have CE certificate?
A: Yes, we do.
Q: What should I do if I want to see the condition of the machines in your factory and it is not convenient to go to China?
A: We support production visualization services. The sales department that responds to your inquiry in the first place will be responsible for your follow-up work. You can contact him/her to go to the factory to check the production progress of the machine, or we can send you the sample pictures and videos you need.
Q: What's your delivery date?
A: About 20 working days.
Q: What should I pay attention to when cutting ?
A: Before starting the machining process, it is important to verify that the selection procedure is correct, that the process parameters are correctly named, that external auxiliary gases are available, and that the sheet position is accurate. In order to prevent the deformation of the plate during processing, resulting in collision, the machine should not be disturbed during the working process. When the machine is running, the operator should always pay attention and should not leave the machine to ensure the correct operation of the machine.
