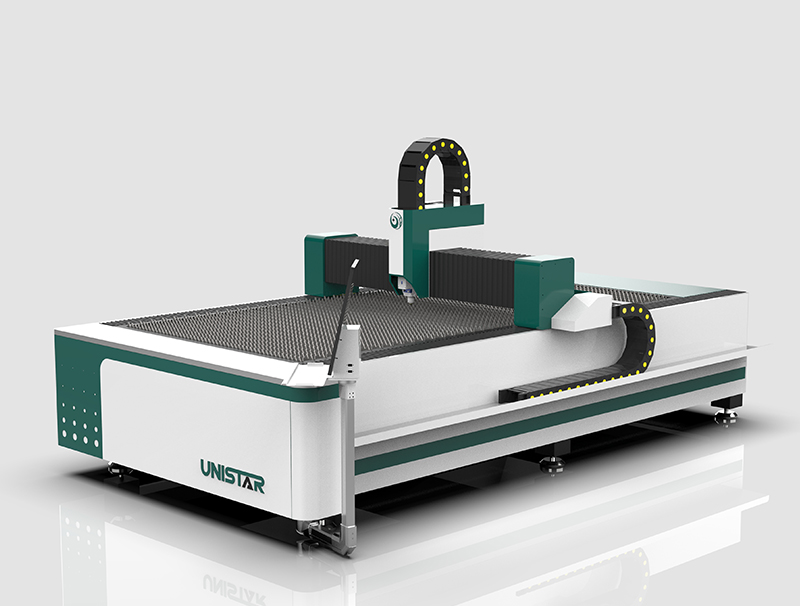

The processing area of the 1530 fiber laser cutting machine is 1500*3000m. 1530 laser cutter is a laser cutting machine with fiber laser injector as the light source. It outputs a laser beam of high energy density through a fiber laser, and gathers on the surface of the workpiece, so that the area reflected by the ultra-fine focal spot on the workpiece is instantly condensed and vaporized.
What is Fiber laser cutter?
In essence, a fiber laser cutting machine is a highly specialized device that uses laser technology to process a variety of materials. This type of machine can make precise, high-quality cuts on a wide variety of different materials.
The key component of the fiber laser cutting machine is the fiber laser itself, which produces a highly focused beam capable of easily cutting some of the hardest materials.
Advantages of Fiber laser cutter
1. Significantly more efficient: it cuts faster than traditional methods, allowing more work to be done in less time.
2. Reduce downtime: Fiber lasers rarely have machine failures, do not require maintenance in daily use, and can be frequently used and operated.
3. Multifunctional: It is ideal for a variety of materials, can cut a variety of materials, and is the perfect tool for almost any job.
4. Extremely stable: Its performance is very stable, using the world's top imported fiber lasers, the key parts of the service life can reach 100,000 hours
5. Easy operation and maintenance: optical fiber transmission, no need to adjust the optical path;
6. Safety and environmental protection: laser processing waste less, low noise, clean, safe, pollution-free, greatly improve the working environment.
Components of Fiber laser cutter
Machine Bed
The operator can place the metal in this place for cutting. The bed is made of a durable material, such as steel or aluminum, which holds the metal in place during the cutting process
Laser Source
This is where the laser beam is generated. It works by using a high-power laser to produce a focused and intense beam of light.

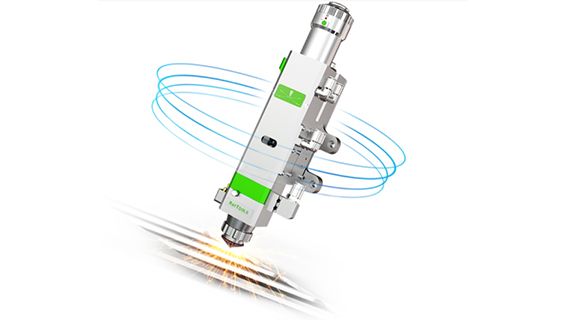

Cutting Head
The cutting head can guide the laser beam to the metal, and the head includes a focusing mirror to make the light finer and the energy more concentrated.

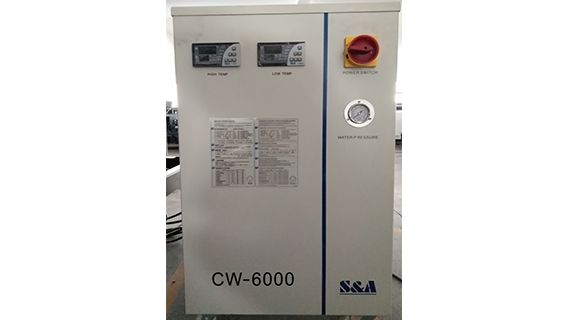

Water Cooling system
The chiller is a cooling device for fiber laser equipment, which can provide a constant temperature state for the cutting machine to make it work normally.

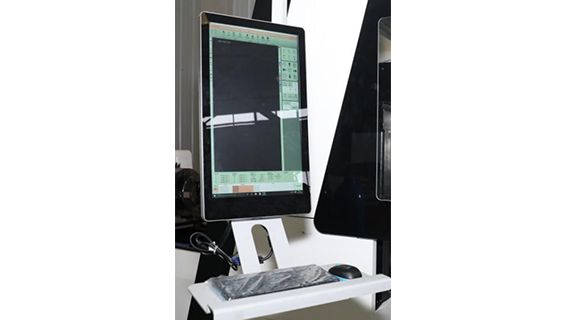

Control Panel
Through this panel, the operator can adjust various Settings of the machine, such as the thickness of the metal being cut and the speed of the cutting process
| Series number | Description | Specification | Unit |
| Brand | UNISTAR LASER | UN-3015A | 1 |
| 1 | Working area | 3000*1500 | mm |
| 2 | Laser Source | Raycus/ /Max/Reci | 1 |
| 3 | Laser Power | 1000 /2000 /3000 | W |
| 4 | Packing Size | 4200*2250*1900 | mm |
| 5 | X/Y Max Speed | 120 | m/min |
| 6 | Maximum acceleration | 1.5G | m/s2 |
| 7 | X/Y axis positioning accuracy | +0.03 | mm |
| 8 | X/Y axis repeat positioning accuracy | +0.02 | mm |
| 9 | Voltage | 380 | V |
| 10 | Phase | 3 | phase |
| 11 | Hertz | 50/60 | Hz |
| 12 | Warranty Time | 3 | Year |
| 13 | Maximum bearing capacity | 600 | Kg |
| 15 | Weight | 2000 | Kg |
| 16 | X axis servo motor | Japan Yaskawa/ FUJI /Delta | 1 |
| 17 | Y axis servo motor | Japan Yaskawa/FUJI/Delta | 2 |
| 18 | Z axis servo motor | Japan Panasonic /Fuji/Delta | 1 |
| 19 | Warranty Time | 3 | Year |

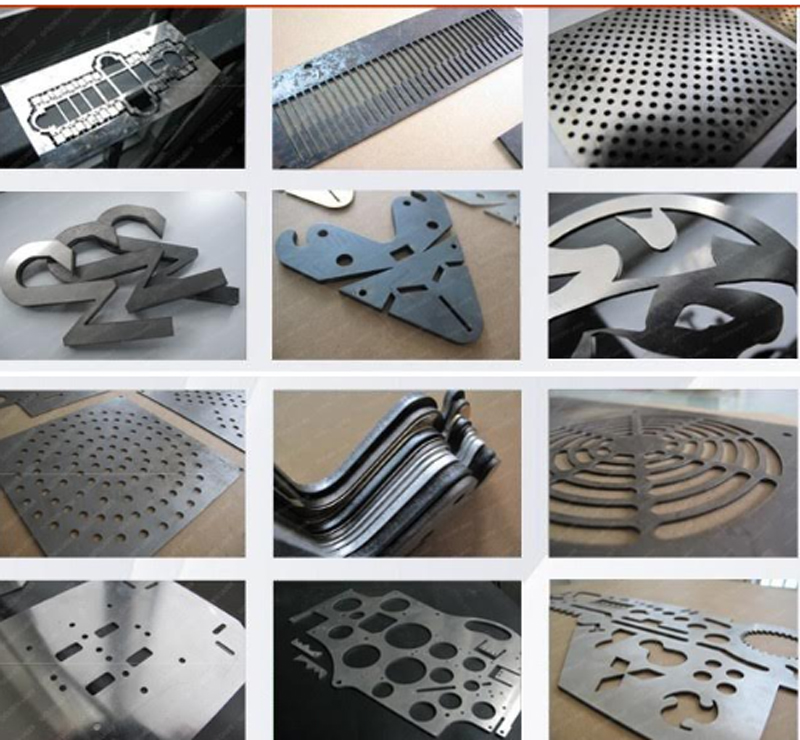

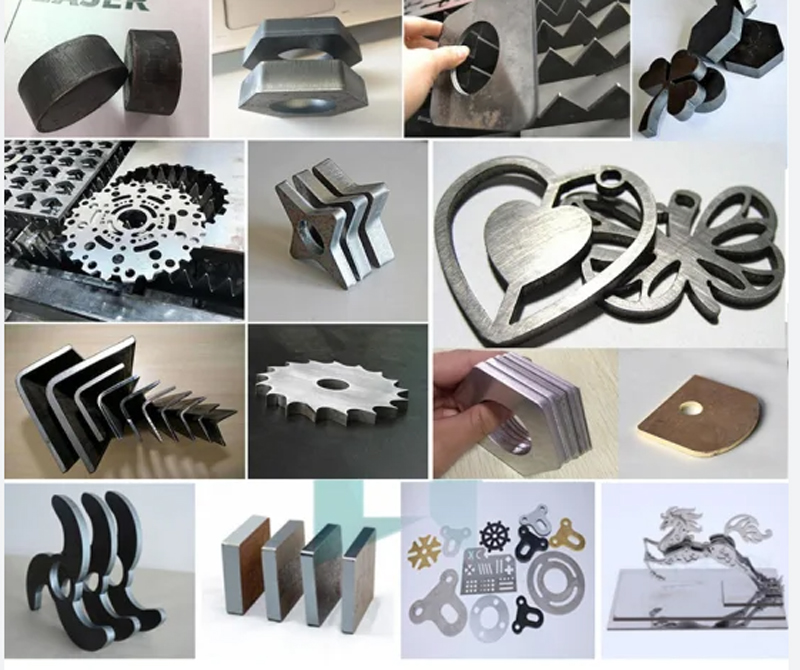

Samples of Fiber laser cutter
Why choose us
Professional After -Sales Service
100+ after sales service people provide 24 -hours fast online technical support in 12 language
Global sales network layout
Sold to more than 150 countries and regions around the world,and established agency service points in more than 30 countries and regions around the world.
Intelligent production base
The company has a manufactory of 66000 square meters,including modern standard factory buildings of 4000 square meters and smart office building of 6000 square meters.
Honor certificate
We have obtained IOS9001, ROHS, CE international certifications,and has more than 30 utility model patents and appearance design patents.
FACTORY SHOW
Foreign customer visiting
CERTIFICATE
We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Patent certificate, Saber Certificate, FDA for metal cutting laser cutter, Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing,packaging and shipping to ensure the performance and quality of laser products.
Q1: What metal can I cut with a laser?
A1: Metal laser cutting machine can cut almost all metal materials, most people use them to cut carbon steel, low carbon steel, stainless steel, steel alloys and aluminum these metal materials.
Q2: Can I use a metal laser cutter to cut other materials?
A2: The answer is yes, metal laser cutting machine is widely used, do not need to replace any parts, just adjust the size of the laser power can be cut.
Q3: How to buy the right metal laser cutting machine? What do you need to pay attention to when buying a metal laser cutting machine?
A3: Before investing in a metal laser cutting machine, you need to consider the following:
1. Type of laser.
2. The size of laser power.
3. Dimensions of the machined parts.
4. Quality of after-sales service.
Q4: How many years of warranty period?
A4: The whole machine have 2 years quality guaranty, any parts broken during the warranty time, we will take place of it free (Under no human damage ).
Q5: Do you have CE document and other documents for customs clearance
A5: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q6: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A6: If machine technical problem, we have engineer online support service, through remote control, video show, to help solve problem, if parts broken ( not consumption parts, we will take place a new one as soon as possible.
