Fiber laser cutter

Fiber laser cutting machine is a kind of laser cutting machine. Fiber laser cutting machine is a device that relies on the laser beam emitted by the fiber laser to cut metal materials. Fiber cutting machine than carbon dioxide laser cutting machine cutting speed is faster, higher efficiency; More energy saving than YAG laser cutting machine. The advantages of fiber laser cutting machine are more obvious, and it has become the mainstream metal processing equipment in the market.

Inquire Now Chat Now

Product Details

Parameters

Samples

FAQ

Request a Quote

Advantages of fiber laser cutter

1. Fast cutting speed. The overall operating efficiency is more than 5 times that of traditional processing methods, and the labor required is 20% of that of traditional processing methods, making the work of workers easier.

2. High photoelectric conversion rate. It can greatly save the power consumption during work, and the operating cost is very low.

3. Excellent processing system. The operation interface is simple, the operation is convenient, and the processing state can be fed back in real time to ensure the orderly processing.

4. Excellent smoke extraction system. The use of segmented smoke exhaust, smoke exhaust effect is good, safety factor doubled.

5. High cost performance. The price of fiber cutting machine is lower than that of CO2 laser cutting machine, and the efficiency is higher than that of CO2 laser machine.

Main parts

Body structure

The machine adopts integral profile welding structure, which has been proved and verified by CAE analysis for many times. After annealing, the machine is processed to better solve the stress caused by welding and processing, thus improving the rigidity and stability of the equipment.

Laser Source

Raycus' s technology research and development strength in the domestic industry to maintain the leading level, at home and abroad has a high industry reputation. Raycus laser has higher photoelectric conversion rate, better and more stable beam quality, and more powerful anti-high reaction capability. Compared with other brands, Raycus' s advantages are more obvious.

Laser head

Shanghai Raytools

High hardness of Raytools laser head, after strict anti-oxidation links, long service life. Raytools cutting head cutting surface smooth, high finish, effectively save manpower and material resources.

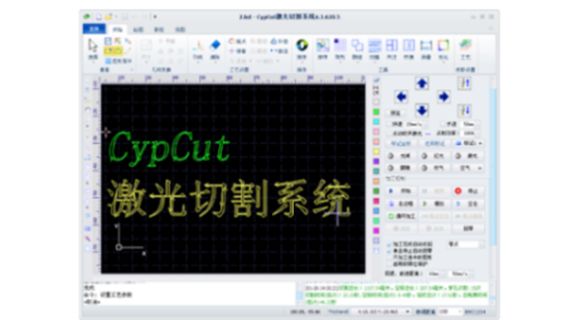

Control system

The closed-loop control model parameter automatic detection technology is adopted in the CYPCUT system. The technology automatically determines the parameters of the servo system control model through the program, supports the closed-loop control of the CNC system to the laser cutting machine tool, greatly reduces the manual participation, reduces the possibility of human error, and improves the stability of the system.

Reducer

Japan Shimpo reducer

SHIMPO reducer bearing capacity is high, the number of meshing teeth, double wave transmission, flexible gear using high strength materials. SHIMPO reducer has the advantages of small size, saving position, reliable and durable, strong overload capacity, and low energy consumption, good performance, small vibration.

Water chiller

The S&A water chiller has a double temperature control mode, which can be switched arbitrarily to easily monitor the water temperature. S&A water chiller compact size, easy to move.

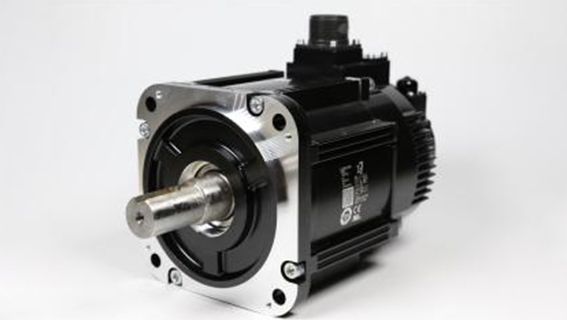

Motor and driver

Taiwan Delta servo motor

The servo motor uses closed-loop control (through encoder feedback, etc.), that is, the speed of the motor is measured in real time. High control accuracy, relative to stepping, servo is suitable for high-speed operation of equipment. For optical fiber cutting machine, servo motor is necessary.

Transmission

Rack and pinion of Taiwan YYC

Rack and pinion drive is a widely used transmission form. Compared with other drives, it has the characteristics of large transmission power, wide speed range, high efficiency, reliable operation, long life, compact structure and so on.

Rail guide

Taiwan HIWIN square rail guide

The cost can be effectively controlled by using the HIWIN guide rail. The HIWIN guide rail has a small friction coefficient, which can effectively reduce power consumption during use. HIWIN rail design is simple, strong rigidity, can be perfect for optical fiber cutting machine.

Application of fiber laser cutting machine

1. The home appliance industry. Laser cutting machine is mainly used in washing machine, refrigerator, air conditioning and other products shell metal parts, plastic parts, metal parts production.

2. The elevator industry. Elevator manufacturing is basically made of about 3mm stainless steel and about 5mm carbon steel. In order to ensure the finish of the elevator steel plate, most elevators use single-sided steel plates with film. This brings challenges to traditional processing. The fiber cutting machine can process the plate needed by the elevator very well.

3. Agricultural equipment manufacturing. With the steady development of agricultural science and technology, the finished products of agricultural equipment tend to be flexible and diverse and precise, and new requirements are made for the production and processing of finished products of agricultural equipment. Fiber laser cutting machine More advanced laser cutting skills can reduce the manufacturing cost of agricultural equipment, and improve efficiency.

4. The shipbuilding industry. In the direction of ship production and manufacturing, the ship work-piece cut by the metal laser cutting machine has good quality, good section perpendicularity, smooth and flat surface, small thermal stress, and high accuracy of curve cutting work, which can meet the efficient cutting work of the high-strength ship special plate.

Model	UN-3015A
Work Area	3000*1500 mm
Fiber Laser Source	Raycus
Laser Power	3000W
Max Moving Speed	120 m/min
Max Acceleration	1.5G
Positional Accuracy	± 0.02 mm
Control System	CYPCUT
Motor and Driver	Taiwan Delta servo motor and drivers
Reducer	Japan SHIMPO reducer
Transmission	Rack and pinion
Pneumatic Accessories	Japan SMC
Table	Blade table
Supported Graphic Formats	NC PLT, DXF, BMP, AI, DST, DWG, etc
Work Voltage	3 phase 380V/50HZ
Warranty	2 years
Water Chiller	S&A CW5000

Samples of laser cutter

Why choose us？

1. We have a two-year warranty for the main parts. If the parts are damaged by non-human factors, we replace them free of charge.

2. For consumables, we will provide them to you at the agent's price.

3. We have a number of independent research and development patents.

4. Our delivery time is fast. For standardized products, they can be shipped in about 15 days. For customized products, about 20 days can be shipped.

5. Our products have been debugged before leaving the factory

6. We offer free installation tutorials. Our machines are easy to install and the tutorials are easy to understand.

7. We have a professional service team to serve you wholeheartedly.

Customer visiting

How happy it is to have friends coming from afar! In the past few years, many customers from all over the world have come to visit our factory. Accompanied by the main person in charge of each department and the staff, the customer visited each station and production workshop of the company's factory. During the visit, our company escorts gave customers a detailed product introduction and professional answers to the questions raised by customers. The rich professional knowledge and well-trained working ability have also left a deep impression on customers. We welcome customers to visit our factory, your every trust and support is our driving force forward.

Fiber laser cutter

Certificate

We have the EU CE certificate, the products meet the EU standards, can be exported to EU countries. We have the USA FDA certificate, the product meets the American standard, can be exported to the United States. We have Saber certificate and can export to Saudi Arabia. We also have product patent certificate, ISO high quality inspection certificate. CCPIT Certificate, etc. These are the recognition of our existing quality management system, as well as the quality of the products provided by an affirmation.

Fiber laser cutter

Q1: If machine have any problem after I ordered it, what could I do?

A1: Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q2: Can I visit your factory?

A2: Yes! We greatly welcome customers to visit our factory!

Q3: What are your after-sales services?

A3: 1. Provide Tutorial machine installation video, Technical Online guided installation, Machine instruction manual.

2. Provide Engineer oversea training and installation if customer needed. Include machine installation, software training, Machine operation procedure, daily Maintenance and of Laser tube cutting machine, Common problems and solutions of machines

3. There are agent service bases in different countries like Peru, Egypt, Europe, Saudi Arabia so on, if happen problem also can contact our foreign service agent.

4. We are also offer important technical 24 hours online service through remote control system to solve customer problem, chatting tools like QQ, wechat, whatsapp, skype different online service ,Make sure to solve customer problem at first time.

Q4: Which payment way your company can accept?

A4: 1. 30% T/T in advance payment, 70% T/T balance payment before shipping machine.

2. 100% L/C at sight

3. 30% T/T deposit payment ,70% see copy bill of lading

Q5: How many years of warranty period？

A5: The whole machine have 2 years quality guaranty, any parts broken during the warranty time, we will take place of it free (Under no human damage ).
