Fiber laser cutting machine is a kind of cutting equipment using high energy density laser beam. Its principle is mainly by converting electrical energy into light energy, and then transmitting it through optical fiber, and finally forming a high-energy density laser beam on the work-piece, and cutting the work-piece accurately. Fiber laser cutting machine adopts non-contact cutting mode, which has the advantages of small heat affected zone, fast cutting speed and high cutting quality.
Advantages of laser cutter
1. High precision. The laser beam used in the fiber laser cutting machine has a high energy density, and the cutting accuracy can reach a very high level.
2. Be efficient. The cutting speed of fiber laser cutting machine is fast, which is of great significance for the improvement of production efficiency. Laser cutting speed is fast, can greatly shorten the production cycle, improve production efficiency.
3. Flexibility. The cutting process of the fiber laser cutting machine can be adjusted and controlled according to different requirements. The adjustment of cutting parameters can realize the flexible control of cutting speed, cutting depth and cutting shape to meet the cutting needs of different workpieces.
4. Widely used. Fiber laser cutting machine has a wide range of applications in various industries. In automotive manufacturing, aerospace, electronic devices, furniture manufacturing and other fields, fiber laser cutting machines play an important role.
Main parts of fiber later cutting machine
Body structure
The structure of the bed is strong and stable, and there are reinforcement bars to ensure that the machine can withstand high frequency vibration and movement, ensuring the accuracy and stability of the cutting.
Laser Source
Raycus is the only listed laser manufacturer in China, and the quality control of state-owned enterprises is stricter. Raycus laser has a service life of up to 100,000 hours. Raycus laser has rich laser state output function, more friendly PC human-computer interface, can monitor the laser and its internal module status in real time.
Laser head
Shanghai Raytools
Raytools laser head has automatic focusing function. With the automatic focus function, the machine can automatically quickly adjust the focus to the most appropriate position when processing the work-piece of different materials and different thicknesses. This can significantly improve the processing efficiency of the laser cutting machine and greatly reduce the perforation time of the thick plate.
Control system
CYPCUT system adopts intelligent sensor control technology for laser processing. The photoelectric sensor collects and feedback the control reference signal in the cutting process, and the system compensates the accuracy according to the feedback information for different processing conditions, so as to realize the intelligent monitoring and automatic control of the entire laser processing process.
Reducer
Japan Shimpo reducer
SHIMPO reducer saves power, and the power saving rate reaches more than 20%. SHIMPO reducer has perfect protection and self-protection function, which can ensure the safe operation of equipment.
Water chiller
S&A has invested millions of production equipment, whether it is the core component of the industrial chiller condenser, or the welding of the external sheet metal are checked through a series of processes to ensure quality.
Pneumatic accessories

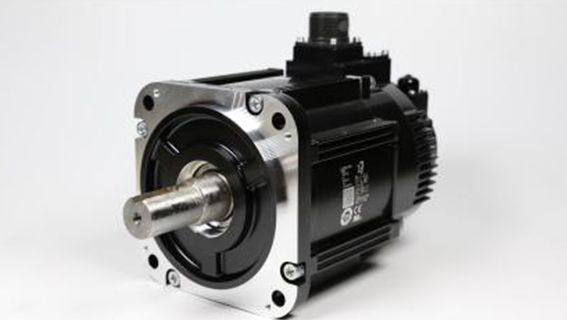

Taiwan Delta servo motor
Taiwan Delta motor can fully ensure the stability of the machine when working. Taiwan Delta motor at low speed operation will not appear like the low-frequency vibration of the stepper motor.
Transmission
Rack and pinion of Taiwan YYC
Taiwan YYC rack adopts advanced grinding process, precision level up to DIN5 GB4 level. This is the highest precision that can be achieved by mass production in the world. The non-working surface adopts a single forming face grinding technology, which has higher parallelism.
Rail guide
Taiwan HIWIN square rail guide
Taiwan HIWIN guide rail has the characteristics of high efficiency and energy saving, precise positioning, precise guidance and so on. It also responds quickly to CNC instructions and is an irreplaceable key component in the manufacture of optical fiber cutting machines.
Application of fiber laser cutting machine
1. Construction machinery industry. In the construction machinery industry, for some work-pieces with more holes, the punching function of the fiber laser cutting machine is used to determine the position of the hole, which saves the time of positioning the hole for the drilling process of the subsequent hole, and also saves the production cost of the drilling template. This not only improves the production efficiency, but also improves the accuracy of the product.
2. Agricultural machinery industry. There are many types of sheet metal processing parts of agricultural machinery products, and the update is fast, and the traditional sheet metal processing parts of agricultural machinery products are usually used in the punching method, and the mold consumption is large. The use of laser processing, not only the processing speed, high efficiency, low cost, and no need to replace the mold or tool, shorten the production preparation time.
3. Home appliance kitchenware industry. Home appliance kitchenware is basically based on thin plate, before the stamping and drawing process, the use of fiber laser cutting machine to process the panel sample, can quickly develop new products, greatly improve the processing efficiency.
4. Fitness equipment. In recent years, many people are in a state of sub-health, and then many enterprises attach great importance to the concept of spreading sports health. Many home fitness equipment has developed rapidly, the demand is very large. The demand for plates has also increased.
| Model | UN-3015A |
| Work Area | 3000*1500 mm |
| Fiber Laser Source | Raycus |
| Laser Power | 3000W |
| Max Moving Speed | 120 m/min |
| Max Acceleration | 1.5G |
| Positional Accuracy | ± 0.02 mm |
| Control System | CYPCUT |
| Motor and Driver | Taiwan Delta servo motor and drivers |
| Reducer | Japan SHIMPO reducer |
| Transmission | Rack and pinion |
| Pneumatic Accessories | Japan SMC |
| Table | Blade table |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Work Voltage | 3 phase 380V/50HZ |
| Warranty | 2 years |
| Water Chiller | S&A CW5000 |
Samples of laser cutter
Why choose us？
1. We have professional sales staff who can recommend the right products for you and solve your problems.
2. We are a company integrating industry and trade. Our products have the most favorable price.
3. We have a professional R & D team, and our products have been innovating.
4. Our machine accessories are genuine, are famous brands, can ensure the safe work of the machine.
5. We have been deeply engaged in this field for many years. We have reached friendly cooperation with many foreign friends.
6. We have a perfect service system. If you have a problem, we will actively help you solve it.
Customer visiting
We have received many foreign customers, such as Vietnam, Pakistan, Serbia, the United States and other countries to visit the factory. If you also want to know more about our company, understand our corporate culture, understand our products, understand our production process, production process. We welcome you, too. I'm sure it's an honor to have you here, and we'll make you feel at home.
Certificate
We have ISO certification issued by ISO, the world's largest non-governmental standardization agency. We have CE certification, our goods can be freely circulated in the EU member states. We also have FDA approval to sell in the United States. We are also Saber certified and can help customers in Saudi Arabia to quickly clear customs.
Q1: How can I trust your company and your products?
A1: The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q2: How to install and run the machine?
A2: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q3: Why I choose your company products
A3: High quality machine control inspection and perfect service:
All Parts of our machine are adopted top quality parts →
1) Testing machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check →
2)buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3) Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4) Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you do payment.
Q4: Which payment way your company can accept?
A4: 1. 30% T/T in advance payment, 70% T/T balance payment before shipping machine .
2. 100% L/C at sight
3. 30% T/T deposit payment, 70% see copy bill of lading
Q5: What's your date of delivery?
Q5: For standard machine, about 15 working days; For customized machine, about 20 working day.
Look forward to hearing from you
