Laser cutting is a cutting process that uses the heat generated by a precise laser beam to remove material. It uses a pre-defined design to cut the material.
What is Fiber Laser cutting for aluminum?
Laser cutting is a cutting process that uses the heat generated by a precise laser beam to remove material. It uses a pre-defined design to cut the material.
Laser cut aluminum is commonly used as a base product for housing, environmental technology, plant construction and other buildings required by industry. Aluminum is a soft metal. Like gold, silver, zirconium, copper and bronze, aluminum is a non-ferrous metal that can be cut with lasers.
Laser cutting aluminum plate is a common process, especially in the metal processing and manufacturing industry, laser cutting technology has significant advantages in precision, efficiency, reliability and other aspects, can meet the processing needs of high quality, high precision and high speed.
Advantages of Fiber Laser cutting for aluminum
1. High efficiency, high precision. Laser cutting technology has high processing efficiency and cutting accuracy, and can meet various processing needs.
2. Flexibility, variety. Laser cutting technology can cut a variety of materials and shapes, with great diversity and flexibility.
3. Environmental protection and energy saving. Laser cutting technology is a very environmentally friendly, energy-efficient processing method that can reduce waste and energy waste.
4. Small heat affected zone, small deformation. Laser cutting technology has a very small heat-affected zone and deformation, which can take into account processing accuracy and material properties.
Functions & Features of Fiber Laser cutting for aluminum
1. Clean edges: Our laser cutting processes produce clean, burr free edges that eliminate the need for secondary processing operations and reduce waste, thereby reducing production time and money.
2. Speed and efficiency: Because of our high-speed laser cutting function, we can process large quantities of aluminum sheets quickly and efficiently, minimizing lead time and increasing project productivity
3. Precision cutting: With micrometer laser accuracy, our aluminum sheet cutting accuracy is unmatched, ensuring tight tolerances and superior fit even in the most demanding applications.
4. Versatility: From simple shapes to complex designs, our laser cutting processes are capable of manufacturing a wide range of geometry shapes, making our aluminum sheets suitable for a variety of applications, including aerospace, automotive, electronics and more.
Cutting aluminum using fiber lasers, other solid-state lasers, or CO2 lasers?
Whether fiber lasers, other solid-state lasers or CO2 lasers are used when cutting metal depends on the properties of the material and the thickness of the sheet. Many metals can be processed using these three types of lasers. Due to the high thermal conductivity of aluminum, cutting aluminum requires a lot of force, and at least a large part of the laser beam will be reflected during the puncture, so the cutting thickness of no more than 4 mm aluminum is mainly used fiber lasers.
Components of Fiber Laser cutting machine

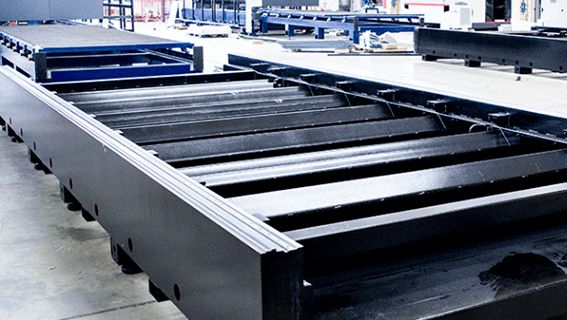

Machine Bed
The bed is composed of a number of rectangular tubes welded together, and reinforcement bars are added in the tubes to enhance the strength and tensile properties of the bed

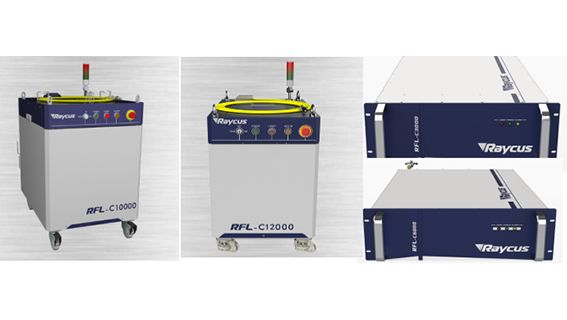

Laser Source
This is where the laser beam is generated. It works by using a high-power laser to produce a focused and intense beam of light.

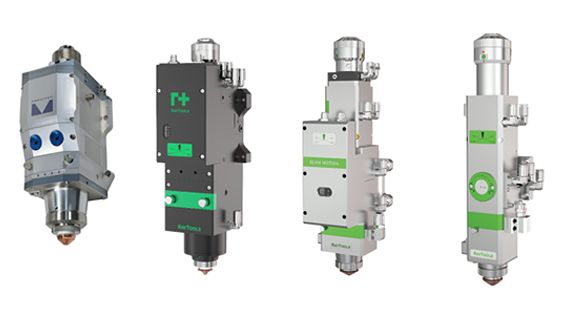

Cutting Head
Autofocus laser cutting head has multi-focus cutting function, which can effectively shorten cutting time and improve cutting quality. It is suitable for a wide range of applications where variable material thickness is required, as it can easily adjust the focus.

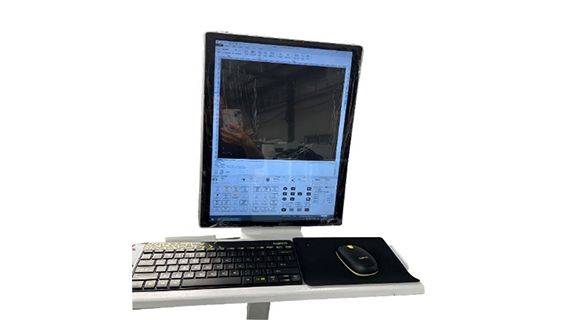

Control Panel
The software is easy to install and operate, provides superior performance, and allows for power speed adjustment, providing greater precision and simplicity for laser cutting

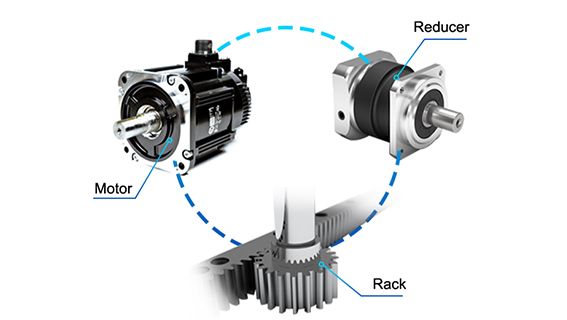

Servo Motor
Servo motor is an essential part, but also the most core position of the machine tool, the motor determines the precision, speed and stability of the cutting.

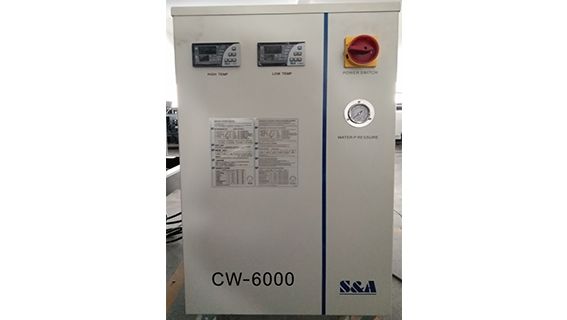

Water Cooling system
The chiller can ensure that the fiber laser cutting machine maintains normal operation at a constant temperature. Rich configuration, high and low temperature alarm, advanced function. Relatively stable performance professional Pipe Cutting System

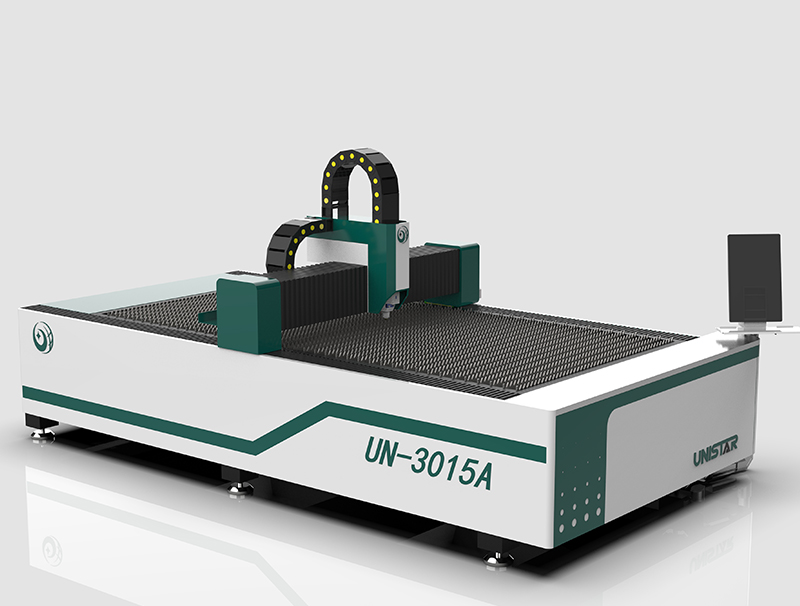

| Model | UN-3015A |
| Working Area | 3000*1500mm |
| Laser source media | Raycus Brand |
| Laser Power | 1000W/1500W/2000W/3000W/6000W/12000W/20000W /30000W |
| Laser head | Raytools auto focus cutting head |
| Laser Wavelength | 1080 nm |
| Beam Quality | <0.373mrad |
| Positioning Accuracy | ≤ ±0.03mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Maximum positioning acceleration | 2G |
| Max moving Speed | 40000mm-60000mm/min |
| X-axis Stroke | 1500mm |
| Y-axis Stroke | 3000mm |
| Working Table | Blade platform thickness 3mm thickness |
| Machine body | Strong heavy duty machine body, Machine structure precision machining welding bed, quench and tempering heat treatment, |
| Control System | China Professional CYPCUT |
| Rack | Taiwan import YYC helical rack with high accuracy |
| Rail guide | X,Y,Z axis import Hiwin Rail Guide |
| Water chiller | China famous brand Hanli water chiller |
| Pneumatic accessories | Japan SMC/ Taiwan Yade polite motion components |
| Motor and drivers | Japan Fuji servo motor and drivers / Taiwan delta /Japan Yaskawa |
| Reducer | Japan Shimpo reducer/MOTOVARIO reducer |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Working temperature | Indoor temperature is okThere should be no vibration source nearby |
| Working voltage | 3 Phase 380V/50HZ/ |
| Years of warranty | 2 years warranty (not include vulnerable part ) |
Why choose us
1. Our after sales service team and professional workers
2. We have 10 years professional Techinical engineer reasearch and develop cnc and laser industry advanced technical level, they are working with Positive, enthusiastic and optimistic.
3. In addition, UNISTARCNC own a group of excellent after-sales yeam, which can solve problem in customer work, they insist, patient, always insist on their own position, to solve customers' worries.
FACTORY SHOW

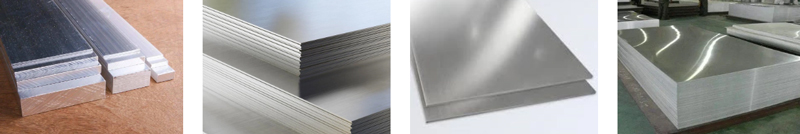

Samples of Fiber Laser cutting for aluminum
Foreign customer visiting
Q1: How many years of warranty period?
A1: The whole machine have 2 years quality guaranty, any parts broken during the warranty time, we will take place of it free (Under no human damage ).
Q2: Do you have CE document and other documents for customs clearance
A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q3: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A3: If machine technical problem, we have engineer online support service, through remote control, video show, to help solve problem, if parts broken ( not consumption parts ,we will take place a new one as soon as possible.
Q4: Why I choose your company products
A4: High quality machine control inspection and perfect service:
All Parts of our machine are adopted top quality parts →
1) Testing machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check →
2) buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3) Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4) Strict implementation of after-sales warranty.
5) The important is that you will receive the Corresponding goods after you do payment.
Q5: Which payment way your company can accept?
A5: 1. 30% T/T in advance payment, 70% T/T balance payment before shipping machine.
2. 100% L/C at sight
3. 30% T/T deposit payment, 70% see copy bill of lading
Q6: What are your after-sales services
A6: Online guided installation
● Provide Tutorial machine installation video
● Technical Online guided installation
● Machine instruction manual
◆ Provide Engineer oversea training and installation if customer needed
Include machine installation, software training, Machine operation procedure, daily Maintenance and of Laser tube cutting machine ,Common problems and solutions of machines
◆ There are agent service bases in different countries like Peru, Egypt, Europe, Saudi Arabia so on, if happen problem also can contact our
Foreign service agent
◆ We are also offer important technical 24 hours online service through remote control system to solve customer problem, chatting tools like QQ, wechat, whatsapp, skype different online service ,Make sure to solve customer problem at first time.
