Fiber laser cutting machine is to emit high energy density laser beam on the surface of the work piece through the fiber laser, the area of the work piece is irradiated instantly melted, and then the numerical control system makes the beam move to complete the cutting.
Advantage of fiber laser steel cutter
Compared to carbon dioxide laser cutting machine:
1. Fiber cutting machine beam quality is better. It cuts finer lines.
2. Fiber cutting machines are more efficient. Under the same power conditions, the cutting efficiency of optical fiber is twice that of CO2 cutting machine.
3. In terms of photoelectric conversion rate, the photoelectric conversion rate of fiber laser cutting machine is higher, which is 3 times that of CO2 laser machine.
4. Fiber laser machine maintenance cost is low. Fiber cutting machines do not require reflective lenses, which can greatly save costs.
Compared with YAG laser cutting machine:
1. The cutting speed of the fiber cutting machine is more than 4 times that of the YAG cutting machine.
2. The photoelectric conversion rate of fiber laser cutting machine is 10 times that of YAG laser cutting machine, which is more energy saving and has a lower cost of use.
Features of laser steel cutting machine
1. The fiber laser cutting machine has a simple structure and does not require a complex optical path.
2. The output laser beam of the fiber laser machine is of good quality, the surface of the cut object is smooth, and there is no need to polish it again.
3. Fiber laser output light anti-interference ability is good, can be a good shield from external environmental interference, has a better cutting effect.
4. The output light of fiber laser is near infrared light, which is absorbed by metal with high efficiency and can cut metal materials very well.
Application of fiber laser cutting machine
Laser cutting machine cutting material
Fiber laser cutting machine can cut carbon steel plate such as galvanized plate, cold rolled plate, hot rolled plate, electrolytic plate, and can also cut stainless steel, gold, silver, aluminum, copper and other metal materials.
Laser machine application industry
1. The advertising industry. The requirements of the advertising industry are more personalized, there are many complex graphics, and the flexibility of the fiber cutting machine can meet customer needs.
2. Sheet metal processing industry. Fiber laser cutting machines can cut a variety of plates and parts and are very popular in the sheet metal processing industry.
3. The lighting industry. The traditional cutting method can not meet the current cutting demand. Fiber laser cutting speed, high cutting accuracy, can be very good cutting different types of lighting, to meet the needs of the lighting industry.
4. The auto industry. For the processing of automobile body, automobile sheet metal, automobile front cover and other parts, the manual accuracy is difficult to achieve the ideal effect, and the efficiency is not high. But the laser cutting machine can be quickly and accurately processed.
Main parts of fiber laser cutting machine
Body structure
The bed is annealed at low temperature to ensure the strength and stability of the machine, and can ensure long-term use without deformation.
Laser Source
Raycus laser source has a high photoelectric conversion rate. It can effectively save energy, save environmental protection. It is small in size and occupies a small area, which can save space.Its output beam quality is good, the power density is high, is very conducive to the absorption of metal materials, has excellent cutting ability.
Laser head
Shanghai RayTools BM110
RayTools laser head with steel conical cutting edge design, can provide high precision, high speed cutting.Its cutting speed is high, which can effectively reduce the force when cutting, and can cut quickly and accurately. It has good wear resistance, can save a lot of time when cutting, make the cutting surface smooth, and improve the production efficiency.
Control system
CYPCUT system uses advanced control technology, which can precisely control the movement of the laser head to ensure the accuracy and precision of the cutting.The CYPCUT system can adjust a variety of cutting parameters to meet a variety of complex cutting needs. The system is flexible and simple to operate, and is loved by the majority of consumers.
Reducer
Japan SHIMPO reducer
SHIMPO reducer uses helical gear instead of spur gear, and the noise is extremely low. SHIMPO reducer has advanced water resistance, no matter how bad the environment can work well.
Water chiller
S&A water chiller has multiple safety protection functions, including compressor delay protection, high temperature/low alarm. These protection measures can detect and handle potential security risks in a timely manner, ensuring the safe and stable operation of the device.

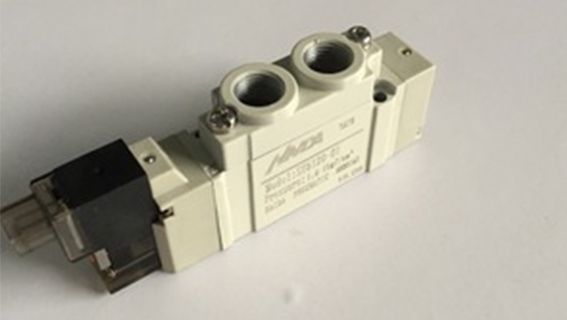

Pneumatic accessories
Japan SMC
High reliability and long service life. The effective operation of the pneumatic element is about one million times. The operating speed of the cylinder is generally less than 1M/S, which is faster than that of the hydraulic and electrical methods.
Transmission
Rack and pinion of Taiwan YYC
Low noise when the rack is running, especially at high speed. The product has good stability and associated noise reduction effect during operation.The helical rack has higher contact and higher load bearing capacity than the straight rack.
Rail guide
Taiwan HIWIN square rail guide
The space of oil storage is provided in the middle of the guide rail, which can supply the lubrication needs of the steel ball during operation. When rotating in the direction, the lubricating oil can be evenly added to the oil storage space to continue to lubricate the steel ball evenly. Therefore, the frequency of filling lubricating oil can be effectively reduced.
| Model | UN-3015A |
| Work Area | 3000*1500 mm |
| Fiber Laser Source | Raycus |
| Laser Power | 3000W |
| Max Moving Speed | 120 m/min |
| Max Acceleration | 1.5G |
| Positional Accuracy | ± 0.02 mm |
| Control System | CYPCUT |
| Motor and Driver | Taiwan Delta servo motor and drivers |
| Reducer | Japan SHIMPO reducer |
| Transmission | Rack and pinion |
| Pneumatic Accessories | Japan SMC |
| Table | Blade table |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Work Voltage | 3 phase 380V/50HZ |
| Warranty | 2 years |
| Water Chiller | S&A CW5000 |
Samples of stainless steel laser cutter
Why choose us？
Our company
1. UNISTAR Machinery company is a high-tech enterprise integrating CNC equipment research and development, manufacturing, sales and service.
2. The company has been operating for 20 years, with high-quality products and services, and hundreds of enterprises to reach cooperation.
3. We have a professional R & D team, with dozens of patents at home and abroad.
4. We have a professional service team that can solve all kinds of problems before and after sales for you.
Our service
1. 24 months guarantee of the whole machine.During the warranty period, if the parts are caused by non-human factors, they can be replaced free of charge. (except wearing parts)
2. We offer wearing parts at agency prices.
3. We have a 24-hour online service, you can contact us at any time.
4. We have free training courses, including the installation, use, maintenance and so on.
5. If there is a problem with the machine, we provide remote guided repair as well as on-site repair services.
Packing
Customer visiting
Our products are exported to various countries and regions around the world, and have won the trust and support of hundreds of partners, and have a good reputation. Many customers come to visit our factory and give us good comments. Seeing is believing. We welcome every customer to visit us.
Certificate
We have the necessary qualification certificate for export. We have CE certification, our products meet the safety standards of the European Union; We have Saber certification and can export to Saudi Arabia. We have FDA approval to export to the United States. We also have ISO9001 certification, CCPIT certificate, patent certificate and so on.
Q1:How to install and run the machine?
Q1: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q2: Why I choose your company products
A2: High quality machine control inspection and perfect service:
All Parts of our machine are adopted top quality parts →
1) Testing machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check →
2)buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3) Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4) Strict implementation of after-sales warranty.
5) The important is that you will receive the Corresponding goods after you do payment.
Q3: How can I trust your company and your product?
A3: The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4: Can I visit your factory?
A4: Yes! We greatly welcome customers to visit our factory!
Q5: If machine have any problem after I ordered it, what could I do?
A5: Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone .
