Fiber laser cutting machines have rapidly become one of the most popular and widely used cutting technologies in the manufacturing and industrial sectors. These machines are designed to provide high-precision cutting and engraving of various materials including metals, plastics, and even textiles.
What is fiber laser cutting machine?
Fiber laser cutting machines have rapidly become one of the most popular and widely used cutting technologies in the manufacturing and industrial sectors. These machines are designed to provide high-precision cutting and engraving of various materials including metals, plastics, and even textiles.
Function of Fiber Laser Cutting Machines
Fiber laser cutting machines use a focused laser beam to effectively melt, burn or vaporize the material being cut or engraved. The high-powered laser beam is generated by excited particles that are activated by an excitation source. The beam is then directed onto the surface of the material, which is typically held down by a machine bed or clamp. As the laser beam moves over the material, it removes layers of the material, creating a cut.
Advantage of Fiber Laser cutting machine for metal
Fiber laser cutting machines offer several advantages over other cutting technologies, including:
- High precision: The beam diameter of a fiber laser is typically smaller than that of a CO2 laser or plasma cutter, which allows for more precise cutting. Fiber lasers are capable of cutting at higher precision and accuracy. The high beam quality allows for greater control over the cutting process, ensuring clean and accurate cuts.
- Fast Cutting speed: Fiber lasers generate a high-powered beam that allows for rapid cutting and speed , making them ideal for high volume production runs,offer a higher cutting speed, reducing the processing time significantly. This helps in improving productivity and reducing lead time.
- Low maintenance: Fiber lasers have fewer moving parts and do not require regular maintenance or replacement of consumable parts like CO2 lasers or plasma cutters
Applications of Fiber Laser Cutting Machines.
- Cost Effective: The high efficiency of fiber lasers results in lower operating costs, making it a cost-effective solution for metal cutting. The energy consumption of fiber lasers is lower, reducing electricity costs significantly.
- Versatility: Fiber laser metal cutting machines can cut a broad range of materials including stainless steel, aluminum, copper, brass and more. The fiber laser can also cut thicker materials than traditional CO2 lasers.
- User-friendly: Fiber laser metal cutting machines come with user-friendly software that allows for easy programming and customization of cutting patterns. They also require less maintenance, reducing the overall downtime.
- Environmentally Friendly: Fiber lasers do not emit harmful gases or produce waste, making them an environmentally friendly option for metal cutting.
- Increased ROI: Investing in a fiber laser metal cutting machine enables businesses to increase their ROI by improving productivity, reducing operating costs, and delivering high quality products.
Where can be used fiber laser cutting machine?
Fiber laser cutting machines are used in a wide range of industries including automotive, aerospace, robotics, medical devices, and electronics. Here are some of the most common applications of fiber laser cutting machines in these industries:
1. Metal Fabrication: Fiber laser cutting machines are ideal for cutting and engraving various metals, including stainless steel, aluminum, and copper. They are commonly used for the fabrication of metal parts and components used in the automotive, aerospace, and defense industries.
2. Medical Devices: Fiber laser cutting machines are used to cut and engrave parts for medical devices such as surgical instruments, hearing aids, and implantable devices. The precision and speed offered by fiber lasers make them ideal for creating complex shapes and patterns required by these devices.
3. Electronics: Fiber laser cutting machines are used to cut components for electronic devices such as circuit boards and smartphone components. They can also be used to create high-precision marking and engraving on small parts.
4. Robotics: Fiber laser cutting machines are used to create metal components and parts for robots used in various industries. The precise cutting and shaping provided by fiber lasers are ideal for creating complex parts for robotic systems.
How does a sheet metal laser cutting machine work?
1. The laser beam is focused into a very small spot (its minimum diameter can be less than 0.1mm), so that the spot reaches a very high power density. The material under the spot is quickly heated to the vaporization temperature, evaporates to form holes, and follows the speed of light. The materials move relative to each other, making the holes continuous and forming narrow slits.
2. The optical fiber cutting machine focuses on the surface of the workpiece, causing the area on the workpiece illuminated by the ultra-fine focus light spot to instantly melt and vaporize, and realize automatic cutting by moving the light spot irradiation position through the CNC mechanical system.

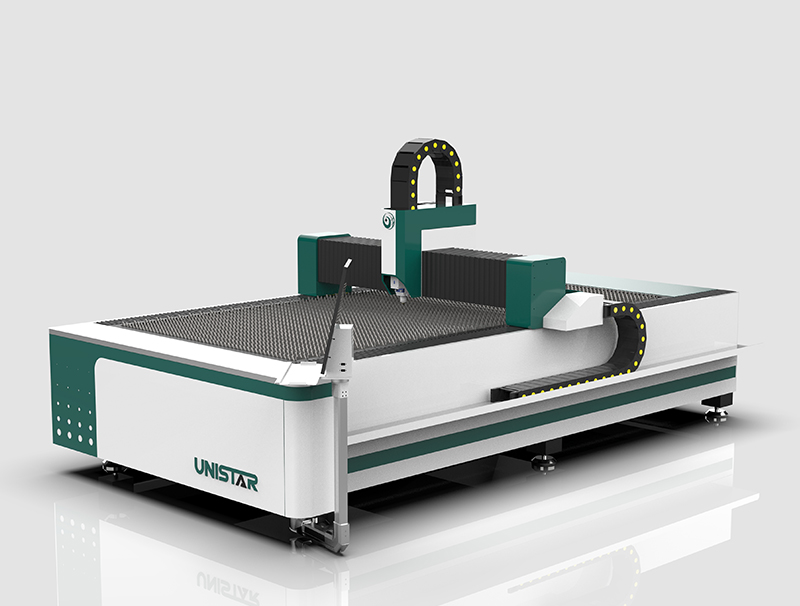

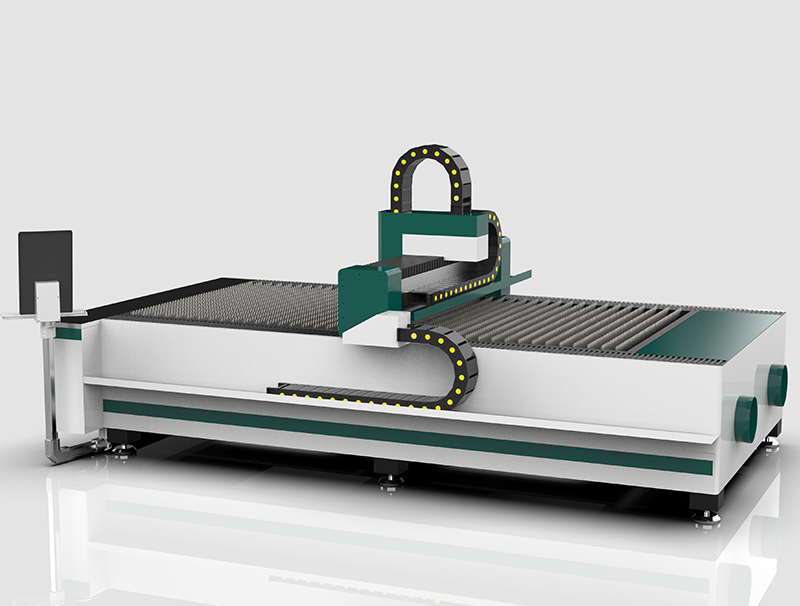

Features of Steel Plate Fiber Laser Cutting Machine for sale

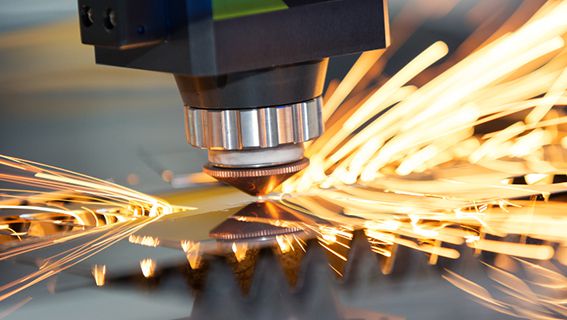

Automatic focus cutting head, high cutting effective
● With automatic follow - up system, can according to the height of the plate, adjust the size of the focal length
● The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting
● Collimating lenses and focusing lenses are water-cooled to reduce the warmth of the laser cutting head and extend the service life of the cutting head

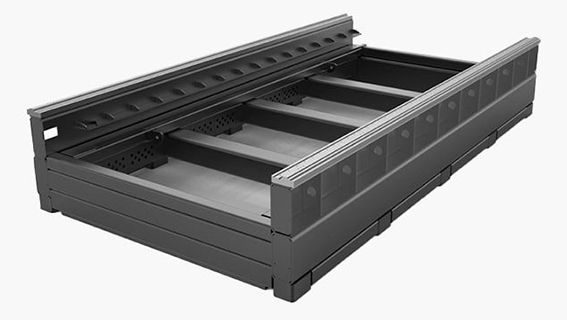

Heavy Steel Welding Machine Bed
The groove welding method is used to achieve equal-strength docking of the plates, ensuring the excellent mechanical properties of the bed. Then stress annealing and natural aging treatment are performed to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.

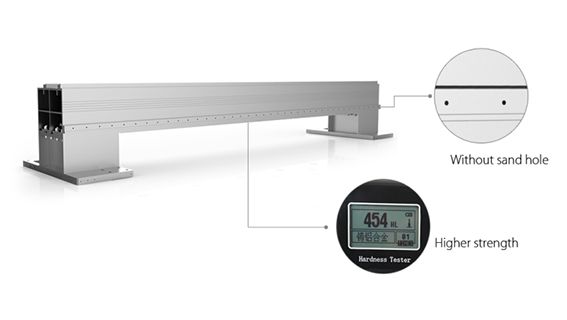

3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

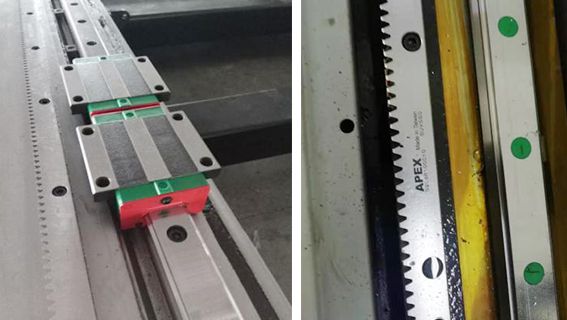

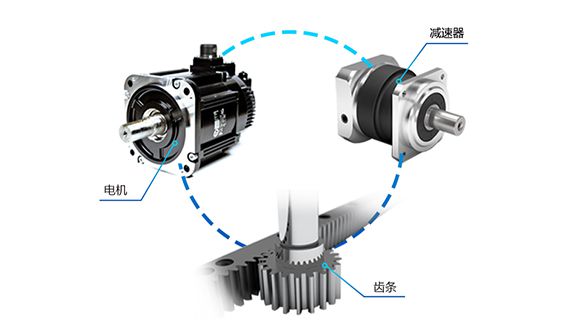

X and Y axis Gear -Rack Transmission System
● Best cnc laser metal cutting machine adopt Taiwan Hiwin rail guide and YYC helical rack .It is generally used in servo motors for power transmission, so that the fiber laser cutting head can move in the X, Y, and Z directions to achieve the purpose of cutting workpieces of various shapes.
● The meshing degree is better, the transmission is smooth, and the noise is low; the coincidence degree is large, which reduces the load of each pair of gears and improves the load-bearing capacity of the gears.
Transmission and precision
● Taiwan delta servo motor and drivers /Option Japan yaskawa servo motor and driver
● Japan Shimpo recuder .The bed positioning accuracy can reach 0.02mm, and the working life exceeds 10 years.

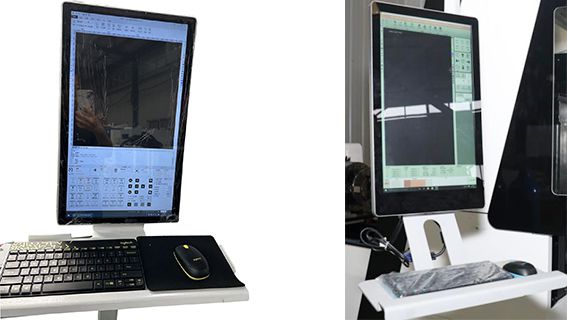

Intelligent CNC system
● Safe and stable
● IPAD model screen design
● Adopt high-definition tempered glass screen, more delicate and smoother operation
Rich projects, comprehensive optimization of computing power algorithms, process flow, and empty line control

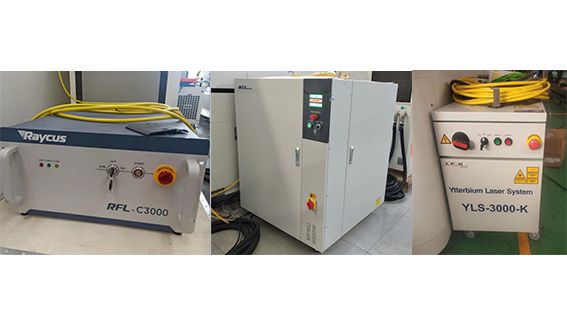

Laser Source (can Optional)
● Raycus brand
● Max Brand
● Germany IPG brand

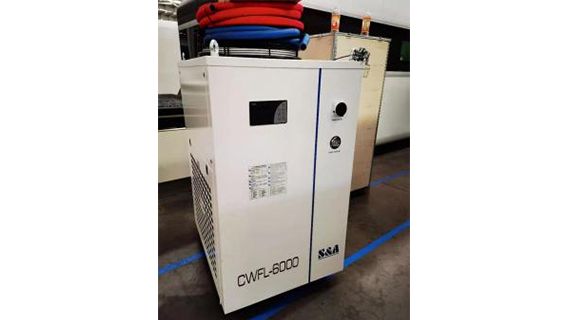

S&A water chiller
Professional cooling systems, refrigeration temperatures are shown in table, the water temperature in excess of the prescribed temperature refrigeration unit automatically when cooling, refrigeration unit automatically stops when the water temperature below the specified temperature refrigeration
| Series number | Description | Specification | Unit |

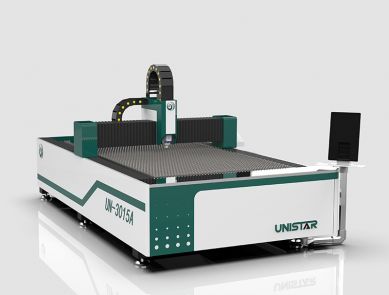

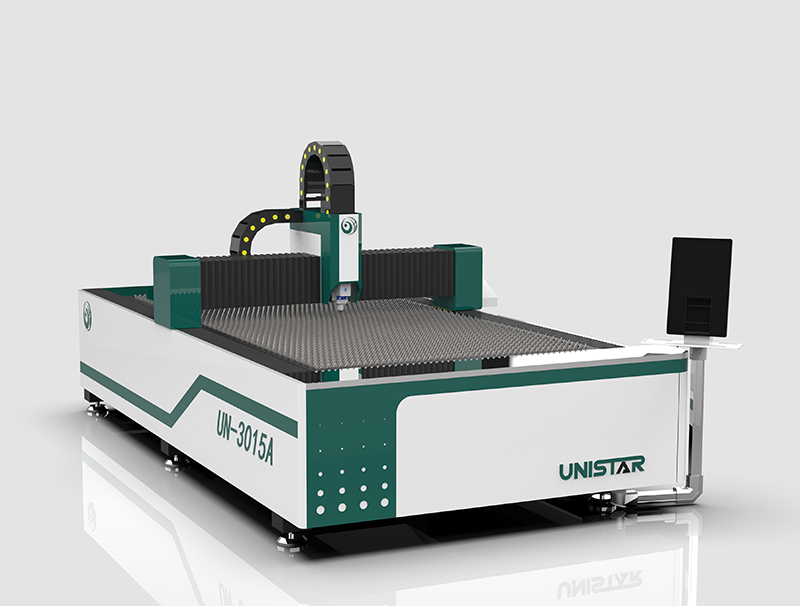

| Brand | UNISTAR LASER | UN-3015A | 1 |
| 1 | Working area | 3000*1500 | mm |
| 2 | Laser Source | IPG/Raycus/Trumph/Max/Reci | 1 |
| 3 | Laser Power | 1000 /2000 /3000 | W |
| 4 | Packing Size | 4200*2250*1900 | mm |
| 5 | X/Y Max Speed | 120 | m/min |
| 6 | Maximum acceleration | 1.5G | m/s2 |
| 7 | X/Y axis positioning accuracy | +0.03 | mm |
| 8 | X/Y axis repeat positioning accuracy | +0.02 | mm |
| 9 | Voltage | 380 | V |
| 10 | Phase | 3 | phase |
| 11 | Hertz | 50/60 | Hz |
| 12 | Warranty Time | 3 | Year |
| 13 | Maximum bearing capacity | 600 | Kg |
| 15 | Weight | 2000 | Kg |
| 16 | X axis servo motor | Japan Yaskawa/ FUJI /Delta | 1 |
| 17 | Y axis servo motor | Japan Yaskawa/FUJI/Delta | 2 |
| 18 | Z axis servo motor | Japan Panasonic /Fuji/Delta | 1 |
| 19 | Warranty Time | 3 | Year |
Samples of Fiber Laser for Metal Cutting
How Much Does A CNC Fiber metal Laser Cutter Cost?
CNC fiber laser metal cutting machines have become increasingly popular in recent years due to their excellent cutting performance, high processing efficiency, and low operating costs. However, the cost of these machines can vary greatly depending on their power output and features.
For a basic CNC fiber laser metal cutting machine with a power output of 1000W, the cost is typically between $11300 and 12000$. These machines are suitable for cutting thin sheets of metal, such as stainless steel, aluminum, and copper., stainless steel thickness is 3 mm, carbon steel is about 6mm thickness
If you require a higher power output, such as 1500W or 2000W, the cost of the machine will increase accordingly. 1500W cutting meal thickness is also different with 2000W. A 1500W CNC fiber laser metal cutting machine typically costs from $13500 to $14000 ,Cutting carbon steel thickness is 6mm, Stainless steel max is 5mm. while a 2000W machine can cost anywhere from $14500 to $16000. it cut carbon steel thickness range from1mm to 12mm, stainless steel thickness is from 1-6mm. These machines are capable of cutting thicker sheets of metal and can handle a wider range of materials.
For even higher power output, such as 3000W, 6000W, or 12000W, the cost of the machine will continue to rise.These machines are ideal for cutting thicker metals:
3000W Fiber Laser Source cutting thickness: carbon steel is 20mm, stainless steel is 10mm,Aluminum is 8mm, red copper is 4mm, brass is 6mm and so on.
6000W Fiber laser Power can cut metal thickness: carbon steel is 22 mm, stainless steel is 18mm,Aluminum is18mm, red copper is 6mm, Brass is 16mm and so on
12000W Laser Power cut metal thickness: carbon steel is 30mm, stainless steel is 25-30mm, Aluminum is 25mm, red copper is 10mm, Brass is 16mm and so on.
Different power with different price.
3000W Cnc metal laser cutting machine cost between $16.000and $ 17.000,
6000W Cnc metal laser cutting machine cost is from $32,000 to $35,000.
12000W Fiber Laser Cutting Machine cost is from $68.500 to $ 72.000
For industrial applications that require even greater power output, These big power metal cutting laser cutter are typically used in heavy industries like shipbuilding, aerospace, and defense. such as 20KW or 30KW, this kind of high power Full enclosed Sheet metal fiber laser cutting machine price is high much than lower power fiber laser machine. of course.
This big power laser fiber cutting machine cut metal usually is 40 or 50mm thickness, or even thicker.
20KW Laser Power cut metal thickness: carbon steel is 70 mm, stainless steel is 40 mm,Aluminum is about 40 mm, red copper is12 mm, Brass is 20 mm and so on.
30KW Laser Power cut metal thickness: carbon steel is 30mm, stainless steel is 25-30mm, Aluminum is 25mm, red copper is 10mm, Brass is 16mm and so on.
Different power with different price.
20KW fiber laser cutting machine price is from $ 84,000- $ 89,000
30KW fiber laser cutting machine price is from $150,000 -$153000
In addition to power output, the cost of a CNC fiber laser metal cutting machine also depends on the features it offers. Some machines come with automatic loading and unloading systems, while others offer 3D cutting capabilities. Machines that incorporate these features can be significantly more expensive than those that do not.
Cautions for use of Fiber Laser Cutting Machine
1. Please ensure that the power socket is in good contact and the ground wire is reliably grounded!
2. Please ensure that the working voltage of the chiller is stable and normal!
Since refrigeration compressors are sensitive to power supply voltage, the normal working voltage of our company's standard products is 200~250V (110V model is 100~130V). If a wider operating voltage range is indeed required, it can be customized separately.
3. Mismatch in power frequency may cause damage to the machine!
Please use the 50Hz or 60Hz model according to the actual situation.
4. To protect the circulating water pump, it is strictly prohibited to operate without water!
The water storage tank is drained before packing the new machine. Please make sure that the water tank is filled with water before starting the machine, otherwise the water pump will be easily damaged. When the water level in the water tank is below the green (NORMAL) range of the water level gauge, the cooling capacity of the cooler will decrease slightly. Please ensure that the water level in the water tank is within the green (NORMAL) range of the water level gauge. It is strictly prohibited to use circulation pump for drainage!
5. Please ensure that the air inlet and outlet channels of the chiller are smooth!
The air outlet on the chiller must be at least 1250px away from obstacles, and the air inlet on the side must be at least 500px away from obstacles.
6. The filter at the air inlet must be cleaned regularly!
The dust filter must be disassembled and cleaned regularly. Serious blockage of the dust filter may cause the chiller to malfunction.
7. Please pay attention to the impact of condensation water!
When the water temperature is lower than the ambient temperature and the ambient humidity is high, condensation water will be generated on the surface of the circulating water pipe and the device being cooled. When the above situation occurs, it is recommended to increase the water temperature or insulate the water pipes and the components to be cooled.
Package for Laser Sheet Metal Cutter
1. Fumigation-free plywood packing, waterproof and moisture-proof
2. The laser power supply is packaged separately, lined with foam box plastic protective film, and the outer part is fixed and packed with custom wooden box
3. The corners are protected with soft pearl cotton to prevent damage during transportation.
4. The whole machine is packaged with protective stretch film, and the outside is fixed and packaged with steel bars to ensure that the machine will not move.
5. The outermost is a wooden box with a fixed template.
6. Wooden box at the bottom of a solid iron socket for easy handling
Certifications of UNISTAR Metal Cutting Fiber Laser
Service &Warranty
1. The laser metal cutting machine quality warranty is 3 years (not include wearing parts )
2. 24 hours online service, if you meet any problem during operate fiber laser cutting machine, engineer will online solve for you within one day through remote control, mobile, skype, or online Online conference video
3. During Warranty time, we are offer free parts replaced (under no human damage )usually UNISTAR laser cutting machine can work for many years, we are all use original parts with top quality.
4. Offer oversea service, if customer need door to door service for training, install machine
We can send engineer or technician foreign training service, please offer engineer tickets fees ,also room and board.
FAQ
Q: How to connect and operate the metal laser cutting machine?
A: After you receive UNISTAR Laser Machine, In the tool box have machine user and installation guide manual, customer can refer to this books for installing machine, in fact
The machine is just need connect water chiller, air compressor, wires, laser source.
Others is completed assemble well, during install and operate process, any questions or support, Technician will online solve for you.
Q: Does the machine can be customized according to my requirements?
A: Sure, UNISTAR have stronger and rich experience design team, They can offer you different solution according to customer demands.
Include process function, machine size, arts and crafts finishing needs appearance design so on.
Q: How do I know which kind fiber laser sheet cutting machine?
A: Please tell us the following details: our professional sales team will recommend you best suit machine
1. What kind of material you need to cut?
2. What max thickness of material is be cut?
3. Which industry are you business in?
4. How much your budget for buying metal laser cutter for home use?
Q: What is the delivery time if we buy machine from you
A: As standard size and specification, the delivery time is 15 working days
If big size or need customized machine size, the delivery time is about 30 working days.
Q: Does your company have some Authoritative certificate?
A: Yes, our products have CE certificate, FDA, COC, Saber certificate. we are already export many different countries.
What kind of payment terms do you accept?
1. By T/T
2. By L/C at sight
3. By Alibaba Credit Insurance Payment
4. By Western Union or Paybal. etc
Look forward to hearing from you
