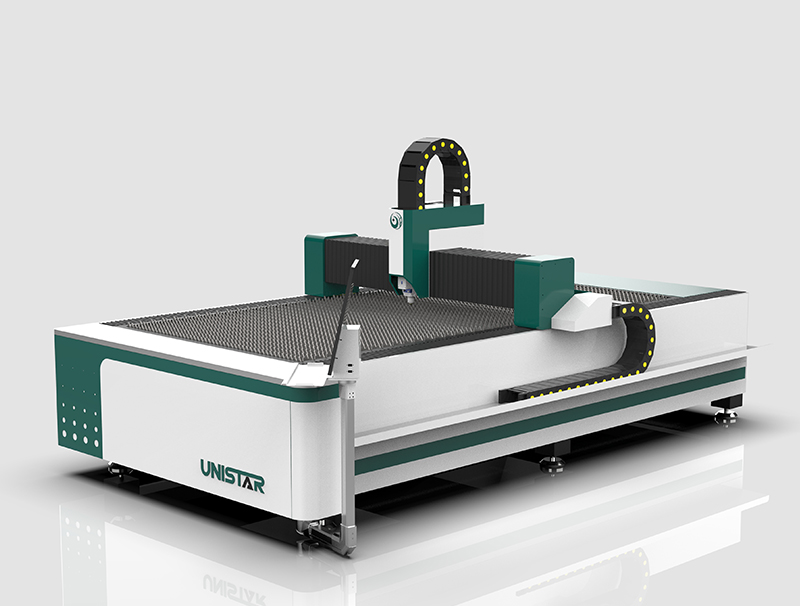

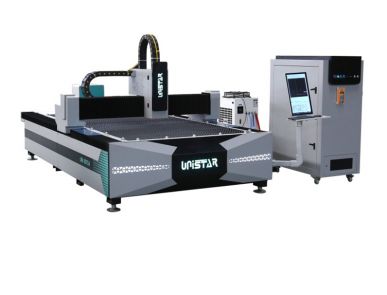

Metal cutting laser cutter

Inquire Now Chat Now

Product Details

Parameters

Samples

FAQ

Request a Quote

What is metal cutting laser cutter?

Metal cutting laser cutter is a high-power, high-precision cutting equipment for metal materials and metal sheets. It uses a fiber laser generator as a light source, outputs a high-energy density of laser ashes, and gathers on the surface of the workpiece, so that the spot irradiation area instantly melts and vaporizes, and realizes automatic cutting by moving the spot irradiation position through a CNC mechanical system. Fiber laser cutting machine can do plane cutting, also can do oblique cutting processing, and the edge is neat and smooth, suitable for high-precision cutting processing such as metal plate, while coupled with a mechanical arm can be three-dimensional cutting

Advantages of Metal cutting laser cutter

1. High beam quality: the focused spot is smaller, the cutting line is finer, the working efficiency is higher, and the processing quality is better.

2. High cutting speed: twice the same power CO2 laser cutting machine;

3. High stability: the use of the world's top imported fiber lasers, stable performance, the service life of key components can reach 100,000 hours;

4. Extremely high photoelectric conversion efficiency: optical fiber laser cutting machine photoelectric conversion efficiency of about 30%, 3 times higher than CO2 laser cutting machine, energy saving and environmental protection;

5. Very low use cost: the power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines;

6. Extremely low maintenance costs: no laser working gas; Optical fiber transmission, no need for reflective lenses; Can save a lot of maintenance costs;

7. Easy operation and maintenance: optical fiber transmission, no need to adjust the optical path;

Components of Metal cutting laser cutter

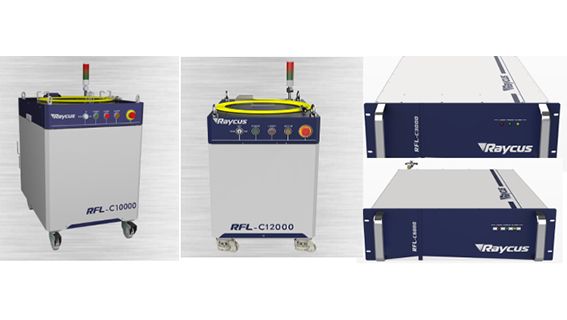

Laser Source

This is where the laser beam is generated. It works by using a high-power laser to produce a focused and intense beam of light.

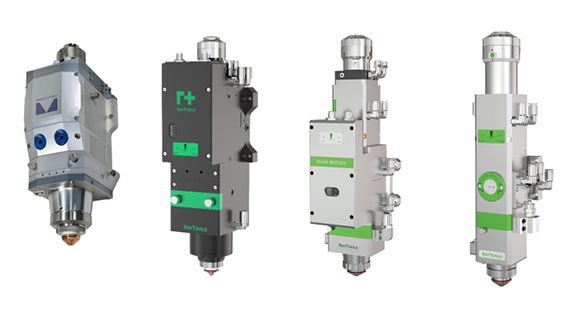

Cutting Head

The cutting head can guide the laser beam to the metal, and the head includes a focusing mirror to make the light finer and the energy more concentrated.

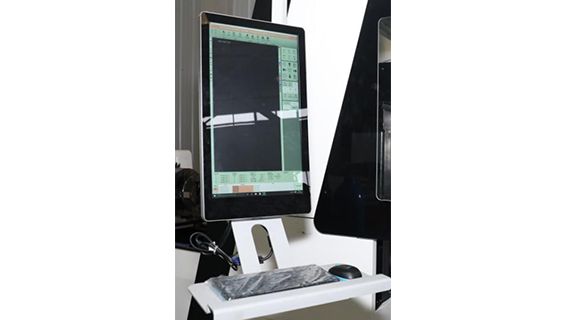

Control Panel

Through this panel, the operator can adjust various Settings of the machine, such as the thickness of the metal being cut and the speed of the cutting process

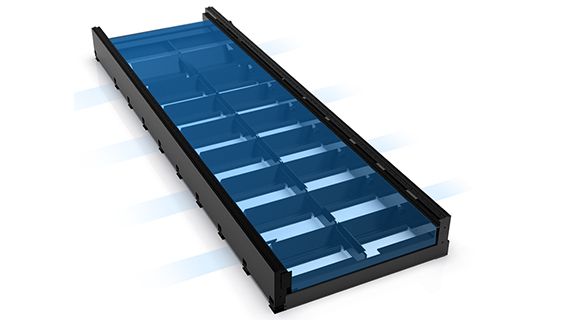

Machine Bed

The operator can place the metal in this place for cutting. The bed is made of a durable material, such as steel or aluminum, which holds the metal in place during the cutting process

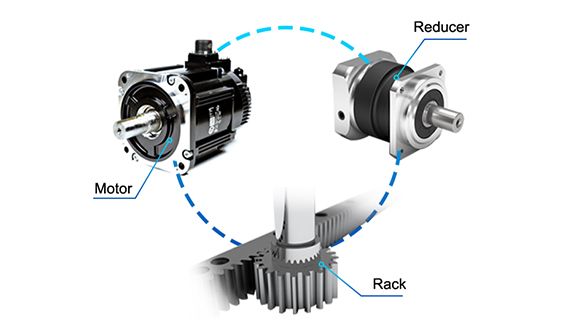

Servo Motor

Servo motor is an essential part, but also the most core position of the machine tool, the motor determines the precision, speed and stability of the cutting.

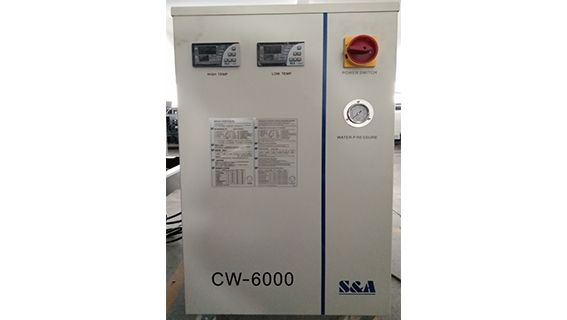

Water Cooling system

The chiller can ensure that the fiber laser cutting machine maintains normal operation at a constant temperature. Rich configuration, high and low temperature alarm, advanced function. Relatively stable performance professional Pipe Cutting System

Model	UN-3015A
Working Area	3000*1500mm
Laser source media	Raycus Brand
Laser Power	1000W
Laser head	Raytools auto focus cutting head
Laser Wavelength	1080 nm
Beam Quality	<0.373mrad
Positioning Accuracy	≤ ±0.03mm/m
Re-positioning Accuracy	≤±0.02mm/m
Maximum positioning acceleration	2G
Max moving Speed	40000mm-60000mm/min
X-axis Stroke	1500mm
Y-axis Stroke	3000mm
Working Table	Blade platform thickness 3mm thickness
Machine body	Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment,
Control System	China Professional CYPCUT
Rack	Taiwan import YYC helical rack with high accuracy
Rail guide	X,Y,Z axis import Hiwin Rail Guide ,
Water chiller	China famous brand Hanli water chiller
Pneumatic accessories	Japan SMC/ Taiwan Yade polite motion components
Motor and drivers	Japan Fuji servo motor and drivers

Reducer	Japan Shimpo reducer/MOTOVARIO reducer
Supported Graphic Formats	NC PLT, DXF, BMP, AI, DST, DWG, etc
Working temperature	Indoor temperature is okThere should be no vibration source nearby
Working voltage	3 Phase 380V/50HZ/
Years of warranty	2 years warranty (not include vulnerable part )

Samples of Metal cutting laser cutter

Why choose us

Professional After -Sales Service

100+ after sales service people provide 24 -hours fast online technical support in 12 language

Global sales network layout

Sold to more than 150 countries and regions around the world,and established agency service points in more than 30 countries and regions around the world.

Intelligent production base

The company has a manufactory of 66000 square meters,including modern standard factory buildings of 4000 square meters and smart office building of 6000 square meters.

Honor certificate

We have obtained IOS9001,ROHS,CE international certifications,and has more than 30 utility model patents and appearance design patents.

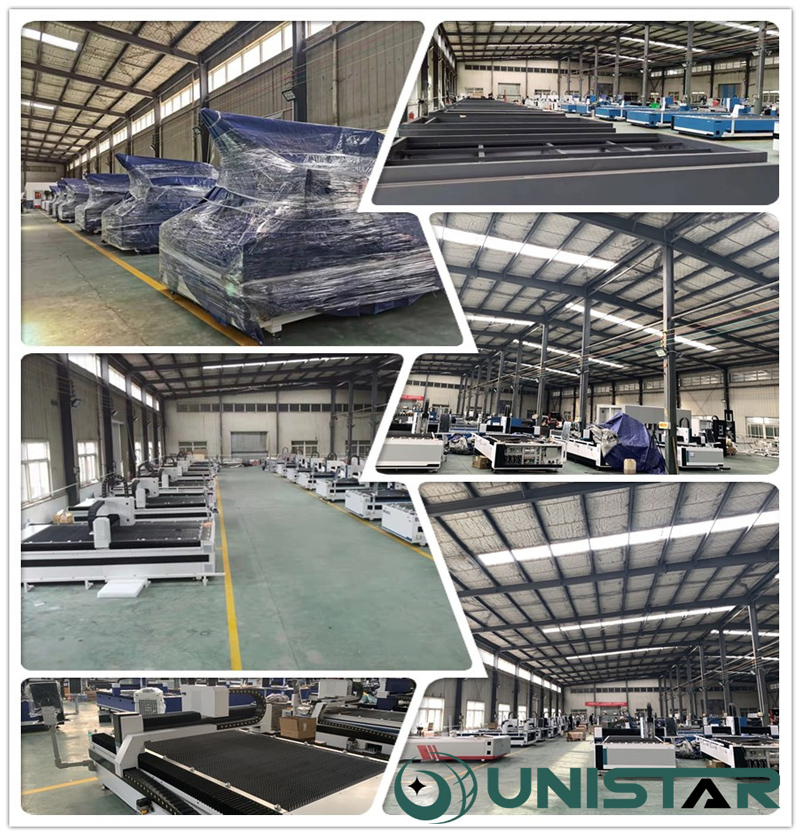

FACTORY SHOW

Metal cutting laser cutter

Foreign customer visiting

Metal cutting laser cutter

CERTIFICATE

We have passed the international certifications such as CE certification, ISO9001 quality management system certification ,Patent certificate , Saber Certificate ，FDA for metal cutting laser cutter, Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing,packaging and shipping to ensure the performance and quality of laser products.

Metal cutting laser cutter

Q1: What metal can I cut with a laser?

A1: Metal laser cutting machine can cut almost all metal materials, most people use them to cut carbon steel, low carbon steel, stainless steel, steel alloys and aluminum these metal materials.

Q2: Can I use a metal laser cutter to cut other materials?

A2: The answer is yes, metal laser cutting machine is widely used, do not need to replace any parts, just adjust the size of the laser power can be cut.

Q3: How to buy the right metal laser cutting machine? What do you need to pay attention to when buying a metal laser cutting machine?

A3:Before investing in a metal laser cutting machine, you need to consider the following:

1. Type of laser.

2. The size of laser power.

3. Dimensions of the machined parts.

4. Quality of after-sales service.

Q4: How many years of warranty period？
A4: The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time, we will take place of it free (Under no human damage ).

Q5: Do you have CE document and other documents for customs clearance

A5: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q6: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine

A6: If machine technical problem, we have engineer online support service, through remote control, video show, to help solve problem, if parts broken ( not consumption parts ,we will take place a new one as soon as possible.
