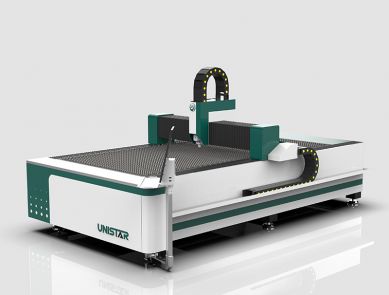

Metal sheet cutting machine

The laser generator emits the laser, through the optical path integrated system, focusing into a high-density, high-power beam, the beam irradiates to the surface of the sheet metal, the irradiated place reaches the melting point, instant melting, at the same time, the coaxial high-pressure gas will melt the metal and the sheet metal parts blown away, so as to achieve metal cutting.

Inquire Now Chat Now

Product Details

Parameters

Samples

FAQ

Request a Quote

Working principle of sheet metal cutting machine

Advantage of laser cutting machine

1. Convenient cutting process: workers only need to import the graphics they want to cut, and the machine can cut without manual operation.

2. High cutting efficiency: A few seconds can complete a few minutes of manual work, greatly improving production efficiency.

3. Good cutting quality: The laser cut cross-section is smooth and flat with no burrs. No secondary processing required.

4. Save labor cost: One machine can match the productivity of many people. And there is no manual operation when cutting, and a person can see multiple machines working, which greatly saves labor costs.

5. Improve material utilization: The minimum slit is as low as 0.1mm to make full use of the material and avoid unnecessary waste.

Application

1. Material: Carbon steel, stainless steel, alloy, aluminum, gold, silver

2. Industry:

● In the electronics manufacturing industry, it is used to cut the housings and panels of electronic devices, ensuring accuracy and quality.

● In the aerospace industry, it is used to manufacture structural components for aircraft and spacecraft to achieve high strength and lightweight requirements.

● The advertising industry. Because the advertising industry is more customized, the efficiency of traditional processing is very low. The use of laser cutting machine, only need to input the design drawing, no matter how thick the plate, no matter how many shapes, the laser machine can be quickly processed.

● Kitchenware industry. Now people's quality of life has improved, the demand for housing has increased, and the demand for kitchenware related products is increasing. Fiber cutting machine is suitable for cutting sheet stainless steel, and can achieve customized and personalized product development, high customer satisfaction.

Major dispositions

Machine tool

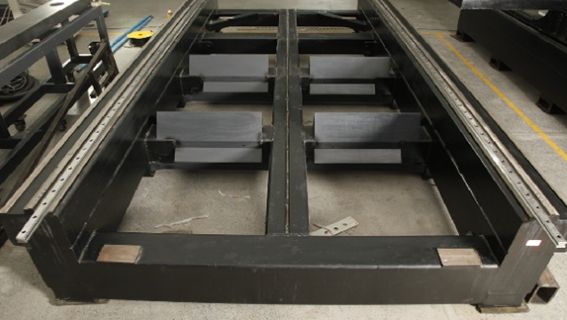

Our bed adopts square tube welding, simple structure, good load-bearing capacity. In order to prevent rust, we use spray process instead of spray painting process. The spraying process can prevent the machine from rusting and will not fall off in a year like paint.

Laser Source

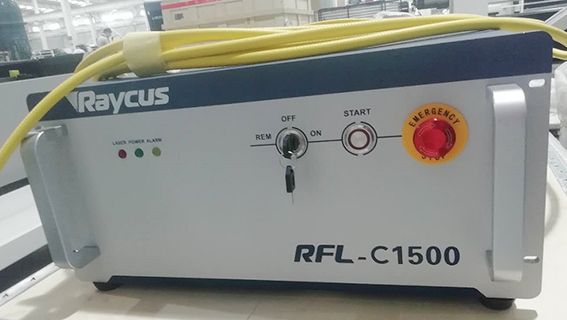

RAYCUS laser source

This brand is a famous brand in China. They have been focusing on the development of fiber lasers for nearly 20 years, with rich experience and top technology, and high quality products.The laser energy conversion rate is high, it can convert the input electrical energy into the laser output energy up to 90%.

Laser head

Raytool laser head

The scanning mirror of Raytool laser head adopts high-speed electric mirror, which has faster cutting speed and higher cutting accuracy, and is suitable for large laser cutting machines. Raytool laser head built-in various sensors, real-time feedback internal lens temperature, chamber temperature humidity, chamber pressure, cutting gas pressure and other parameters.

Control system

CYPCUT control system

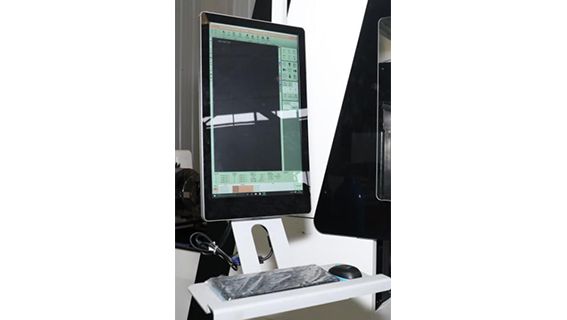

CYPCUT system operation interface is simple and intuitive, novice can also quickly get started. In the process of operation, CYPCUT efficiency is high, not easy to make mistakes. And the CYPCUT system has more rich functions, can meet the different processing needs.

Reducer

Japan SHIMPO reducer

SHIMPO reducer adopts cone bearings, so that the output shaft can withstand greater axial and radial loads. The gear box and bracket are made of strong materials with the overall structural design to ensure the strong torque performance of the reducer.

Motor and drivers

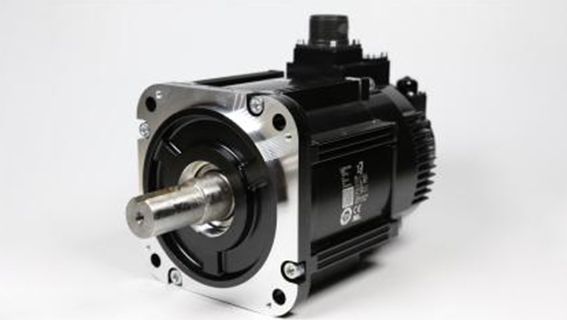

There are two kinds of servo motors: AC servo motor and DC servo motor. Delta servo motor belongs to AC servo motor. Compared with DC servo motors, the main advantages are as follows:

1.no brush and commutator, so the work is reliable, low maintenance and maintenance requirements;

2.stator winding, heat dissipation is more convenient;

Water chiller

Special and cold water machine has the following characteristics:

1.Cooling water flow and high and low temperature alarm safety protection function

2.Two operating modes: constant temperature and intelligent temperature control

3.Temperature precision control can reach ±0.1℃

4. Including input and output control device switch

Model	UN-3015A
Working Area	3000*1500mm
Laser source media	Raycus Brand
Laser Power	3000W
Laser head	Raytool auto focus cutting head
Laser Wavelength	1080 nm
Beam Quality	<0.373mrad
Positioning Accuracy	≤ ±0.03mm/m
Re-positioning Accuracy	≤±0.02mm/m
Maximum positioning acceleration	2G
Max moving Speed	40000mm-60000mm/min
X-axis Stroke	1500mm
Y-axis Stroke	3000mm
Working Table	Blade platform thickness 3mm thickness
Machine body	Strong heavy duty machine body, Machine structure precision machining welding bed, quench and tempering heat treatment,
Control System	China Professional CYPCUT
Rack	Taiwan import YYC helical rack with high accuracy
Rail guide	X,Y,Z axis import Hiwin Rail Guide,
Water chiller	China famous brand Hanli water chiller
Pneumatic accessories	Japan SMC
Motor and drivers	Taiwan delta
Reducer	Japan Shimpo reducer
Supported Graphic Formats	NC PLT, DXF, BMP, AI, DST, DWG, etc
Working temperature	Indoor temperature is OK.
Working voltage	3 Phase 380V/50HZ
Years of warranty	2 years warranty (not include vulnerable part )
