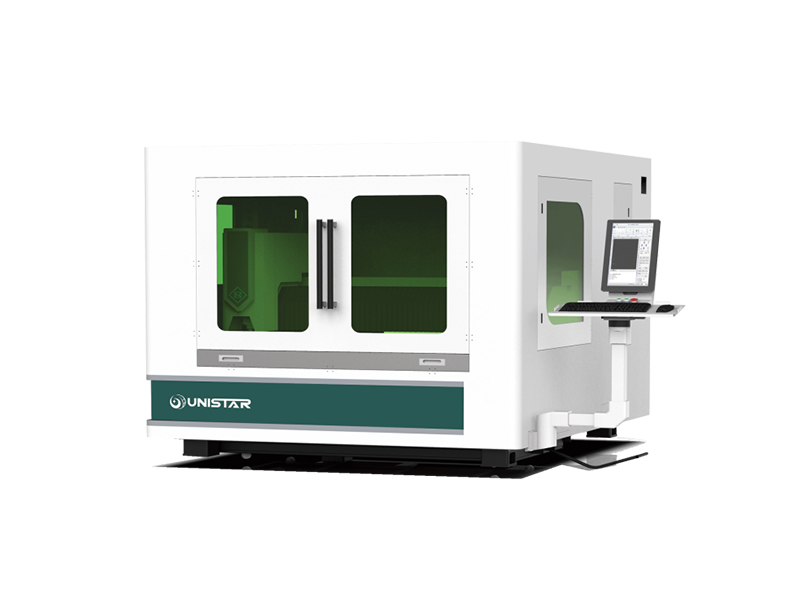

Small size 1000W fiber laser cutting machine

Laser cutting machine is a set of light, machine, electrical integration of laser processing equipment, it uses laser technology and computer control technology and high-performance CNC laser power system, 1000w fiber laser cutting machine thermal deformation is small, high cutting precision, low noise, pollution-free, easy to achieve automatic laser cutting, can quickly and efficiently process various specifications of sheet metal.

Inquire Now Chat Now

Product Details

Parameters

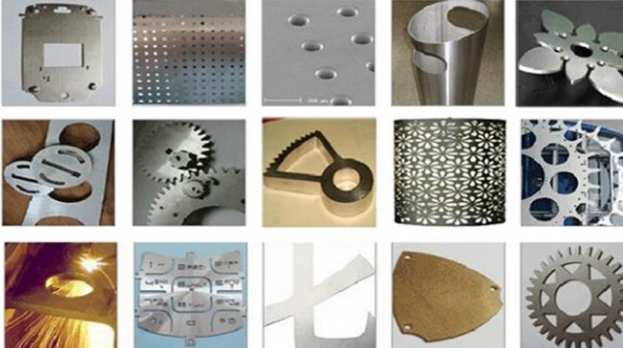

Samples

FAQ

Request a Quote

Brief introduction

1000W laser cutting machine covers a small area, high flexibility, simple operation, very suitable for beginners to use and purchase. It can help you easily achieve automated welding with high productivity and high precision manufacturing

Advantages

1. Long service life. Fiber laser cutting machine is imported laser, in terms of performance is very stable, the service life can reach 10W hours, much longer than the previous two generations

2. Low processing cost. The photoelectric conversion rate of fiber laser cutting machine can reach about 30%, which is 3 times that of CO2 laser cutting machine. And low maintenance costs, no need for reflective lenses.

3. Humanized control: advanced man-machine interface and operation application, simple and intuitive operation. It can achieve efficient and accurate cutting, reducing the difficulty and error rate of the operator.

Key features

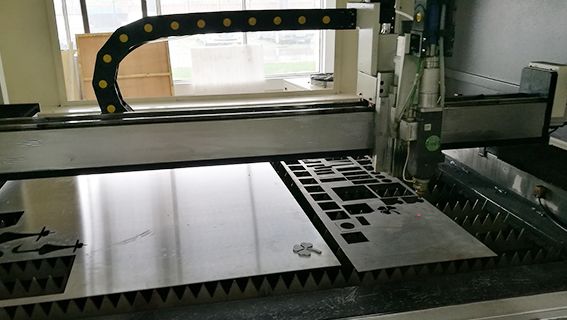

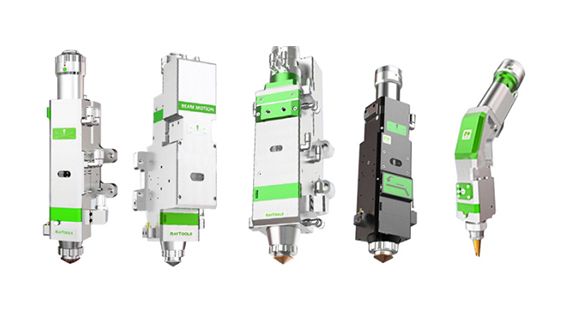

Cutting head

The whole cutting head is composed of collimator, focusing mirror, protection mirror, it can guide the laser beam to the metal, and the head includes a focusing mirror to make the light finer and the energy more concentrated.

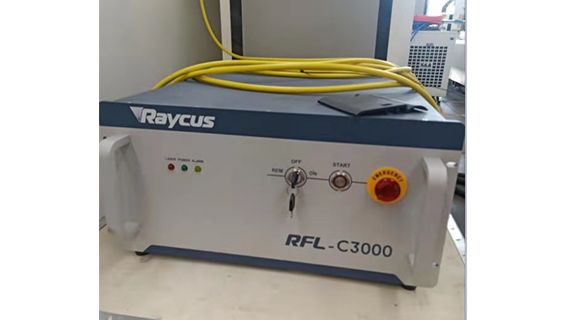

Fiber laser source

The laser source is the heart of any fiber laser cutting machine, which determines the precision, speed and quality of the cutting. The power of the laser source (in kilowatts (kW)) directly affects the cutting speed and thickness capability of the machine. The higher the power of the laser, the faster it can cut thicker materials.

Machine Bed

The bed of the laser cutting machine is like the foundation of the house, if the foundation is unstable, the quality of the house can be imagined. In the entire working process of the laser cutting machine, the production process of the machine tool occupies a key position. A good bed plays a decisive role in cutting accuracy and stability.

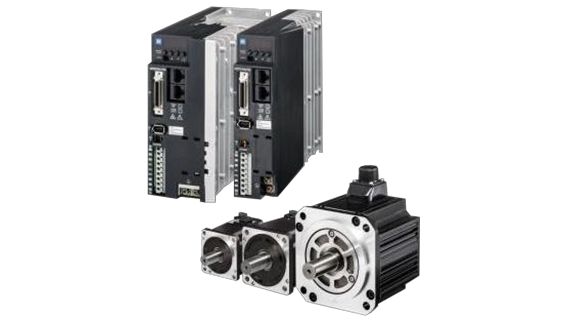

Japanese Fuji servo motor and driver

Small motor, low noise, low vibration design, improve production efficiency, energy-saving design in line with national standards, safety and environmental protection. It can have a quiet production environment, powerful power, strong durability, improve production efficiency, energy-saving design in line with national standards, safety and environmental protection.

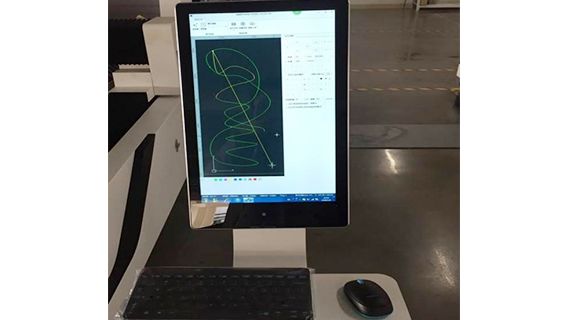

Control System Panel

Laser cutting control system is the "brain" of laser cutting equipment, which can help the equipment to achieve automation and intelligence. The control system is generally composed of hardware such as motion controller, servo system and load, and software such as control algorithm.

Laser source media	Raycus Brand
Laser Power	1000W/2000W
Laser head	Raytools auto focus cutting head
Laser Wavelength	1080 nm
Beam Quality	<0.373mrad
Positioning Accuracy	≤ ±0.03mm/m
Re-positioning Accuracy	≤±0.02mm/m
Maximum positioning acceleration	2G
Max moving Speed	40000mm-60000mm/min
X-axis Stroke	1300mm
Y-axis Stroke	900mm
Working Table	Blade platform thickness 3mm thickness
Machine body	Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment,
Control System	China Professional CYPCUT
Rack	Taiwan import YYC helical rack with high accuracy
Rail guide	X,Y,Z axis import Hiwin Rail Guide ,
Water chiller	China famous brand Hanli water chiller
Pneumatic accessories	Japan SMC/ Taiwan Yade polite motion components
Motor and drivers	Japan Fuji servo motor and drivers

Reducer	Japan Shimpo reducer/MOTOVARIO reducer
Supported Graphic Formats	NC PLT, DXF, BMP, AI, DST, DWG, etc
Working temperature	Indoor temperature is okThere should be no vibration source nearby
Working voltage	3 Phase 380V/50HZ/
Years of warranty	2 years warranty (not include vulnerable part )

Small size 1000W fiber laser cutting machine

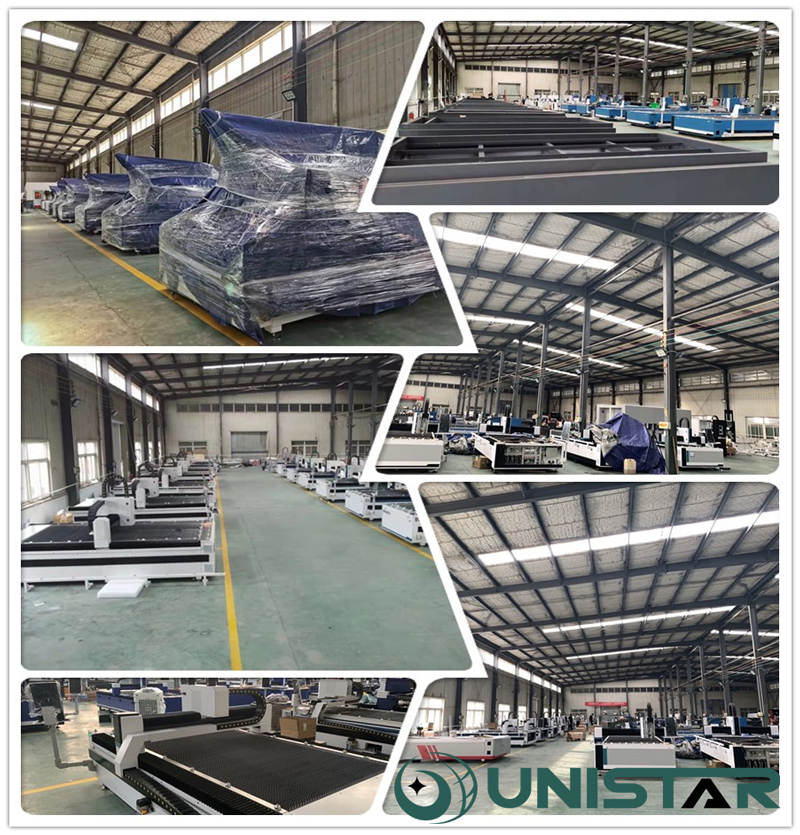

FACTORY SHOW

Small size 1000W fiber laser cutting machine

Packing and shipping

Small size 1000W fiber laser cutting machine

Foreign customer visiting

Small size 1000W fiber laser cutting machine

Q1: Which payment way your company can accept?

A1 : 1. 30% T/T in advance payment, 70% T/T balance payment before shipping machine.

2. 100% L/C at sight

3. 30% T/T deposit payment ,70% see copy bill of lading.

Q2: I don't know which kind of fiber laser machine is suit for me

A2: Just tell us your working industry?

What kind of material you need to cut?

And the size of material, then we have professional sales to recommend you best suit machine.

Q3: Do you have CE document and other documents for customs clearance

A3: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q4: Machine routine maintenance and precautions?

A4: (1) When the fiber laser cutting machine is working, it cannot contact or collide with the moving beam of the scanning table;

(2) The laser and optical lens are fragile, and should be handled with care and avoid vibration;

(3) When there is a fault in the machine, it should stop working immediately and be handled by professional staff;

(4) Pay attention to the switching sequence;

(5) Pay attention to keep the indoor and machine surface clean and tidy.
