Stainless steel laser cutting machine is a technology that uses a laser beam to melt stainless steel at high speed to achieve precise cutting. After the laser beam is focused by the focusing lens, the energy density is very high, and the surface of the object to be cut is melted and vaporized instantly, so as to achieve the cutting of the material.
Advantages
1. The cutting line is more fine, the cutting speed is fast, the working efficiency is higher, the processing quality is better.
2. The use of Raytool fiber laser, stable performance, long service life of components;
3. The power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines
4. It is welded by the profile, and then machined after heat treatment and annealing. The excellent heat treatment process ensures the overall rigidity of the machine tool and ensures the stability of long-term use.
5. The whole machine adopts high quality servo motor, high precision forming machine pinion and rack transmission structure, high precision and processing efficiency.
6. The equipment is stable, the humanized operation interface, the real-time feedback of the processing state, to ensure the orderly cutting processing.
7. Automatic focus, no manual adjustment, saving time and effort.
Main parts
Body structure
The bed has been welded, annealed, sprayed, processed and other steps, so that it is not easy to deform, will not rust and maintain accuracy for a long time during use. As a result, its service life is long.
Laser source
Raycus laser source from the United States military technology, using laser optical module and laser power separation mode, easy maintenance. It can output extremely high energy in extreme time and has good stability.
Laser head
Shanghai Raytool BM110
It can automatically focus and save time.
It can maintain good stability in high power and high speed cutting, and the laser size is small and the reliability is high.

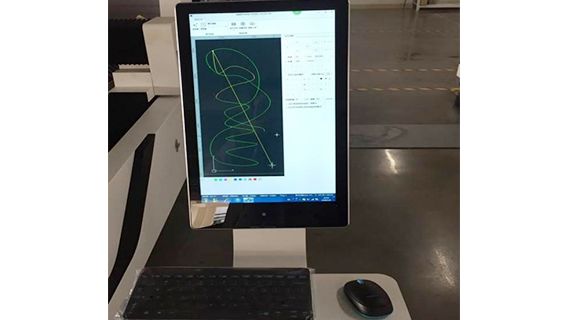

Control system
Raytool control system is an open control system. Its advantage is that it is flexible and can be customized according to needs. It Suitable for cutting with high quality requirements.
Reducer
Japan Shimpo reducer
Shimpo reducer adopts precision manufacturing process and matching technology to ensure the stability of the parts and systems of the reducer. Its products can work for a long time in practical applications, and constantly maintain efficient and stable performance.
Water chiller
The brand of water chiller is S&A. It has good cooling effect, can maintain temperature stability, ensure machine performance and extend life, easy maintenance.
Pneumatic accessories
Japan SMC
It has the advantages of light weight, fast response and easy maintenance.
Transmission
Rack and pinion of Taiwan YYC
The use of helical rack and pinion, suitable for heavy load, high precision, high speed processing.
Rail guide
Taiwan HIWIN square rail guide
The guide rail plays a guiding role, and there is a guide rail press block on the side to prevent the guide rail from bending and ensure the cutting accuracy. The straighter the guide rail, the higher the accuracy.
Application of fiber laser cutting machine
● Application material
Stainless steel, alloy steel, silicon steel, aluminum, aluminum alloy, galvanized plate, aluminum plated zinc plate, copper, silver, gold and other metal materials.
● Application industry
1. Advertising industry: suitable for LOGO, signs, souvenirs and other production
2. Kitchen and bathroom furniture industry: fiber laser cutting machine can be used to cut stainless steel, aluminum alloy, copper and other materials, making kitchen hardware, bathroom hardware and so on.
3. Aerospace industry: precision aircraft parts can be manufactured.
4. Automobile manufacturing industry: It is suitable for the production of various parts such as engine and transmission in automobile manufacturing.
| Model | UN-3015A |
| Work Area | 3000*1500 mm |
| Fiber Laser Source | Raycus |
| Laser Power | 3000W |
| Max Moving Speed | 120 m/min |
| Max Acceleration | 1.5G |
| Positional Accuracy | ± 0.02 mm |
| Control System | Raytool |
| Motor and Driver | Taiwan Delta servo motor and drivers |
| Reducer | French Motorvario reducer |
| Transmission | Rack and pinion |
| Pneumatic Accessories | Japan SMC |
| Table | Blade table |
| Supported Graphic Formats | NC PLT, DXF, BMP, AI, DST, DWG, etc |
| Work Voltage | 3 phase 380V/50HZ |
| Warranty | 2 years |
| Water Chiller | S&A CW5000 |
Samples of stainless steel laser cutter
Why choose us？
● Our company
1. Unistar company have been in machinery manufacture industry for more than 20 years, we always aim to satisfied customer around world with our rich experience and optimal solution, we trade quality first, service first, customer first as our purpose to help every customer earn benefit.
2. We have expert R&D team to ensure product quality and continuous introduction of new products to meet market demand.
3. We have our own factory, quality and service are guaranteed.
4. Enterprise excellent management mechanism, reliable quality assurance system and advanced technology and equipment and advanced management concept, so that the company has been sustained and steady development.
5. We pursue efficiency by management, survival by quality, actively improve product quality values, adhere to the principle of professional and practical product design, the pursuit of excellence, continuous progress, dedicated to provide customers with excellent products and perfect after-sales service system.
● Our service
1. 24 months guarantee of the whole machine.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge.
4.We will provide the consumable parts at an agency price when you need replacement.
5.Machine has been adjusted before delivery.
6.We have excellent engineers good at English to provide at door service. If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
7. Could be remote control if needed.
8. We can provide English software, user manual and detailed Videos CD.
9. Door to door technical group service. 24 hours technology online support ,Skype, MSN, Yahoo,etc or by mail and phone .
10. Free training course at our plant.
Packing
Customer visiting
Our products are sold all over the world. Many customers come to visit our factory and cooperate with us. We welcome every customer to visit our factory, we believe that our products will not let you down. We'll make it worth your while. If you can't visit our factory in person, we can also visit online.
Customer feedback
Our products are trustworthy and our products are highly praised.
Certificate
Q1: Which payment way your company can accept?
A7: 1. 30% T/T in advance payment, 70% T/T balance payment before shipping machine.
2. 100% L/C at sight
3. 30% T/T deposit payment, 70% see copy bill of lading
Q2: Do you have CE document and other documents for customs clearance
A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
A3: How to install and run the machine?
Q3: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine.
95% customers can learn by themselves.
Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A4: If machine technical problem, we have engineer online support service, through remote control, video show, to help solve problem, if parts broken ( not consumption parts, we will take place a new one as soon as possible.
Q5: I don't know which kind of cnc router machine is suit for me
A5: Just tell us your working industry?
What kind of material you need to cut
And the size of wood board, then we have professional sales to recommend you best suit wood engraving machine.
Look forward to hearing from you
