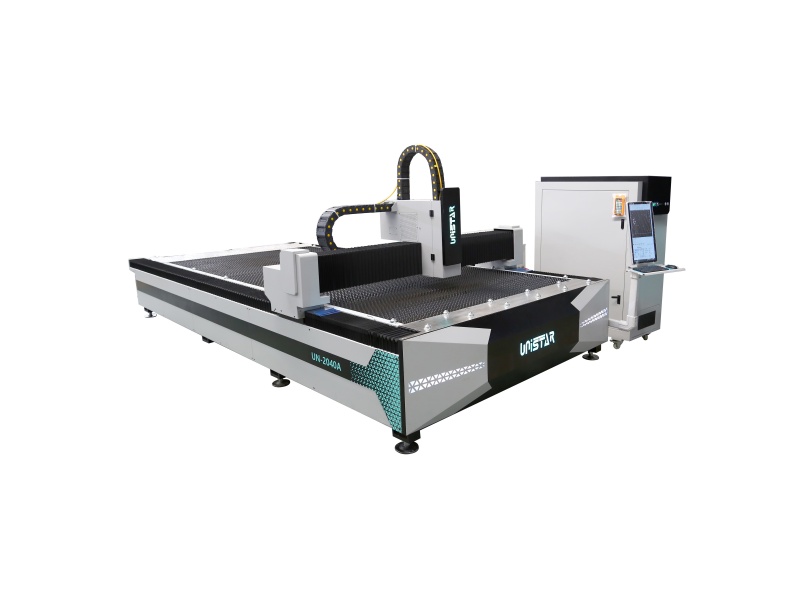

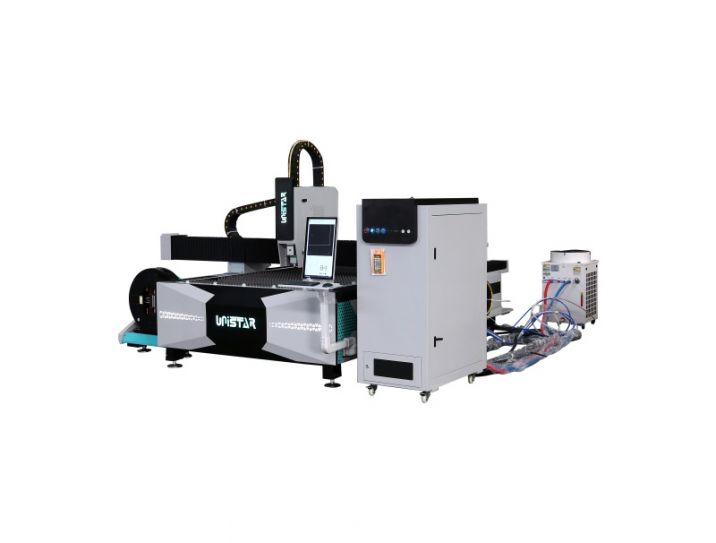

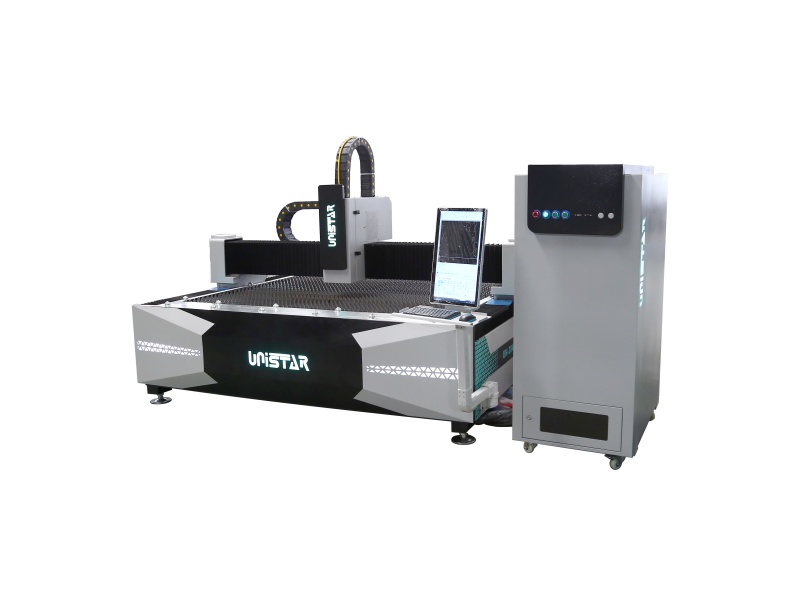

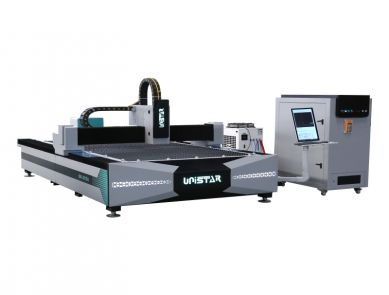

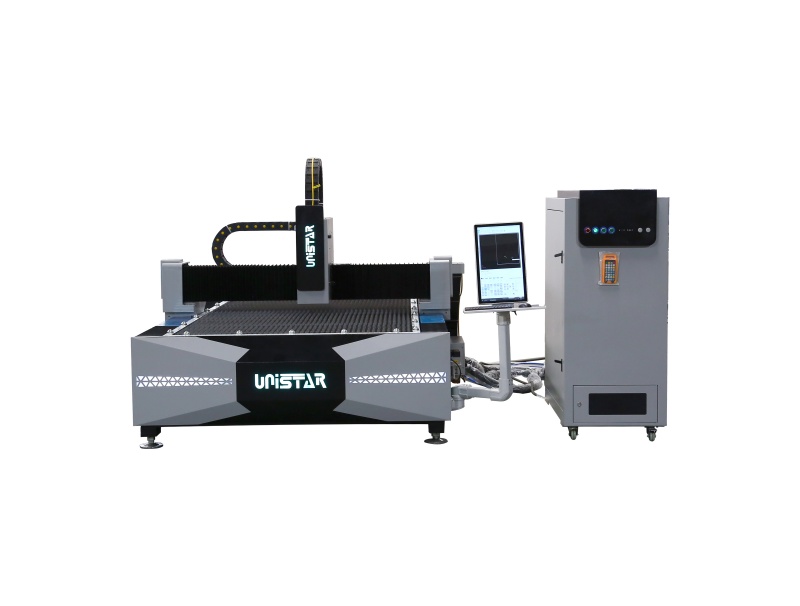

The Sheet Metal Laser Cutting Machine uses an advanced fiber laser to output a high-energy-density laser beam and focus it on the surface of the workpiece, so that the area of the workpiece that is illuminated by the ultra-fine focus spot is instantly melted and vaporized.Laser cutting machine fiber precision, fast speed, smooth cutting surface without burrs, cutting efficiency, high efficiency.
| Model | USF-1390 |
| Working Area | 1300x900mm |
| Laser source media | China famous brand RAYCUS |
| Laser Power | RAYCUS 3000W laser source |
| Laser head | RAYTOOLS BM110 |
| Laser Wavelength | 1080 nm |
| Beam Quality | <0.373mrad |
| Positioning Accuracy | ≤ ±0.01mm/m |
| Re-positioning Accuracy | ≤±0.01mm/m |
| Max Speed in Cutting a Straight Line (O²) | 18000mm/min-25000mm/min |
| Max moving Speed | 40000mm-60000mm/min |
| Power Supply Rated Voltage | 3-phase 380V/50Hz |
| Working Table | Blade platform 3mm thickness |
| Machine body | Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment |
| Control System | China Professional CYPCUT 2000 E |
| Transmission | X,Y, import Taiwan YYC helical rack and , Z axis Taiwan TBI ball screw |
| Rail guide | Taiwan import originalHiwin rail guide, high accuracy, not easy rust, keep long lifetime |
| Water chiller | China famous brand S&A water chiller CW3000 |
| Pneumatic accessories | Japan SMC/ Taiwan Yade polite motion components |
| Motor and drivers | Taiwan Delta servo motor and drivers |
| Reducer | French MOTOVARIO reducer |
| Component | Electronic Component French Schneider |
| Working temperature | Indoor temperature is ok There should be no vibration source nearby |

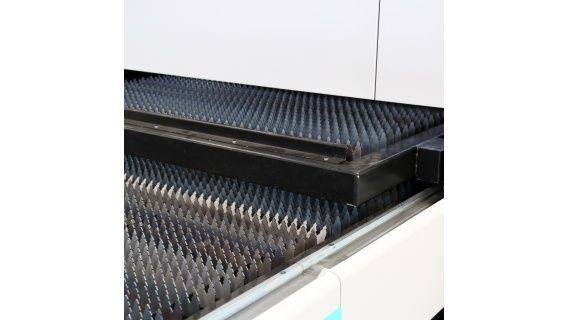

Machine body
3mm thickness blade
Serrate platform and trim strip are very suitable for cutting metal sheets.

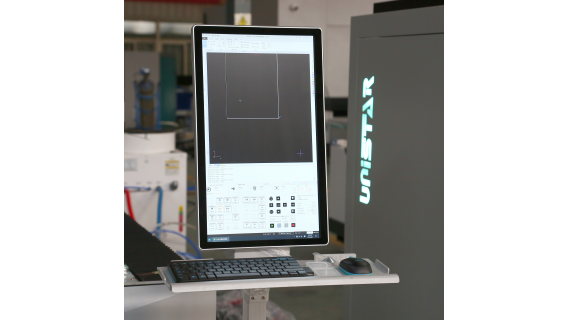

Control Screen
Computer display screen.more easy to operate machine
More Security/stability

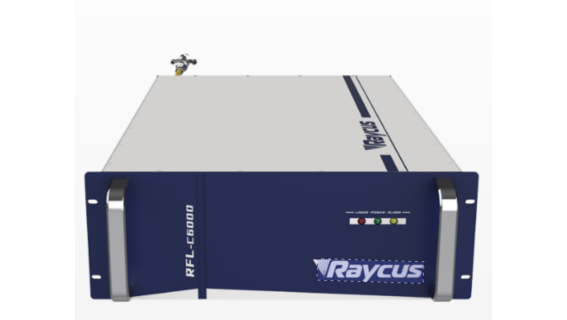

Laser source
Raycus brand laser generator
1.High -electro-Optic conversion efficiency
2.high reliability,long service life
3.Maintenance -free operation

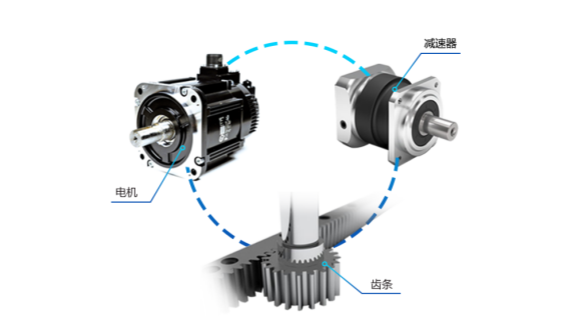

Motor and driver
Taiwan Delta servo motor and drivers
Our X Y axis structure increases machine speed and precision and more stable for machine working

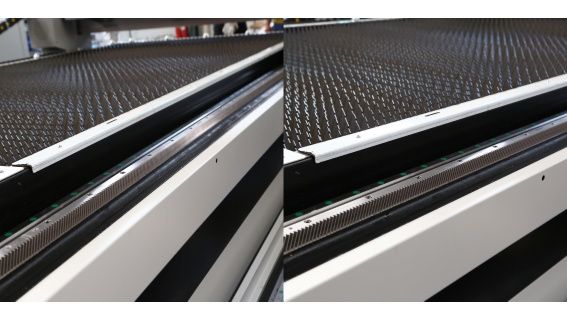

Rail guide
Taiwan Hiwin /PMI rail guide with high
precision ,more accuracy , reduce wear to keep longer use lifetime

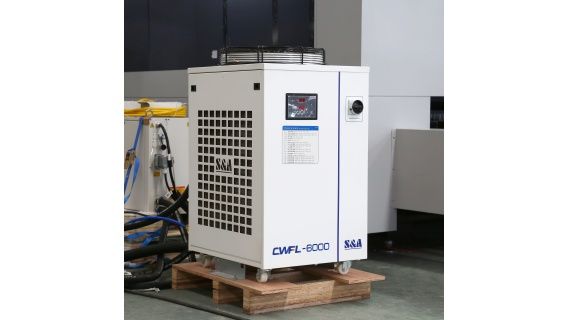

Water chiller
Water cooling systemS&A CW3000
Has best cooling effective

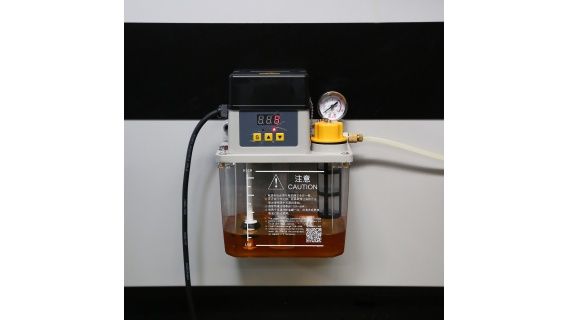

Oil injection system
Automatic oil injection system to lubricate rail guide and rack , keep long life time
Electricity Parts
France Schneider electrical part
Q1. How to choose suit cnc machine and get good price?
A1: Please tell the material you want to engrave or cut?
And also what size of material you cutting, how thickness of you are engraving and cutting?
Q2. Do you have the manual of machine?
A2: Yes, we have manual instruction for your guide to use machine,
We also can make operation video if you needed
Q3. If we have problem with machine working, how to deal with it? Do you have free training
A3: If you have any technical problem during using machine, you can call us or online tell us
We have engineers online 24 hours service.
Q4. How about payment and shipping?
A4: We can accept Alibaba tader assurance, or by T/T, or by 100% L/C,Western Union, paybal and so on
If you choose T/T Payment, 30% T/T deposit, after machine finish, you pay for 70% balance.
Then we ship machine. after machine shipping already, we will inform you to tell you vessel number for you to sea cargo tracking.
Q5: Does Laser Cutting need gas assisted cutting?
A5: YES, Cutting carbon steel Pipe need O2, stainless steel tube choose N2 or Air Option is air compressor, but it's better to choose gas. this cutting effective is better
1. Because we are the most specialized supplier, our products are of high quality and safety. We are looking forward to establishing a long-term and stable cooperative relationship with our customers. All our products are guaranteed by quality!
2. We have technical personnel responsible for customer service to assist you in the maintenance of the equipment, the manufacturing process, the use of the product and the technique.
3. Better prices. Price is not the most important factor when deciding whether to buy a reliable product. Cost effectiveness is the most important. Assist the customer to cut down the cost of production and increase the profit.
4.Stronger partners! Strong power to protect the customers' confidence! With your support, we will be able to grow even better, and we will improve your business.
