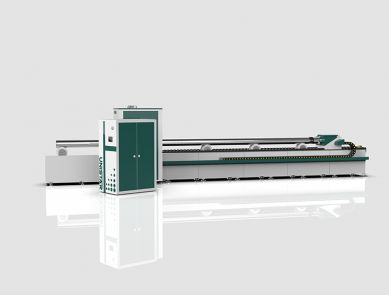

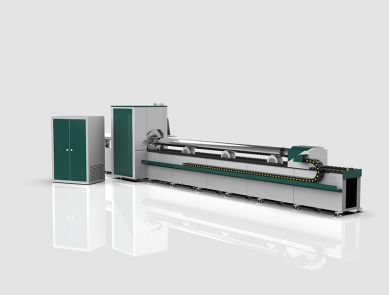

Laser pipe cutting machine

Inquire Now Chat Now

Product Details

Parameters

Request a Quote

- What is laser pipe cutting machine

Laser pipe cutting machine is the use of high-energy laser beam acting on the surface of the material, through the heat generated by high temperature to melt the workpiece, after cooling to achieve the purpose of cutting, laser pipe cutting machine is mainly composed of laser head, machine tool, operating system, chiller and air compressor and other components. Before purchasing a laser pipe cutting machine, we must first clarify the size and other data of the pipe we process, so as to select the corresponding laser pipe cutting machine, and then match the corresponding laser pipe cutting machine through our own process requirements.

Advantages of laser pipe cutting machine

-Primary advantages

1. Flexible

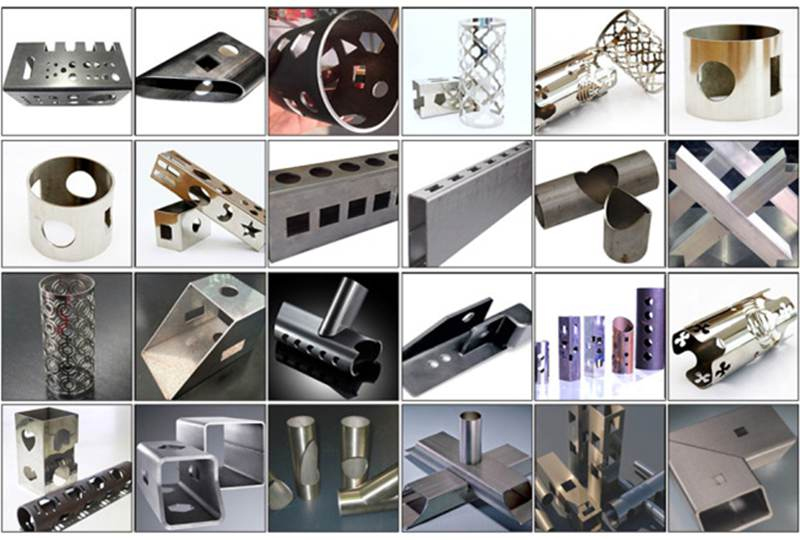

Laser pipe cutting machine can flexibly process pipes of various shapes, as long as the graphics are designed on the programming software and the pipes are clamped, you can automatically cut.

2. High quality

The laser pipe cutting machine can laser cut all the prepared procedures on various sample pipe roads, such as opening, inclination Angle, arc and other characteristics

3. High efficiency

Laser pipe cutting machine can cut more than 10 meters per minute straight line length, the processing speed is much higher than the traditional processing method, fiber laser pipe cutting machine has efficient cutting ability, can significantly improve production efficiency and can significantly save production costs.

4. Very high stability

Using the world's top imported fiber laser, stable performance, the service life of key components can reach 100,000 hours

Functions & Features of laser pipe cutting machine

Laser pipe cutting machine is a high-tech product integrating CNC technology, laser cutting and precision machinery. With professional, high speed, high precision, high efficiency, high cost performance and other characteristics, is the first choice of non-contact metal pipe processing industry equipment.

Compared with the traditional cutting process, the cutting section of the pipe processed by the laser cutting machine is more smooth, and the cut pipe can be directly used for welding, reducing the processing process. Compared with traditional pipe processing, which requires cutting, punching and bending, traditional pipe processing consumes a lot of molds. Laser cutting pipe not only fewer processes, high efficiency, cut out the quality of the workpiece will be better.

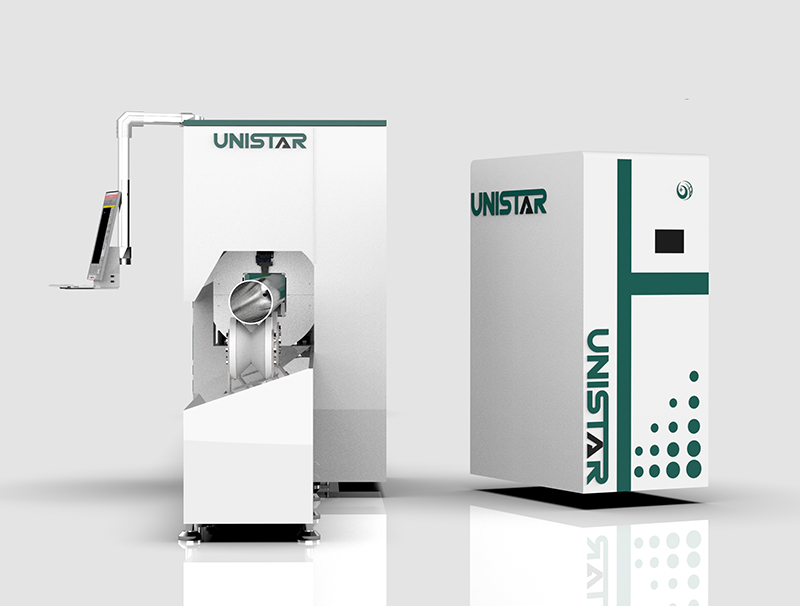

Components of Tube Fiber Laser Cutting Machine

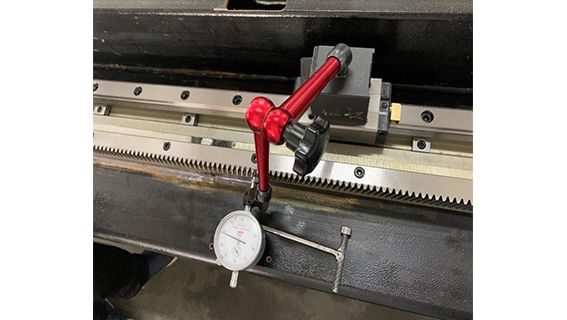

Linear Guideway

Linear guide rail only plays a guiding role, the purpose is to guide the gantry along the linear movement, the more straight cut out the higher the accuracy, the wider the guide rail to bear the heavier the load. High-speed heavy gantry equipment are using a wide guide rail, its straightness is determined by the precision of the datum surface processed by the machine tool, in order to prevent the guide rail from bending for a long time, the side of the guide rail has a guide rail press block.

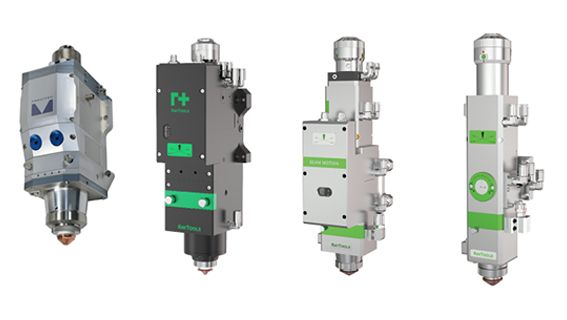

Cutting Head

The whole cutting head is composed of collimator, focusing mirror, protection mirror, collimator is beam expanding mirror, magnifies the light into parallel light, focusing mirror on the mirror, so that the light becomes finer, more concentrated energy, protection mirror in order to prevent dust pollution focusing mirror, the whole cutting head requires good sealing, can not have dust, otherwise it will burn the focusing mirror.

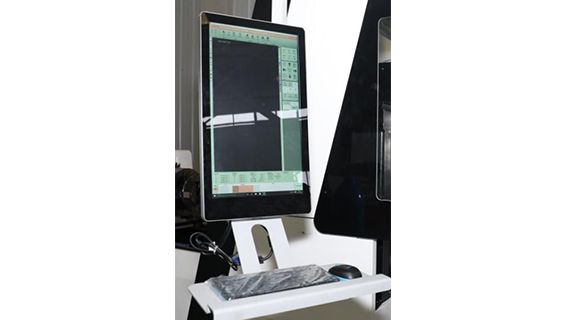

Control Panel

Laser cutting machine special control panel is mainly control laser cutting equipment operating software. It is the interface between the operator and the fiber metal cutting machine. This panel allows the operator to adjust the settings of the machine, including the power of the laser, the speed of the cutting process, and the thickness of the metal being cut.

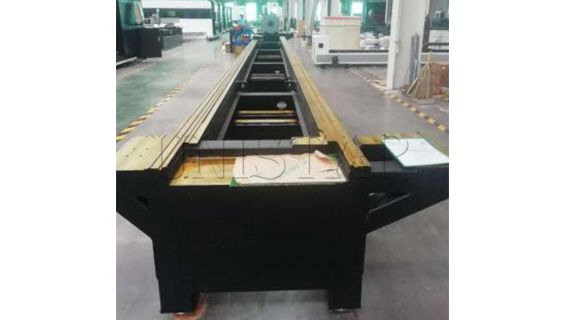

Machine Bed

The bed of the machine is where the metal is placed for cutting. The bed is typically made of a durable material such as steel or aluminum and is designed to hold the metal securely in place during the cutting process. Machine tool in the welding process, the metal will produce pressure, in order to reduce the pressure, it is necessary to burn in a high temperature furnace, make the metal soft, deformation, eliminate pressure, annealed machine tool in processing or subsequent use will reduce the amount of deformation, improve the service life.

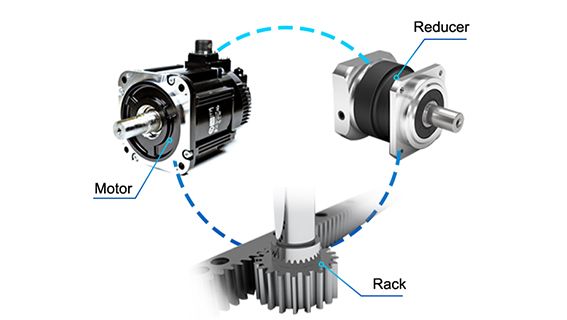

Servo Motor

The servo motor is an essential part of the optical fiber, and it is also the most core configuration of the machine tool. The motor performance determines the precision, speed and stability of the cutting. Generally, the speed of the conventional servo motor is 2000-3000 RPM, which is the best in Germany and then in Japan, and the power of the servo determines the speed of the machine and the load driven

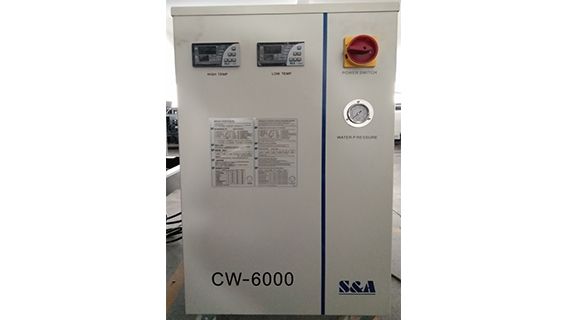

Water Cooling System

Because the water temperature required by the laser and the cutting head are not the same, most of the double temperature double control chiller, high temperature output for the cutting head use, low temperature supply laser, summer laser is easy to condensation, so it is necessary to adjust the water temperature of the chiller, if necessary to install air conditioning to adjust the temperature difference between the laser and the inside and outside, to prevent condensation, winter is easy to freeze, the coolant should be replaced with antifreeze, to prevent freezing laser.

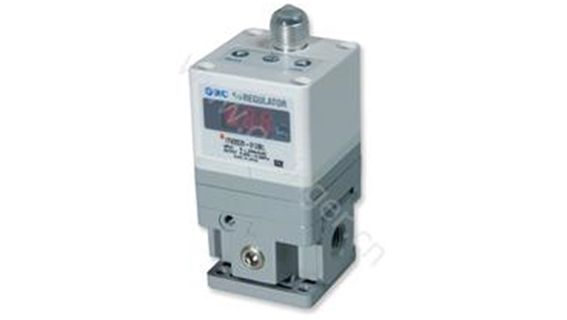

Pneumatic Element

After the fiber laser melts the metal, it is necessary to blow out a gap by the gas to control the gas, and the pneumatic components are used, and the control is one-way solenoid valve and proportional valve. The pressure required for oxygen cutting is generally lower than 1MP, and the proportional valve is generally accurately controlled. The pressure is set on the software, and the proportional valve is automatically controlled for easy use. The pressure of nitrogen cutting stainless steel is relatively large, and the proportional valve cannot work. To use high and low pressure valves, the maximum pressure can reach 3MP, cut out stainless steel cross-section smooth, no burrs.

WHY CHOOSE US

Professional After -Sales Service

100+ after sales service people provide 24 -hours fast online technical support in 12 language

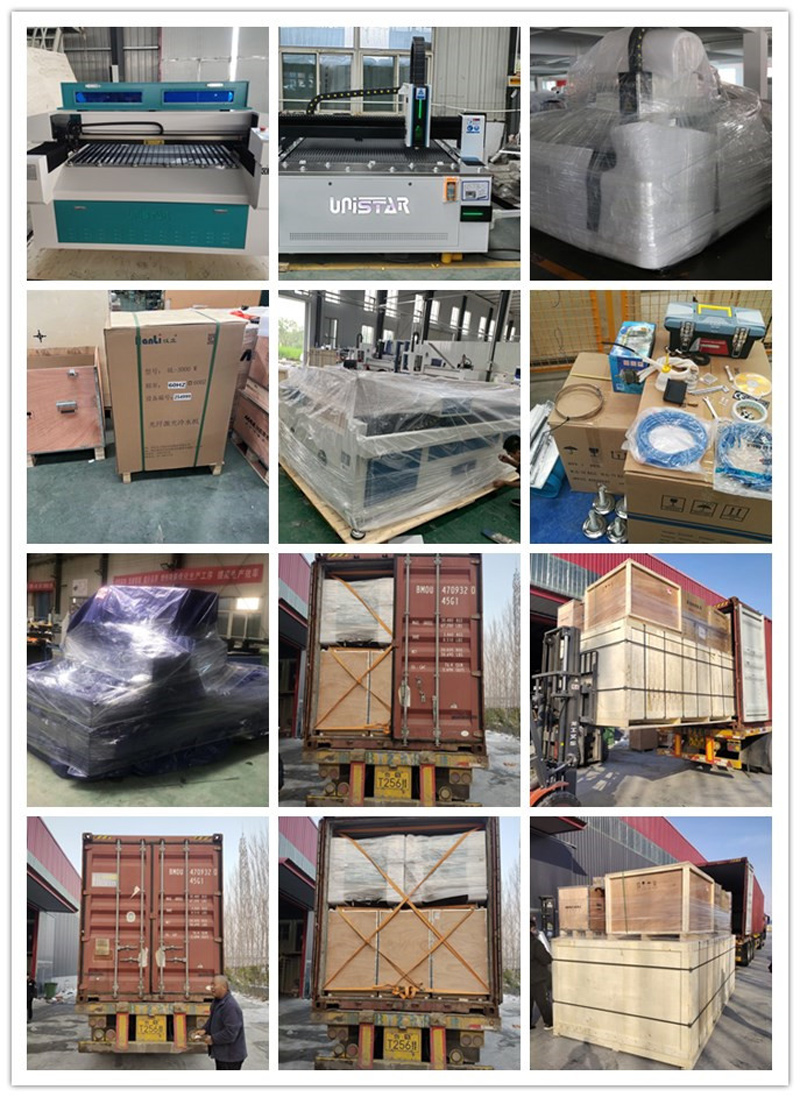

Global sales network layout

Sold to more than 150 countries and regions around the world, and established agency service points in more than 30 countries and regions around the world.

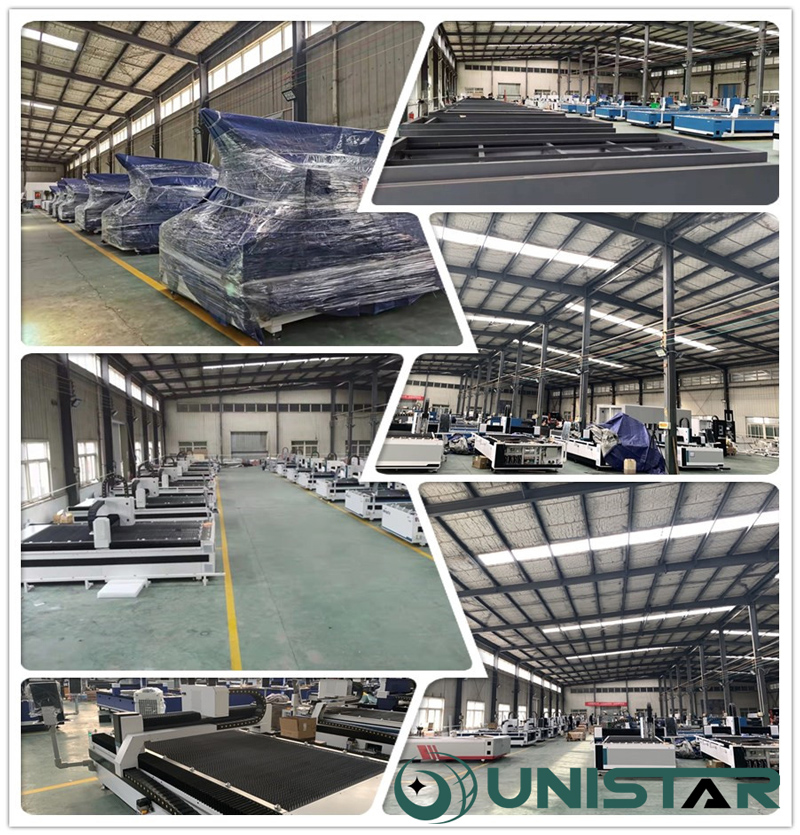

Intelligent production base
