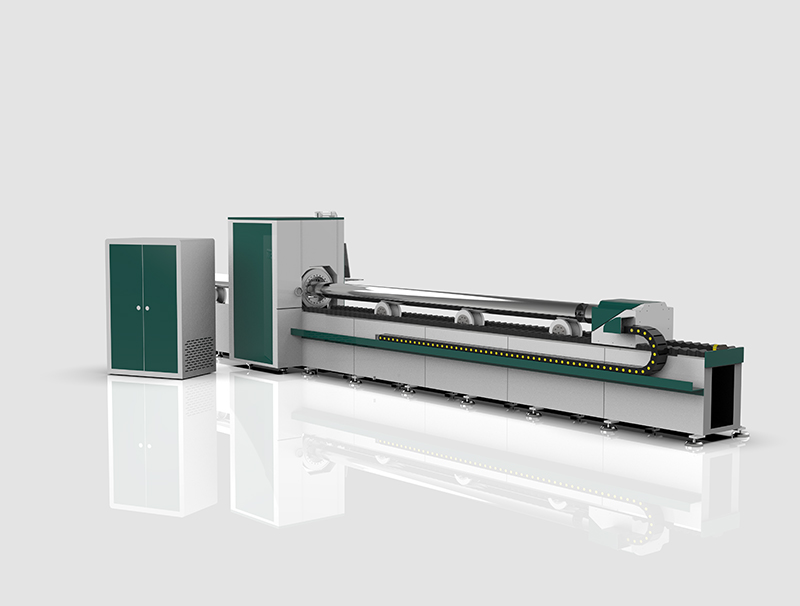

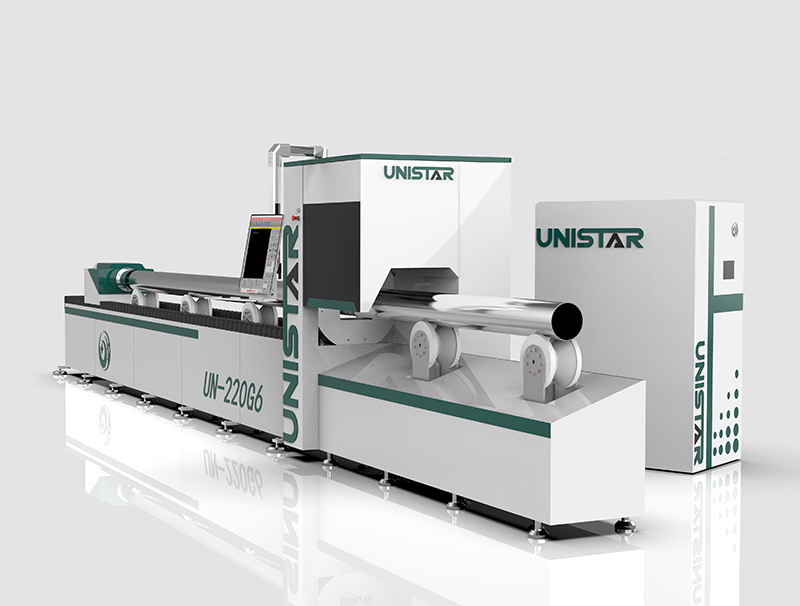

Stainless steel pipe cutting machine (UN220G6)

Pipe laser cutting machine using advanced laser technology, can accurately cut a variety of shapes of pipe, including with round pipe, square pipe, oval pipe and so on.

Inquire Now Chat Now

Product Details

Parameters

Samples

Request a Quote

-Advantage

1. Pipe laser cutting machine using advanced laser technology, can accurately cut a variety of shapes of pipe, including with round pipe, square pipe, oval pipe and so on.

2. Capable of fine cutting, faster working speed, higher efficiency, greatly improving production efficiency.

3. It can realize automatic production, flexibly adjust the size according to different needs, and adapt to the processing needs of various shapes of pipes.

-Application

Pipe cutting machine can be used in a variety of industries, in the field of construction, it is used to cut various shapes of steel pipes, for the manufacture of building structures; In the field of automobile manufacturing, it is used for cutting parts such as body and forming; In the aerospace field, for cutting aircraft structural parts; In the field of home appliances, it is used to cut pipes for air conditioners, refrigerators and other products.

Key Features

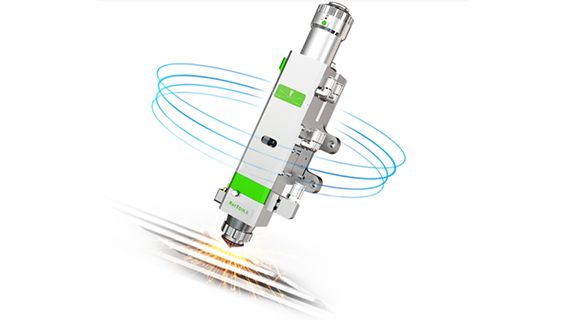

Cutting head

During the cutting process, the light beam is focused on the workpiece through the cutting head, and when the cutting head is moved, the light beam is cut along the predetermined path.

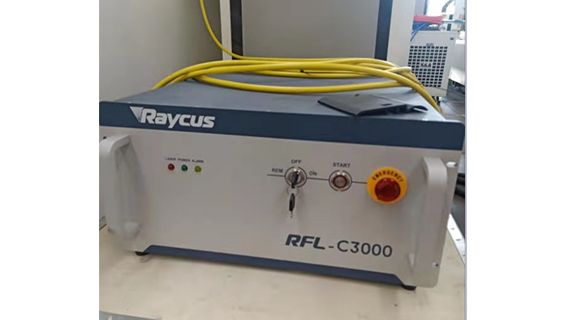

Laser source

- Long life, maintenance-free operation

- High electro-optic conversion efficiency

- Good beam quality, high energy density

- Strong reliability

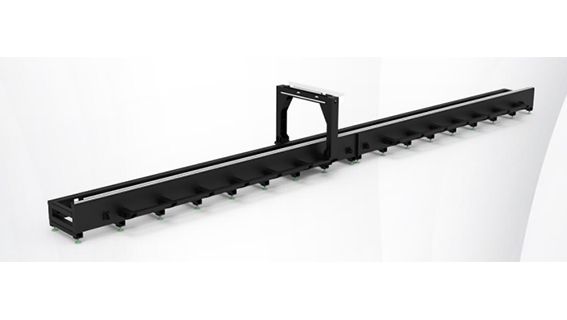

Machine bed

Square tube welding, can bear large weight processing workpiece, with high bearing capacity, high stability and other advantages.

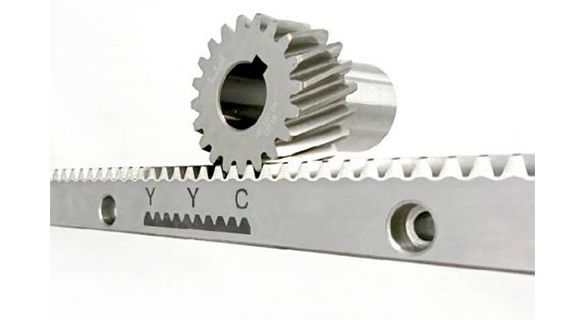

Taiwan YYC Rack

Can be fast, accurate positioning, suitable for heavy load, high precision, high speed, long process machining.

Cutting Area	220mm×6000mm
x-axis area	350mm
y-axis area	6400mm
z-axis area	350mm
Laser power	Max/Raycus
Travelling speed	80m/min
Position accuracy/repeatability accuracy	0.02mm/m / 0.02mm
maximum acceleration	1G
working voltage	380V，3 PHASE/60HZ
Brands of motors and drives	Japan Fuji servo motor and drivers
Power of motor and drive	2 sets 1800W + 1 set 1300W
launching system	Double rack and pinion types
control system	FUSCUT 3000S Controller
Cutting Head	Raytools BM110 Autofocus cutting head
Reducer	Japan Shimpo
Rail Guide	Taiwan Hiwin Rail Guide
Rack	Taiwan YYC
electrical element	Schneider of France
Cooling Mode	Water cooling
Computer	Industry computer
self-lubrication system	Yes
quick-wear part	Five protective glasses, one lens, 10 nozzles-

FAQ

Q1: How many years of warranty period?

A1: The whole machine have 2 years quality guaranty, any parts broken during the warranty time, we will take place of it free (Under no human damage ).

Q2: Do you have CE document and other documents for customs clearance

A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q3: Why does the cutting edge appear burr, deformation, melting, cutting surface is not smooth and so on?

A3: Adjust focal length, check nozzles and lenses, and optimize cutting parameters

Packing amd shipping

Stainless steel pipe cutting machine (UN220G6)

1. Excellent load bearing, compressive performance, more durable.

2. More lightweight, beautiful, can be sprayed printing.

3. Suitable for long-term transportation and storage, can be reused many times.

4. Can be disassembled at will, effectively save storage space, reduce transportation costs.

5. Meet the transportation packaging requirements of heavy, large, transport sensitive and high value products.
