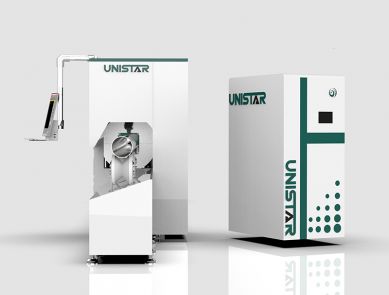

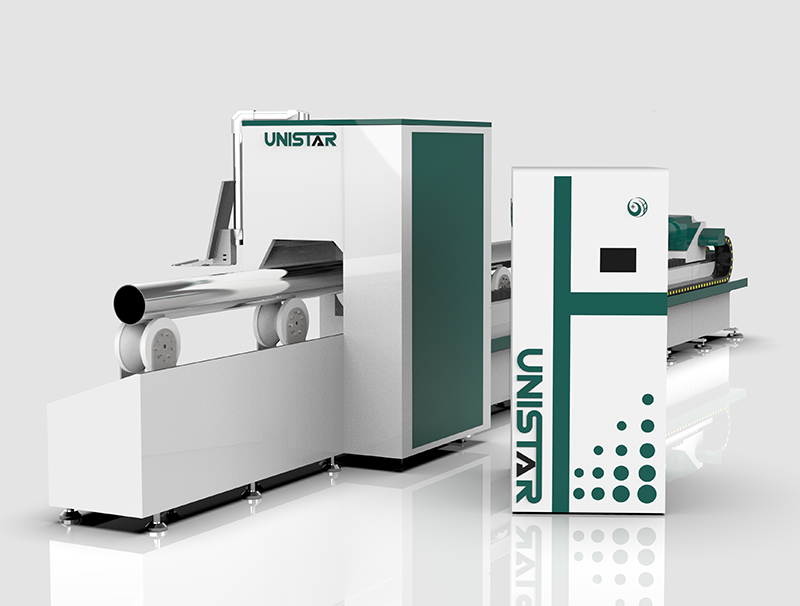

Tube fiber laser cutting machine

Tube fiber laser cutting machine is a kind of automatic processing equipment using laser cutting technology, mainly for metal round pipe square pipe rectangular pipe channel steel processing, by the laser, cutting head, machine tool bed, pipe fixture and other main components. When cutting, the pipe laser cutting machine maintains a non-contact processing mode, does not consume the tool, and can well control the cutting tail within a small range to improve the material utilization rate.

Inquire Now Chat Now

Product Details

Parameters

Request a Quote

- Definition

The tube fiber laser cutter works by focusing a high-energy beam on the material that needs to be cut. This focused beam rapidly heats the material until it melts or evaporates, allowing for complex designs with minimal material loss. This laser also has high accuracy in creating multiple cuts within tight tolerances - something that traditional methods such as mechanical saws or flashlights cannot achieve.

Advantages of tube fiber laser cutting machine

-Primary advantages

1. Flexible

Fiber laser pipe cutting machine can cut any pattern on the metal pipe, and the laser can be cut in any direction Angle, providing strong and favorable technical support for more and more personalized processing, and the first cutting does not need to open the mold, reducing the cost of traditional equipment.

2. Precision

Fiber laser pipe cutting machine is specially designed for pipe processing customers, filling the gap in China's pipe processing technology. It is easy to operate, highly automated, high-speed and high-precision cutting, adapt to the needs of large-scale industrial production and many other advanced nature, has become the first choice for equipment pipe processing industry, has been successfully applied to fitness equipment, agricultural machinery, residential pipes, construction machinery, vehicle manufacturing, special vehicles, electrical manufacturing and other metal pipe processing industry.

Powerful cutting function, can cut square pipe, round pipe, rectangular pipe and a variety of special-shaped pipe. Pinion and rack transmission structure, pneumatic clamping chuck, rotary cutting method, with high centering accuracy and machining accuracy. The machine tool is finished after annealing to eliminate the internal stress, which better solves the stress caused by welding and processing, thus improving the rigidity and stability of the equipment. Better stability and longer service life. Excellent processing system, friendly interface, easy to operate, and can be real-time feedback on the processing state, to ensure the orderly processing.

3. High efficiency

Tube fiber laser cutting machine can cut more than 10 meters per minute straight line length, the processing speed is much higher than the traditional processing method, fiber laser pipe cutting machine has efficient cutting ability, can significantly improve production efficiency.

4. Automatic feeding, batch processing

The standard pipe length is 6 meters, the traditional processing method requires a very heavy clamping, and the fiber laser pipe cutting machine can be very simple to complete several meters of pipe clamping positioning, more automatic feeding, fully able to batch processing of the pipe.

6. Speed

Tube fiber laser cutting machines can operate at high speeds, making them ideal for high-volume productions. This speed translates to reduced lead times and faster turnaround times for manufacturers, allowing them to meet their customers' demands quickly. Unlike traditional cutting methods that required a lot of time and labor to complete, laser cutting machines can complete the same tasks in a fraction of the time. This increased speed allows manufacturers to be more competitive in the marketplace.

Functions & Features of sheet laser tube cutting machine

Tube fiber laser cutting machine is a high-tech product integrating CNC technology, laser cutting and precision machinery. With professional, high speed, high precision, high efficiency, high cost performance and other characteristics, is the first choice of non-contact metal pipe processing industry equipment.

Compared with the traditional cutting process, the cutting section of the pipe processed by the laser cutting machine is more smooth, and the cut pipe can be directly used for welding, reducing the processing process. Compared with traditional pipe processing, which requires cutting, punching and bending, traditional pipe processing consumes a lot of molds. Laser cutting pipe not only fewer processes, high efficiency, cut out the quality of the workpiece will be better.

Components of Tube Fiber Laser Cutting Machine

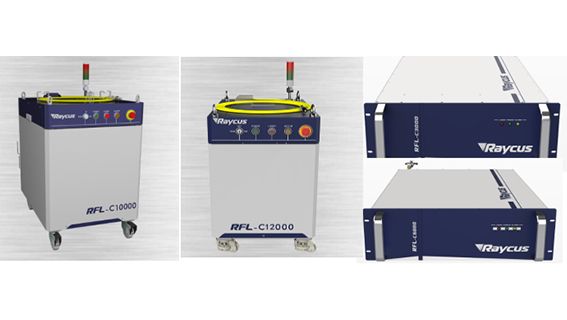

Laser Source

This is the heart of the machine, where the laser beam is generated. The laser source is typically a fiber optic cable that uses a high-powered laser to create a concentrated and intense beam of light.

Cutting Head

It usually consists of a nozzle and lens assembly mounted on a moving arm or gantry that directs the laser beam to the exact location where the cutting is to be made. The laser cutting head also contains a series of mirrors that help guide and focus the laser beam. Depending on the material being cut and the specific requirements of the job, different types of laser cutting heads can be used.

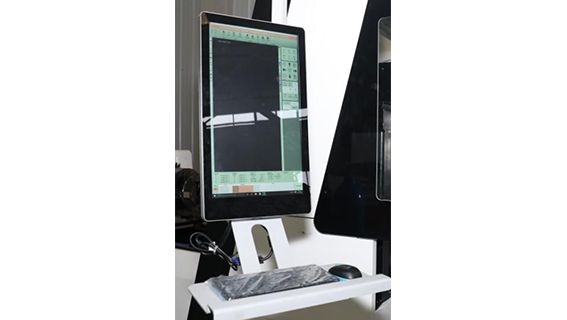

Control Panel

Laser cutting machine special control panel is mainly control laser cutting equipment operating software. It is the interface between the operator and the fiber metal cutting machine. This panel allows the operator to adjust the settings of the machine, including the power of the laser, the speed of the cutting process, and the thickness of the metal being cut.

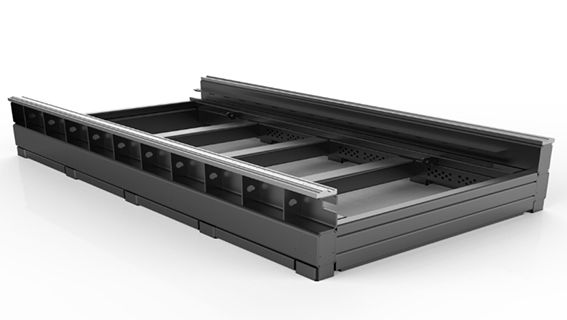

Machine Bed

The bed of the machine is where the metal is placed for cutting. The bed is typically made of a durable material such as steel or aluminum and is designed to hold the metal securely in place during the cutting process.

Servo Motor

The main function of the servo motor is to control the speed evenly and steadily with the change of voltage, the servo motor mainly relies on pulse to position, when receiving a pulse current, it will rotate the corresponding Angle of a pulse accordingly, so as to achieve unique, because the servo motor itself also has the function of sending pulse current, each time the rotation of an Angle will produce the corresponding number of pulses. It echoes the pulse received by the servo motor, so the system knows how many pulses are sent to the servo motor and how many pulses are recovered at the same time, so that the rotation of the motor can be accurately controlled.

Water Cooling System

General fiber lasers have clear temperature requirements, the need to configure the use of fiber laser chiller, cold water function effectively to quickly cool the laser, stabilize the light rate, reduce the failure rate of processed products, more to extend the life of the laser, reduce user costs.

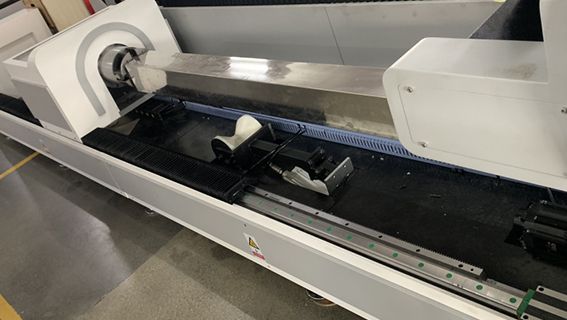

Professional Pipe Cutting System

The pipe cutting is professional design for cut square tube , round tube ,all kinds of size metal tube . It has a dedicated high-end pipe cutting numerical control system that gives perfect operation, highly reliable, has standard cutting function and gets the exact pattern.
