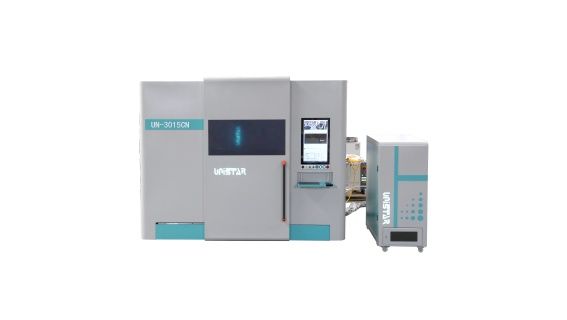

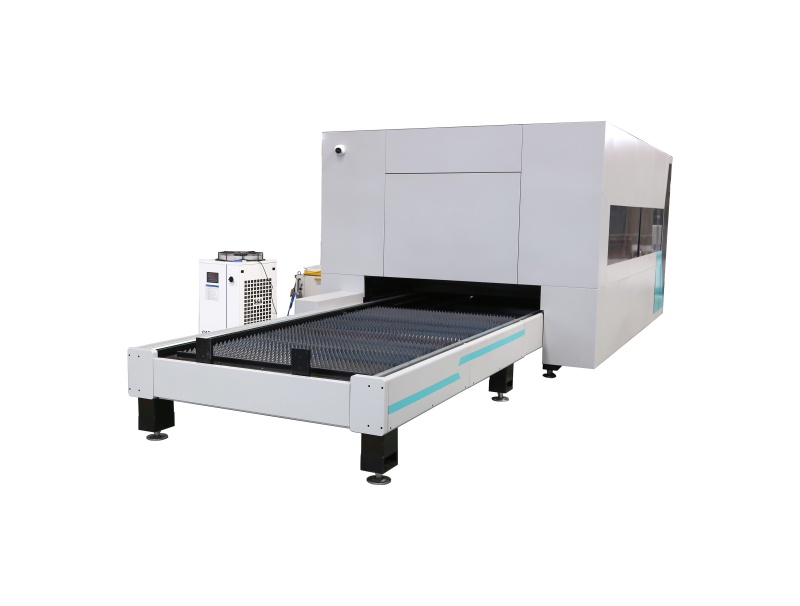

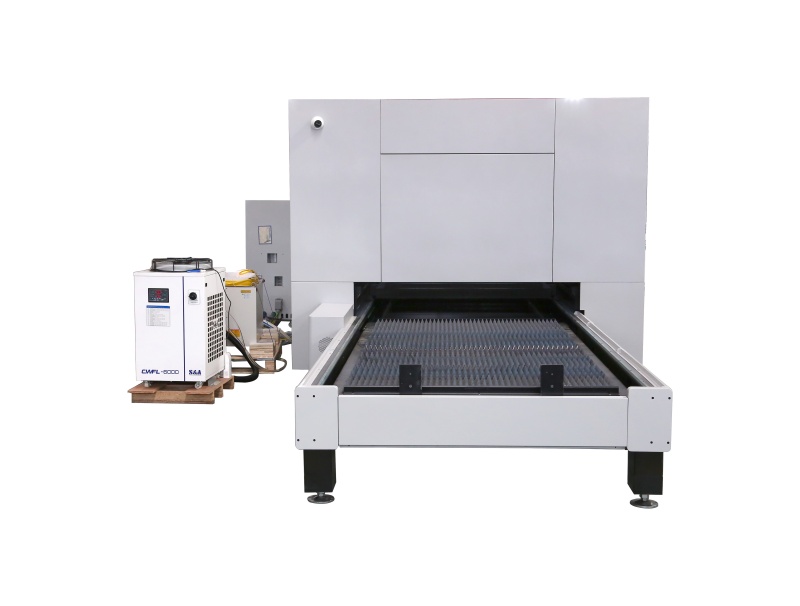

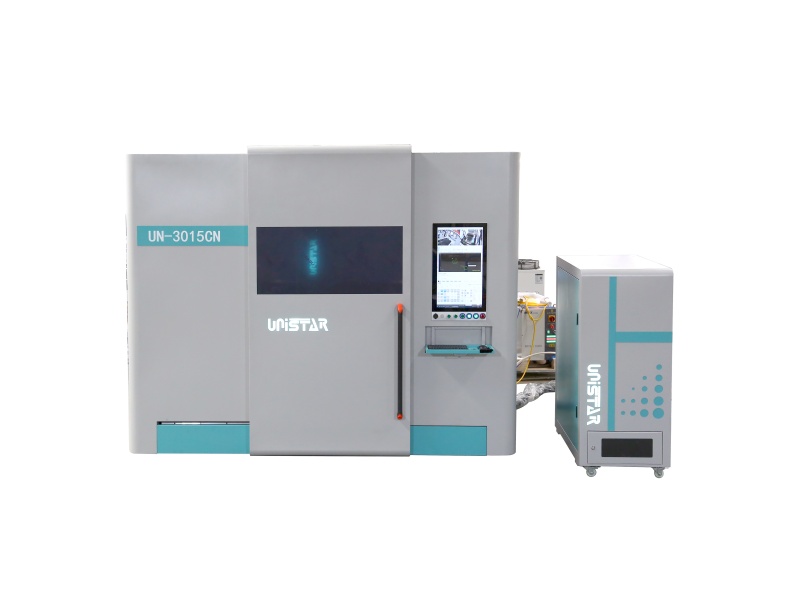

12000W/20000W full cover fiber laser cutting machine with exchange table

With the needs of social development, fiber laser cutting machine is more and more widely used in all walks of life. The edge of optical fiber cutting is smooth and neat, which is suitable for high-precision processing. Fiber laser machine has low gas consumption and high photoelectric conversion rate. It is an energy-saving and environmental protection machine.

Inquire Now Chat Now

Features

Video

Parameters

Samples

FAQ

Request a Quote

Features of 12000W/20000W Full Cover Fiber Laser Cutting Machine with Exchange Table

High Power for Precision Cutting
The 12000W/20000W fiber laser cutting machine provides high-power cutting capabilities, ideal for heavy-duty industrial applications requiring fast and precise cutting of thick metal materials such as steel, aluminum, and stainless steel.
Full Cover Design for Safety
The full cover design ensures optimal safety during operation, reducing exposure to laser radiation and preventing debris from spreading, making it a safe choice for operators.
Exchange Table for Increased Efficiency
The machine features an automatic exchange table, allowing seamless switching between cutting processes, reducing downtime and significantly increasing production efficiency.
Low Gas Consumption
Our fiber laser cutting machine uses minimal gas consumption, offering a cost-effective solution while maintaining high cutting quality. It supports cutting with air, oxygen, and nitrogen, depending on the material.
High Photoelectric Conversion Rate
The fiber laser cutting machine boasts a high photoelectric conversion rate, improving energy efficiency and reducing energy costs, making it an environmentally friendly solution.
Smooth and Neat Cutting Edges
The machine delivers clean and precise cutting edges, minimizing the need for post-processing and ensuring a high-quality finish that meets the demands of high-precision industries.
User-Friendly Interface and Control
Equipped with a simple and intuitive control system, the machine is easy to operate, even for those with minimal experience in laser cutting, ensuring quick training and minimal errors.
Stable and Durable Performance
Designed with durable components, this fiber laser cutting machine is built to withstand heavy use in demanding industrial environments, ensuring reliable performance and longevity.
Wide Application Range
Ideal for industries such as automotive, aerospace, metal fabrication, and manufacturing, this machine can be used for cutting various materials, including carbon steel, stainless steel, brass, and copper.
Low Maintenance Requirements
The fiber laser cutting machine is engineered for long-lasting performance with minimal maintenance requirements, reducing operational costs and downtime.

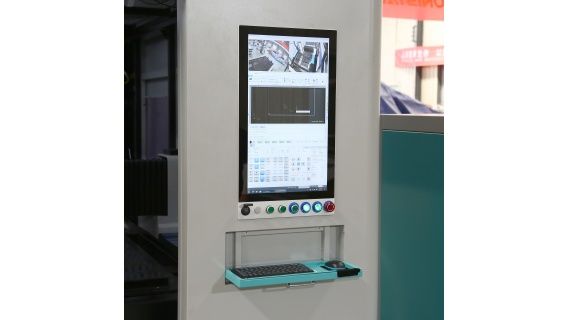

CNCN system

The CNC system interface enables precise control of the equipment's movement and the entire cutting process, utilizing the industry-leading CYPCUT brand. It supports multiple file formats (DXF, PLT), features intelligent layout to save material costs, real-time monitoring of cutting status to ensure safety, and a user-friendly interface that is easy to learn and use.

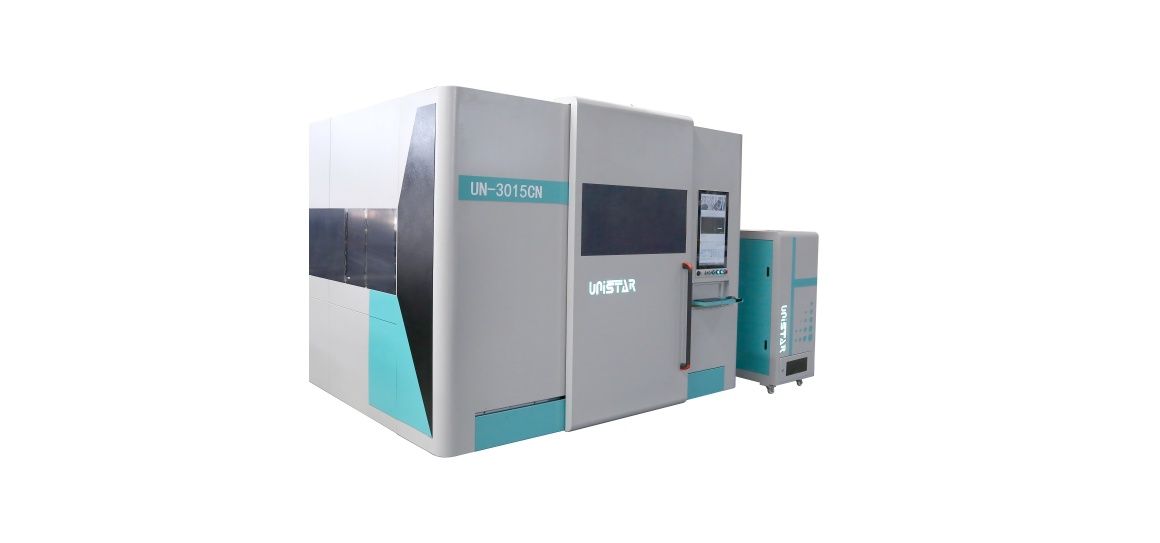

Full enclosure

Generally, it needs to be used with an exchange table to completely enclose the cutting area, effectively isolating the strong light, sparks, and fumes generated during the cutting process. This protects the safety and health of operators, improves the working environment, and meets environmental protection requirements.

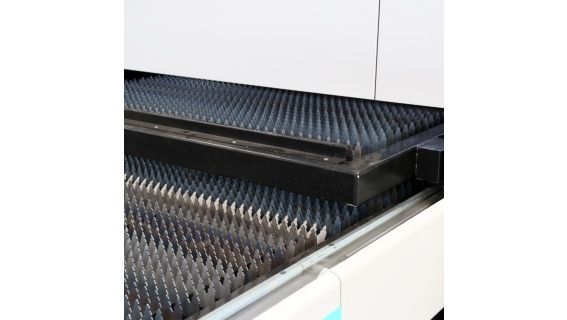

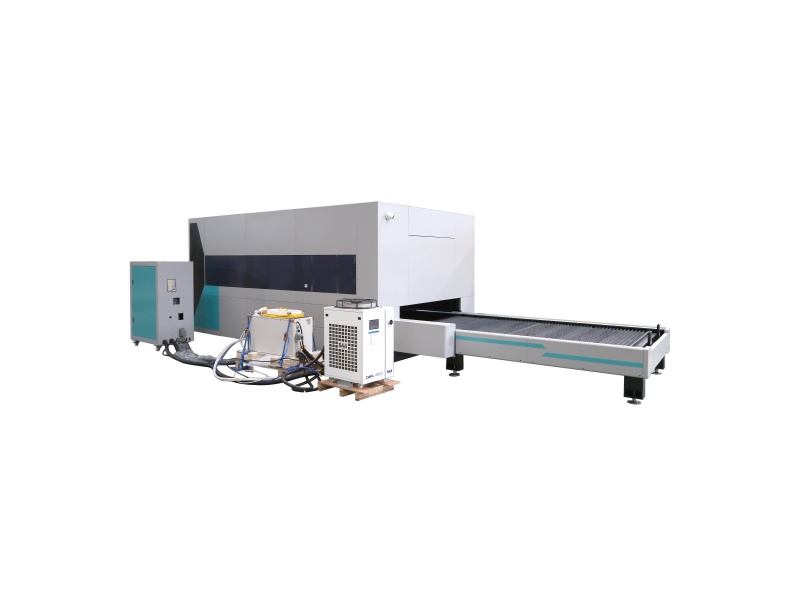

Exchange table

It enables automated workpiece gripping, loading, positioning, and unloading, significantly improving work efficiency. It can reduce manual labor intensity, decrease labor costs, and achieve continuous automated production.

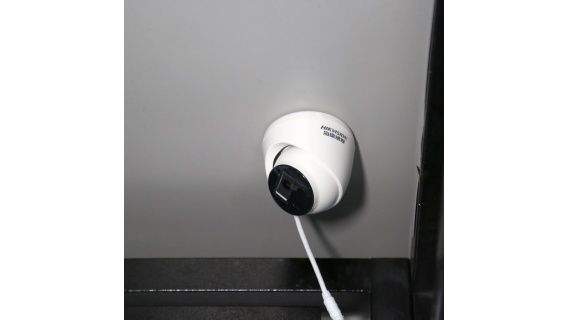

Surveillance cameras

The monitoring camera is located in a fully enclosed enclosure, enabling it to monitor the working status of the internal cutting table in real time and ensure the safe and stable operation of the equipment.

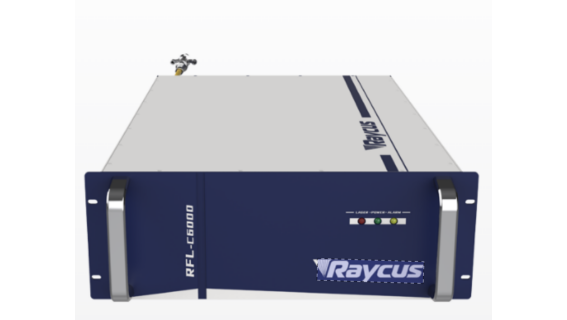

Laser source

Fiber lasers offer higher photoelectric conversion efficiency, lower power consumption, and higher beam quality compared to traditional lasers. They are compact, readily available, and their flexible laser output allows for easy integration with system equipment. They boast excellent beam quality, continuously adjustable power, and fast switching response. They also offer high power stability and maintenance-free operation.

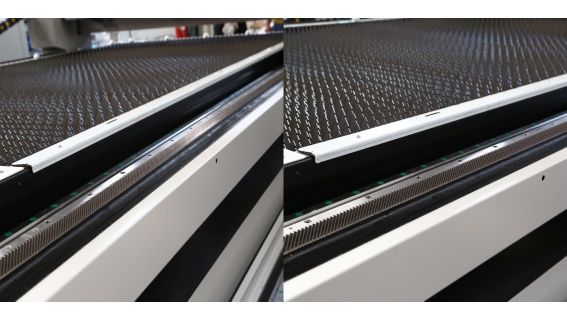

Transmission

Employing Taiwanese Hiwin and YYC equipment, the gantry moves on linear guides, requiring precise positioning. The rack is used for linear positioning. Higher rack precision results in larger cut dimensions, making it a core component. Helical gears, with their larger contact area and greater force, are superior to straight gears. Strict requirements are placed on the reference surface, and high machine tool machining accuracy is also required.

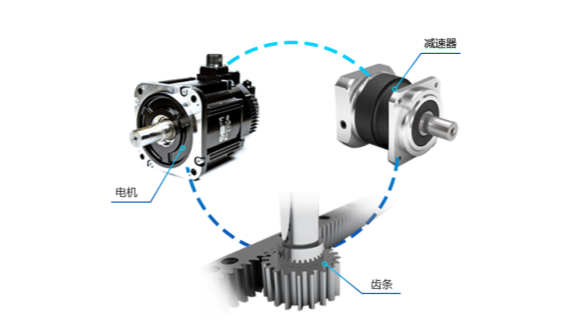

Motor and driver

Servo motors are an essential component in fiber optic systems and a core part of machine tools. The motor's performance determines the cutting precision, speed, and stability. Typical servo motors operate at speeds of 2000-3000 RPM, with German motors considered the best, followed by Japanese ones. The servo's power determines the machine's speed and the load it can handle.

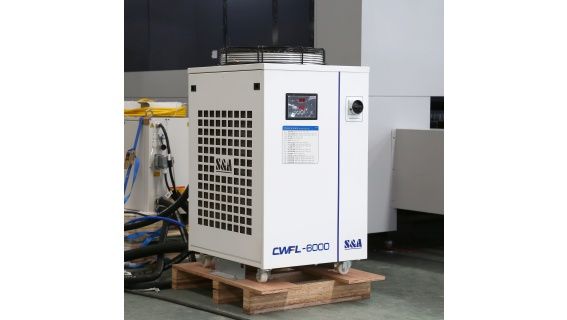

Water chiller

Because the laser requires different water temperatures than the cutting head, most systems use dual-temperature, dual-control chillers. The high-temperature output supplies the cutting head, while the low-temperature output supplies the laser. In summer, condensation easily forms on the laser, so the chiller temperature needs to be increased. If necessary, an air conditioner should be installed to regulate the temperature difference between the laser's interior and exterior to prevent condensation. In winter, freezing is likely, so the coolant should be replaced with antifreeze to prevent the laser from cracking.

Why should you choose our 12000W/20000W Fiber Laser Cutting Machine over other models?

High Precision & Speed
Our fiber laser cutting machine offers high precision and faster cutting speeds, ensuring that your production process is more efficient and accurate.
Energy Efficiency
With a high photoelectric conversion rate, this machine consumes less energy compared to traditional machines, reducing operational costs and making it an environmentally friendly option.
Low Maintenance Costs
The machine is built with durable components and requires minimal maintenance, helping you save on repair and upkeep expenses over time.
Exchange Table for Increased Productivity
The automatic exchange table feature significantly reduces downtime during the cutting process, increasing your overall production efficiency.
Cleaner Cutting Edges
Our laser cutting technology ensures that the edges of your cuts are smooth and neat, reducing the need for secondary processing and improving the quality of your products.
Versatile Applications
This machine is suitable for a wide range of industries, including automotive, aerospace, metal fabrication, and manufacturing, allowing you to cut various metals such as steel, aluminum, and stainless steel.
Proven Reliability
With over 12 years of experience in manufacturing fiber laser cutting machines, we offer a product that is reliable and built to withstand heavy-duty industrial use.
Cost-Effective Investment
The combination of energy efficiency, low maintenance, and increased productivity makes this machine a cost-effective investment for your business, ensuring long-term savings.

Model	UN-3015A 12KW
Working area	3000*1500mm
Laser source media	Fiber laser source
Laser Power	12KW MAX
Laser head	BOCI BLT441
Machine body	Tubular/ plate welded beds for surburban handling
Control System	CYPCUT 6000E
Rack	Taiwan import YYC helical rack withhigh accuracy
Rail guide	Import Taiwan Hiwin Rail Guide
Water chiller	S&A Water chiller
Pneumatic accessories	Japan SMC
Motor and drivers	Delta/Fuji/Yaskawa servo motor and drivers
Reducer	Motovario/Japan shimpo
Electric accessories	Schneider
Z-axis ball screws	Taiwan(TBI)

Q1: What's your date of delivery?

A2: For standard machine, about 15 working days; For customized machine, about 20 working day.

Q2: Do you have CE document and other documents for customs clearance

A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q3 :How to install and run the machine?

A3: Our technician have adjusted the machine well before shipping., we will send detail training and operating video, user's manual along with the machine.

95% customers can learn by themselves.

Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine

A4: If machine technical problem, we have engineer online support service, through remote control, video show, to help solve problem, if parts broken ( not consumption parts, we will take place a new one as soon as possible.

Q5: I don't know which kind of Laser fiber laser cutting machine is suit for me

A5: Just tell us your working industry:

What kind of metal you need to cut and how thickness

What metal size you need to cut, then we will recommend you best suit fiber laser cutter

Look forward to hearing from you
