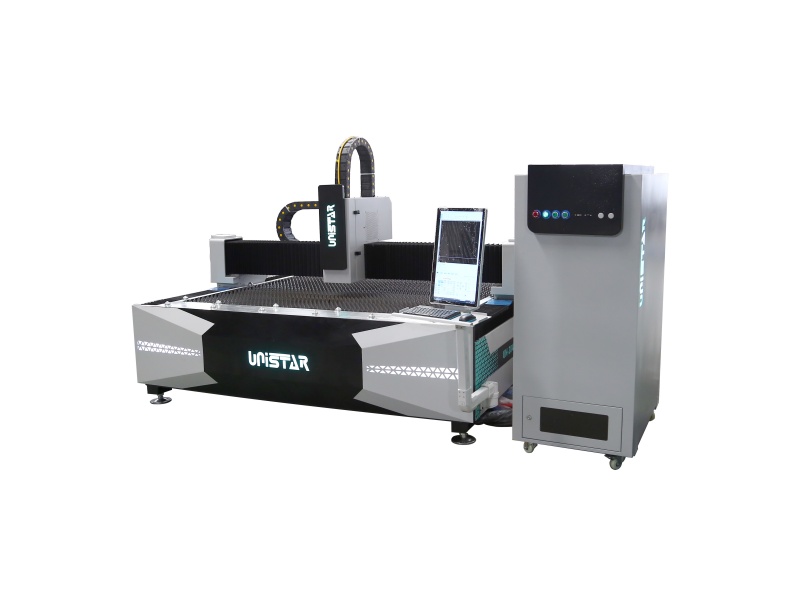

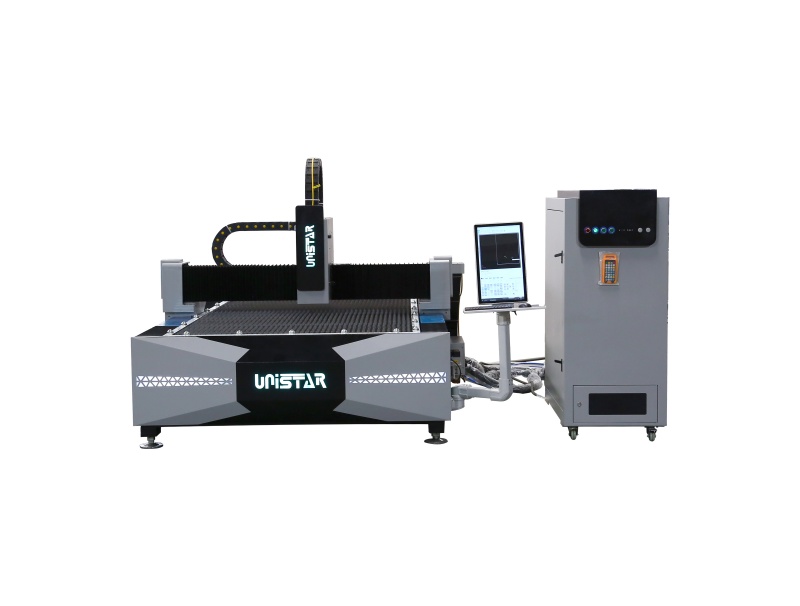

3000W Fiber Laser Cutting Machine for Metal

The Sheet Metal Laser Cutting Machine uses an advanced fiber laser to output a high-energy-density laser beam and focus it on the surface of the workpiece, so that the area of the workpiece that is illuminated by the ultra-fine focus spot is instantly melted and vaporized.Laser cutting machine fiber precision, fast speed, smooth cutting surface without burrs, cutting efficiency, high efficiency.

Inquire Now Chat Now

Why Choose It?

Video

Parameters

Samples

FAQ

Request a Quote

Why is cutting precision high?
Advanced fiber laser technology ensures clean cuts and minimal material deformation.

Why is it efficient for production?
High cutting speed and stable output greatly improve processing efficiency.

Why is it widely applicable?
Suitable for stainless steel, carbon steel, aluminum and other metal materials.

Motor And Driver

FUJI motor and drivers

MAX laser source

High photoelectric conversion rate Strong anti-high-reflection ability Stable laser cutting performance Long product service life

Raytool BM110

The whole cutting head is composed of collimator, focusing mirror, protection mirror, it can guide the laser beam to the metal, and the head includes a focusing mirror to make the light finer and the energy more concentrated.

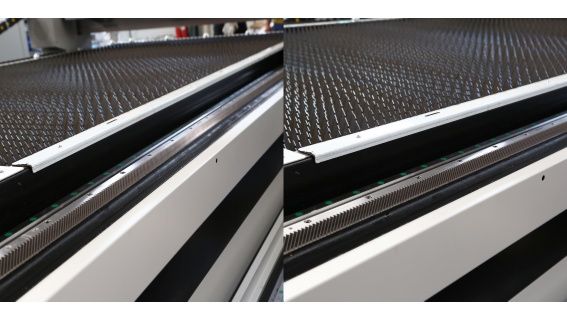

Rack: Taiwan YYC import helical rac

Enhances power transmission, minimizes friction, and improves machine stability and durability, resulting in more efficient power transmission and prolonged machine lifespan.

Remote controller

Can be used offline and remotely controlled

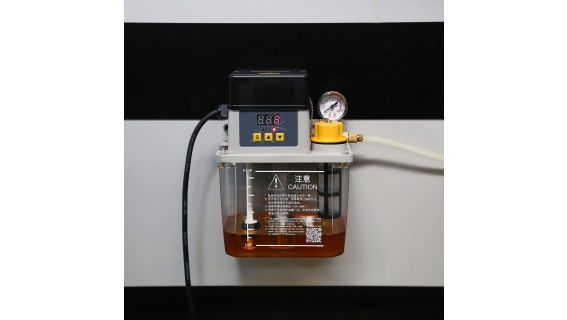

Oil injection system

Automatic oil injection system to lubricate rail guide and rack , keep long life time

Model	UN-3015A
Working Area	3000*1500mm
Laser Power	3000W
Laser Wavelength	1080 nm
Beam Quality	<0.373mrad
Positioning Accuracy	≤ ±0.03mm/m
Re-positioning Accuracy	≤±0.02mm/m
Maximum positioning acceleration	1.5G
Max moving Speed	40000mm-60000mm/min
Machine body	Machine structure precision machining welding bed, quench and tempering heat treatment
Laser head	Raytools BM110 laser head with autofocus
Motor and drivers	FUJI motor and drivers
Control System	Cypcut 2000E control system
Laser source	MAX laser source
Transmission	X,Y, import Taiwan YYC helical rack and , Z axis Taiwan TBI ball screw
Rail guide	Taiwan import original Hiwin rail guide, high accuracy, not easy rust, keep long lifetime.
Water chiller	S&A water chiller-3000 W
Exhaust fan	3 KW exhaust fan
Reducer	Japan Shimpo reducer
Pneumatic accessories	Japan SMC
Component	Electronic Component French Schneider
Supported Graphic Formats	NC PLT, DXF, BMP, AI, DST, DWG, etc
Working temperature	Indoor temperature is OK.
Years of warranty	2 years warranty

3000W Fiber Laser Cutting Machine for Metal

Q1 :How many years of warranty period？
A1：The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time , we will take place of it free (Under no human damage ).

Q2: Do you have CE document and other documents for customs clearance

A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q3 :How to install and run the machine?

A3: Our technician have installed the machine before shipping. For some small parts
installation, we will send detail training video, user's manual along with the machine.

95% customers can learn by themselves.

Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine

A4: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
