A desktop pulse laser cleaning machine is a compact laser cleaning system that uses pulsed laser technology to remove rust, paint, oxide layers and surface contaminants from metal parts with high precision and minimal thermal impact.
What Is It?
A desktop pulse laser cleaning machine is a compact laser system designed for precision surface cleaning, rust removal and paint stripping with minimal thermal impact.
Why Choose It?
Pulse laser cleaning offers precise control, low heat input and non-contact operation, making it ideal for delicate parts and high-precision applications.
Where Is It Used?
It is widely used in mold cleaning, electronics, automotive parts, maintenance and laboratory surface treatment.
Laser Cleaning System:ZBTK
Support multiple language switching.
It can widely replace traditional cleaning processes such as chemical, grinding, and sandblasting. It has the advantages of no grinding, non-contact, low thermal effect, no damage, and is suitable for objects of various materials. It is recognized as the most reliable and effective new generation of cleaning technology.

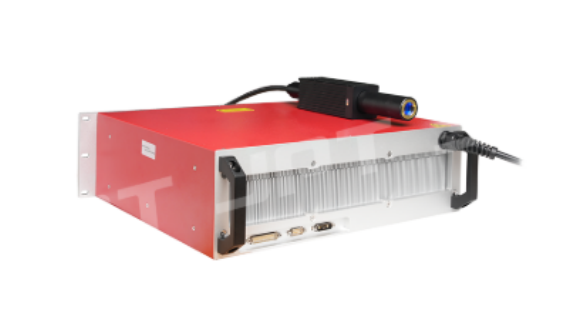

Laser source JPT 300W Pulse laser
JPT pulse laser has perfect laser characteristics and good pulse shape control capability, achieving constant high peak power output. The higher output power makes it particularly advantageous in applications such as laser cleaning.

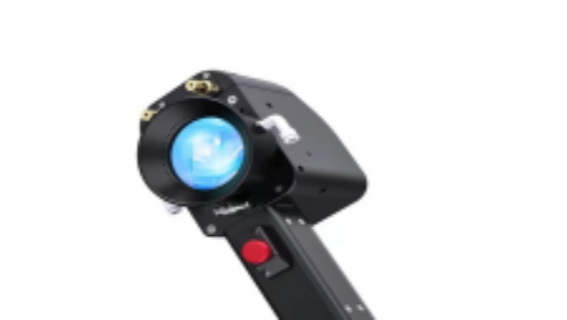

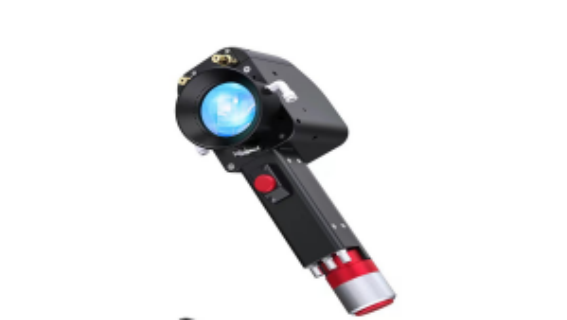

Hand-Held Pulse Laser Cleaning Head
The hand-held pulse laser cleaning head has a good hand feeling. It is light and convenient for long-term hand-held operation.
Various Scanning Graphics & No Consumables
Cleaning mode: straight line/rectangle/circle/ellipse/sine.
A variety of scanning graphics are set to ensure the cleaning effect under complex working conditions;
No consumables, super energy saving, green environmental protection and no pollution.

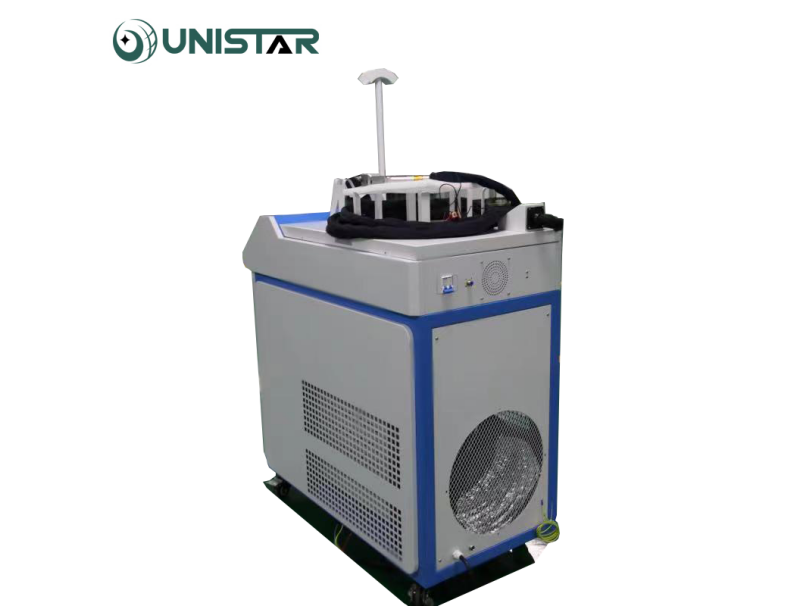

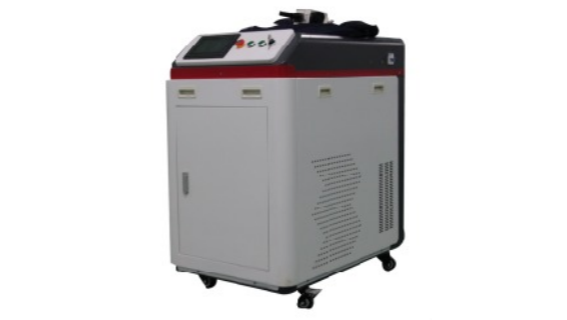

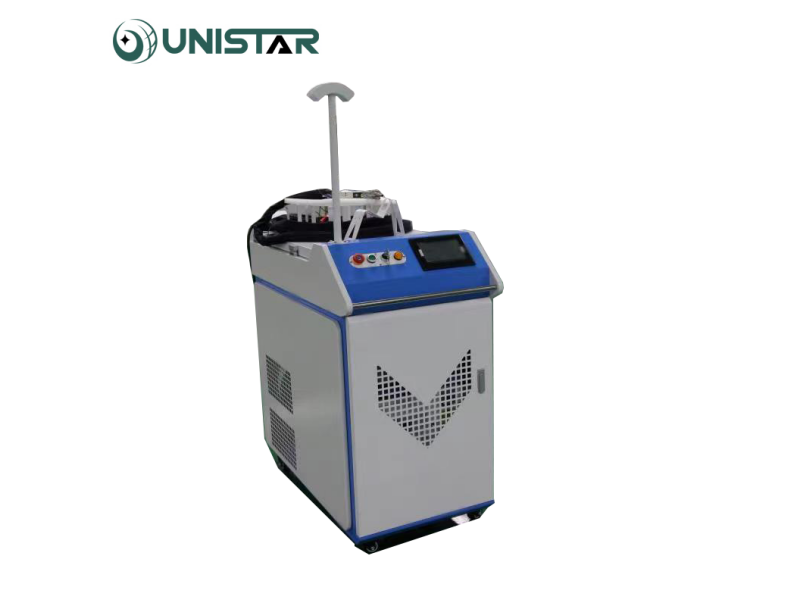

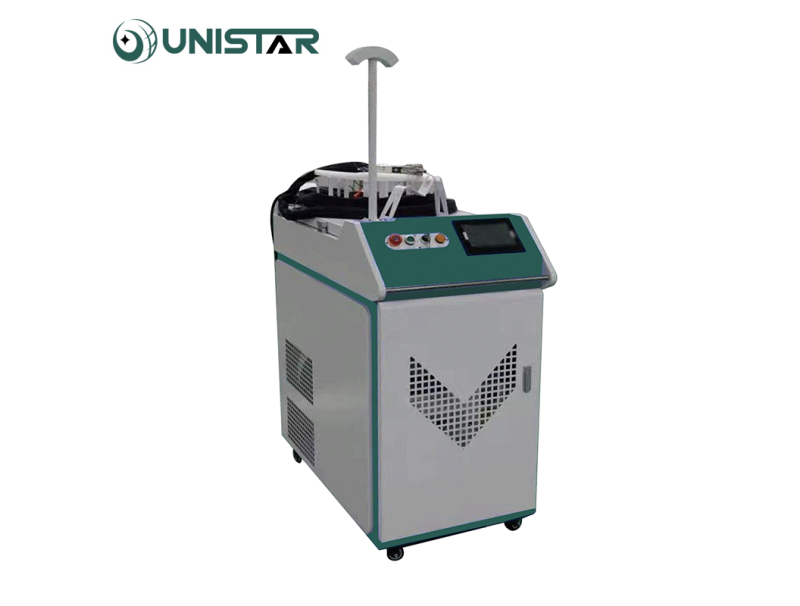

Desktop pulse laser cleaning machine
This machine can clean various stains on metal, rubber and hose surfaces
The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying surface.

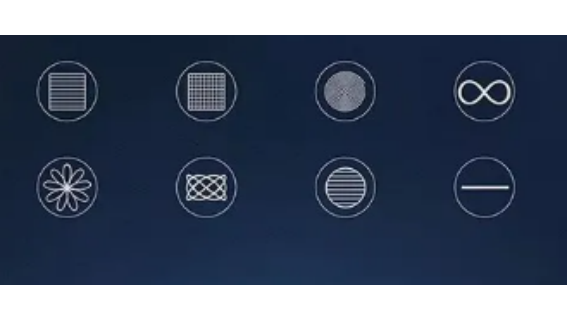

Cleaning modes
Better cleaning effect 8 cleaning modes optional
Supports 8 cleaning modes, which can be applied to many kinds complex cleaning scenarios. Support slow rise and slow drop of laser power real time control, better cleaning effect, no damage to the substrate.
Pulse laser cleaning offers higher control and lower heat input compared with continuous laser cleaning, making it ideal for precision cleaning, thin materials and sensitive surfaces.
| Model | Desktop pluse laser cleaning machine-300W |
| Cleaning system | ZBTK Cleaning system |
| Laser source | JPT-300W pulse laser |
| Cooling method | Air cooling |
| Cleaning width | <180mm |
| Cleaning length | <180mm |
| Cleaning accuracy | <1mm |
| Cleaning speed | <30000mm/s |
| Cleaning mode | Linear/rectangular/circular/eliptical/sine |
| Operating temperature | -15 to 65℃ |
| Storage temperature | -10 to 60℃ |
Q1 :How many years of warranty period?
A1:The whole machine have 2 years quality guaranty,any parts broken during the warranty time , we will take place of it free (Under no human damage ).
Q2: Do you have CE document and other documents for customs clearance
A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q3 :How to install and run the machine?
A3: Our technician have installed the machine before shipping. For some small parts
installation, we will send detail training video, user's manual along with the machine.
95% customers can learn by themselves.
Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A4: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
Q5: Which payment way your company can accept?
A5 : 1. 30% T/T in advance payment , 70% T/T balance payment before shipping machine .
2. 100% L/C at sight
3. 30% T/T deposit payment ,70% see copy bill of lading
