Elevate your metal fabrication efficiency with our latest CNC fiber laser cutter! Boasting an integrated aviation aluminum beam, grid-type tank chain, and pressure alarm switch, this all-in-one system ensures ultra-stability, low maintenance, and safe operation. Compatible with sheet and tube metal processing, customizable power from 1000W to 12000W, it delivers high precision and fast speed for carbon steel, stainless steel, aluminum and more. Factory direct supply, reliable after-sales support.

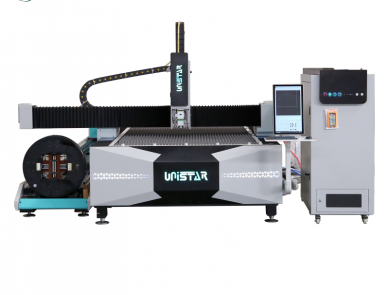

Unistar High-Performance All-in-One Fiber Laser Sheet & Tube Cutting Machine
As a multi-functional solution, it supports both sheet metal and tube processing, with customizable laser power from 1000W to 12000W, famous brands from Japan ( Fuji and Yaskawa) servo motors are available for selection. Ideal for metal fabrication, automotive parts, hardware, kitchenware and other industries, it helps customers reduce equipment investment and improve production efficiency significantly.
Core Competitive Advantages:
Integrated Aviation Aluminum Beam: Adopts one-piece molding technology, featuring lightweight design, high structural rigidity and excellent anti-deformation performance. Ensures stable cutting precision even during long-term high-speed operation, extending the machine's service life.
Grid-Type Tank Chain: With a scientific grid division structure, it realizes separate arrangement of cables and hoses, effectively reducing friction and wear between components, minimizing maintenance frequency and lowering operating costs for customers.
Pressure Alarm Switch: Equipped with a high-sensitivity real-time monitoring system, it can instantly detect abnormal pressure in the cutting process and trigger an automatic alarm, effectively protecting the laser source, cutting head and other core components, and ensuring the safety of equipment and operators.
Basic Product Features:
All-in-One Function: Integrates sheet metal and tube cutting in one system, meeting diverse processing needs with one machine.
Customizable Power: Optional laser powers include 1500W, 2000W, 3000W, 6000W, 12000W, 20000W, etc., suitable for cutting various thicknesses of carbon steel, stainless steel, aluminum, copper and other metal materials.
High Precision & Efficiency: Equipped with Raycus/IPG/MAX laser source and high-precision servo system, ensuring fast cutting speed and superior processing accuracy.
Optional Configurations: Support exchange worktable, automatic feeding system, etc., to further improve production efficiency.
Configuration details of fiber laser machines
High precision laser cutting head
We use cutting heads from the well-known Chinese brand RAYTOOLS, which are of excellent quality and high precision
Raycus Laser Source
Raycus lasers are the benchmark of high-end laser light sources in China. High cutting accuracy and small heat-affected zone.
Control Screen
The control panel is operated with a mouse and keyboard, and the operation is simple.
High quality servo motor and driver
We use Fuji Electric from Japan, which can effectively reduce the risk of downtime, extend the service life of equipment and lower maintenance costs
Japan Shimpo Reducer
High rigidity, strong load-bearing capacity and compact structure. Not only does it have smooth transmission and small pulsation, but it can also reduce the operating noise
Rail Guide
Low-friction HIWIN Linear Guide with self-lubricating module: Extends fiber laser cutter's service life, reduces maintenance cost, ensures smooth high-speed operation.
Helical Rack
The use of Taiwan YYC helical rack ensures smooth meshing, low noise and strong transmission smoothness, making it suitable for high-speed operation scenarios
Electrical accessories
It adopts Schneider electrical components and has excellent safety performance
Oil Pipes And Oil Drip Systems
Directional delivery of lubricating oil ensures the stable operation of equipment
Water Chiller
S&A water chiller can precisely control the temperature fluctuations of the laser and the cutting head to prevent thermal deformation from affecting the processing quality
Remote Control
Remote control can keep operators away from harsh working environments such as high temperatures, dust and laser radiation, fundamentally avoiding safety risks
750W Exhaust Fan
Effectively solve the problems of smoke, dust and odor during the cutting process
Optional configuration
 | AIR COMPRESSOR The air compressor is the core supporting equipment of the fiber laser cutting machine, and its core function is to provide stable and clean compressed air. |
 | INDEPENDENT DISTRIBUTION CABINET Ensure the stability of power supply and improve processing accuracy; Strengthen safety protection and reduce the risk of malfunctions |
 | VOLTAGE STABILIZER The function of stabilizing power input, protecting equipment from voltage fluctuations, and providing a more stable working environment |
Structural details
 | Machine structure precision machining welding bed ,quench and tempering heat treatment, To achieve high strength and at the same time better plasticity and toughness |
 | The special fire brick has outstanding water-fire resistance and oil-corrosion resistance, which can provide reliable protection against the high-temperature metal blocks generated during cutting and prevent the machine bed from being damaged. |
 | |
 | The grid tank chain ensures the separation of strong and weak electricity in the bed wiring, preventing potential safety hazards caused by wire entanglement. |
 | The pressure alarm switch closely monitors the power supply voltage, comprehensively protecting the safety of the equipment lines and making the equipment operation safer. |
 | Pneumatic Chuck. Self-centering chuck, fast centering clamping, fast automatic loading and unloading clamping without deformation, clamping pinch, high clamping accuracy and long service life, easy to cope with heavy pipe stable clamping, improve efficiency |
Application | UNISTAR Steel Sheet and Metal Tube Cutting Machine |
Laser Source | RAYCUS/MAX |
Applicable Material | Metal and metal tube |
Condition | New |
Laser Power | 1.5KW-30kw |
Tube | 3m |
Cutting Area | 1500mm*3000mm |
Cutting Speed | 120m/min |
Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
CNC or Not | Yes |
Cooling Mode | WATER COOLING |
Control Software | FUSCUT 3000S |
After-sales Service Provided | Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Warranty Time | 2 Years |
Why Choose Us？
Our Company
1. We have professional sales staff who can recommend the right products for you and solve your problems.
2. We are a company integrating industry and trade. Our products have the most favorable price.
3. We have a professional R & D team, and our products have been innovating.
4. Our machine accessories are genuine, are famous brands, can ensure the safe work of the machine.
5. We have been deeply engaged in this field for many years. We have reached friendly cooperation with many foreign friends.
6. We have a perfect service system. If you have a problem, we will actively help you solve it.
Warranty And Service
1> The machine warranty 2 years
2> 20 sets consumable parts Nozzle free ,10 sets protect lens free
3> a> During the warranty period, in case of failure or part damage (except human factors and
force majeure factors), the seller shall be responsible for free repair. The parts need to be
replaced will be provide from the seller for free (except the wear-quick part)
b> After the warranty period expired, the buyer only need to pay the actual maintenance cost
c> UNISTAR laser will make return visit of customers at regular time one year
4> We can offer engineers go abroad installation and training
Packing
We use international standard fumigation-free plywood packaging. It has the following advantages:
1. Light weight. Easy to handle
2. High intensity. Not easy to deform.
3. Procedures are convenient. No fumigation for export.
Certificate
We have passed CE certification, ISO9001 quality management system certification, patent certificate, Saber certificate, FDA and other international certifications. We strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging, transportation, etc., to ensure the quality of products.
Customer visiting
Customer Feedback
Q: What methods of payments are supported?
A: ① 30% T/T in advance, 70% T/T balance payment before machine shipment.
② 100% L/C at sight
③ 30% T/T deposit payment, 70% see copy of bill of lading.
Q: How do I install and run the machine?
A: Our technicians have installed the machine before delivery. For the installation of other configurations, we send detailed training videos and user manuals with the machine.
95% of customers can teach themselves.
Q: What should I do if I want to see the condition of the machines in your factory and it is not convenient to go to China?
A: We support production visualization services. The sales department that responds to your inquiry in the first place will be responsible for your follow-up work. You can contact him/her to go to the factory to check the production progress of the machine, or we can send you the sample pictures and videos you need.
Q: Which license do l need?
A: Different countries require different documents. Please consult your local customs for details. We can provide invoice, packing list, Bill of Lading, CE certificate, Certificate of origin, etc.
Q: Do you offer wearing parts?
A: We offer wearing parts. Machine with 15 sets nozzle and 6 set protector lens for spare use Future customer buy it we offer agent price for customer
