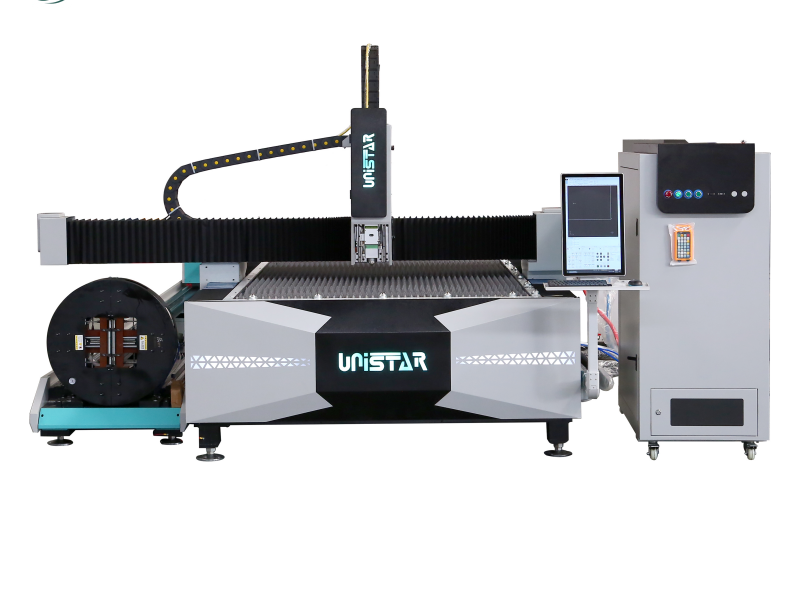

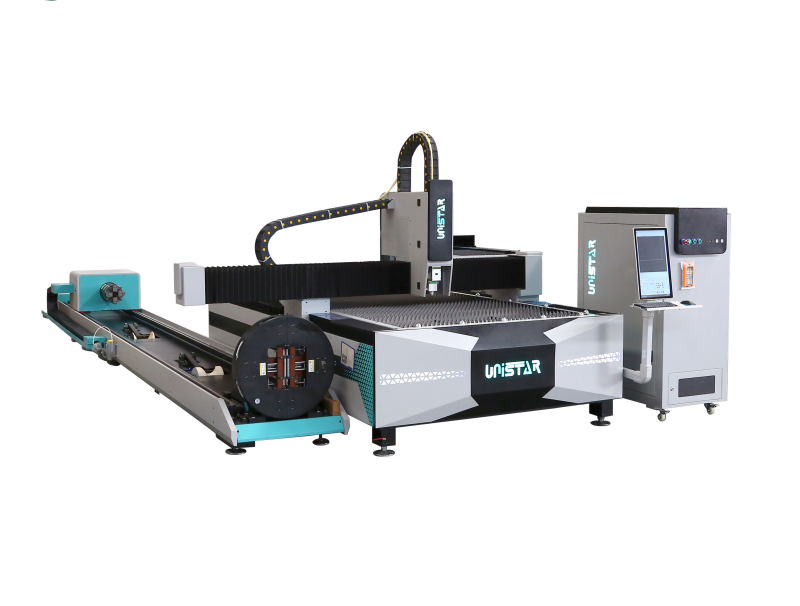

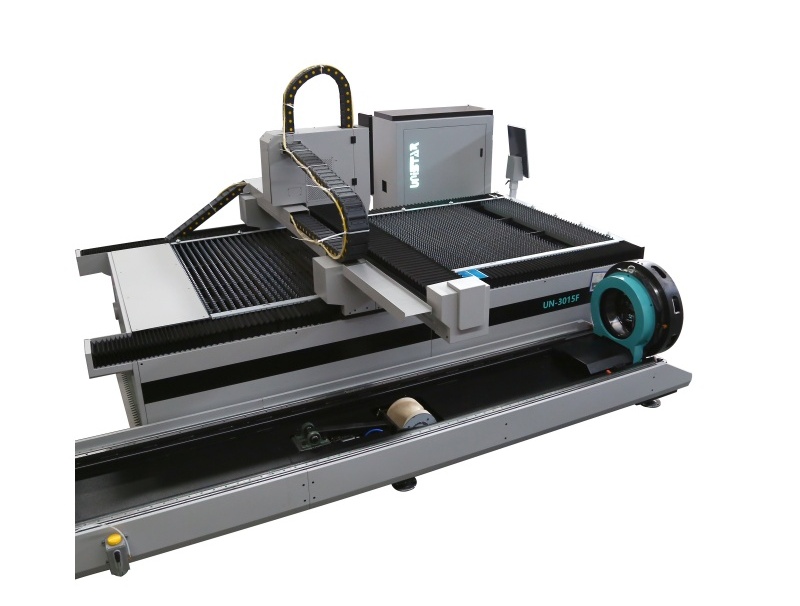

3KW/6KW/12KW cnc Fiber Laser Cutting machine

Laser Tube and Plate Integrated Machine is a professional fiber laser cutting equipment that integrates metal plate cutting and tube cutting functions in one. It can precisely cut various metal plates (carbon steel, stainless steel, aluminum plate, etc.) and tubes (round, square, rectangular, special-shaped tubes) with no need for separate equipment or frequent fixture adjustment, greatly saving workshop space and production costs.

Equipped with high-precision CNC system, auto-focus cutting head and flexible feeding mechanism, it features smooth cutting edges with minimal heat-affected zone, high cutting speed and strong material adaptability. It supports one-click programming and CAD graphic direct reading, and can be customized with automatic loading system and exchange worktable. Widely used in sheet metal processing, steel structure, engineering machinery and furniture manufacturing, it is the core equipment for flexible production and cost reduction in metal processing industry.

Inquire Now Chat Now

Product Details

Video

Parameters

Samples

Request a Quote

What is Laser tube and plate integrated machine?

Laser tube and plate integrated machine is a fiber laser metal cutting device that cuts both metal plates and various tubes with one machine. It features high CNC precision, smooth cuts, saves cost and space, and is widely used in sheet metal and steel structure industries.

What are Core Advantages of the Laser Tube & Plate Integrated Machine?

1.Dual-Purpose Machine: Integrated plate/tube cutting, saving on equipment purchase, space, and maintenance costs, eliminating the need for frequent tooling changes.

2.High Efficiency and Precision: Smooth, burr-free laser cutting with a small heat-affected zone; precise CNC positioning; processing efficiency far exceeding traditional equipment.

3.Wide Compatibility: Cuts carbon steel, stainless steel, aluminum alloys, and other metals, covering round/square/irregular shaped tubes and various plate specifications; supports beveling, drilling, and other processes.

4.Flexible Production: One-click programming and direct CAD reading adapt to small-batch, multi-variety processing needs, reducing workpiece transfer and improving production line efficiency.

5.Easy Upgrades: Optional automatic feeding and exchangeable worktables easily enhance automation and adapt to different production capacity requirements.

Which industries is the laser tube sheet integrated machine mainly used in?

Core application industries: sheet metal processing, steel structure & construction, engineering machinery, furniture manufacturing, kitchen & bathroom appliances, vehicle manufacturing, pipe & hardware processing, advertising sign industry.

LASER HEAD

The laser head is manufactured using high-quality materials and advanced technology. This professional-grade laser cutting head boasts stable and reliable technology, and its completely sealed interior prevents dust from contaminating the optical components. A protective lens is housed in a drawer-type unit for easy replacement.

LASER SOURCE

Laser light sources from MAX, Raycus, and IPG brands

Features include higher photoelectric conversion efficiency, superior reliability and modular design, ease of maintenance and short downtime, and high reflection resistance.

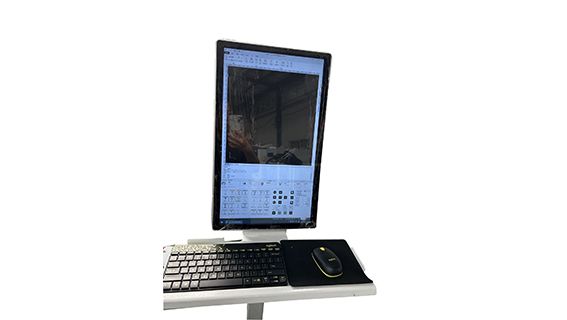

LASER CUTTING SYSTEM

This intelligent laser cutting machine adopts a dedicated CNC system, realizing functions such as automatic edge finding, automatic shaping, automatic focusing, and automatic cutting, which is convenient and efficient. The accompanying software is specially customized for the laser cutting industry, is easy to operate, has rich functions, and is suitable for various processing occasions.

MACHINE BED

Utilizing high-quality square tubing and a three-stage welding process, the machine tool bed is robust and durable. The structural materials undergo high-temperature treatment to eliminate internal stress, ensuring the machine tool bed maintains excellent mechanical properties such as tensile strength, toughness, hardness, and resistance to deformation.

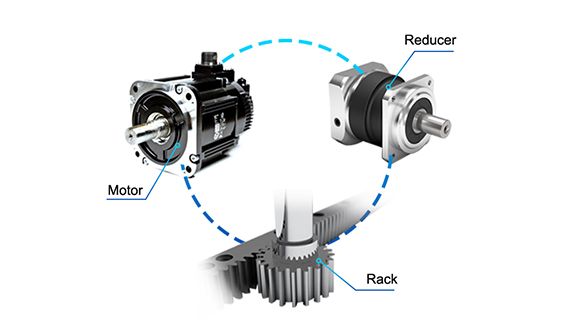

SERVO MOTOR

High-precision servo motors, high-precision reducers, high-precision guide rails and racks are used to ensure high speed and high acceleration of the whole machine.

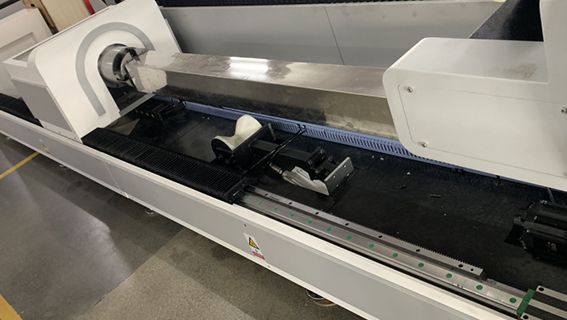

PNEUMATIC CHUCK

This fully automatic pneumatic chuck employs a precision internal transmission structure, utilizing a rack and pinion drive to improve cutting accuracy.

Specifically designed for cutting small pipes, it features flexible rotation capabilities and high speeds to meet the demands of fast and efficient cutting.

How to choose Fiber Laser Cutting machine for metal sheet and tube?

Key Points for Selecting Laser Tube & Plate Integrated Machine:

1.Core Parameters

Match laser power (1000-3000W for thin material, ≥6000W for thick material) and processing range (plate size/tube diameter) to your production needs; choose auto-focus cutting head for high efficiency.

2.Machine Structure

Heavy-duty bed for stability; auto-centering rotary chuck for tube processing; optional exchange worktable/auto-loading system for mass production.

3.Core Components

First-brand fiber laser, high-precision CNC system (CAD direct reading/one-click programming), servo drive system for accuracy and durability.

4.Scenario Adaptation

Prioritize easy operation for small-batch production; choose automation accessories for mass production; confirm material compatibility (carbon steel/stainless steel/aluminum).

5.Manufacturer & Service

Select experienced manufacturers for customization; check after-sales service (installation, training, warranty) and on-site service outlets; focus on cost-performance (configuration + service).

Model	UN-3015BC
Working area	3000x1500mm
Rotation axis	The diameter is 120mm length is 6m
Laser Power	3000W MAX
Laser head	CYPCUT
Machine body	Strong heavy duty machine body ,Machine structure precision machining welding bed ,quench and tempering heat treatment.
Control System	CYPCUT
Rack	Taiwan import YYC helical rack with high accuracy
Rail guide	Import Taiwan Hiwin Rail Guide
Water chiller	S&A water chiller
Pneumatic accessories	Japan SMC polite motion components
Motor and drivers	DELTA
Reducer	Japan Shimpo reducer
Electric accessories	French Schneider
Gantry	The 3 rd generation aviation aluminum gantry
Laser Wavelength	1080 nm
Beam Quality	<0.373mrad
Positioning Accuracy	≤ ±0.03mm/m
Re-positioning Accuracy	≤±0.02mm/m
Max Speed in Cutting a Straight Line	18000mm/min-25000mm/min
