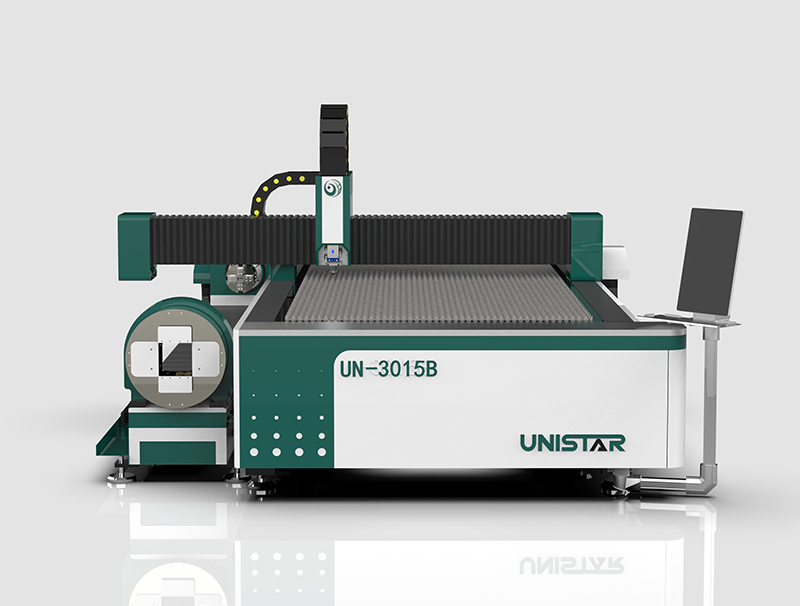

At present, fiber laser cutting machines have gradually replaced traditional cutting equipment such as water cutting and plasma cutting machines, and are widely used in the processing of stainless steel, carbon steel, aluminum and other metal materials. Sheet metal cutting machine is the use of fiber laser generator as a light source, the laser beam energy density is high, the light source is stable and reliable, and the cutting speed is fast, the edge is neat and smooth.
Application of sheet metal and tube cutting machine
Fiber laser machine can be used in aerospace, grain machinery, metallurgy, craft gifts, advertising decoration, sheet metal processing, kitchenware processing, household appliances and other processing and manufacturing fields.
Advantages of tube & sheet fiber laser cutter
1. Simple structure. Compared with the carbon dioxide laser cutting machine, the plate and tube integrated laser has a simple optical path, no complex optical path system, simple structure and good maintenance.
2. Low energy consumption. The fiber laser used in our fiber cutting machine is of good quality and is a famous brand in China. Laser light conversion is very high, can greatly save electricity consumption.
3. Low operating costs.The laser only needs electricity to work, and no additional gas is required to produce the laser.
4. High efficiency. Fiber laser output beam quality is good, high density, can be very good cutting metal materials. Moreover, the surface of the cut product is smooth and flat, and there is no need for secondary processing.
Features of metal sheet and tube laser cutting machine
1. Many functions. The plate and tube integrated machine can cut both plates and tubes.
2. Small footprint. Compared with a pipe machine and a plate machine, the plate and tube machine requires a lot less area, which can save space.
3. Cost savings. The price of a plate and tube machine is cheaper than the price of buying a plate machine and a tube machine. It can reduce purchasing costs and reduce capital output.
Major dispositions

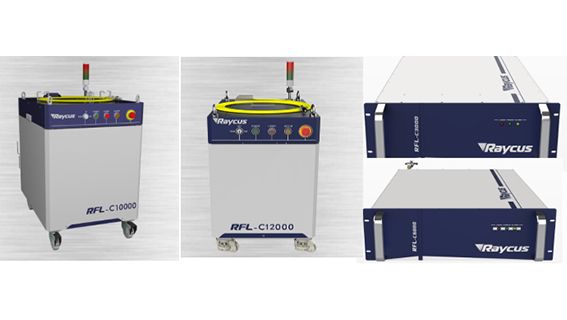

Laser source- RAYCUS
The laser converts electrical energy into light energy with a conversion rate of more than 40%, its output is stable, and it can work continuously for 24 hours, greatly improving production efficiency.

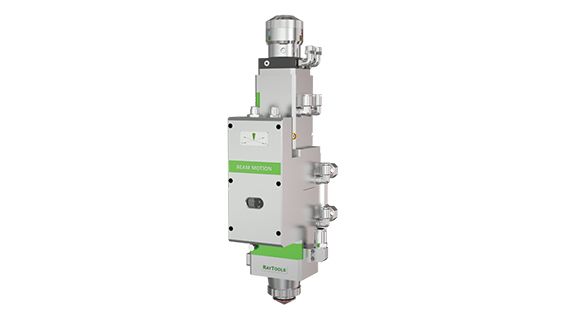

Laser head- RAYTOOL
The laser head consists of three parts: a collimating mirror, a focusing mirror, and a protective mirror. The purpose of the collimator is to amplify the beam, turning the light into parallel light. The purpose of the focusing mirror is to focus the light, so that the energy is more concentrated. The function of the protective mirror is to prevent the focusing mirror from being contaminated.

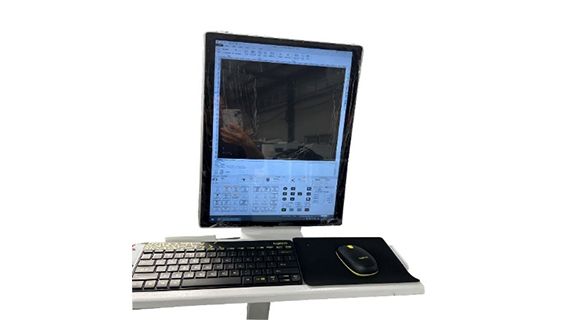

Control system- CYPCUT
The response speed of the CYPCUT control system is fast, and it can react quickly, which can save time. The CYPCUT system is constantly updated to accommodate more cutting requirements. Many customers report that the system is very useful and has a great experience.

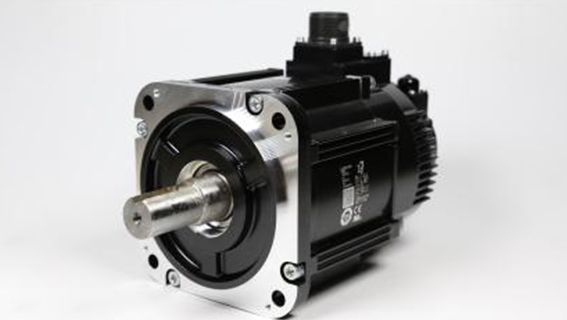

Motor and driver- Taiwan Delta
Taiwan Delta motor drive price is relatively cheap, but cost-effective. It is made of high-quality materials, can adapt to long working hours, and has good anti-interference ability. And its accuracy can reach 0.001, which is suitable for our high-precision tube-board all-in-one machine.

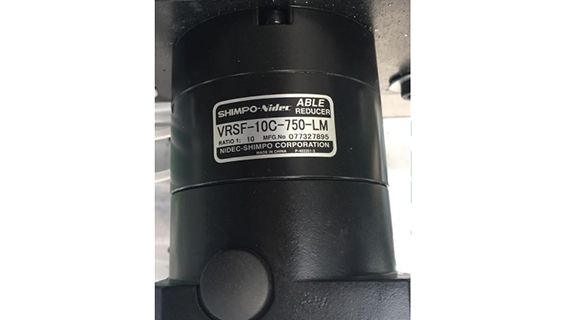

Reducer- Japan SHIMPO
The reducer can reduce the output power of the motor, avoid problems in the engraving process, and ensure product quality. The reducer can also improve the torque of the engraving machine and make the equipment work better.

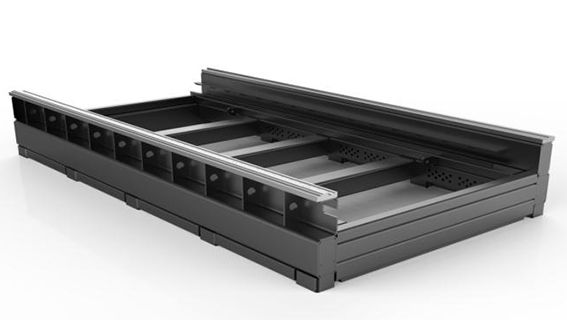

Bed structure
The bed is welded with a square tube, and reinforced ribs are added in the tube, which can increase the bearing capacity of the bed and effectively prevent the deformation of the bed.

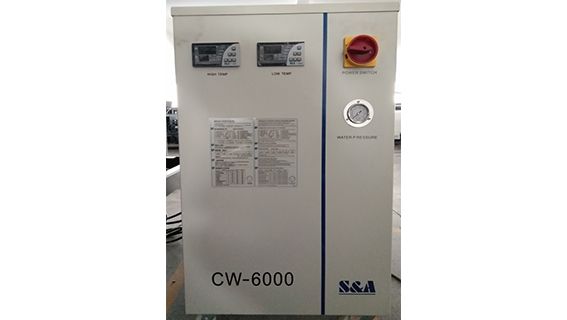

Water chiller- S&A
The water chiller cools the machine through evaporation, compression, condensation, throttling and other processes to ensure that the machine can work safely for a long time. The S&A water chiller has two independent temperature control systems, which can simultaneously cool the body and the laser head with different temperature requirements.

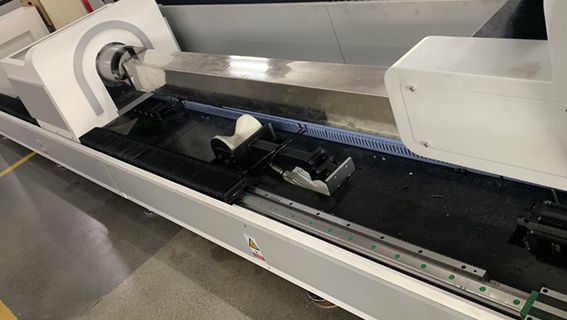

Pipe Cutting System
Pipe cutting is professionally designed, with a dedicated high-end pipe cutting CNC system, can cut various sizes of metal pipes. It has the advantages of simple operation, high reliability, good cutting performance, and can cut out satisfactory shapes.

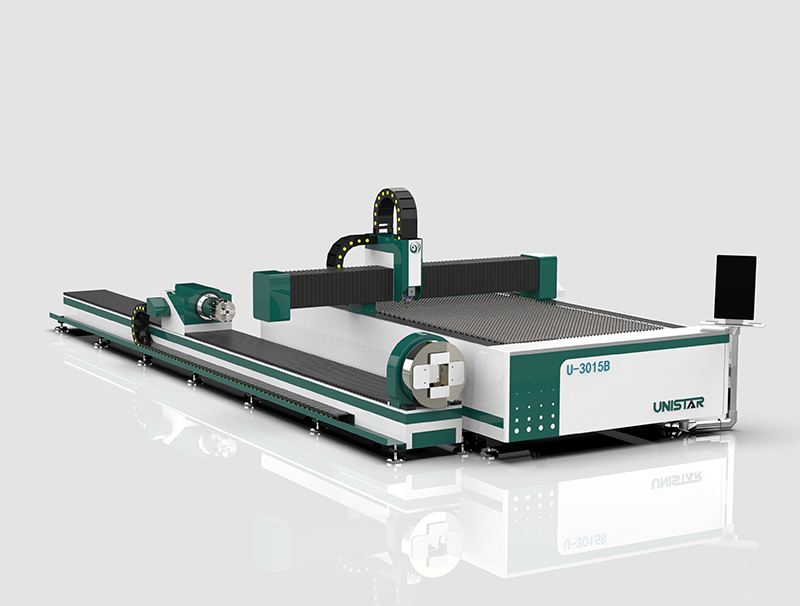

| Application | UNISTAR Steel Sheet and Metal Tube Cutting Machine |
| Laser Source | RAYCUS |
| Applicable Material | Metal and metal tube |
| Condition | New |
| Laser Power | 1.5KW-30kw |
| Tube | 3m |
| Cutting Area | 1500mm*3000mm |
| Cutting Speed | 120m/min |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Cutting Thickness | 30mm |
| CNC or Not | Yes |
| Cooling Mode | WATER COOLING |
| Control Software | CYPCUT |
| After-sales Service Provided | Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Warranty Time | 2 Years |
Sheet metal cutting projects
Tube Laser cutter Projects
Customer visiting

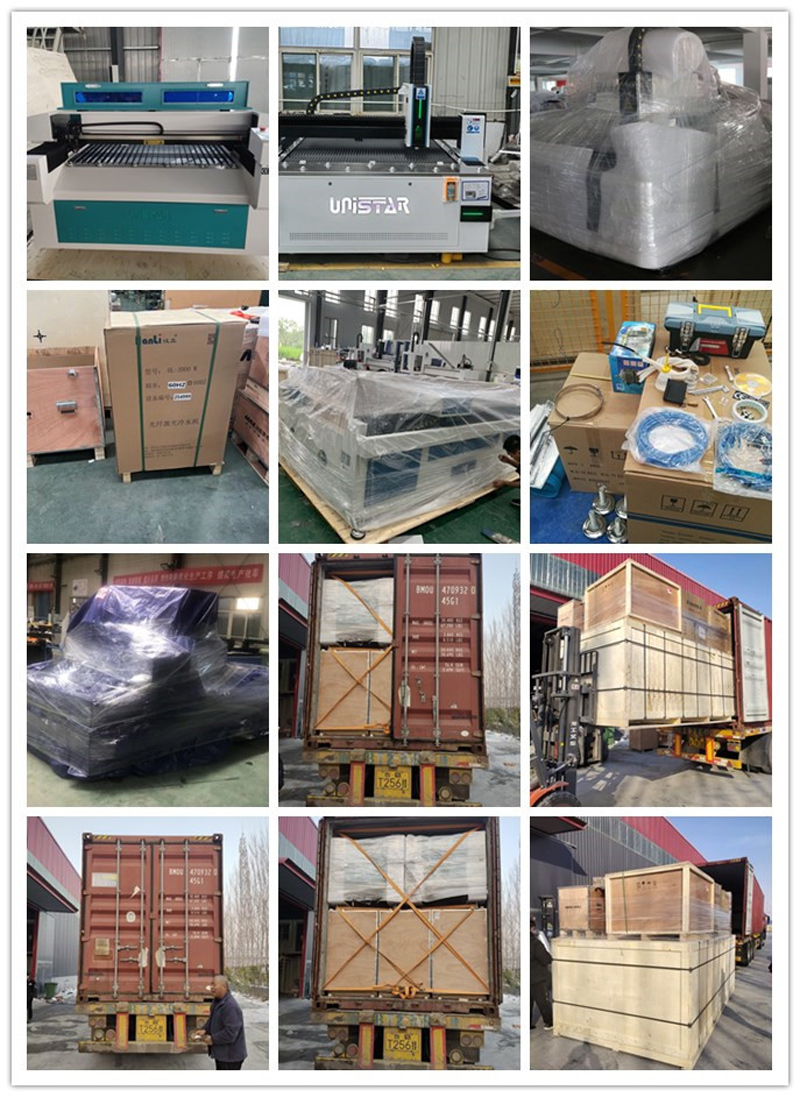

Packing
We use international standard fumigation-free plywood packaging. It has the following advantages:
1. Light weight. Easy to handle
2. High intensity. Not easy to deform.
3. Procedures are convenient. No fumigation for export.

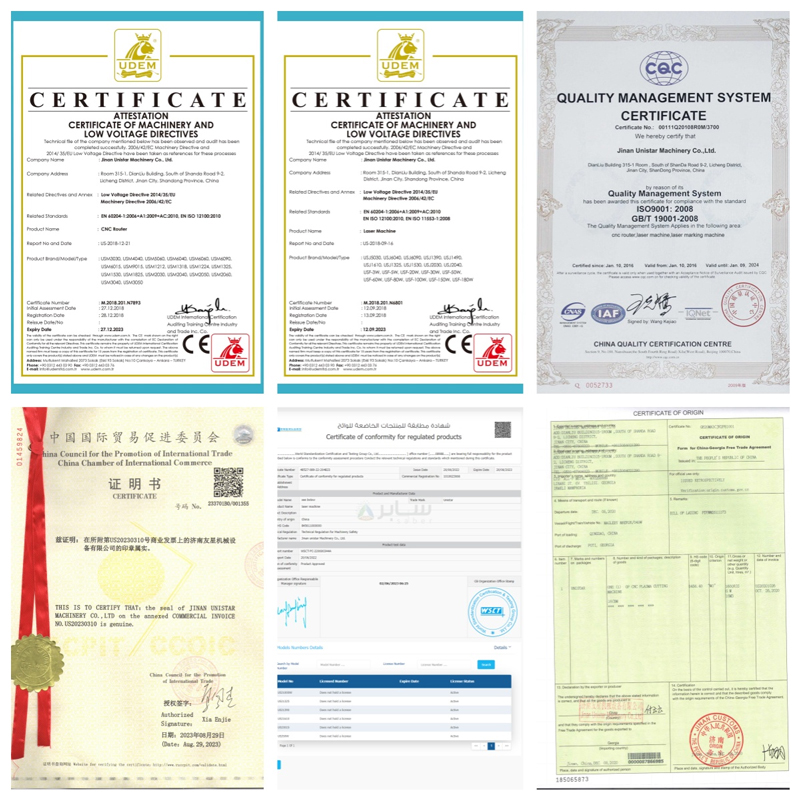

Certificate
We have passed CE certification, ISO9001 quality management system certification, patent certificate, Saber certificate, FDA and other international certifications. We strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging, transportation, etc., to ensure the quality of products.
Q1: What Should You Pay Attention to When Cutting?
A1: Before starting the machining process, it is important to verify whether the selected program is correct, whether the process parameter names are correct, whether external auxiliary gases are available, and whether the position of the sheet is accurate. It is crucial to prevent deformation of the sheet metal during processing, which can lead to collisions and avoid any interference. During machine operation, operators should always be vigilant and not leave the machine to ensure personal safety.
Q2: Which payment way your company can accept?
A2: 1. 30% T/T in advance payment, 70% T/T balance payment before shipping machine .
2. 100% L/C at sight
3. 30% T/T deposit payment, 70% see copy bill of lading
Q3: Does Pipe Laser Cutting need gas assisted cutting?
A3: Yes, carbon steel pipes need oxygen to cut, stainless steel pipes choose nitrogen. You can also use air, but it is best to choose special gas, so that the cutting effect is better and the cutting surface is smoother.
Q4: How to choose a suitable machine?
A4: You can tell us the materials processed, the dimensions and the requirements for the functions of the machine. We will recommend the most suitable machine based on our experience.
Q5: MOQ?
Our minimum order quantity is 1 set. We can send the machine directly to the port of your country, please tell us your destination port, we will give you the best freight and machine price.
Look forward to hearing from you
