Laser cutting is developing rapidly and plays an important role in electronics, textile machinery, auto parts, aerospace and other industries. Fiber laser cutting machine can cut plate and pipe. When you want to cut both sheets and tubes, the board and tube machine is your best choice.
Application of sheet metal and tube cutting machine
1. Metal processing industry
Tube & sheet fiber laser cutter can process all kinds of metal sheets and special-shaped pipes. Because of its high precision, high speed and high efficiency, it is loved by the metal processing industry
2. Construction industry
In the construction field, the tube &sheet fiber laser cutter can be used to make steel structures and other metal components such as doors and Windows, fences, ladders and so on.
3. Aerospace industry
In the process of aircraft manufacturing, tube & sheet fiber laser cutter plays an important role. It has a good performance in the cutting, processing and assembly of parts, improves production efficiency and product quality, and reduces waste.
4. Furniture industry
In the field of furniture manufacturing, the tube & sheet fiber laser cutter replaces the traditional manual manufacturing method to achieve customized production and efficient production, which can greatly meet the individual needs of consumers. It's a very practical device
Features of tube & sheet fiber laser cutter
1. Small upfront investment. A multi-purpose machine, can process both sheet and pipe, no need to buy two equipment, effective cost savings.
2. Small footprint. The small size of the board and tube machine can save space and improve space utilization.
3. Wide range of use. Whether it is pipe or plate can be processed, breaking the limitations of pipe cutting machine and plate cutting machine, and the application range is wider.
Advantages of tube and sheet fiber laser cutter
1. Have a professional cutting system, can quickly realize the conversion of plate cutting and pipe cutting.
2. Low use cost. Compared with the CO2 laser cutting machine, its power consumption is extremely low, only 20%-30% of the CO2 laser cutting machine.
3. User-friendly operation interface, real-time feedback processing process to ensure smooth processing.
4. The cutting head can automatically find the center position of the pipe and cut more accurately.
5. The board and tube integrated machine is easy to install and can be quickly put into use.
Major dispositions

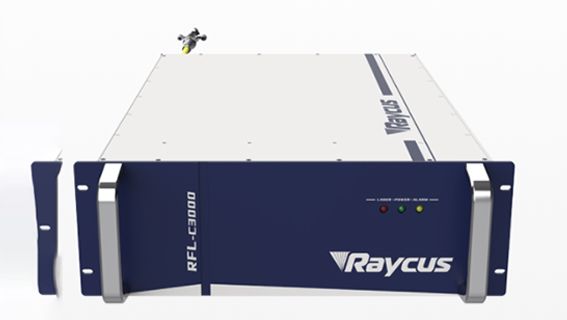

Laser source
The laser converts electrical energy into light energy with a conversion rate of more than 40%, its output is stable, and it can work continuously for 24 hours, greatly improving production efficiency.

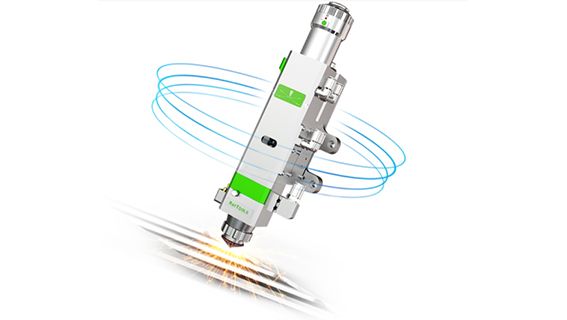

Laser head
RAYTOOL laser head has the characteristics of waterproof and dust-proof, scratch resistance and wear resistance, and has excellent service life. This laser head is equipped with automatic focusing, no manual focusing, accuracy up to 0.05mm, can fully adapt to high-precision cutting.

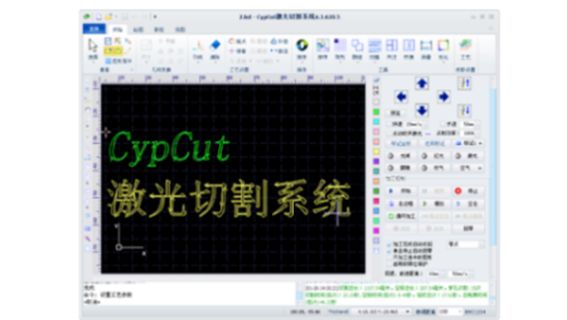

Control system
The CYPCUT system has been rigorously tested before leaving the factory, and the system runs stably and can meet various complex cutting requirements. CYPCUT system has advanced positioning and control technology, which can ensure the accuracy and precision of cutting.
Motor and driver
Taiwan Delta servo motor drive can control the fine distance to ensure the accuracy of cutting. Compared with traditional DC motors, Delta servo motors are much more efficient and can effectively save energy.
Reducer
The Japan SHIMPO reducer is compact, takes up little space, and has almost no noise when used. It can be well matched with the servo motor to ensure the accuracy and stability of the machine processing, so that the performance of the servo motor can be fully played.

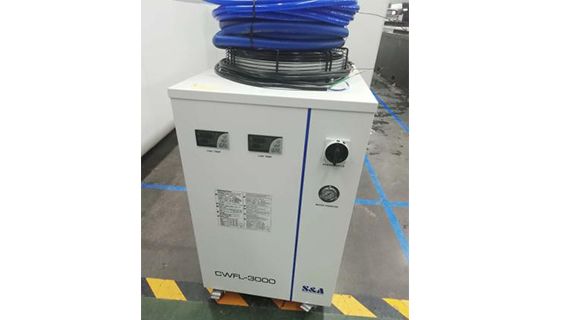

Water chiller
S&A water chiller to focus on the development of water cooler more than 20 years. S&A water chiller cooling effect is good. There are two temperature control modes of constant temperature and intelligent, can automatically sense the ambient temperature, to avoid condensation and other situations.

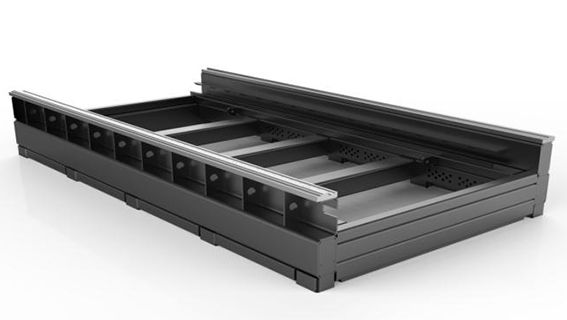

Body structure
The internal structure of the bed is made of aircraft metal honeycomb structure, with reinforcing bars in the tube to increase the strength of the bed and effectively extend the service life.
Pipe cutting section
Both the front and back of the cutting part are equipped with pin-two linkage self-centering chuck, which effectively improves the cutting precision.The pipe can be automatically clamped, and the working efficiency is effectively improved.

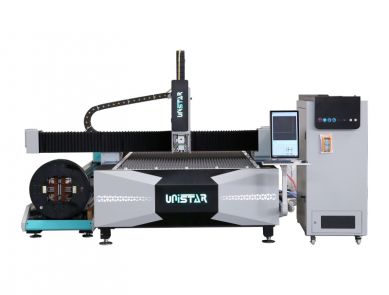

| Application | UNISTAR Tube & Sheet Fiber Laser Cutter |
| Laser Source | RAYCUS |
| Applicable Material | Metal and metal tube |
| Condition | New |
| Laser Power | 1.5KW-30kw |
| Tube | 3m |
| Cutting Area | 1500mm*3000mm |
| Cutting Speed | 120m/min |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Cutting Thickness | 30mm |
| CNC or Not | Yes |
| Cooling Mode | WATER COOLING |
| Control Software | CYPCUT |
| After-sales Service Provided | Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Warranty Time | 2 Years |
Metal sheet cutter Projects
Tube Laser cutter Projects
Customer visiting
We have been manufacturing and selling optical fiber cutting machines for many years and have customers all over the world. Our machines are well received by customers.
Why choose us?
Our company
1. Extensive experience. Our company has been engaged in CNC ROUTER machine production industry for more than 20 years, with rich product experience.
2. Professional team. Our company has 20 professional R & D senior technical engineers, they are experienced, can provide customized services for customers.
3. Competitive price. We have our own factory, we export by ourselves, there is no middleman to earn the difference, the price of our products is very advantageous. Our product quality and after-sales are guaranteed.
4. Excellent service. Our company's purpose is to maximize the interests of customers, to provide a full range of quality services, to ensure customer satisfaction.
Our services
1. Provide 24-hour online consultation service, customers can ask questions at any time.
2. Two years warranty. In case of quality problems during the warranty period, the damaged main parts can be replaced free of charge (caused by non-human factors).
3. Replacement of consumable parts can be provided at the agency price.
4. On-site service is available. If the machine breaks down, our engineers can go there to repair it.
5. We provide distance learning, including machine assembly, commissioning and maintenance.
Packing
Certificate
We have passed CE certification ( It can be exported to EU countries), ISO9001 quality management system certification, patent certificate, Saber certificate(Can export to Saudi Arabia), FDA(Can be exported to the United States) and other international certifications. We strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging, transportation, etc., to ensure the quality of products.
Q1: How do I install and run the machine?
A1: Our technicians have installed the machine before delivery. For the installation of other configurations, we send detailed training videos and user manuals with the machine.
95% of customers can teach themselves.
Q2: I don't know which kind of CNC milling machine suits me.
A2: Can you tell us what you do? What kind of material you need to cut and the size of the board, then we have a professional sales staff to recommend the most suitable engraving machine for you.
Q3: What should I do if I want to see the condition of the machines in your factory and it is not convenient to go to China?
A3: We support production visualization services. The sales department that responds to your inquiry in the first place will be responsible for your follow-up work. You can contact him/her to go to the factory to check the production progress of the machine, or we can send you the sample pictures and videos you need.
Q4: What should I pay attention to when cutting?
A4: Before starting the machining process, it is important to verify that the selection procedure is correct, that the process parameters are correctly named, that external auxiliary gases are available, and that the sheet position is accurate.
In order to prevent the deformation of the plate during processing, resulting in collision, the machine should not be disturbed during the working process. When the machine is running, the operator should always pay attention and should not leave the machine to ensure the correct operation of the machine.
Q5: What's your delivery date?
A5: Standard machine about 15 working days; For custom machines, about 20 working days.
