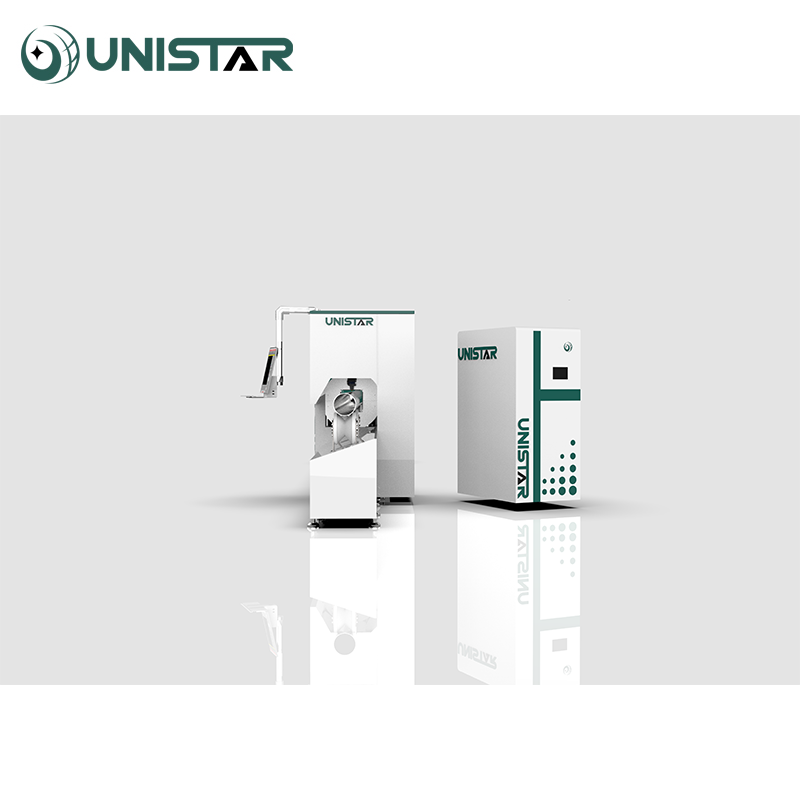

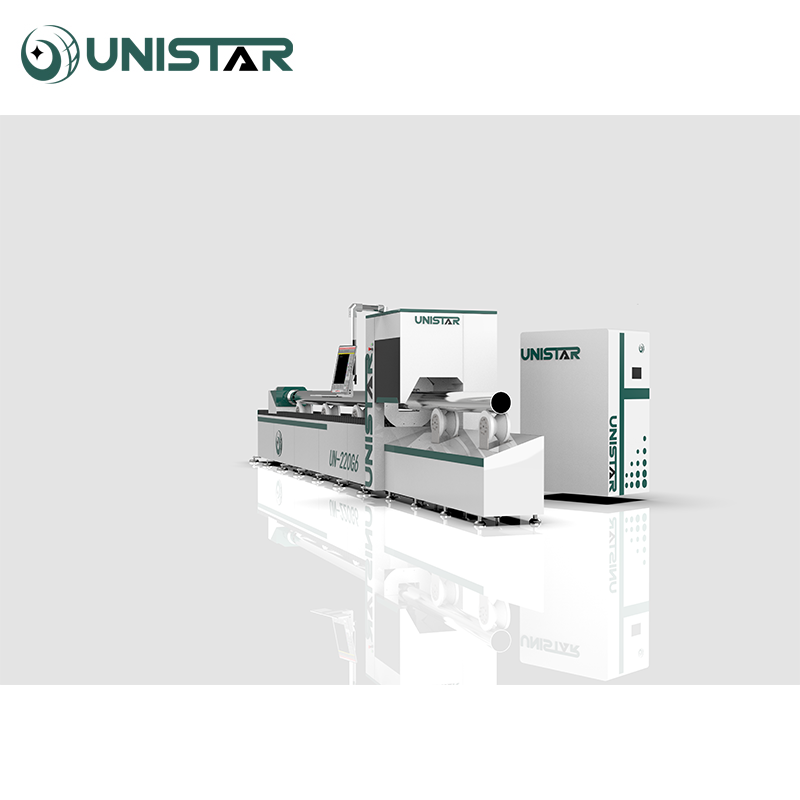

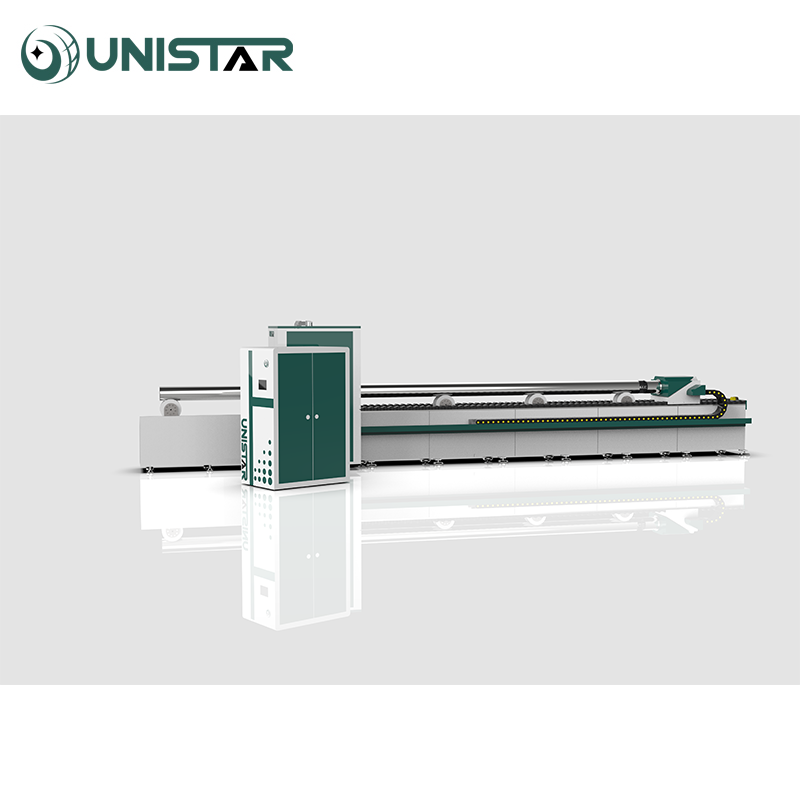

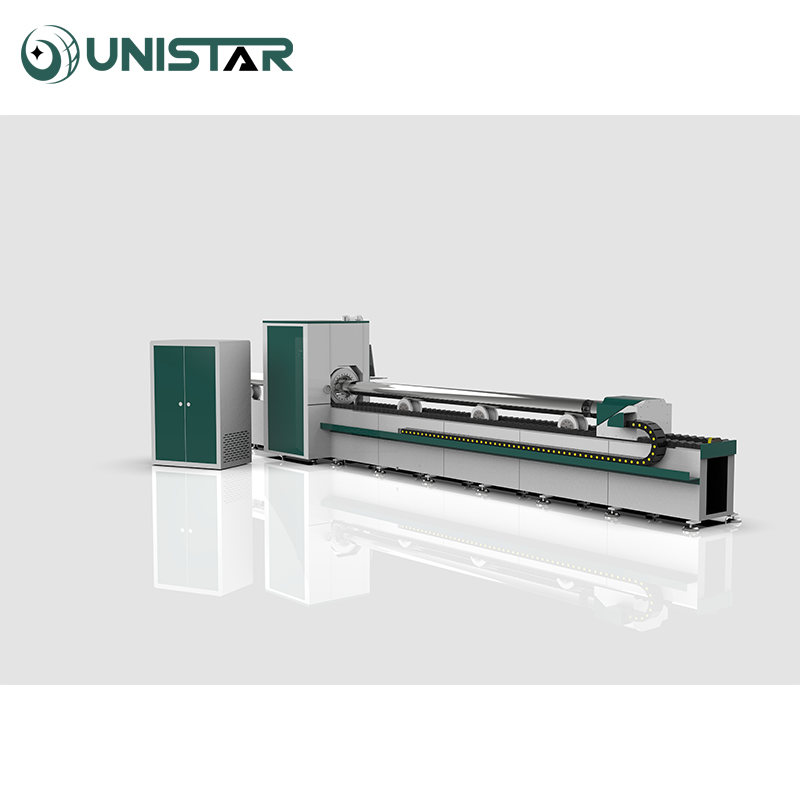

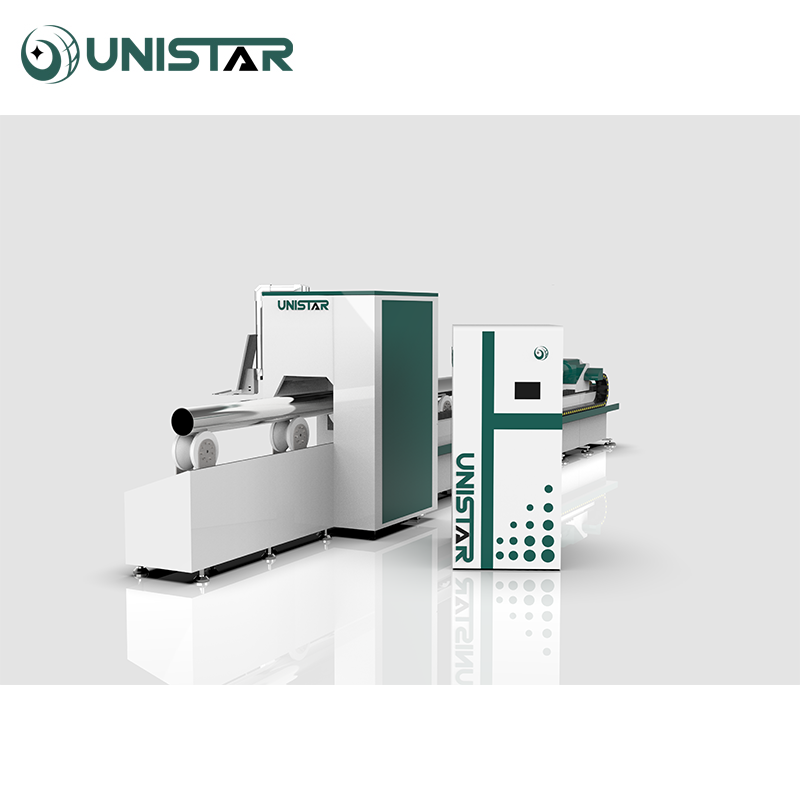

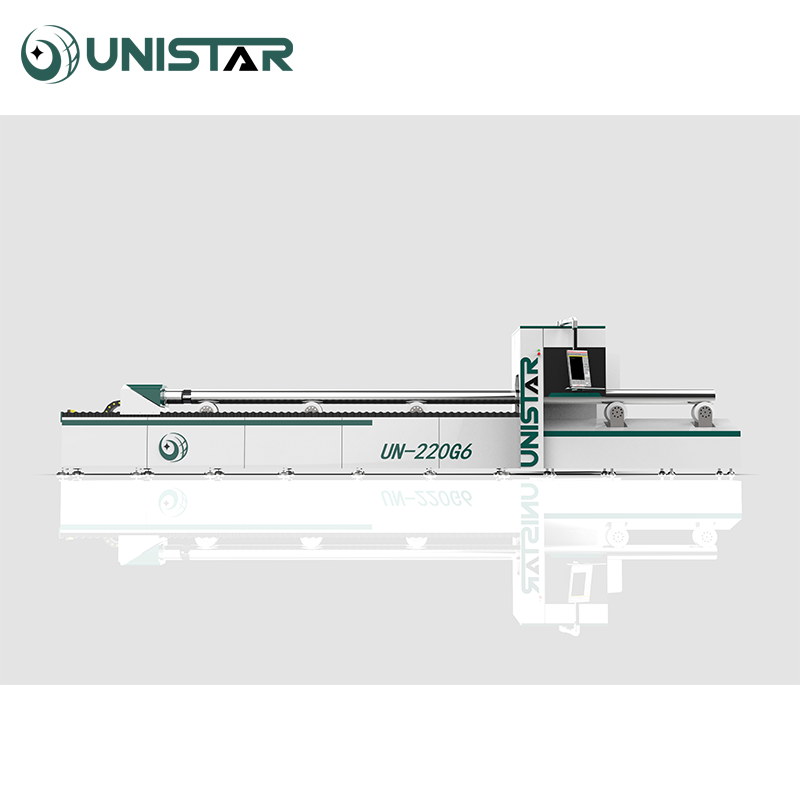

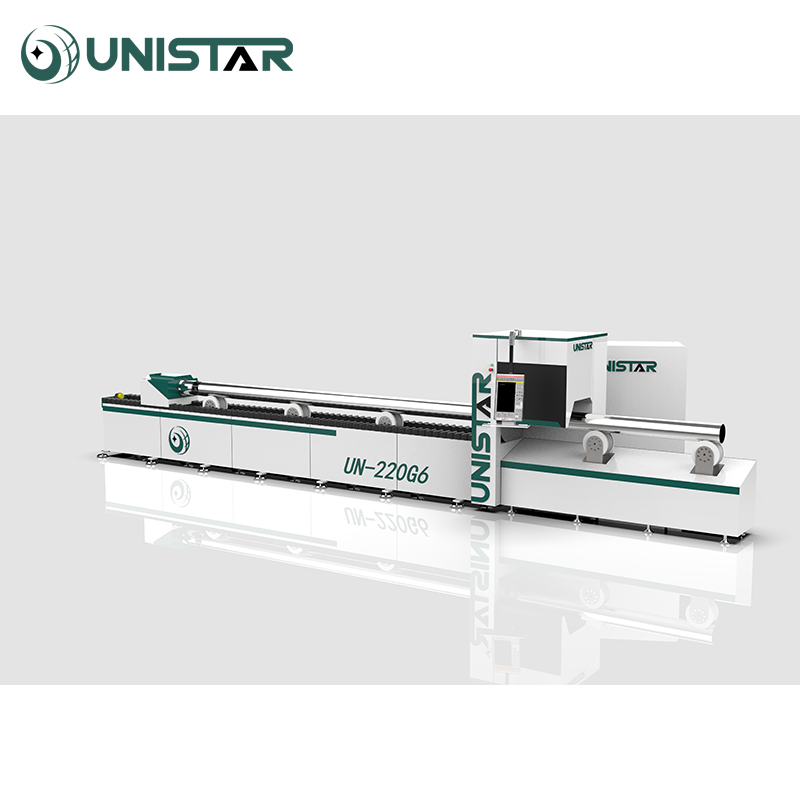

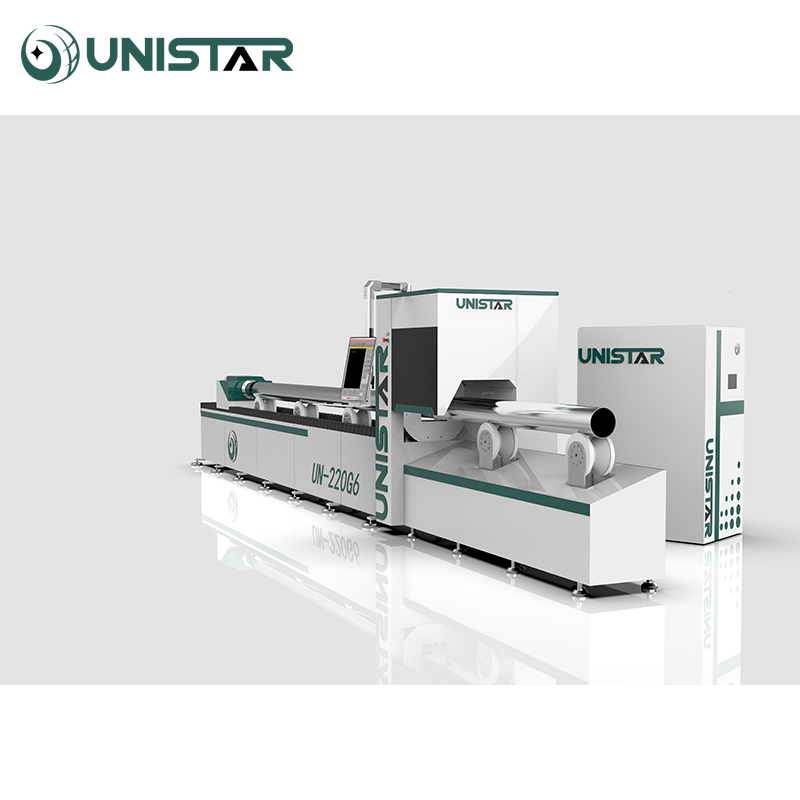

Metal tube cutting machine

The laser head of a fiber laser cutting machine is the core cutting execution component, integrating core functions such as collimation, focusing, and adjustment. It precisely focuses the laser transmitted through the fiber into an extremely small spot, achieving high energy density cutting.

The laser source of a fiber laser cutting machine is the core power unit of the equipment. It adopts a high-stability brand fiber laser source with high photoelectric conversion efficiency, low energy consumption, uniform and stable output laser energy, and strong cutting penetration.

The gantry of the fiber laser cutting machine is made of aerospace-grade aluminum, which combines high rigidity and lightweight advantages. Compared with traditional steel gantry, it is lighter and has stronger resistance to deformation. After professional processing, its stability is even better.

The machine bed of the fiber laser cutting machine forms the stable foundation of the entire machine. It is made of thickened steel welded in one piece and undergoes high-temperature tempering and aging treatment to completely eliminate internal stress, resulting in extremely strong resistance to deformation and vibration. The machine bed has sufficient overall rigidity and high load-bearing capacity, making it suitable for large table surfaces and high-power cutting conditions. It operates without shaking, ensuring cutting accuracy from the source. Even under long-term high-intensity operation, it can maintain machine stability and prevent accuracy drift.

Equipped with a high-precision servo motor and a dedicated high-speed driver, it boasts fast response and high operating accuracy, enabling precise positioning and smooth, high-speed movement of the gantry and cutting head. Its high torque and smooth operation make it suitable for high-speed, high-power cutting applications.

Equipped with a professional CNC system for laser cutting, the user interface is simple and intuitive, supports multiple languages, and can import various graphic formats such as CAD with one click. It also supports parameter presets and path optimization.

The fiber laser cutting machine is equipped with a high-precision guide rail from HIWIN Technologies (Taiwan), which is a key component for core transmission. Made of high-hardness, wear-resistant material, it boasts high precision, excellent guidance, and smooth, jam-free operation.

Taiwan YYC Import helical rack.The tooth surfaces are laser-hardened, making them wear-resistant and fatigue-resistant, suitable for high-speed, heavy-duty cutting conditions. The helical tooth design ensures smooth meshing and low noise, and, combined with a servo drive, enables high-speed, precise gantry movement.

Japan Shimpo speed reducer has the characteristics of high efficiency. It uses advanced transmission technology to convert the input power into the output torque, achieving efficient energy transmission. The use of good quality materials and precision manufacturing process to ensure the stability and reliability of the product. The reliability and service life of the equipment are improved.

The chiller ensures the normal operation of the fiber laser cutter at constant temperature. Specially designed for the optical fiber laser cutter is a kind of refrigerator. It has two operating modes: constant temperature and intelligent temperature control. It can control the temperature of ±0.3°C. It is equipped with a wide range of equipment, such as input/output switch, cooling water flow, high and low temperature warning, advanced function, stable and durable.

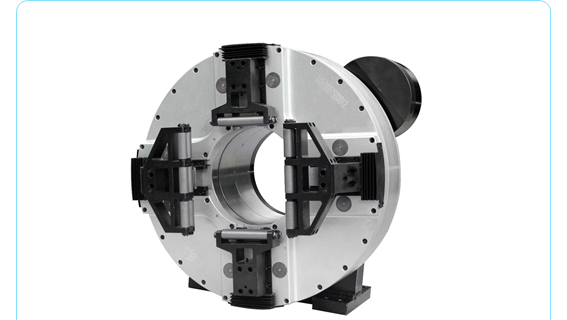

The chuck of the fiber laser tube cutting machine is the core component for tube clamping and positioning. It adopts a high-precision pneumatic chuck design, with strong clamping force and flexible adjustment. It can adapt to various specifications of tubes such as round tubes, square tubes, and rectangular tubes, and clamps them firmly without deviation. It has high centering accuracy, which effectively ensures the coaxiality of the tube during cutting and avoids cut deviation. It is equipped with a self-centering function, fast clamping speed, and can realize automated loading and unloading, which greatly improves the tube processing efficiency. It is wear-resistant and damage-resistant, and has strong long-term operational stability.

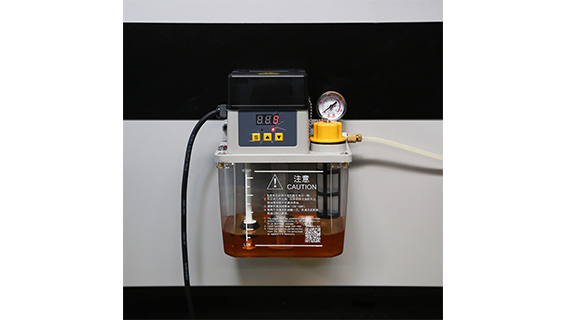

The lubrication system of the fiber laser tube cutting machine is the core lubrication guarantee for the equipment's transmission and chuck. It adopts an automatic quantitative lubrication design, which can precisely add lubricating oil to key moving parts such as the chuck, guide rails, and racks at regular intervals and in precise quantities, avoiding dry friction wear.
