The working principle of the laser pipe cutting machine is similar to that of the laser plate cutting machine, which uses a high-density beam for local thermal processing of the material to achieve the purpose of cutting and punching.

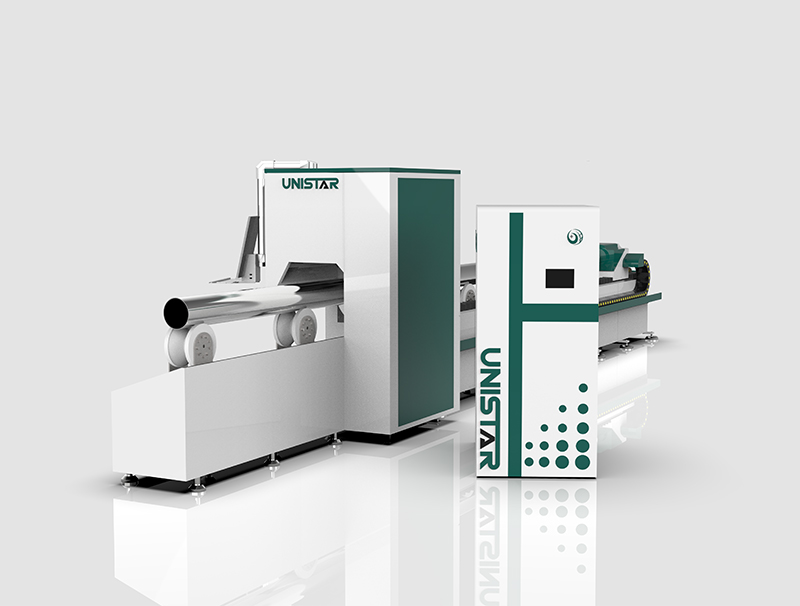

Definition of Fiber Laser Tube Cutting Machine
The working principle of the laser pipe cutting machine is similar to that of the laser plate cutting machine, which uses a high-density beam for local thermal processing of the material to achieve the purpose of cutting and punching. A professional laser tube cutting machine, can replace mechanical drilling, milling, sawing, stamping or cleaning wool mouth and other processing processes, a equipment can complete metal pipe blanking, punching, miter cutting and other processes, is widely used in sheet metal processing, kitchen utensils, lamps, automobiles, hardware, fitness equipment and other industries

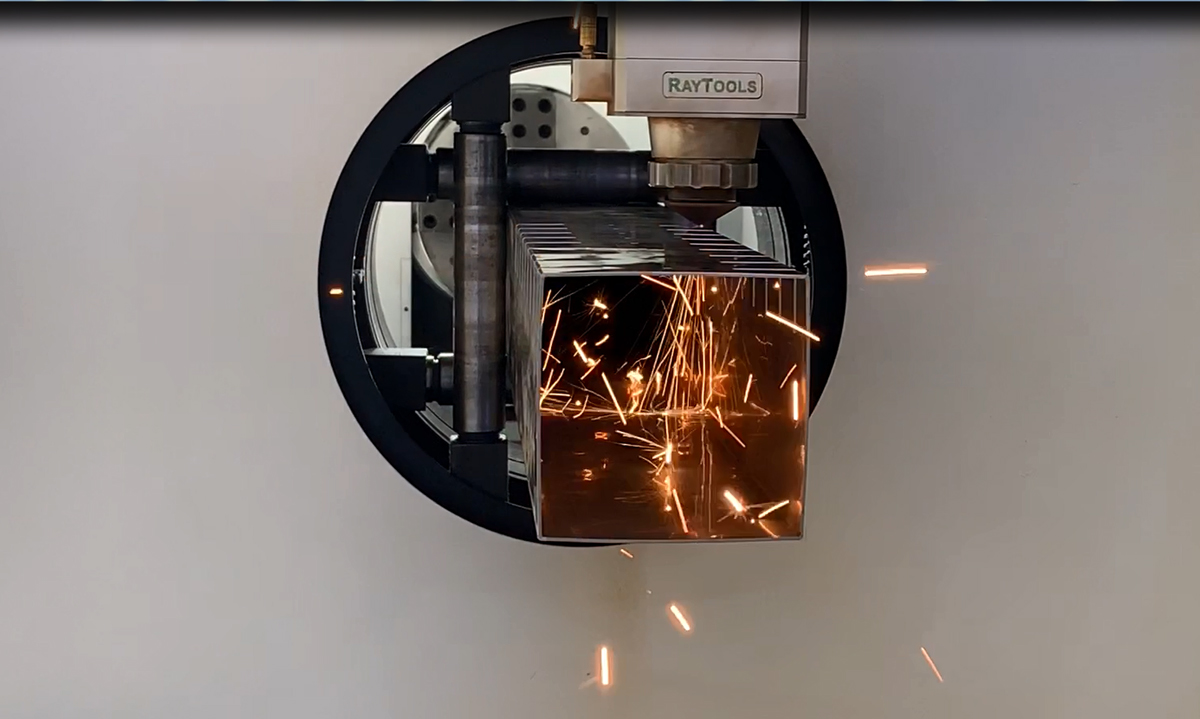

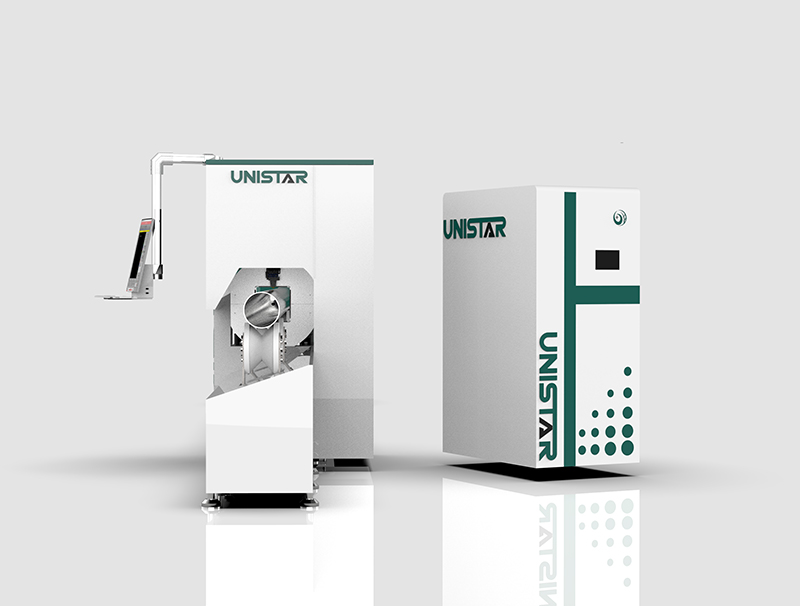

How Does Tube Laser Cutting Work?
Laser pipe cutting machine is realized by applying high power density energy generated by laser focusing. Under computer control, the laser is discharged through pulses, thereby outputting a controlled repetitive high-frequency pulse laser to form a beam of a certain frequency and a certain pulse width. The pulse laser beam is transmitted and reflected through the optical path and focused on the processing area through the focusing lens group. On the surface of the metal pipe, tiny, high-energy-density light spots are formed. The focal spots are located near the surface to be processed, and are processed by instantaneous high-temperature melting or vaporization.
The high energy laser pulse instantly sputtered a small hole on the surface of the object, under the control of the computer, the cutting head of the tube laser cutting machine and the processed material according to the pre-drawn graphics for continuous relative motion dot, so that the object will be processed into the desired shape
How Does Tube Laser Cutting Work?
Laser pipe cutting machine is realized by applying high power density energy generated by laser focusing. Under computer control, the laser is discharged through pulses, thereby outputting a controlled repetitive high-frequency pulse laser to form a beam of a certain frequency and a certain pulse width. The pulse laser beam is transmitted and reflected through the optical path and focused on the processing area through the focusing lens group. On the surface of the metal pipe, tiny, high-energy-density light spots are formed. The focal spots are located near the surface to be processed, and are processed by instantaneous high-temperature melting or vaporization.
The high energy laser pulse instantly sputtered a small hole on the surface of the object, under the control of the computer, the cutting head of the tube laser cutting machine and the processed material according to the pre-drawn graphics for continuous relative motion dot, so that the object will be processed into the desired shape
Benefits of Steel laser Tube Cutting Machine
● Precision Cutting .The cutting precision is high, the size is accurate, the cutting plane is smooth, the tube loss is small, and the material is saved
● Adjustable size. To adapt to different cutting requirements; Metal tube laser cutting machine process length can be 6000mm* φ10~220mm( Square tube:10*10-150*150mm) The standard tube length is 6m, and 9m, 12m, length can be customized, Tube diameter have 160mm, 230mm, 300mm, 350mm, 500mm. Which can satisfied different pipe sizes.
● Cutting different thicker. The dynamic focusing device of the pipe laser cutting machine is followed, so it can handle materials of different thicknesses, basically not limited by the thickness of the material.
● Versatility – Laser tube cutting machine can be used to cut a wide range of materials, including metals such as steel, aluminum, copper, and brass and so on. This versatility allows manufacturers to produce an array of products with a single technology.
● Highly cost effective. The application range of pipe laser cutting is wider, in addition to the material, thickness, but also in the shape, size and other aspects are not easy to be limited. Because the pipe laser cutting has high precision, the products after processing rarely need follow-up processing, which greatly saves time and cost, and is a cost-effective pipe fitting processing equipment.
● More Safety – Laser tube cutting is a non-contact process, meaning there is no physical pressure or interaction between the cutting tool and the material being cut. This eliminates the risk of damage to the material or injury to the operator. Additionally, laser tube cutters often have enclosed cutting areas, which further enhances safety.
● Cost savings: Laser tube cutters are an investment in improving manufacturing processes. They can eliminate labor-intensive manual cutting, reduce material waste, and improve yields, ultimately leading to cost savings in the long term.
What you can make with a laser cut steel tube?
Applicable industry of laser pipe cutter

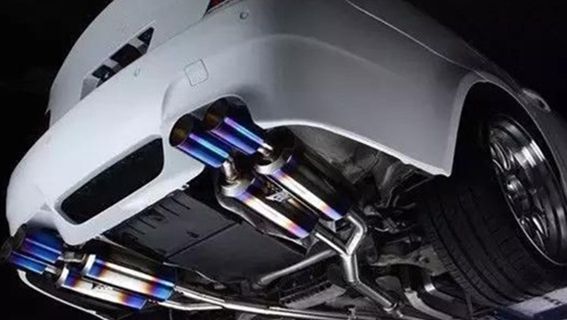

Automotive Industry
Laser pipe cutting machines are widely used in the automotive industry for cutting pipes of various shapes and sizes. The machines are used for cutting exhaust pipes, air conditioning pipes, brake lines, and more. The accuracy and speed of the laser pipe cutting machines have made it possible for the automotive industry to quickly and efficiently produce pipes for their products.

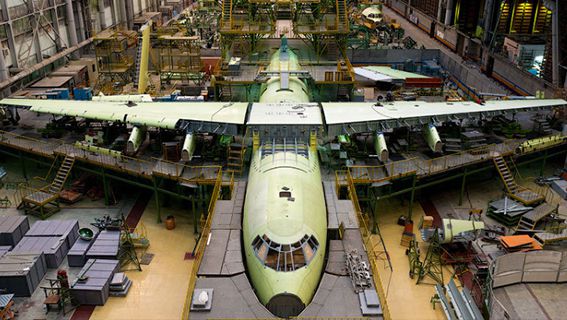

Aerospace Industry
In the aerospace industry, precision and accuracy are crucial factors. Laser pipe cutting machines are widely used for cutting pipes for aircraft engines, hydraulic systems, and fuel systems. The machines can cut extremely complex pipe designs with precision and speed, making them a valuable asset in the aerospace industry.

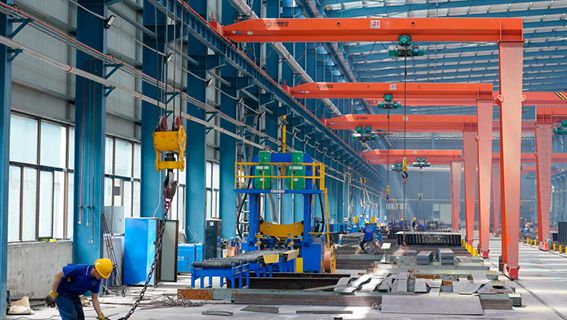

Manufacturing Industry
In the general manufacturing industry, laser pipe cutting machines are used for cutting pipes in a wide range of applications. The machines are used for cutting pipes for furniture, construction equipment, and more. The machines' speed and accuracy help manufacturers produce pipes quickly and efficiently, reducing production time and costs.

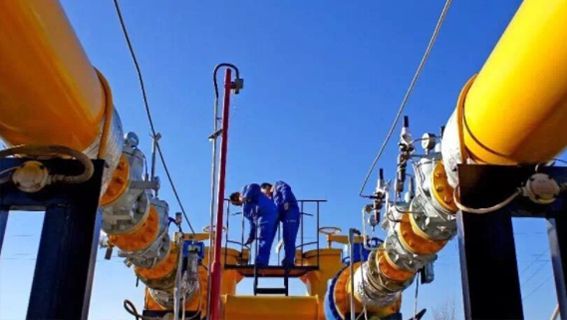

Oil and Gas Industry
The oil and gas industry is an industry based on the transportation of oil and gas products through pipelines. Laser pipe cutting machines are widely used for cutting pipes in this industry. The machines can cut pipes of various materials, including steel, aluminum, and stainless steel, with precision and speed.

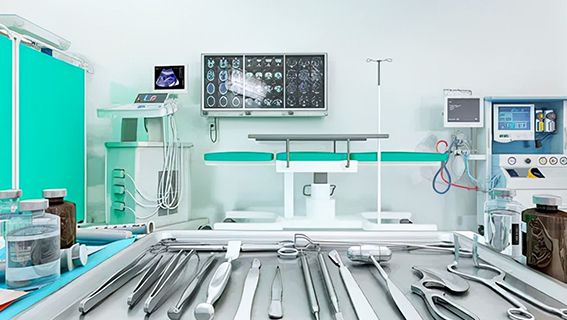

Medical Industry
The medical industry is also utilizing laser pipe cutting machines for manufacturing surgical instruments and medical devices. The machines can cut pipes of small sizes with precision, making it possible to produce intricate designs on the pipes.

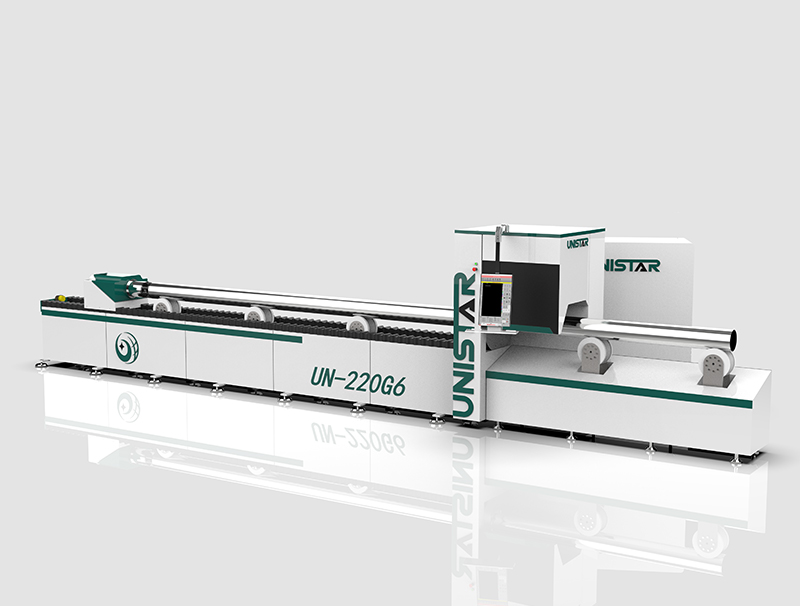

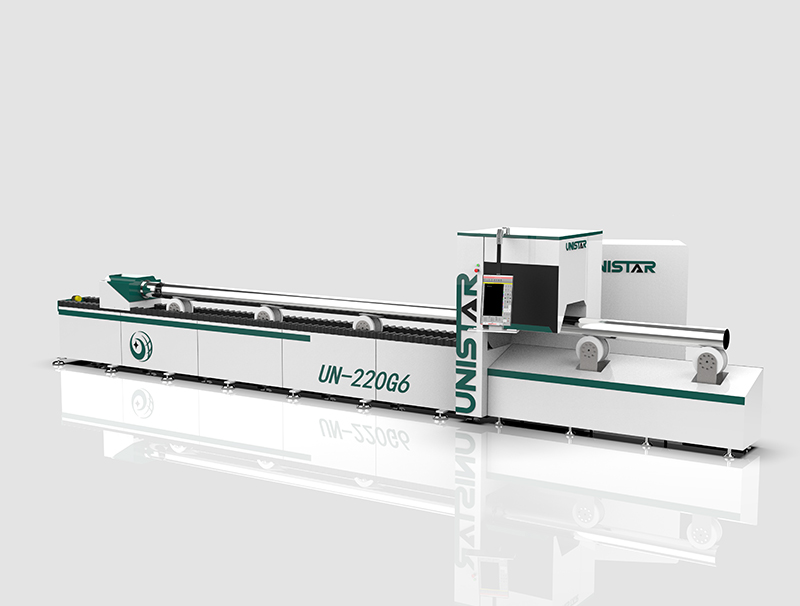

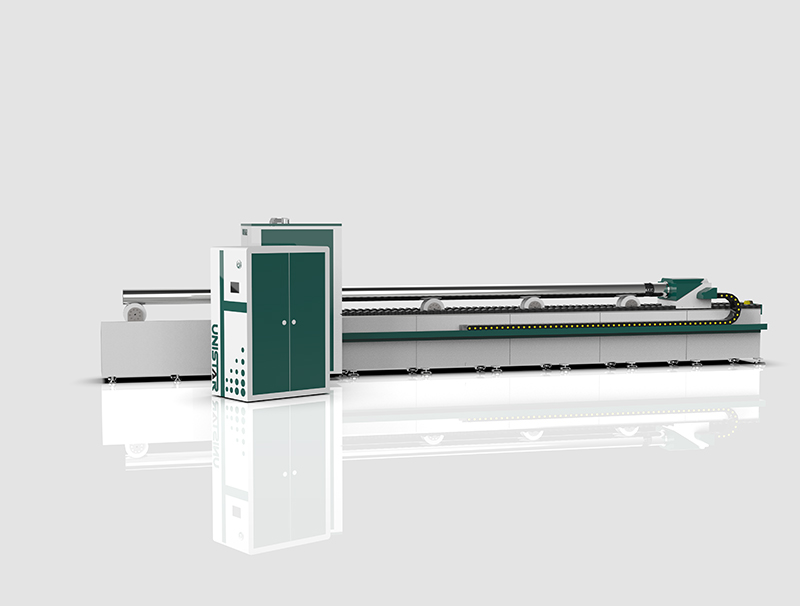

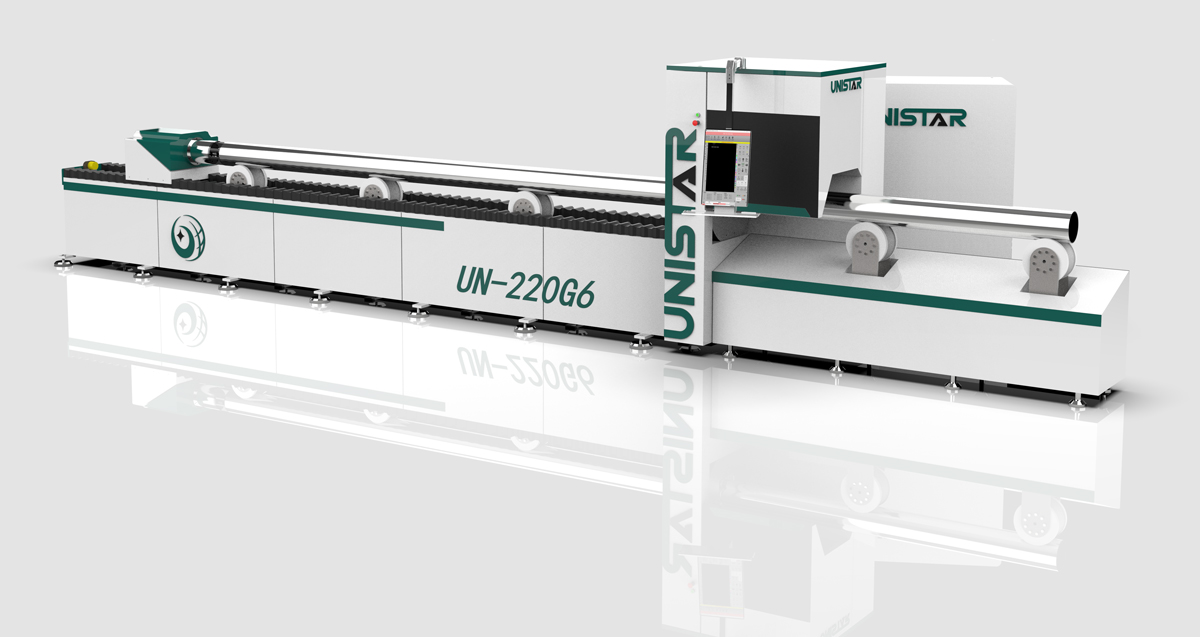

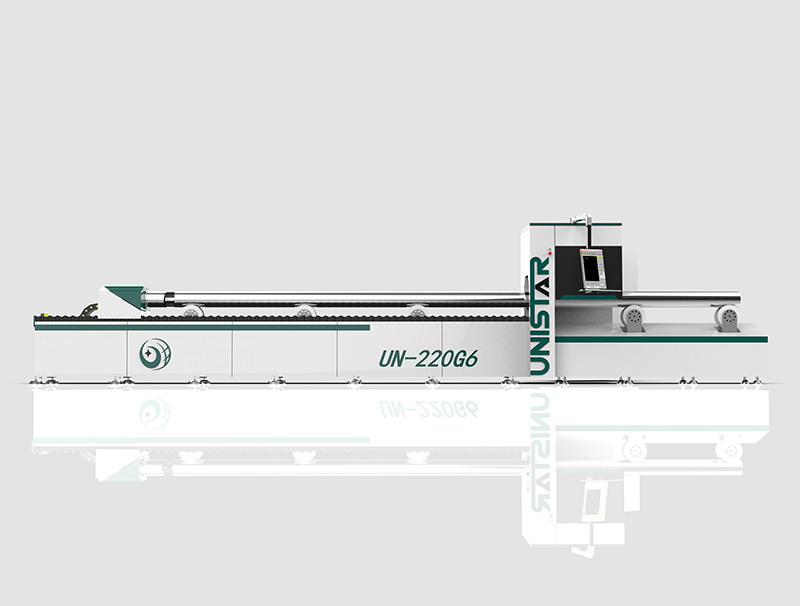

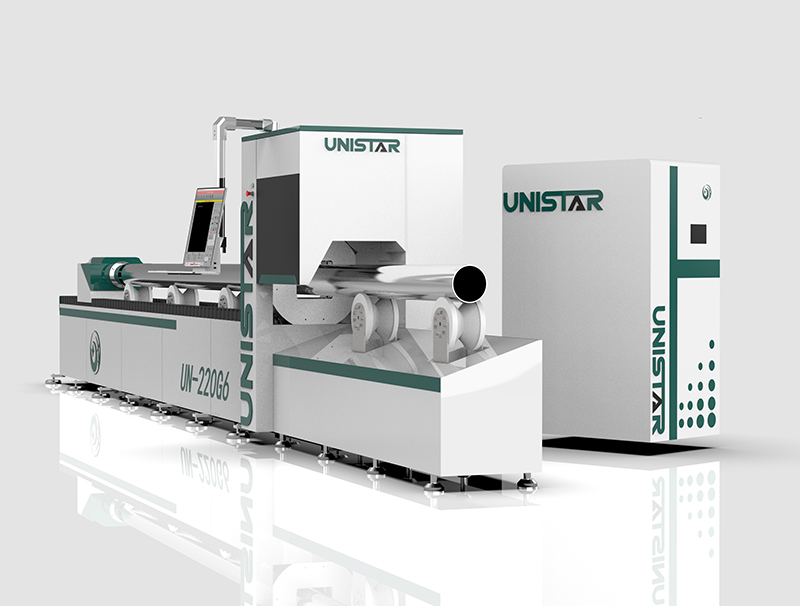

Steel laser tube cutter Specifications
| NO. | Name | Model | Quantity | Remark |
| 1 | UN-220G6 | 1 set | UNISTAR | |
| 2 | 3000 W | 1 SET | Raycus/Max/IPG | |
| 3 | Laser Head | BM110 | 1 set | Raytool |
| 4 | Control system | 3000DE-M | 1 SET | Bochu |
| 5 | Machine tool accessories | Y-axis high-speed servo drive system | 1 SET | Taiwan Delta Bus/ Japan Yaskawa |
| 6 | W axis high speed servo drive system | 1 SET | Taiwan Delta Bus /Japan Yaskawa | |
| 7 | X axis high speed servo drive system | 1 SET | Taiwan Delta Bus /Japan Yaskawa | |
| 8 | Z-axis high-speed servo drive system | 1 SET | Taiwan Delta Bus /Japan Yaskawa | |
| 9 | Reducer | 3 SET | Japan Shimpo | |
| 10 | Electrical control element | 1 SET | Omron/Schneider | |
| 11 | Electric proportional valve | 1 SET | SMC | |
| 12 | Rail Guide | 1 SET | Taiwan Hiwin | |
| 13 | Rack | 1 SET | Taiwan YYC | |
| 14 | 220 Pneumatic chuck | 1 SET | BEUT | |
| 15 | 6 meter pipe cutting platform | 1 SET | UNISTAR | |
| 16 | Automatic loading rack | 1 SET | Option | |
| 17 | Water Chiller | Hanli water chiller | 1 SET | Wuhan /Hanli |
| 18 | Voltage Stabilizer | 40KVA | 1 set | UNISTAR |
Technical Parameters

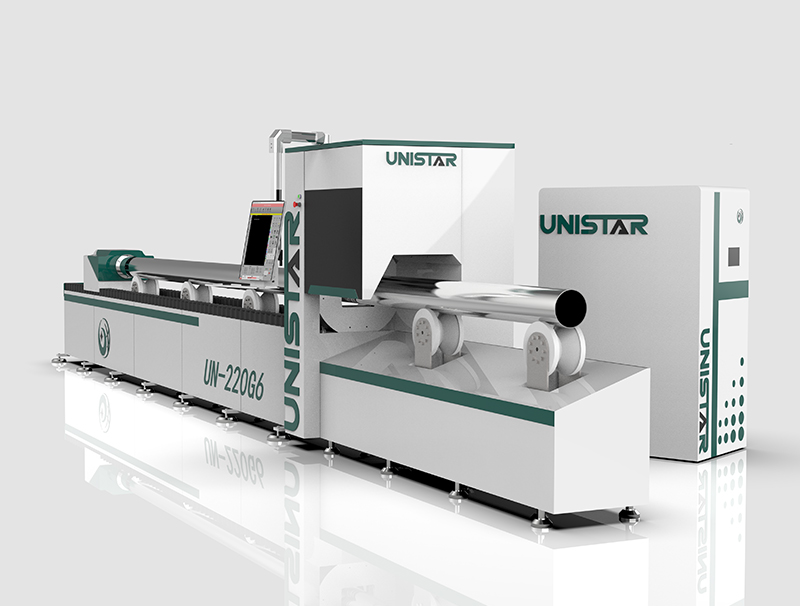

| Name | Pipe laser cutter Parameter （UN-220G6） | Remark |
| Scope of pipe processing | Round tube：φ10-φ220 Square tube : 150*150 The outer circle is less than φ220I-beam/channel steel: No. 14 Max | Standard national standard pipe |
| X-axis travel | ≤260mm | |
| Y-axis travel | Y:6000mm | |
| B Stroke | Wireless rotation | |
| Z-axis travel | ≥260mm | |
| Rotation precision | ≤0.1mm/m | |
| repeated positioning accuracy | ≤0.05mm/m | |
| Maximum empty running speed | 80m/min | With the increase of pipe weight, processing speed and empty stroke motion parameters should be reduced accordingly |
| Maximum idling speed | 75r/min | |
| Fabrication length | 3000mm | Option |
| Tail length | 100mm | According to the processing pipe, it is realized under the condition of reasonable process layout |
| Maximum mass of a single tube | 300kg | |
| Power supply | ||
| Rated supply voltage | 3phase 380V | |
| Frequency | 50Hz | |
| Total power supply protection class | IP54 | |

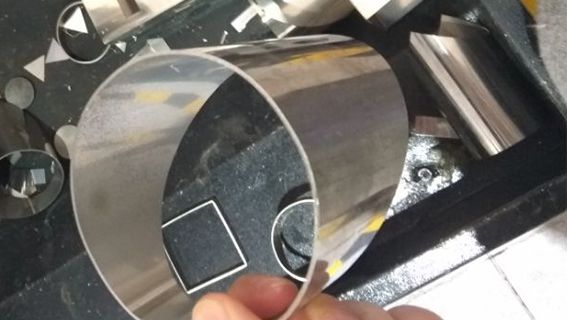

Steel Tube Laser Cut Projects

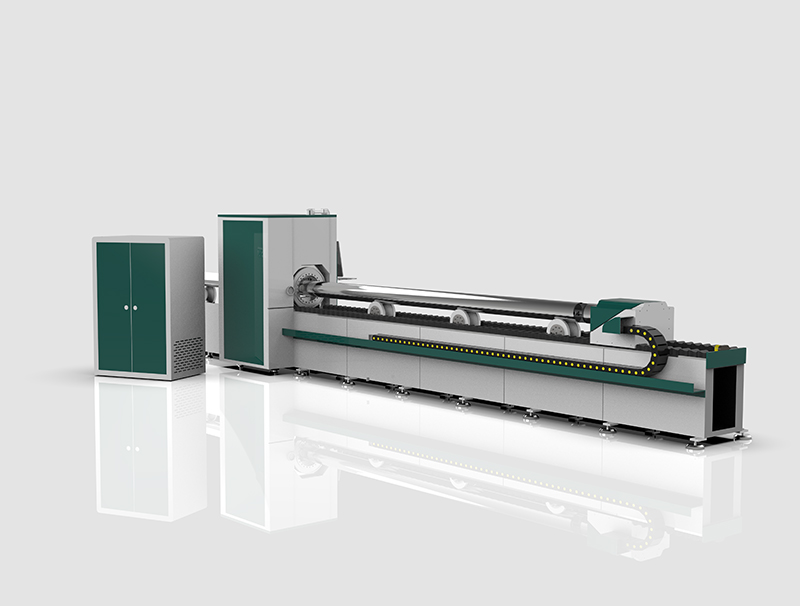

Component of Fiber Laser Tube Cutting Machine
The integral pipe welding structure is verified by finite element analysis. Annealing to eliminate internal stress after finishing, better solve the stress caused by welding and processing, thereby improving the rigidity and stability of the equipment, longer service life

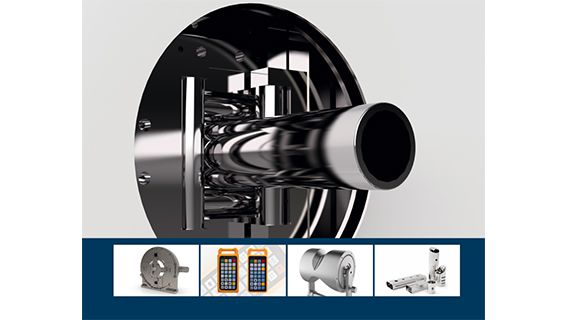

Fully Automatic Pneumatic Chuck
1. Automatic double pneumatic chuck, stable and efficient. One key open clip, automatic centering, speed is 3 times that of electric chuck
2. Both the front and rear chucks are geared, and the output torque of 2M straight gear transmission has a small fluctuation range and high precision.
3. The gripper of the front pneumatic chuck is designed with square holes, which greatly improves the gripper specifications of the square pipe and has a wider application range.

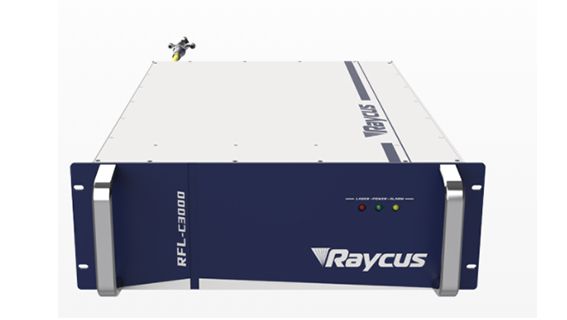

Laser Source
Raycus /Max/Germany IPG
Compared with traditional lasers, fiber lasers have higher photoelectric conversion efficiency, lower power consumption and higher beam quality. Fiber lasers are compact and ready for use. Due to its flexible laser output mode, it can be easily integrated with the system equipment
Auto Focus Laser Head
Excellent design: Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency;
Auto focus: auto focus, reduce human intervention, auto focus range -12~+10mm, focusing accuracy 0.05mm;
Multiple protection lens: collimation increase protection lens, effectively protect the collimation lens;
Drawer type mirror holder: Quick and simple replacement of protective lenses;
High adaptability: With QBH and QD and other fiber interfaces, can be adapted to a variety of mainstream lasers.
Cypcut FSCUT 3000S control system
1) Supporting high-precision and high-efficiency cutting of square tubes, round.tubes, runway-shaped and oval-shaped stretched tubes.

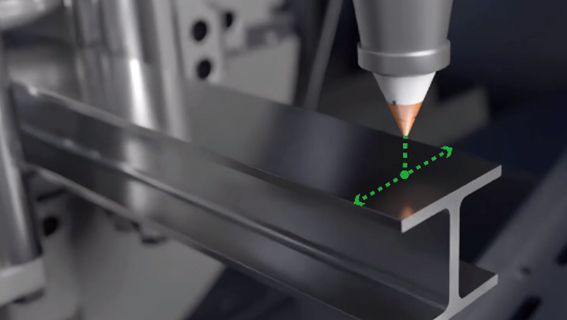

2) Support L steel, channel steel, I-steel and other special steel search, improve the cutting accuracy of special steel
3) Single-side centering can effectively solve the problem of precision of hole position and improve the precision of the distance to the edge of hole position
4) Support a variety of special-shaped steel cutting. Such as I-steel, channel steel, Angle steel, oval pipe, waist pipe, polygon pipe, etc., and for these special-shaped pipes can also be automatically located

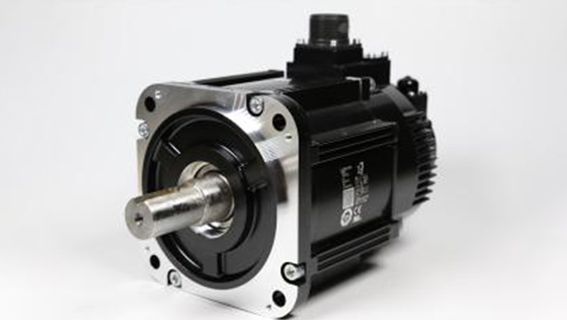

Driver system
Motor of X axis:Taiwan delta 850W Servo motors and drivers
Motor of Y axis: Taiwan delta 850W Servo motors and drivers
Motor of Z axis: Taiwan delta 400W Servo motor and driver
Motor of Front Chuck: 1.8KW Taiwan delta Servo motor and driver
Motor of Behind chuck: 1.3KW Taiwan delta Servo motor and driver

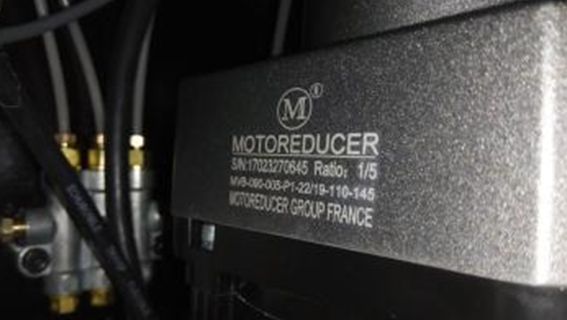

Reducer
100000 hours life time
More stable and cost-efficient
Free maintenance

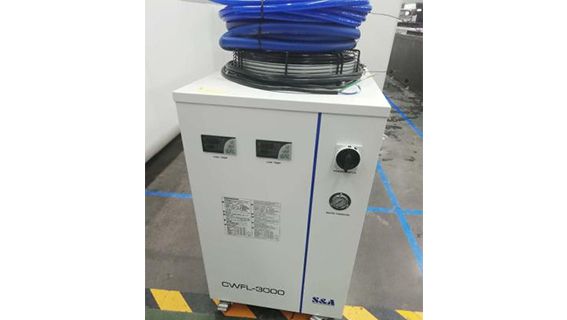

Water cooling system
Professional cooling systems, the water temperature in excess of the prescribed temperature refrigeration unit automatically when cooling, refrigeration unit automatically stops when the water temperature below the specified temperature refrigeration.

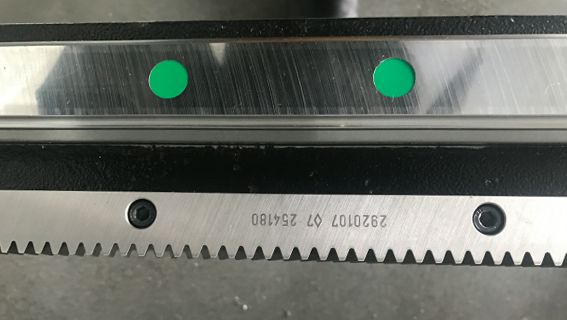

Rail guide and Rack
Rail guide: Taiwan import Hiwin rail guide
High positioning accuracy, less wear can maintain accuracy for a long time
It can bear the load in the left and right directions at the same time, easy assembly and interchangeability, simple lubrication structure
YYC helical rack : The accumulated precision error of grinding level is 0.022mm/300mm
The helical rack has the advantages of large contact surface, small noise, small gap and strong bearing capacity compared with the straight rack
Manufacturing Process of UNISTAR Steel Laser Tube Cutting Machine
Install the base foot of the bed. Adjust the height of the base foot according to the test result of the laser level to ensure the accuracy of subsequent installation

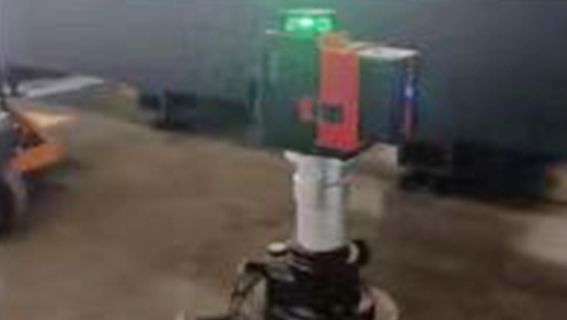

Guide rail installation
Using the photoelectric auto collimator to detect the straightness and flatness of the guide rail, to ensure that the detection value is within the standard range

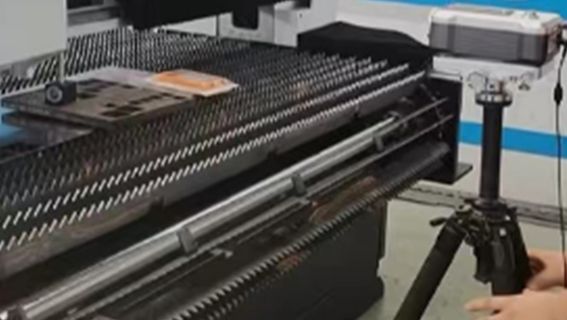

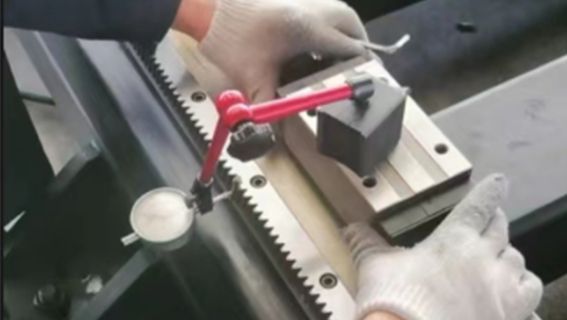

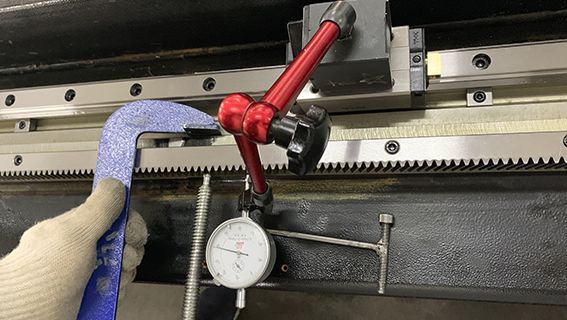

Rack Setting
Each screw hole is marked,Small companies do not dial the meter or dial the meter several meters, The relative position of the guide rail and the rack is fixed by the measuring rod and the multi-point position is picked up, and the data statistics and analysis are carried out after the distance is detected by the dial indicator to ensure that the two are parallel

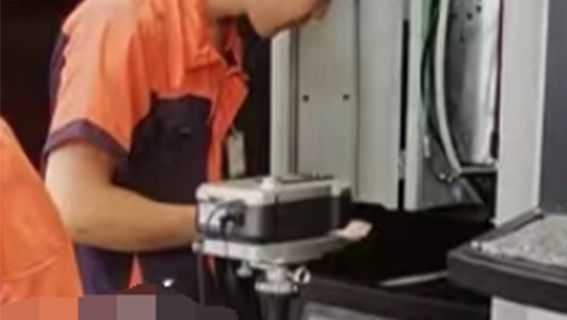

Positioning accuracy detection
The error of straightness and verticality measured by laser interferometer is one micron.
Test the positioning accuracy of X.Y axis to ensure the running accuracy of the whole machine

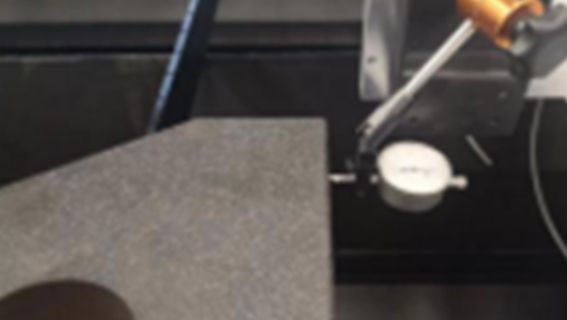

Verticality detection
After the beam is installed, the coaxiality test is carried out by using the coordinate measurement method to ensure the relative perpendicularity of Z,Y and Z axes
Electrical circuit assembly
Reasonable layout, strong and weak electric separation, to ensure the stability of the product, easy maintenance and strong anti-interference ability, each electrical component has a definition and mark, easy to maintain later
Whole machine quality inspection
Laser power meter test. Ensure that the laser output power of the laser is within the specified range
Debug Cutting sample
Debugging department test cutting all kinds of plate samples, a test machine running quality and cutting accuracy
WHY CHOOSE US?
Quality guarantee
Committed to quality
We partner with the best parts Supplier.
The installation and commissioning of the equipment are by professional technical engineers, with more than 10 years of rich experience, keep high accuracy.
Competitive Pricing
Pre-buying, Sale teams online support to answer any of your questions, offer free sample test , after-buying, we have Follow up service personnel to report equipment production status
Complete after-sales service
Machine Warranty Time 3 years
Technical engineer 24 hours online support and service.
Offer oversea learning and training.
A variety of after -sales service channels, QQ, Skype, whatsapp,
E-mail, Viver, remote control systemOnline video conference, Multiple ways to help customers solve problems
Reputation and trustworthiness
UNISTAR equipment is sold all over the world, different continents and countries have our products, and there are distribution stations and service stations in many countries, obtain consistent praise and recognition, customers can also purchase locally, saving a lot of time and cost
Customer maximum benefit
We are not only sell products, our main goal is to carrya out customized solutions to help customers. According to the detailed needs of customers, engaged in the industry, comprehensive analysis, to develop the most efficient and use of the program, to achieve maximum value.
Innovative and passionate Team
We have an innovative and passionate young team. Our enthusiasm and professional working attitude will make you feel that it is a pleasure to work with us. Not only can you buy the right product for you, but you can also feel the power of our team and corporate culture
Laser Tube Cutting FAQ
Q1: What kind of material can a laser tube cut?
A1: It can cut Stainless steel, carbon steel, galvanized sheet, gold, silver, copper and aluminum all kinds of metal pipe.
Q2: What are the wearing parts of the laser pipe cutting machine
A2: Nozzle, Ceramic ring, protect lens and optical element.
Q3: Did Your Factory Accept OEM Production?
A3: Yes, we can customize the machine and logo according to customers' requirements
Q4: What is Max Traveling speed of X,Y, Z axis?
A4: X axis and Z axis speed can up to 80m/min, Y axis back chuck moving speed is about 80m/min
Q5: Does Pipe Laser Cutting need gas assisted cutting?
A5: YES, Cutting carbon steel Pipe need O2, stainless steel tube choose N2 or Air
Option is air compressor, but it's better to choose gas. this cutting effective is better
Q6: What Are the Optional Accessories for Metal pipe cutter?
A6: It is mainly contain air compressor, pressurizer, also can choose up and down loading device (for Automatic feeding saves labor and time).
Q7: How length of Metal Tube can I Process?
A7: Generally, The Steel Pipe length we can can do is 6m/9m/12m, pipe diameter have 160mm，230mm,350mm,450mm，500mm, 850mm so on, We will equip suit rotary length according to customer request.
Q8: What kind of Training and After-Sales Service do you offer
A8: We Support Engineer online training and guide, and also when shipping we will send training video, user's manual instruction along with the machine. 90% customer can learn it well. we can send engineer oversea training if customer needed.
Q9: What Should You Pay Attention to When Cutting?
A9: Before starting the machining process, it's important to verify that the selection procedure is correct, the process parameters have been correctly named, the external auxiliary gas is available, and the position of the plate is accurate.
To prevent deformation of the sheet during machining, which could result in collisions, it's crucial to avoid any disturbances. When the machine is in operation, the operator should remain attentive and not leave the machine, ensuring their personal safety at all times.
Q10: Why recalibrate when changing different cutting materials and different types of nozzles? What should you do if the automatic calibration is not successful?
A10: The height is monitored using a capacitive sensor, which is influenced by the material, the surface area in contact, and the distance between the sensor and the material.
Different nozzles have varying contact areas, so changing nozzle types requires re-calibration.
If automatic calibration fails, perform manual calibration by executing the M70 command in manual data input (MDI) mode, or switch to manual calibration.
