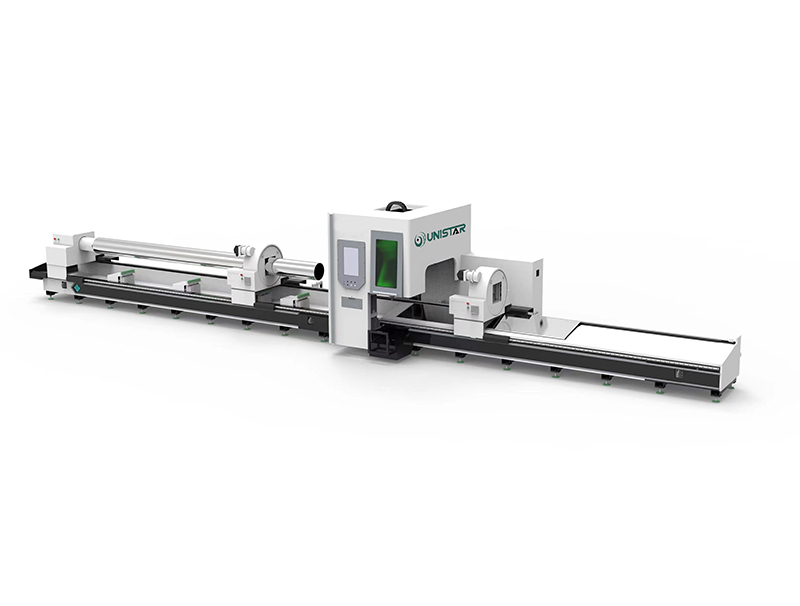

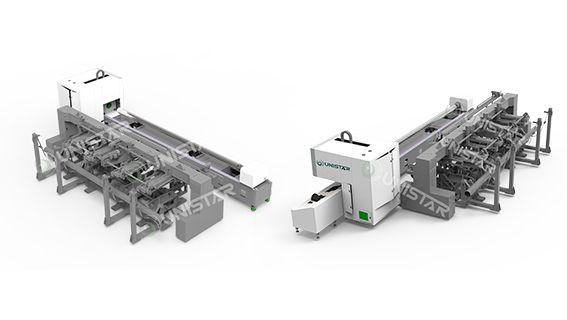

Three chuck laser pipe cutting machine is mainly design for thick, large heavy tube cutting and realize zero tail cutting, improve material utilization It with two pneumatic chucks Font and back, one electric chucks in the middle, three chucks can be clamped and cut at the same time, cutting accuracy is high.
What is Three Chucks Fiber Laser Tube Cutting Machine?
Three chuck laser pipe cutting machine is mainly design for thick, large heavy tube cutting and realize zero tail cutting, improve material utilization It with two pneumatic chucks Font and back, one electric chucks in the middle, three chucks can be clamped and cut at the same time, cutting accuracy is high. The chuck has the function of self-adjusting center, which can realize fast centering and clamping, maintain the horizontal state of the pipe during the cutting process, The system has automatic edge finding function to reduce the collision of cutting head.
Professional Three chuck laser tube cutter is mainly used for Metal square pipe, round pipe, rectangular pipe, oval pipe, waist pipe, D pipe, hexagonal pipe and other special-shaped pipe cutting, support pipe truncation, hole cutting, hollowing, cutting shape.
Fiber Tube Laser Cutter can equip 1000W,1500W,2000W,3000W,4000W different laser power to meet the different thickness of the pipe cuttings . Three-chuck pipe cutting machine can also be equipped with automatic loading and unloading functions to improve cutting efficiency and save time.
Benefits of Fiber Laser Tube Cutter for Heavy duty
✔ The chuck has a self-adjusting center function for rapid centering and clamping.
With automatic centering function.
✔ Built-in complete cutting process parameter library, with humanized parameter interface, according to the type of pipe to achieve "one-click setting" processing technology, the production process is more intelligent and efficient
✔ Segmented feeding and cutting improve cutting accuracy.
✔ The three-chuck structure combined with the double clamping function of the middle chuck can assist in correcting the self-deformation of small pipes and improve cutting accuracy.
✔ Able to achieve zero tail cutting and improve material utilization rate
✔ Advanced servo auxiliary support device is adopted to ensure effective support, prevent pipe sag and ensure processing accuracy
✔ High-speed fully automatic cutting, meeting the needs of cutting round tubes, square tubes, rectangular tubes and other special-shaped pipes.
✔ Simple operation, convenient, low maintenance costs.
✔ Professional pipe cutting programming software, support Angle steel, channel steel, I-steel and shaped pipe cutting processing, can effectively save materials, improve cutting efficiency.
Laser Tube Cutting Machine Features

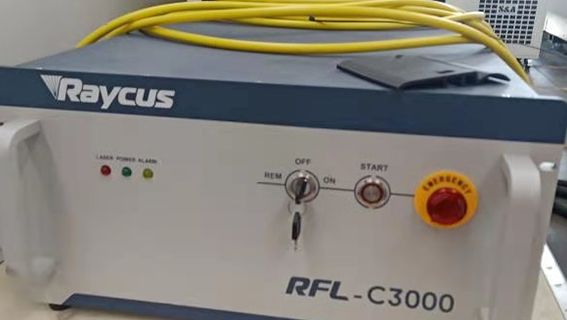

Laser Source
● Adopt Raycus/Max/ IPG different brand Laser Source, Supply laser power from1kw to 12kw, and more higher 15kw, 20kw, 30kw.
● It has higher photoelectric conversion efficiency, lower power consumption and higher beam quality. Fiber lasers are compact and ready for use. Due to its flexible laser output mode, it can be easily integrated with the system equipment

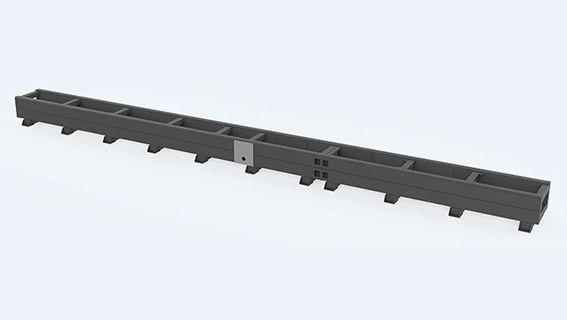

Steel Tube Laser Cutter Machine bed
The high-strength pipe splicing bed is processed by high-temperature tempering to reduce the internal stress of the bed and avoid deformation, ensure the stability of the machine base for long-term use.

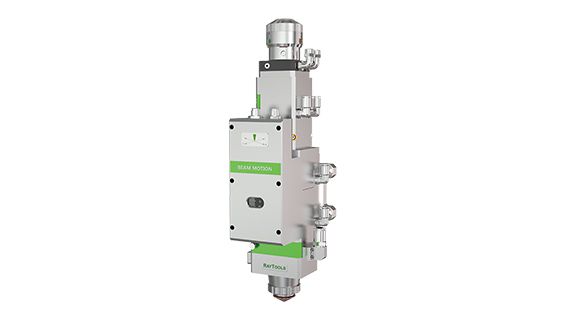

Raytool Laser Head
● Multiple protection lens: collimation increase protection lens, effectively protect the collimation lens;
● Drawer type mirror holder: Quick and simple replacement of protective lenses;
● High adaptability: With QBH and QD and other fiber interfaces, can be adapted to a variety of mainstream lasers

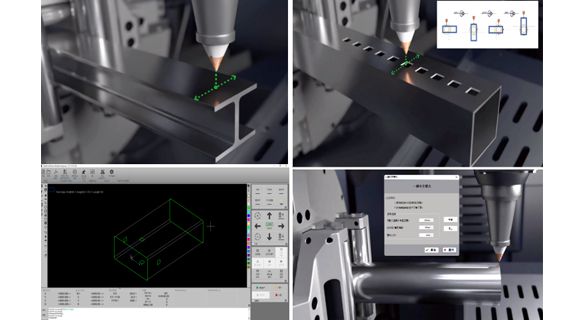

Professional Cypcut systems and TubesT nesting software
● Supports cutting of square tubes, round tubes, oval tubes, L steel, channel steel, I-beam and other special steel pipes
● Single-sided centering can effectively solve the problem of pipe hole position accuracy and improve the accuracy of the hole position edge distance.

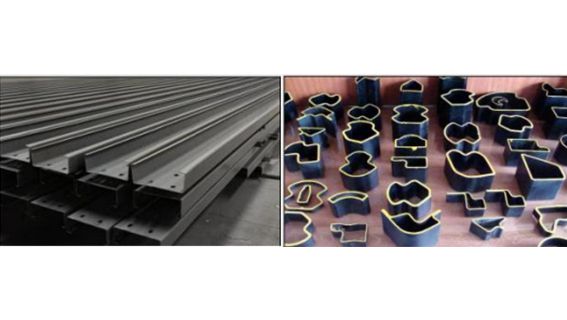

Support a variety of special-shaped steel cutting
Such as I-beam, channel steel, angle steel, oval tube, waist-shaped tube, polygonal tube, etc., and Automatic centering can also be performed for these special-shaped pipes.

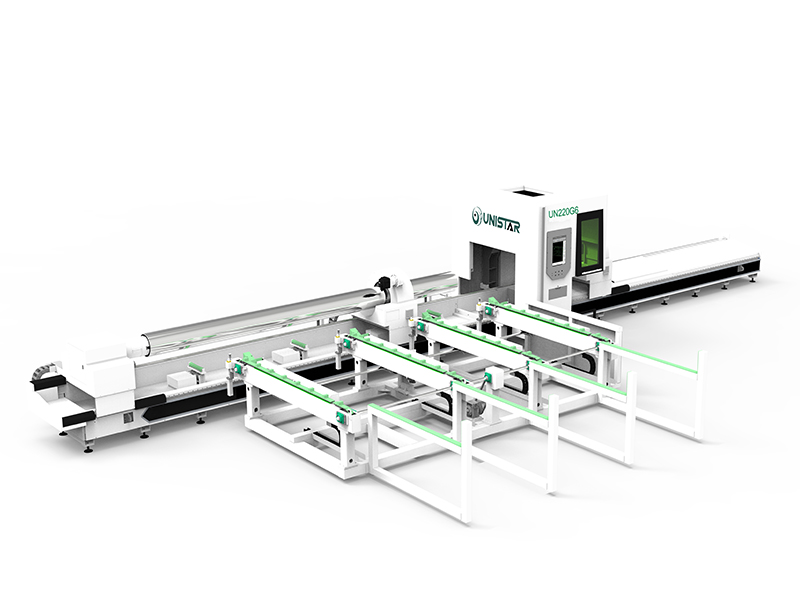

Option parts (Automatic loading system)
● Adopt advanced high-speed motor control, manual feeding, automatic feeding and automatic clamping of the pipe to meet the automatic positioning of the pipe
Function of center
● The automatic manual feeder can realize the specified position on the other pipe and round pipe, and realize the self-determination of the pipe center to prevent feeding
Process pipe into the chuck offset, resulting in damage to the chuck
● The automatic manual loading machine can input the specified material specifications in the software control interface, and the loading machine can automatically adjust the material to match the pipe material.height, and can effectively ensure the reliability of the support. The loading machine has flexible control spacing and adjustment spacing to adapt to different loading length

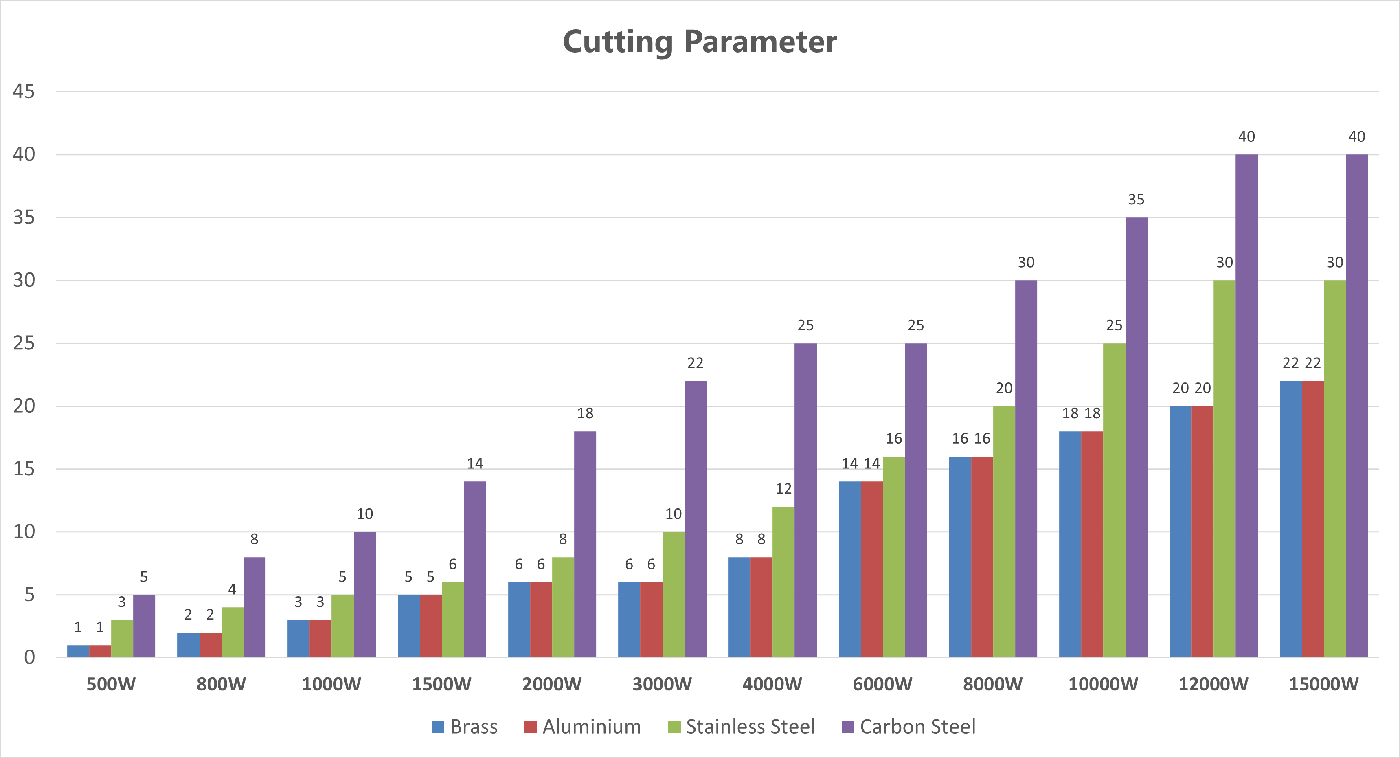

Technical Parameter
| Model | UN-220G6 | UN-250G12 | UN-350G12 |
| Power | 2000W-6000W | 2000W-6000W | 2000W-6000W |
| Effective diameter of circular tube cutting | Φ15-230mm | Φ15-250mm | Φ15-350mm |
| Effective cutting diameter of square pipe | □15-230mm | □20-250mm | □15-350mm |
| Positional accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeated positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Maximum moving speed | 110m/min | 110m/min | 80m/min |
| Maximum Acceleration | 1.5G | 1.5G | 0.8G |
| Laser Source | Raycus /Max/IPG | ||
| Laser Head | Raytool | ||
| Tail material | Zero Tailing | ||
| Chuck Load | 300KG | 900KG | |
Sample Display
Angle steel
I-beam
Round tube
Square tube
Special-shaped tube
Bevel angle 0-45 degrees
Aluminum tube
Brass
Brass
Where can Fiber Laser Pipe cutter Be Used
Automotive
Laser tube cutting machines are used to produce exhaust and intake systems, structural parts, and other components for the automotive industry.
Aerospace
The aerospace industry uses these machines to create complex geometries for aircraft parts, including aircraft frames, landing gear, and engine components.
Construction
Professional steel laser tube cutting machines are utilized in the construction industry to produce parts for large structures such as bridges, towers, and buildings. They are also used to create HVAC components, stair railings, and other architectural features.
Medical
The medical industry uses laser pipe cutter to create precision components for tools, implants, and devices that require high accuracy and minimal invasiveness.
Energy
Laser tube cutting machines are utilized throughout the energy industry, particularly in the production of solar panels and wind turbines.
Furniture
They are also used in the furniture industry for producing frames, legs, and other metal components for chairs, tables, and other pieces.
Sports equipment
The sports industry utilizes these machines to produce frame tubing, handlebars, and other components for bicycles, lawn mowers, and other athletic equipment.
Fiber laser tube cutting machines offer high accuracy, speed, and flexibility, enabling a broad spectrum of industries to utilize them for producing complex designs and parts. With ongoing advancements and technological innovations, this technology is expected to become more accessible to a larger range of industries.
